Hatco  |  Glo-Ray®  |  SKU: GRHDH-3P

Hatco GRHDH-3P Glo-Ray® Hot Food Displays

$4,161.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog brochure Parts list Color chart Owner's manual
Related Searches
Countertop Food Displays Countertop Food Warming Food Displays & Merchandisers Hot Food Displays Hot Food Displays Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

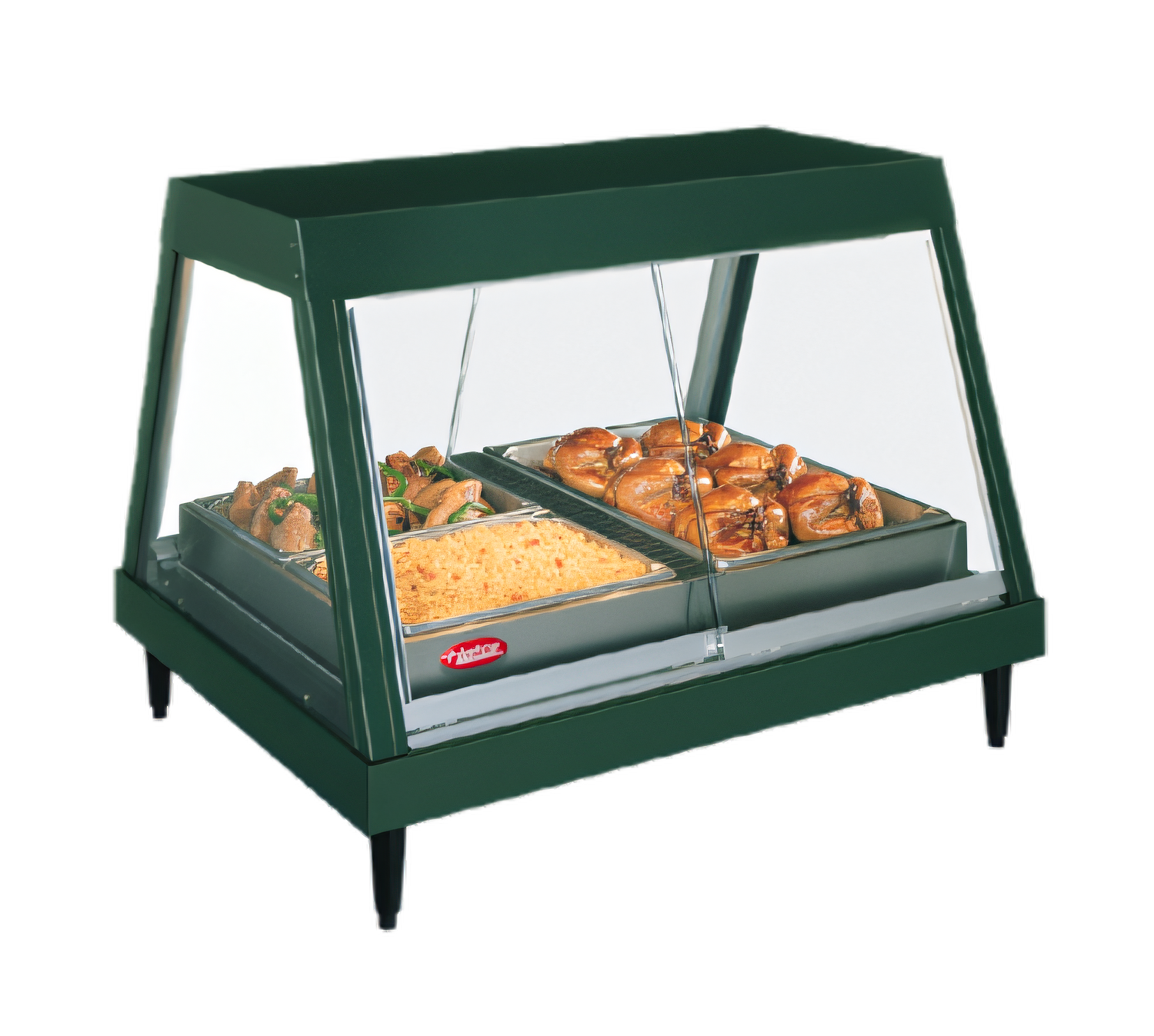

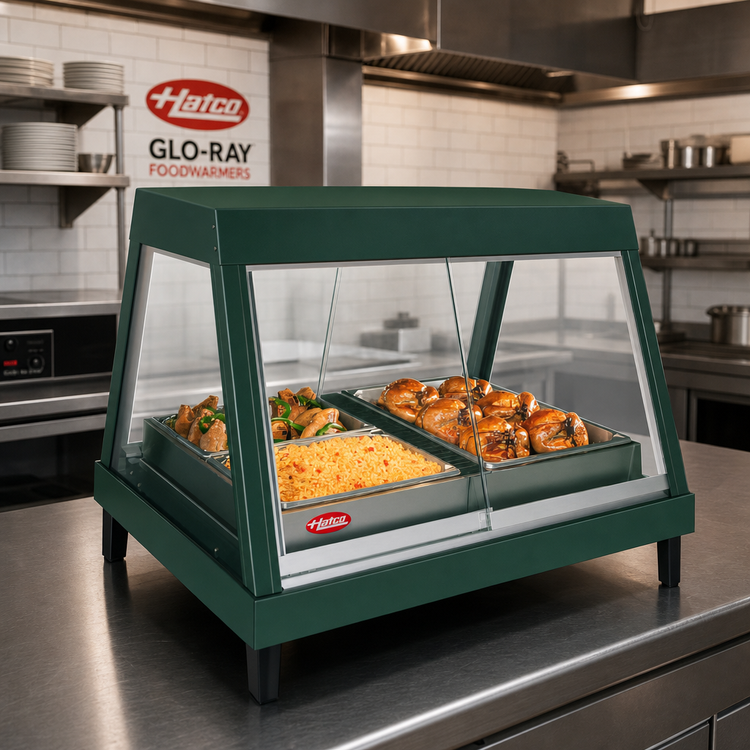

Hatco Glo-Ray® GRHDH-3P Humidified Heated Display Case

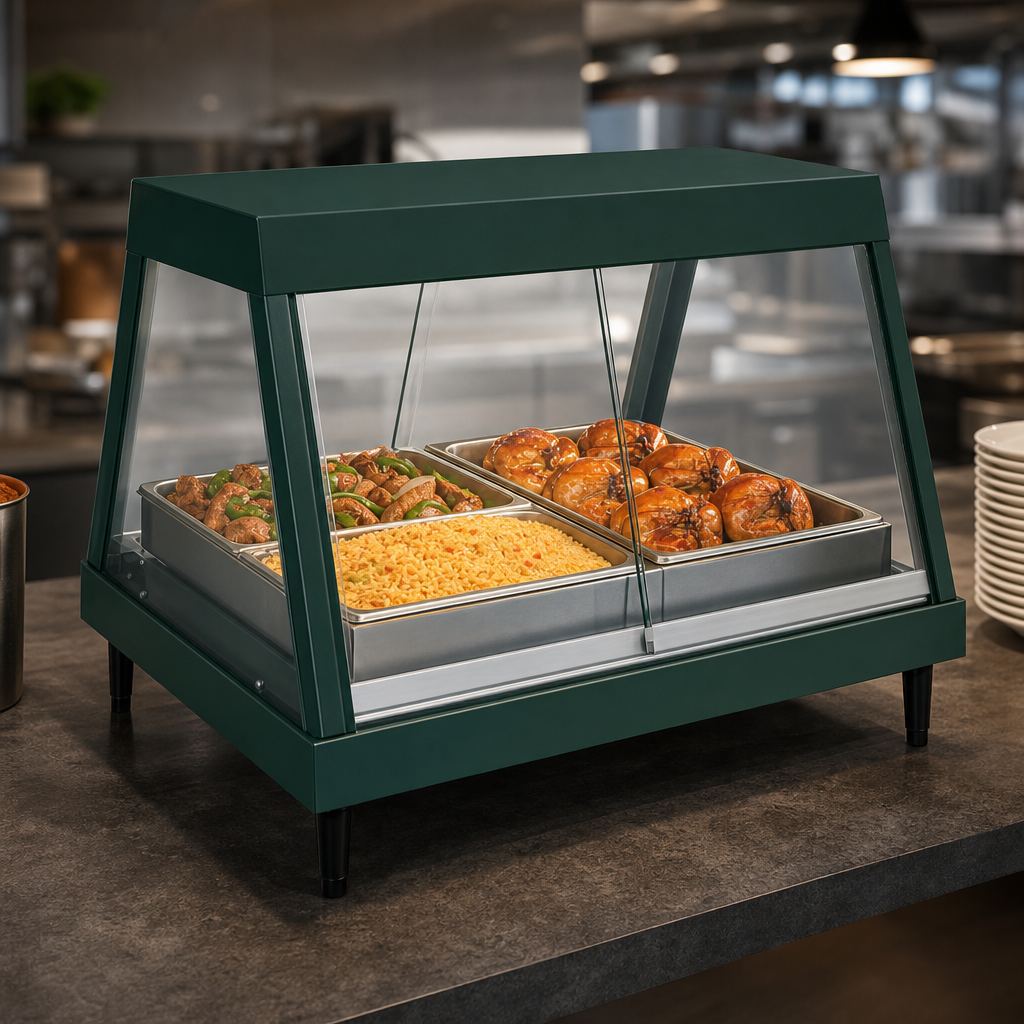

Countertop • Single Shelf / 3-Pan • 45.5 in Wide • 1600 W

Keep your signature entrées hot, moist and ready to serve. Hatco’s GRHDH-3P couples pre-focused infrared top heat with a thermostatically controlled base and a 3-quart humidity system, holding foods at “just-made” quality for extended periods while showcasing them through crystal-clear tempered glass.

Key advantages

  • 3-qt (2.8 L) humidity reservoir dramatically slows moisture loss and shrinkage.

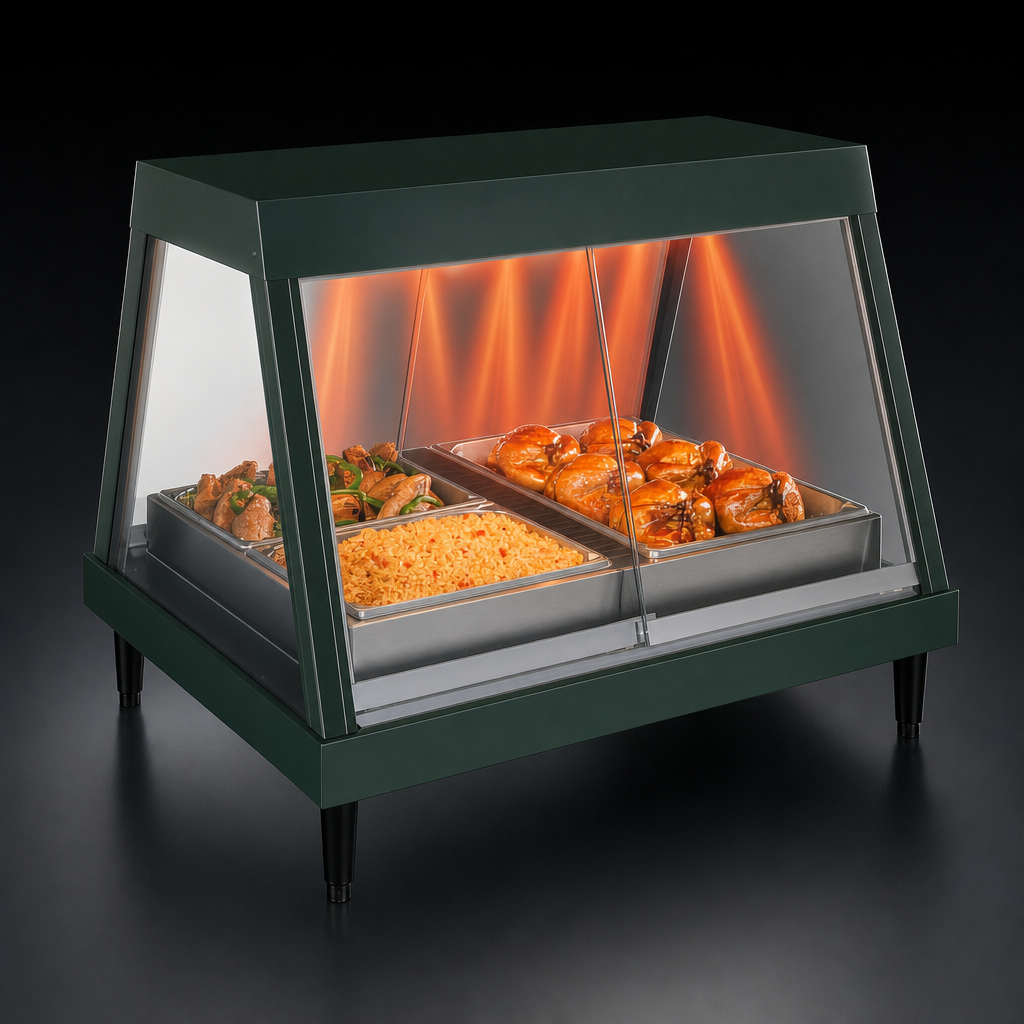

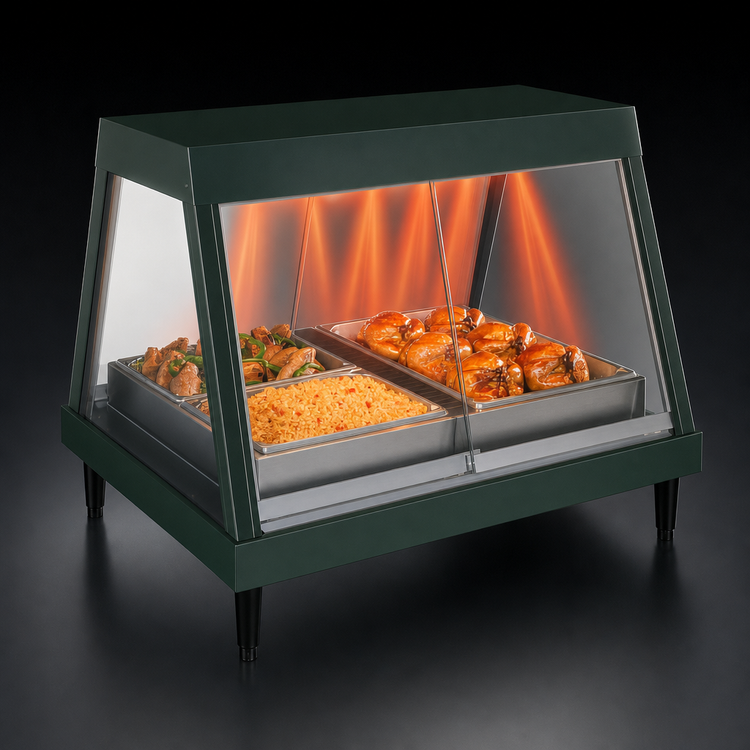

  • Pre-focused infrared element targets the outer edges where heat loss is greatest.
  • Thermostatically controlled base maintains 80 °F–200 °F (27 °C–93 °C).
  • Full-view tempered glass front & sides with rear rollerless sliding doors for fast access.
  • Cool-base stainless steel & aluminum construction keeps countertop temperatures comfortable.
  • Five shatter-resistant incandescent display lights enhance color and impulse sales.
  • Ships with adjustable 4 in (102 mm) legs and a pan rail for three full-size 12 × 20 in pans (pans not included).
  • Certified cULus & UL EPH Classified; proudly Made in the USA.

Specifications

Model GRHDH-3P
Capacity 3 full-size (12 × 20 in) steam-table pans – single shelf
Humidity Reservoir 3 qt (2.8 L)
Overall Dimensions 45.5 in W × 26 in D × 25 in H (includes 4 in legs)
Usable Heated Surface 41 in W × 21.5 in D
Heat Source Infrared top heat + thermostatically controlled heated base
Display Lighting 5 × shatter-resistant incandescent bulbs
Electrical 120 V / 1 ph / 1600 W / 13.3 A – NEMA 5-15P, 6 ft cord
Construction Stainless steel & anodized aluminum frame; tempered glass panels
Certifications cULus, UL EPH Classified, ANSI/NSF 4
Country of Origin USA

What’s in the box

  • Hatco GRHDH-3P display case
  • Adjustable 4 in legs (installed)
  • Pan rail for three full-size pans
  • 6 ft power cord with plug
  • Operator’s manual
Water quality note: Supply water must not exceed 3 grains per gallon (0.75 g/L) hardness. Harder water should be treated/softened to maintain performance and warranty coverage.

Need more capacity or a dual-shelf configuration? Ask us about the complete Hatco Glo-Ray® family.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

cULus, UL EPH Classified, Made in USA

Height

25.0in

Width

45.5in

Depth

26.0in

Shipping Weight

162.0lbs

Front

straight glass

Width (side - side)

43" - 48"

Intermediate Shelves

none

Service Type

full service

Specifications

Glo-Ray® Heated Display Case, countertop, glass front design, (3) pan single shelf, humidity with 3 qt. capacity, pre-focused infrared top heat, tempered glass sides, rear sliding doors, stainless steel & aluminum construction, with 4" legs, 1600 watts, cULus, UL EPH Classified, Made in USA
