Hatco GRCDH-1P Glo-Ray® Hot Food Displays
Description
Hatco Glo-Ray® Designer Heated Display Case with Humidity
Model GRCDH-1P · Single-Shelf · 1-Pan · Curved Glass CountertopPresent hot meals-to-go at their mouth-watering best. Hatco’s GRCDH-1P pairs exclusive Glo-Ray infrared top heat with a humidified base, locking in flavor, texture and temperature while its sleek, curved tempered glass and warm incandescent lighting boost impulse sales.
Key Advantages

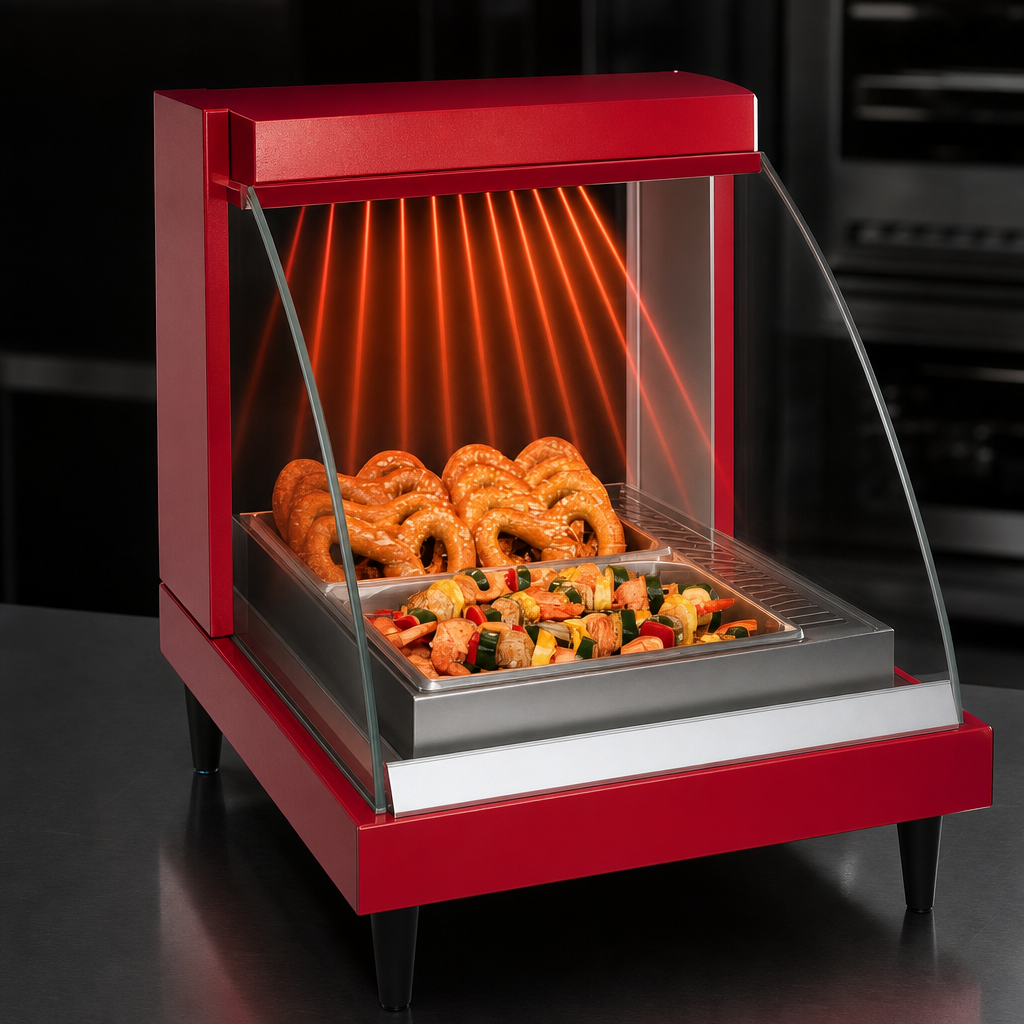

- Pre-focused infrared element concentrates heat at the holding surface’s outer edges—where heat loss is greatest—for even results.
- Adjustable humidified base (100 – 200 °F / 38 – 93 °C & 10 – 30 % RH) keeps food moist and fresh for hours.

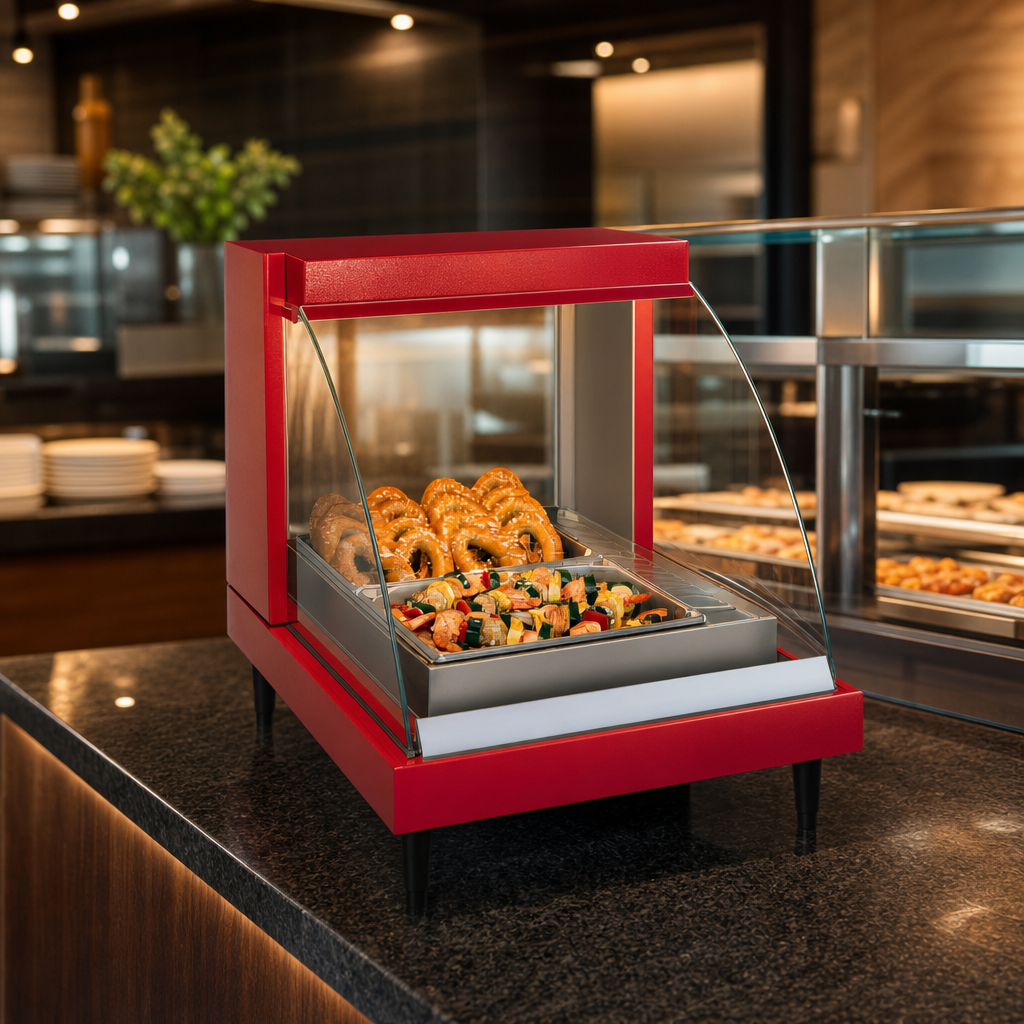

- High-visibility merchandising: curved tempered glass front, end panels and two shatter-resistant incandescent display bulbs.
- Hinged front glass panel tilts forward, making daily cleaning fast and tool-free.
- Cool Base Construction keeps exterior surfaces comfortable to the touch—ideal for customer-facing counters.
- 4" (102 mm) adjustable legs level the unit on uneven countertops.
- Plug-and-play installation with factory-installed 6' (1.8 m) cord & NEMA 5-15P plug.
- Built in Milwaukee, Wisconsin, USA and certified cULus & UL EPH for electrical safety and sanitation.
Specification Snapshot
| Capacity | Single shelf · 1 full-size pan (pan skirt included) |
|---|---|
| Usable Heated Area | 18.12" W × 21" D (460 × 533 mm) |
| Exterior Dimensions | 20.63" W × 26" D × 24" H (524 × 660 × 610 mm) |
| Electrical | 120 V · 660 W · 5.5 A · 1-Phase · NEMA 5-15P |
| Heat Source | Infrared top element + thermostatically controlled humidified base |
| Temperature Range | 100 – 200 °F (38 – 93 °C) |
| Relative Humidity | 10 – 30 % (bottom shelf) |
| Lighting | 2 shatter-resistant incandescent bulbs |
| Construction | Stainless steel interior · Powder-coated exterior · Curved tempered glass |
| Certifications | cULus Listed · UL EPH Classified |
| Shipping Weight | 90 lb (41 kg) |
Perfect For
- Cafeterias & convenience stores
- Supermarkets & delis
- Bakeries, cafés & coffee shops
- Bars, concessions & catering lines
Need additional capacity or a custom look? Two-pan and three-pan Designer models, flip-up doors, back-lit sign holders and eight vibrant Designer Color finishes are available by special order.
