Hatco GRAML-96D6 Glo-Ray® Heat Lamps
Description

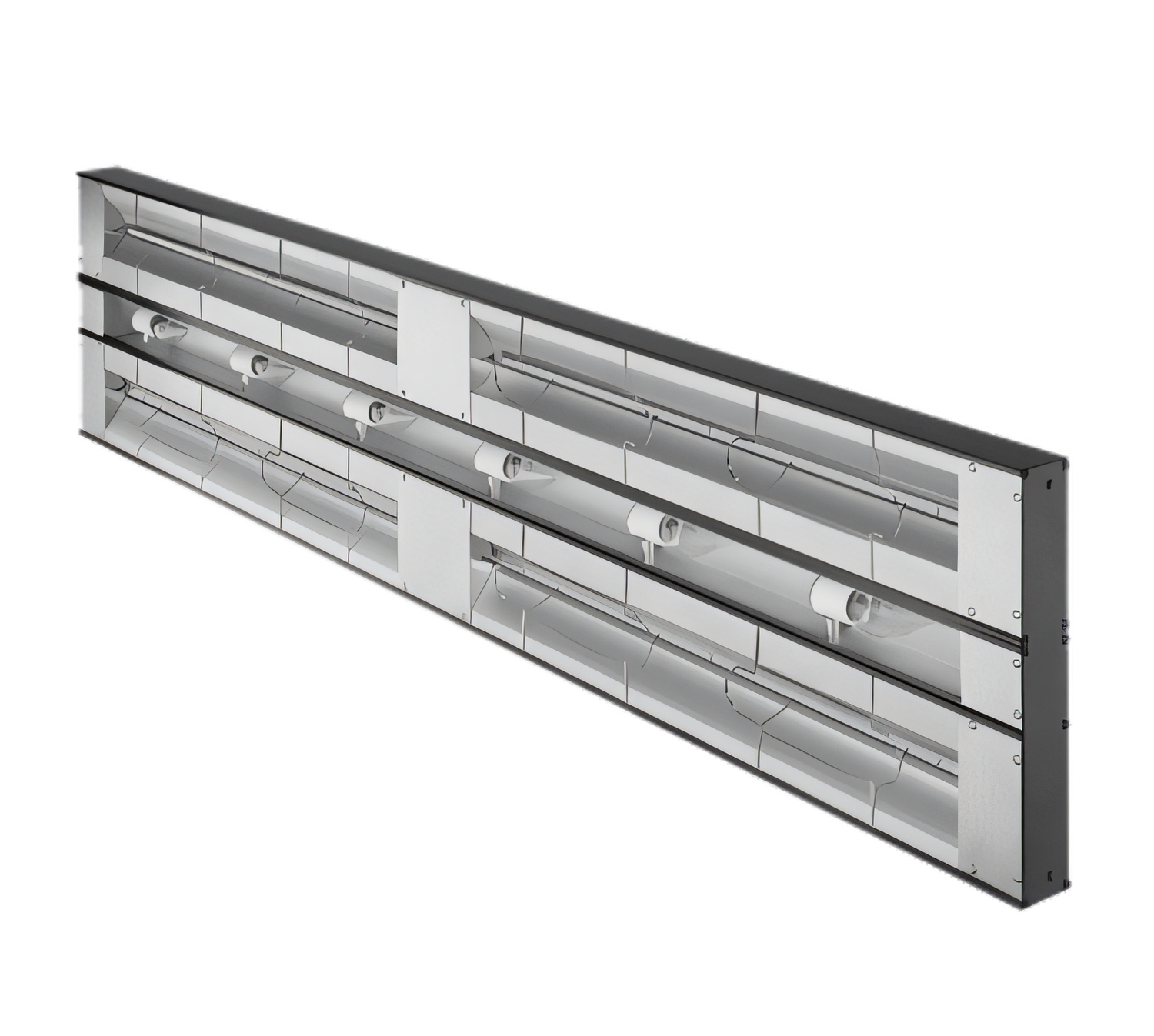

Hatco Glo-Ray® Max Watt Dual Infrared Strip Heater – 96" with Lights
Model GRAML-96D | 5,830 W | 6" (152 mm) rod spacingDeliver consistent, high-performance holding power across an 8-ft service line with Hatco’s most powerful aluminum strip heater. Designed for cafeterias, buffets, supermarkets, and full-service kitchens, the GRAML-96D combines twin metal-sheathed elements and shatter-resistant display lights to keep food hot, appetizing, and ready to serve—without continuing to cook it.
Why You’ll Love It
- Max-Watt Output – 25 % more wattage than standard high-watt models (5,830 W total) for deeper, more even heat penetration.

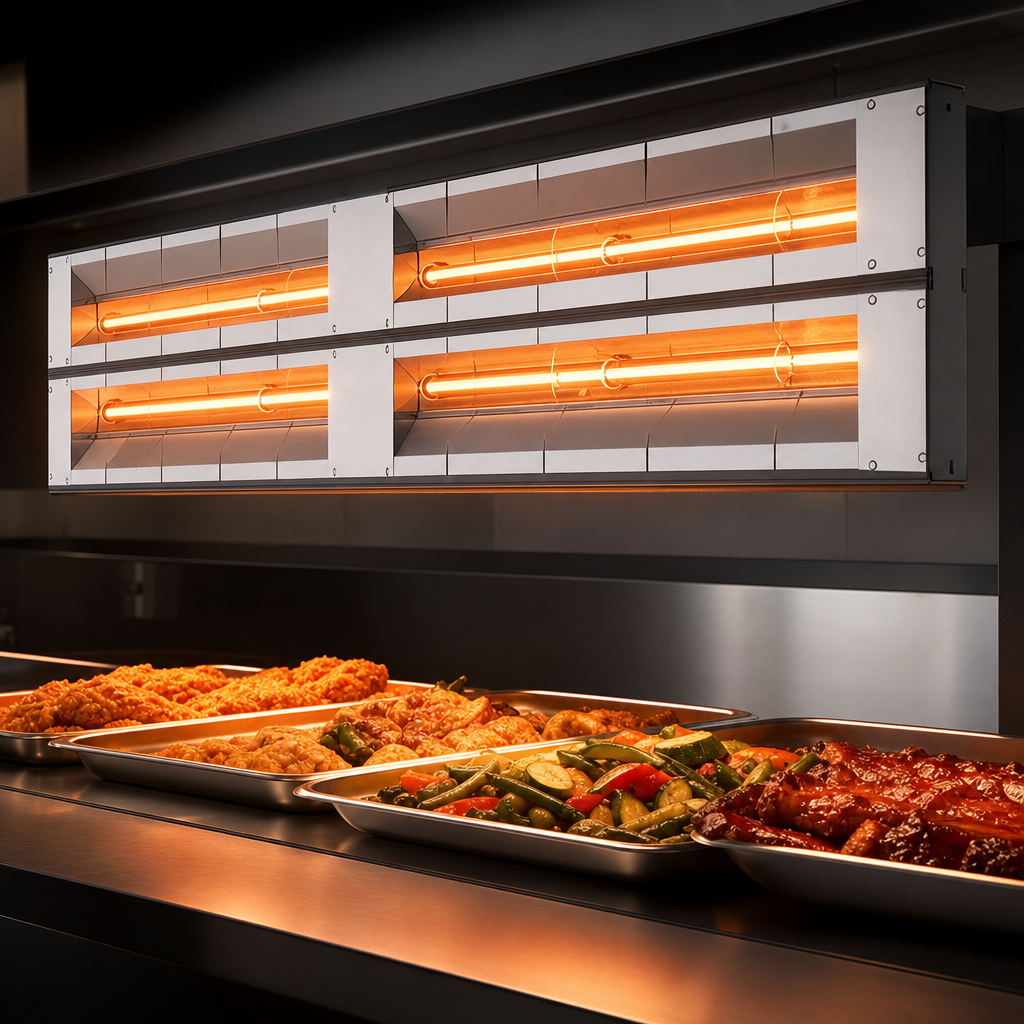

- Dual Heater Rods, 6" Spacing – Pre-focused infrared pattern bathes the entire 96" holding surface.

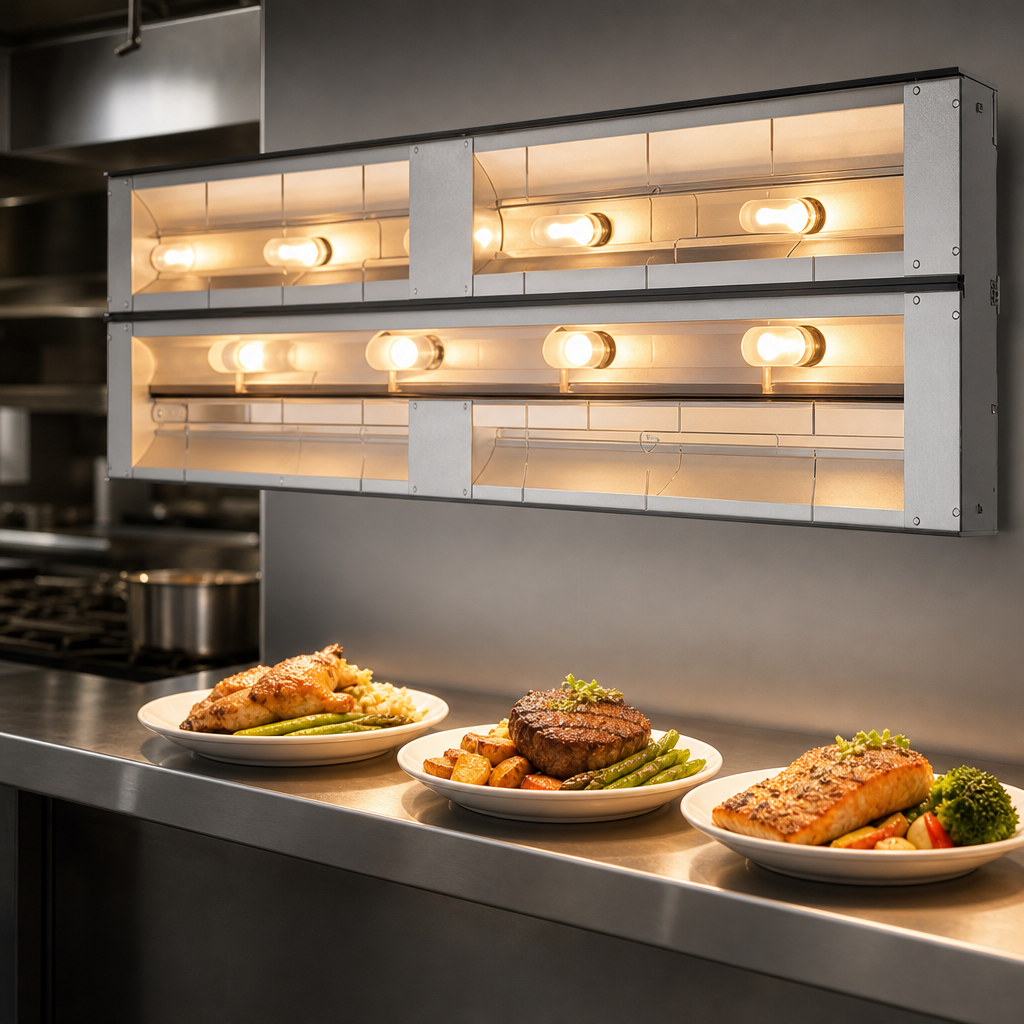

- Brilliant Product Illumination – Shatter-resistant incandescent bulbs (halogen optional) enhance food presentation while protecting product.
- Durable Aluminum Housing – Rigid extruded construction eliminates sagging and includes heavy-duty insulation to minimize heat loss.
- Easy Installation – Angle brackets and a factory-wired remote control enclosure (toggle switch, relay & indicator light) ship standard.
- Safe & Certified – cULus & NSF listed; made in the USA for reliable, code-compliant performance.
What’s in the Box
- Glo-Ray® GRAML-96D dual infrared heater (96")
- Remote control enclosure with 36" (914 mm) flexible conduit & 42" (1,067 mm) leads
- Factory-installed shatter-resistant bulbs
- Pair of adjustable angle mounting brackets
- Owner’s & installation manual
Perfect For
- Buffet lines & carving stations
- Supermarket hot cases
- Restaurant pass-through windows
- Cafeteria tray slides & self-serve bars
Technical Specs
| Model | GRAML-96D |
|---|---|
| Heating Element | Metal-sheathed tubular (dual) |
| Total Wattage | 5,830 W (max-watt) |
| Voltage / Phase | 120/208 V or 120/240 V, 1-phase (separate light & heat circuits) |
| Amps | 29.7 A @ 120/208 V | 26.3 A @ 120/240 V |
| Width | 96" (2,438 mm) |
| Depth | 18" (457 mm) with 6" spacer |
| Height | 2.5" (64 mm) |
| Shipping Weight | ≈ 60 lb (27 kg) |
| Housing Material | Anodized aluminum |
| Certifications | cULus, NSF |
| Country of Origin | Made in USA |
Recommended mounting height (undershelf): 19"–24" (483–610 mm) from the holding surface when using the 6" spacer. Remote control enclosure must be installed outside the heat zone.
