Hatco GRAML-96 Glo-Ray® Heat Lamps
Description

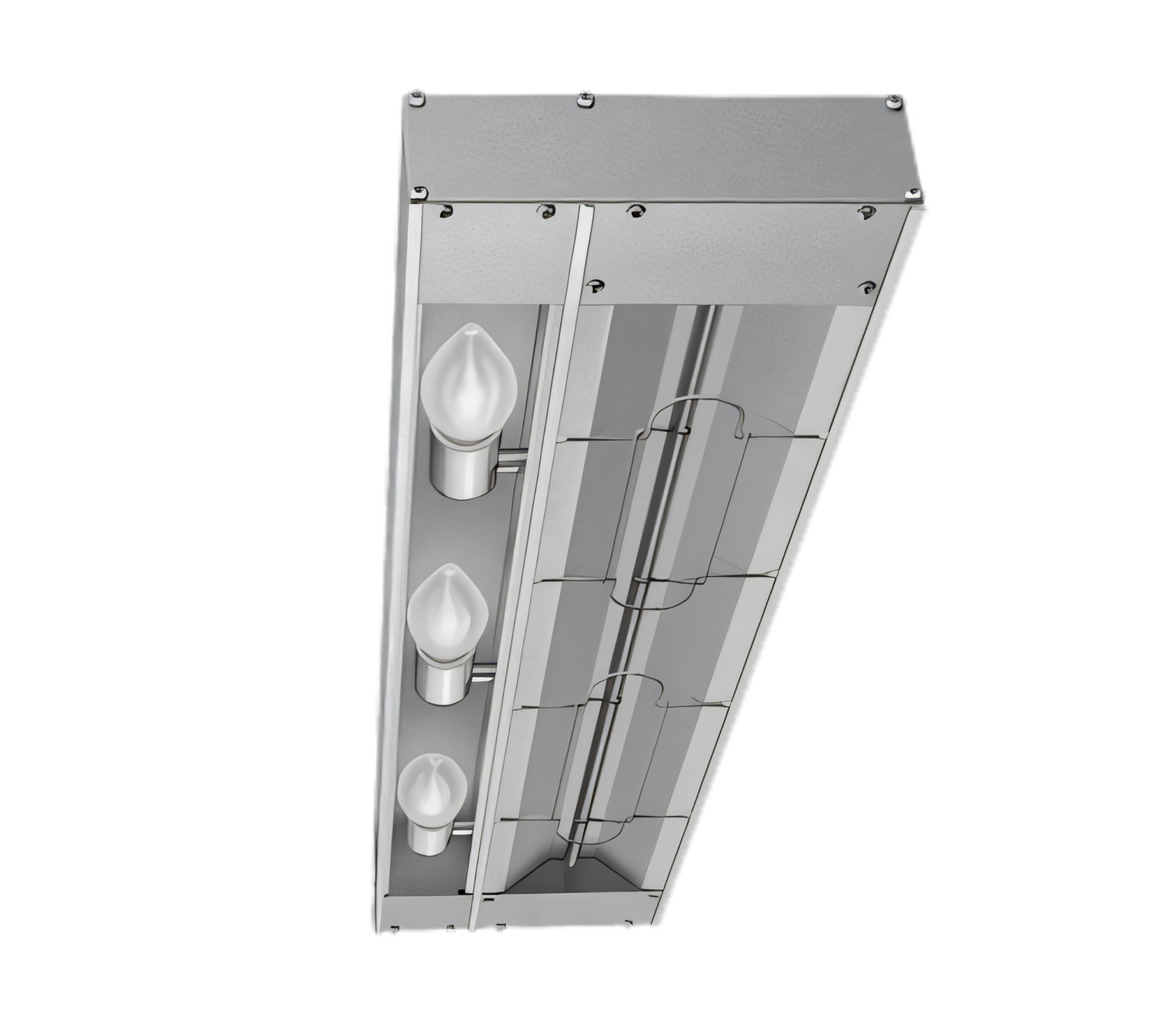

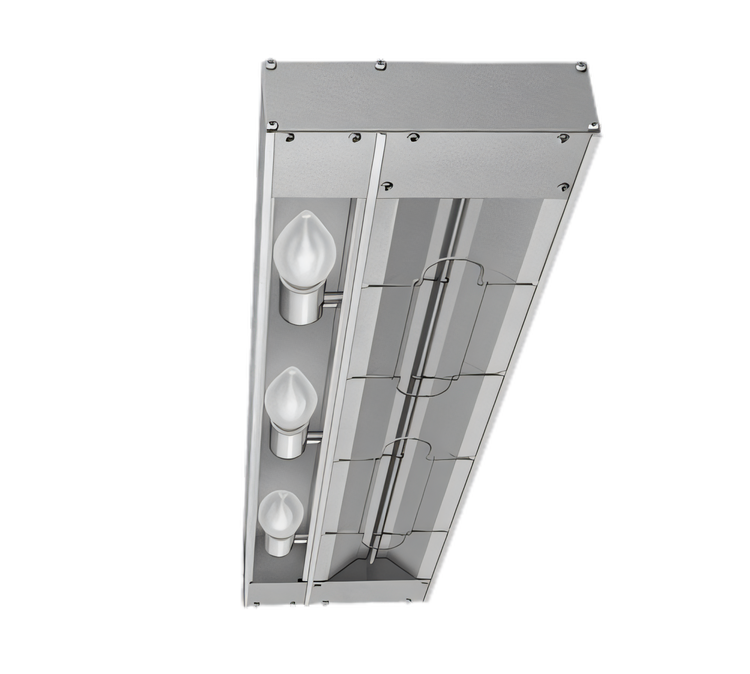

Hatco Glo-Ray® Max Watt Infrared Strip Heater – 96" With Lights

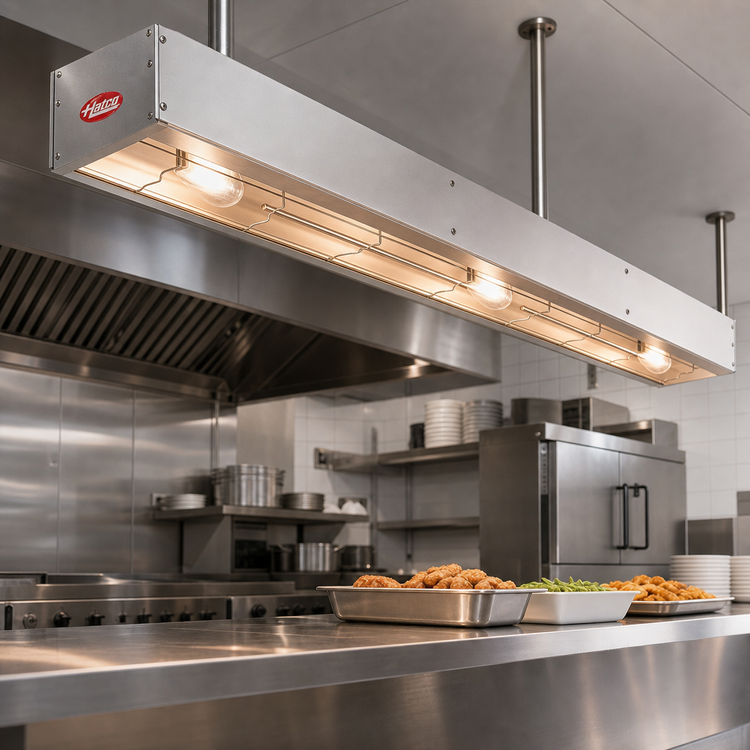

Model GRAML-96 | 3155 W | Remote Control Enclosure IncludedKeep entrées, sides and grab-and-go items hot and appetizing along an eight-foot serving line. The Hatco GRAML-96 delivers intense, uniform infrared heat plus brilliant, shatter-resistant lighting—so food looks as good as it tastes while waiting to be served.
Key Advantages
- Max Watt design produces 25 % more heat than standard high-watt models for superior holding power.

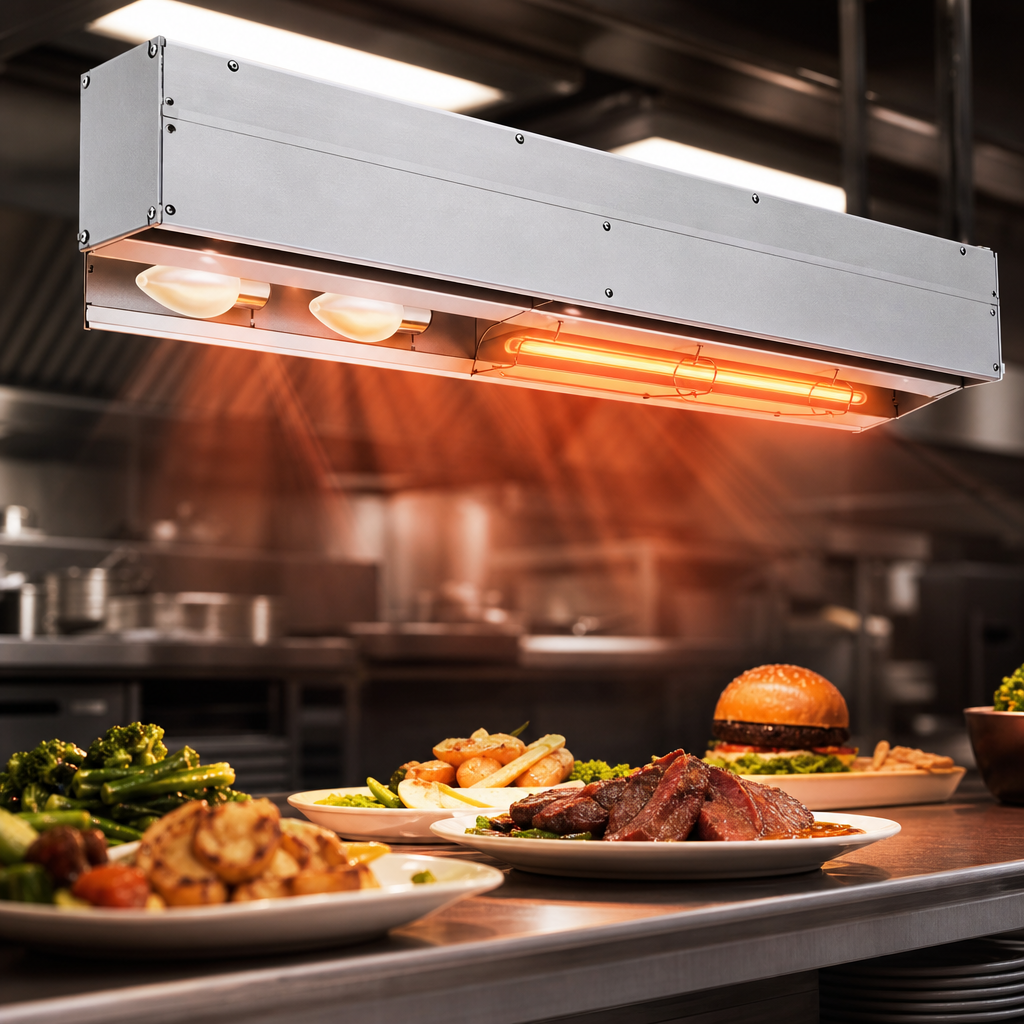

- Pre-focused tubular metal element evenly blankets the entire holding surface without overcooking.

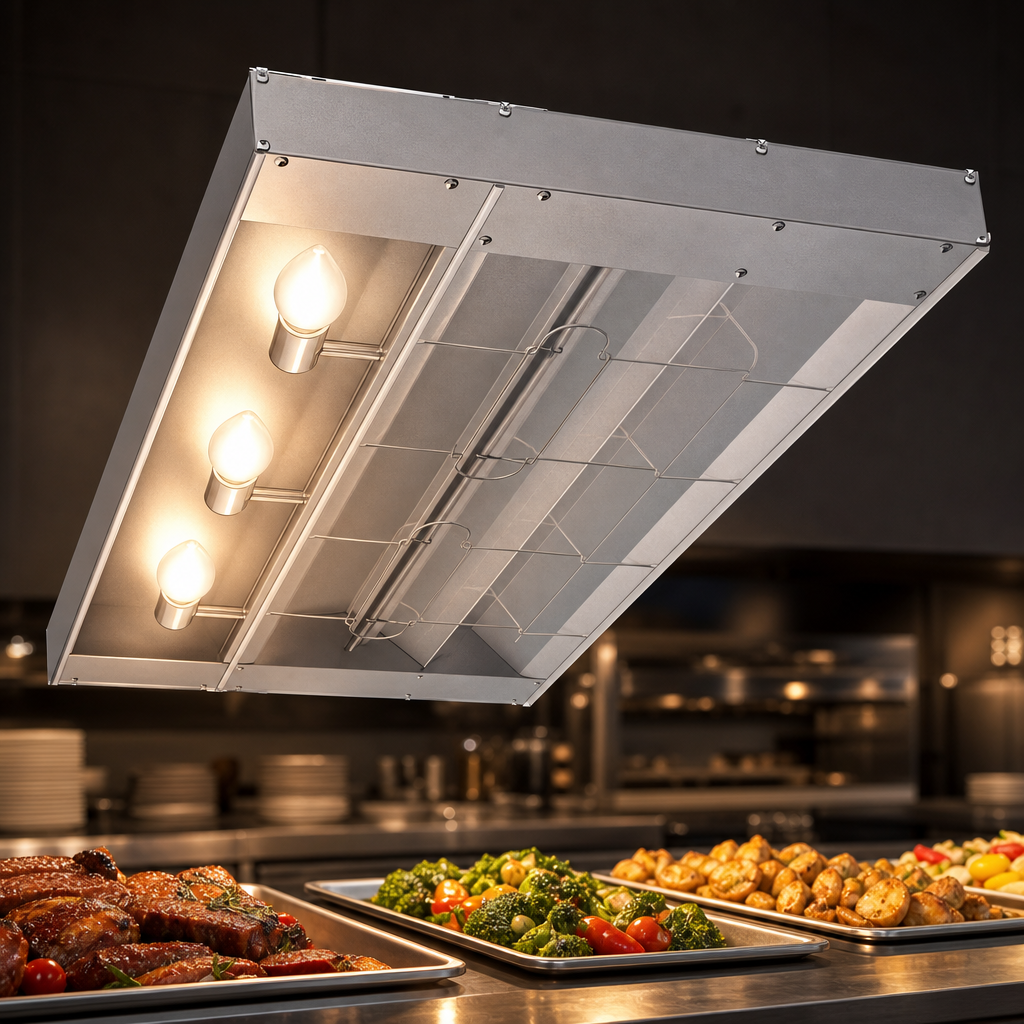

- Four shatter-resistant incandescent bulbs illuminate product and guard against glass contamination.
- Rigid extruded aluminum housing will not sag, even at 96".
- Reinforced wire guard protects staff and guests without blocking heat.
- Heavy-duty insulation reduces energy loss and keeps exterior surfaces cooler.
- Remote control enclosure (heat switch, separate light switch & indicator) mounts where you need it.
- Adjustable angle brackets (included) simplify overhead, under-shelf or pass-through mounting.
- NSF & cULus listed and proudly made in the USA.
Technical Specifications
| Model | GRAML-96 |
|---|---|
| Overall size | 96" W × 9" D × 2.5" H (2438 × 229 × 64 mm) |
| Housing / element | Extruded aluminum & tubular metal heater rod |
| Wattage | 3,155 W (Max Watt) |
| Voltage | 120/208 V or 120/240 V, single-phase (dual internal circuits) |
| Amperage | 16.9 A @ 120/208 V | 15.1 A @ 120/240 V |
| Lighting | 4 × shatter-resistant incandescent bulbs (included) |
| Controls | Remote box with toggle heat switch, separate light switch & indicator light |
| Mounting hardware | Adjustable angle brackets – provides 14"–18" mounting height |
| Conduit / leads | 36" flexible metal conduit with 42" leads (server’s right) |
| Certifications | NSF, cULus |
| Shipping weight | ≈ 37 lb (17 kg) |
| Origin | Made in USA |
Designer Finish Options
Match your décor with more than a dozen powder-coat colors and gloss finishes—including Warm Red, Black, Navy Blue and Gleaming Gold. (Custom colors are factory-order & non-returnable.)
Perfect For
- Cafeterias & buffets
- Restaurant pass-through windows
- Supermarkets & deli hot cases
- C-stores, snack bars & concessions
Need a different length, finish or control option? The Glo-Ray® Max Watt series is available in 18"–144" widths—ask us for details.
