Hatco GRAML-84D6 Glo-Ray® Heat Lamps
Description

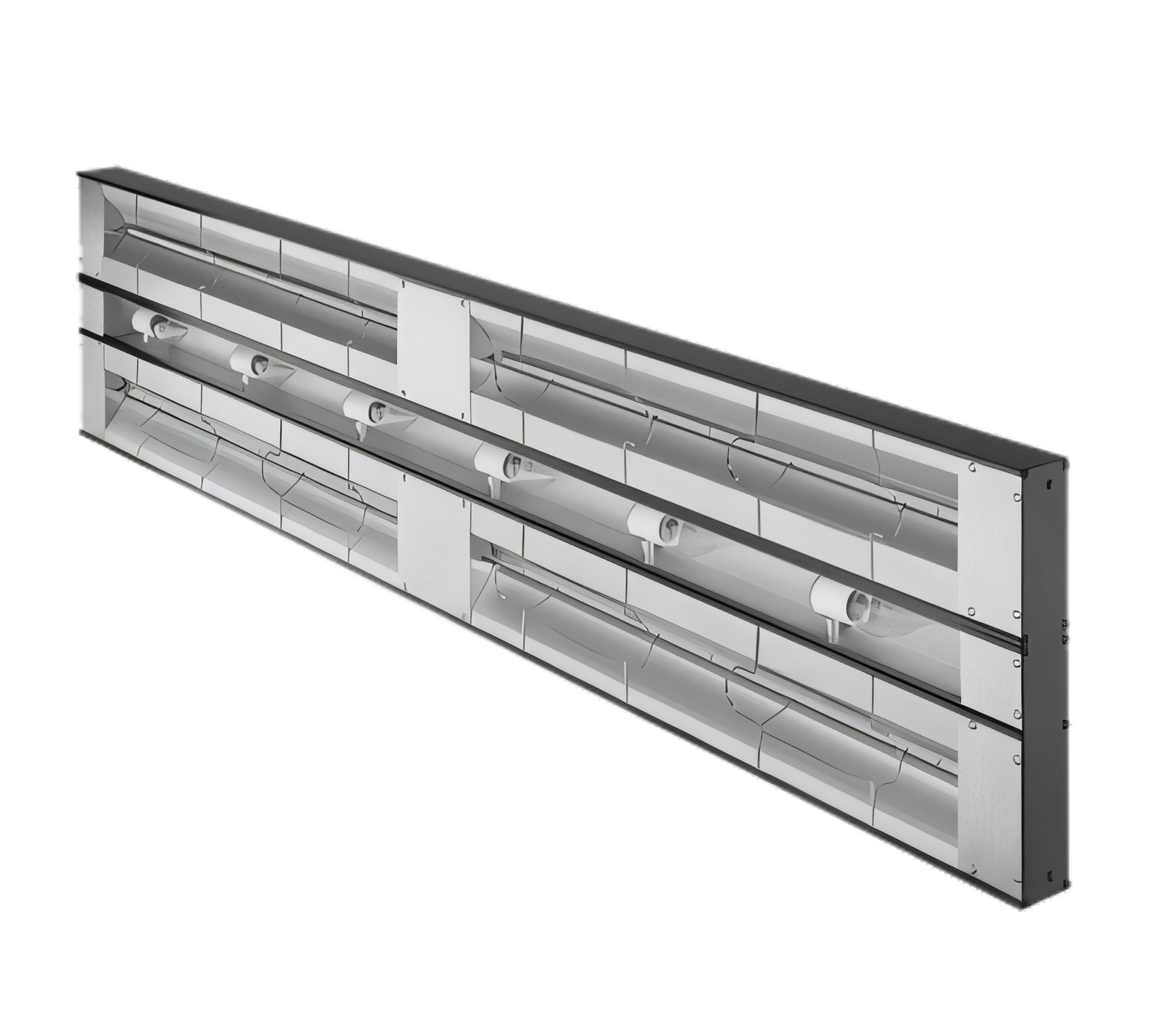

Hatco Glo-Ray® GRAML-84D Max-Watt Dual Infrared Strip Heater with Lights – 84"
5,220 W • Dual tubular elements • 6" deep-heat spacer • Remote control box includedKeep every inch of your 7-foot service line hot, safe and beautifully illuminated with the industry-leading Hatco Glo-Ray® GRAML-84D. This U.S.-made, max-watt infrared heater delivers 25 % more power than standard models while shatter-resistant display lamps put the spotlight on your menu.
Key advantages
- Max-Watt Performance – 5,220 watts of focused infrared heat hold foods at safe serving temps without further cooking.

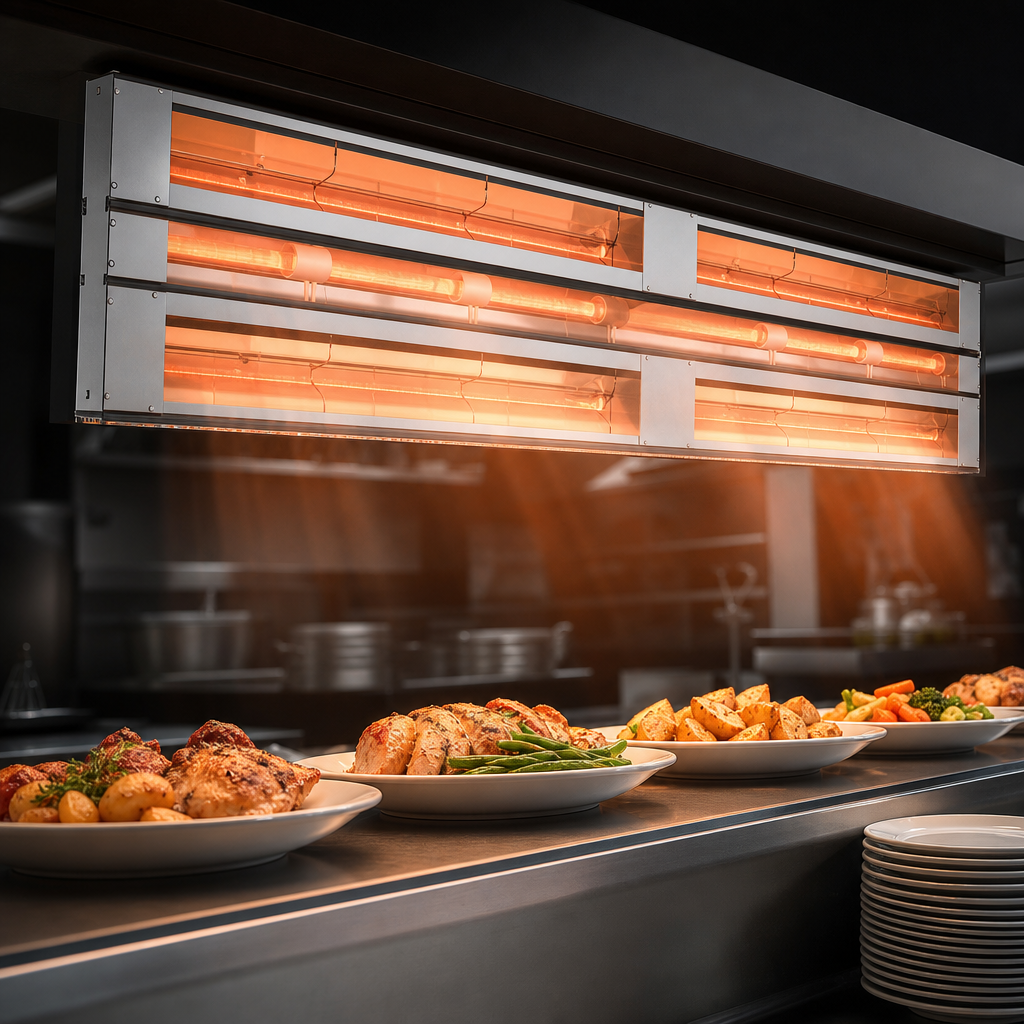

- Dual Tubular Elements – Two metal-sheathed heater rods in a 6" (152 mm) deep housing create a broader, more even heat pattern.

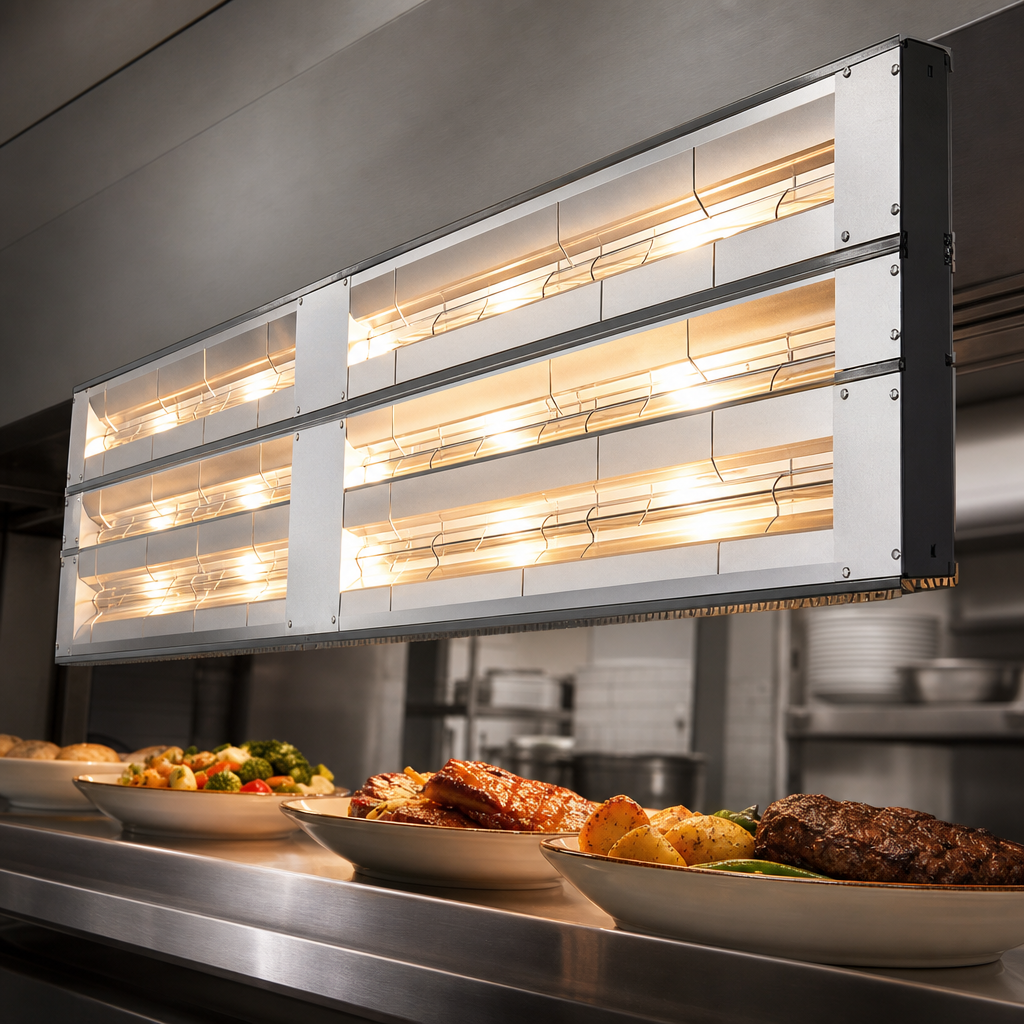

- Shatter-Resistant Lighting – Built-in incandescent bulbs (halogen upgrade available) enhance product appeal and visibility.
- Rugged Aluminum Housing – One-piece extruded construction resists warping and is fully insulated to minimize heat loss.
- Remote Toggle Controls – Supplied control enclosure keeps switches and indicator lights safely outside the heat zone.
- Simple Installation – Heavy-duty angle brackets are included for overhead, pass-through or bottom-shelf mounting.
- Certified Quality – cULus & NSF listed and backed by Hatco’s 24/7 service network.
Ideal for
- Cafeteria and buffet lines
- Deli & supermarket hot bars
- Quick-service pass-through windows
- Banquet holding areas & carving stations
Included with your purchase
- Glo-Ray GRAML-84D infrared strip heater (84" width, 6" spacer)
- Remote control enclosure with separate heat & light toggles
- 42" (1 067 mm) leads & 36" (914 mm) flexible metal conduit
- Pair of heavy-duty angle mounting brackets
- Comprehensive installation & operating manual
Technical specifications
| Model | GRAML-84D |
|---|---|
| Overall width | 84" (2 134 mm) |
| Depth × Height | 18" × 2.5" (457 × 64 mm) with 6" spacer |
| Heating element | (2) tubular metal-sheathed rods |
| Wattage | 5 220 W (max watt) |
| Voltage / Phase | 120/208 V or 120/240 V, single phase |
| Current draw | 26.6 A @ 120/208 V • 23.5 A @ 120/240 V |
| Controls | Remote toggle switches & indicator lights (heat / lights) |
| Construction | Extruded aluminum housing, high-temp insulation, protective wire guard |
| Approx. ship weight | 49 lbs (22 kg) |
| Certifications | cULus, NSF |
| Origin | Made in USA |
Installation guidelines
- Recommended mounting height above holding surface (6" spacer): 24"–27" (610–686 mm).
- Maintain at least 1" (25 mm) clearance above and 3" (76 mm) behind the unit to non-combustible surfaces.
- When installing multiple units side-by-side, leave a minimum 3" (76 mm) gap.
Need a custom finish or LED/halogen lighting? Glo-Ray heaters are available in 15+ designer colors and multiple control configurations—contact us for details.
