Hatco GRAML-72D6 Glo-Ray® Heat Lamps
Description

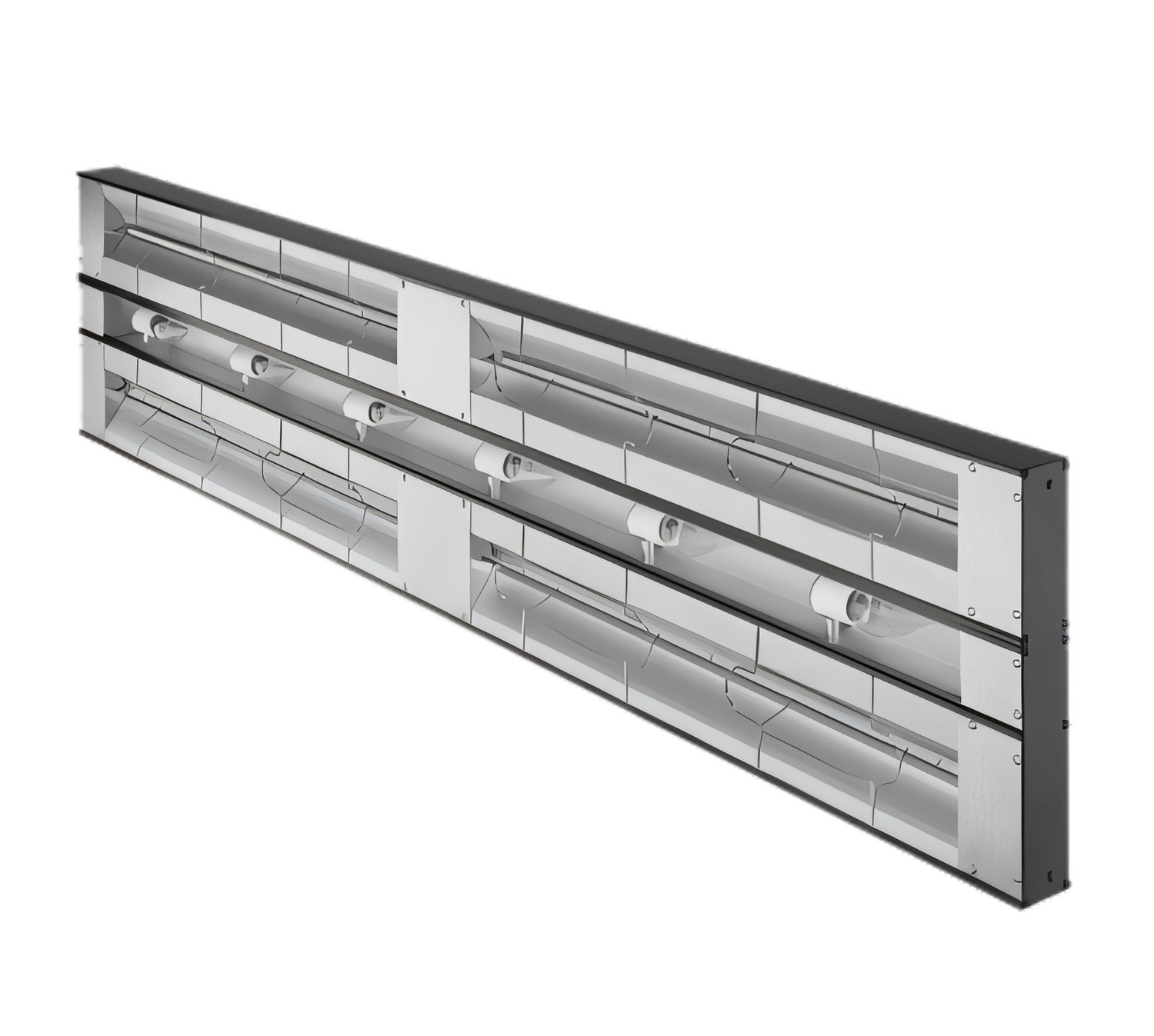

Hatco Glo-Ray® GRAML-72D Max-Watt Dual Infrared Strip Heater – 72"
4510 W • with Lights • 6" Spacer • Remote Control EnclosureDesigned for deep pass-throughs, buffets and cooklines, the GRAML-72D delivers 25 % more heat than Hatco’s high-watt warmers—without over-cooking your food. Two metal-sheathed tubular heater rods bathe a full 72 in. holding surface in pre-focused infrared heat, while shatter-resistant display lights keep every dish looking fresh and appetizing.
Why You’ll Love It
- Max-watt output (4510 W) handles demanding, high-volume service.

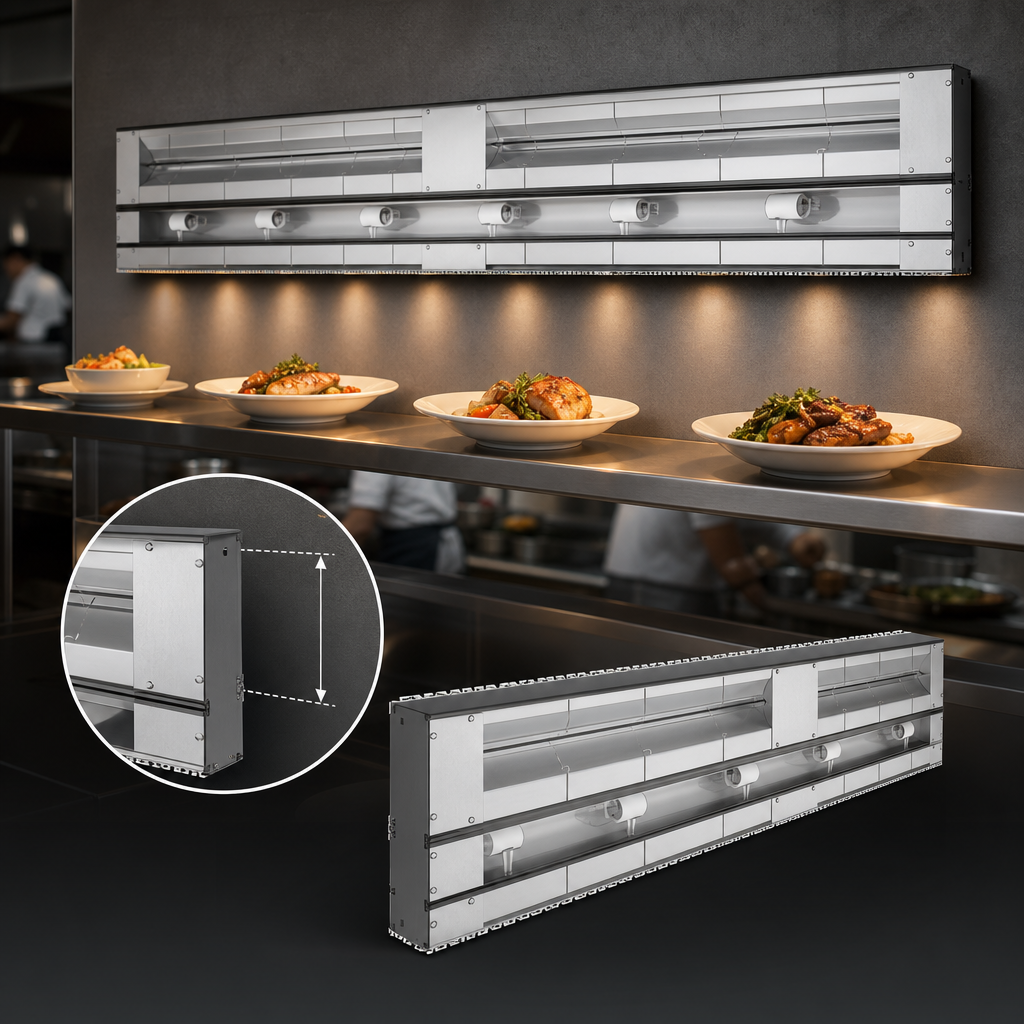

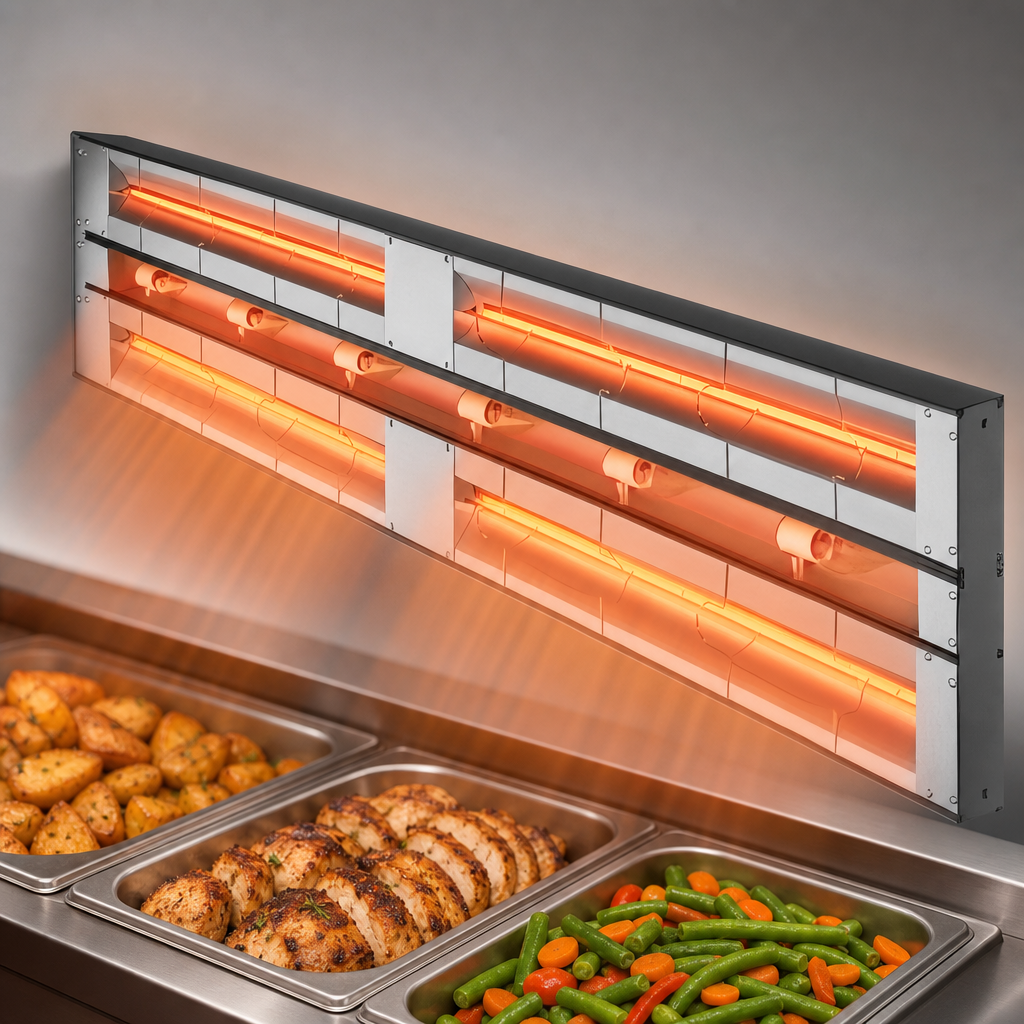

- Dual heater-rod housing with 6 in. (152 mm) spacer creates a deeper heat zone for bulky platters and pans.
- Shatter-resistant incandescent bulbs (standard) highlight food and safeguard product from glass fragments.
- Heavy-duty extruded aluminum construction prevents sagging on long runs and resists corrosion.
- Factory-supplied Remote Control Enclosure with separate toggle switches for heat and lights keeps electrical components safely outside the heat zone.
- Angle brackets included for quick under-shelf, pass-through or ceiling mounting.
- High-density insulation minimizes heat loss, lowering energy costs.
- cULus & NSF listed; proudly Made in the USA.
Product Specifications
| Model | GRAML-72D |
|---|---|
| Overall width | 72" / 1829 mm |
| Depth (with 6" spacer) | 18" / 457 mm |
| Height | 2.5" / 64 mm |
| Wattage | 4510 W (max) |
| Voltage & Amps |
120/208 V, 1 ph, 23.0 A 120/240 V, 1 ph, 20.3 A (dual-circuit: lights @ 120 V, heat @ 208/240 V) |
| Heating elements | (2) metal-sheathed tubular rods |
| Lighting | Shatter-resistant incandescent (60 W each); halogen upgrade optional |
| Mounting hardware | Angle brackets & 6" spacer included |
| Electrical connection | 36" flexible metal conduit with 42" leads, prepared for hard-wire |
| Certifications | cULus, NSF |
| Warranty | 24/7 parts & service assistance (U.S. & Canada) |
Recommended Mounting Heights*
- Pass-through: 22"–31" (559-787 mm) above holding surface
- Under-shelf: 14"–20" (356-508 mm) from heat to target
- When using multiple units side-by-side, keep at least 3" (76 mm) between heaters.
*Always follow the installation manual for exact clearances and local electrical codes.

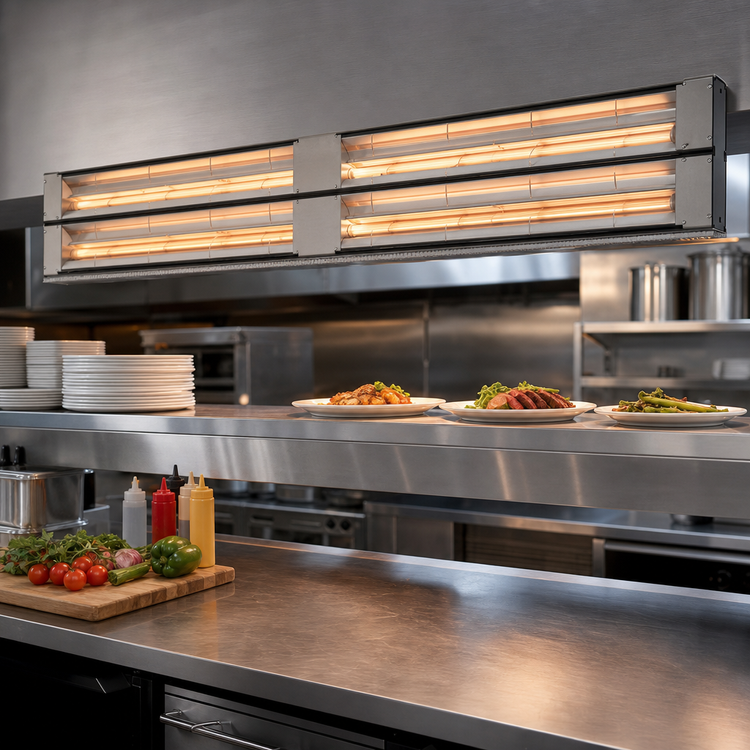

Ideal Applications
- Cafeteria and buffet pass-throughs
- Restaurant cooklines & plating areas
- Convenience-store hot grab-and-go stations
- Catering, banquets & hotel breakfast bars
Upgrade your hot holding with the performance and durability only Hatco can deliver—order the Glo-Ray® GRAML-72D today and keep every plate “fresh from the kitchen” ready.
