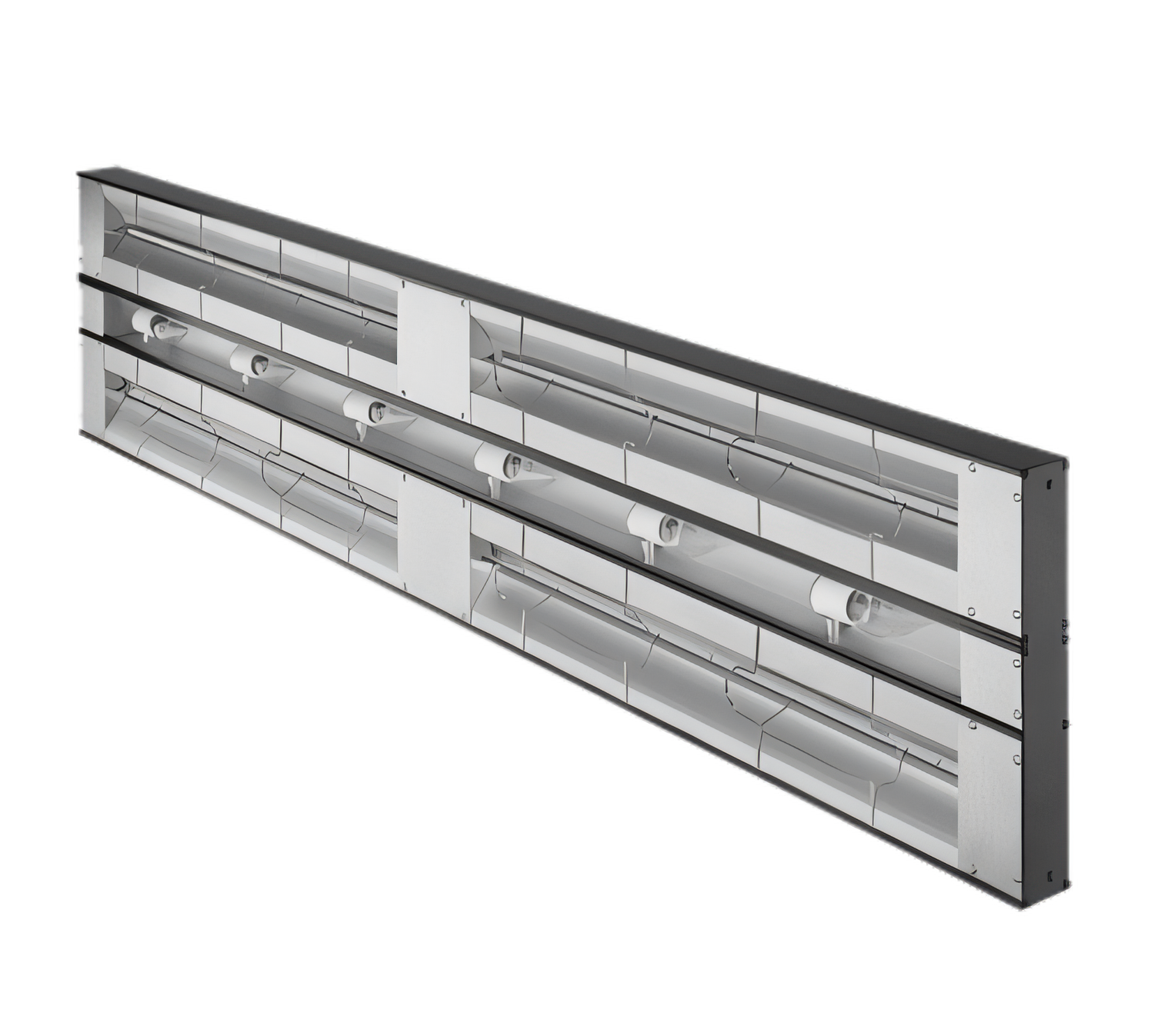

Hatco Glo-Ray® GRAML-66D Max-Watt Dual Infrared Strip Heater – 66" W
6" spacer • 4050 W • with lights & remote control enclosureGive every plate the “just-off-the-grill” feel. Hatco’s 66-inch Glo-Ray® GRAML-66D blankets a full 5½-foot serving area in pre-focused infrared heat and vibrant display lighting, keeping entrées hot, appetizing and ready to serve without over-cooking.
Key advantages
- Max-Watt performance – 25 % more heat output than standard high-watt models for faster heat-up and deeper holding capacity.
- Dual tubular metal-sheathed elements deliver even infrared coverage across the entire 66" length—no cold spots.
- 6" (152 mm) spacer creates additional clearance, perfect for high-profile pans or stacking strip heaters pass-through style.
- Shatter-resistant incandescent lights showcase food while protecting it from broken-bulb hazards (halogen & LED upgrades available).

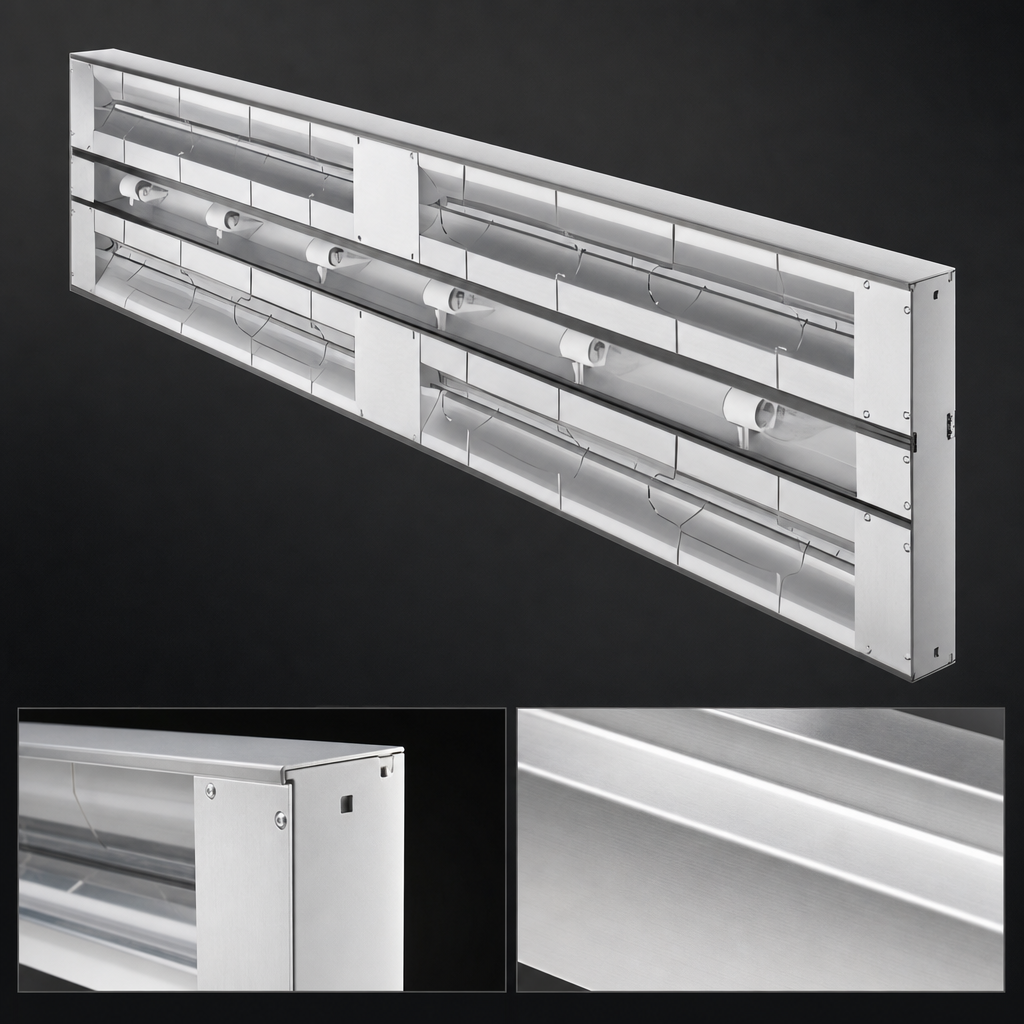

- Rugged extruded aluminum housing prevents sagging, resists dents and wipes clean in seconds.
- Heavy-duty insulation minimizes heat loss, keeping energy where you need it—on the food.
- Protective wire guard supports and shields elements without disrupting heat distribution.
- Made in the USA and fully cULus & NSF listed for peace of mind and code compliance.
Technical specifications
| Model | GRAML-66D |
|---|---|
| Overall width | 66" / 1676 mm |
| Depth (with 6" spacer) | 18" / 457 mm |
| Height | 2.5" / 64 mm |
| Total wattage | 4050 W |
| Voltage | 120/208 V, 1-phase (120 V lights / 208 V heat) |
| Current draw | 20.5 A (heat circuit) |
| Heating elements | Dual tubular metal-sheathed |
| Display lights | 3 × 60 W shatter-resistant incandescent (standard) |
| Included controls | Remote control enclosure with separate toggle switches for heat & lights |
| Housing material / finish | Clear-anodized aluminum (Designer colors & gloss finishes available) |
| Mounting hardware | Adjustable angle brackets (included) |
| Certifications | cULus, NSF, CE |
| Origin | Made in USA |
What’s included
- GRAML-66D strip heater with 6" spacer
- Remote control enclosure with 36" flexible metal conduit & 42" leads
- Angle mounting brackets
- Installation & operation manual
Ideal applications
- Buffets & carving stations
- Quick-serve & fast-casual pass-throughs
- Cafeterias and institutional serving lines
- Pizza, fried chicken and breakfast bars
Installation note: The remote control enclosure must be mounted outside the heat zone. Hard-wire connection required; install by a qualified electrician.
Need a different length, color or control style? Contact us—Hatco’s extensive options make it easy to match any line-up.
$1,405.20
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Hatco Glo-Ray 66" infrared strip heater, 4050W, aluminum dual-rod design, remote-ready, angled brackets, cULus certified, Made in USA for reliable warming.
Manufacturer
Hatco
Brand name
Glo-Ray®
Certifications
cULus, Made in USA
Height
2.5in
Width
66.0in
Depth
18.0in
Shipping Weight
43.0lbs
Finish
aluminum
Size
double
Type
lighted
Length
61 - 66"
Type of element
metal heating rod
Specifications
Glo-Ray® Infrared Strip Heater, 66" W, maximum wattage with lights, tubular metal heater rod, double heater rod housing 6" spacing, aluminum construction, includes remote control enclosure & angle brackets, 4050 watts, cULus, Made in USA
