Hatco GRAML-66D3 Glo-Ray® Heat Lamps
Description

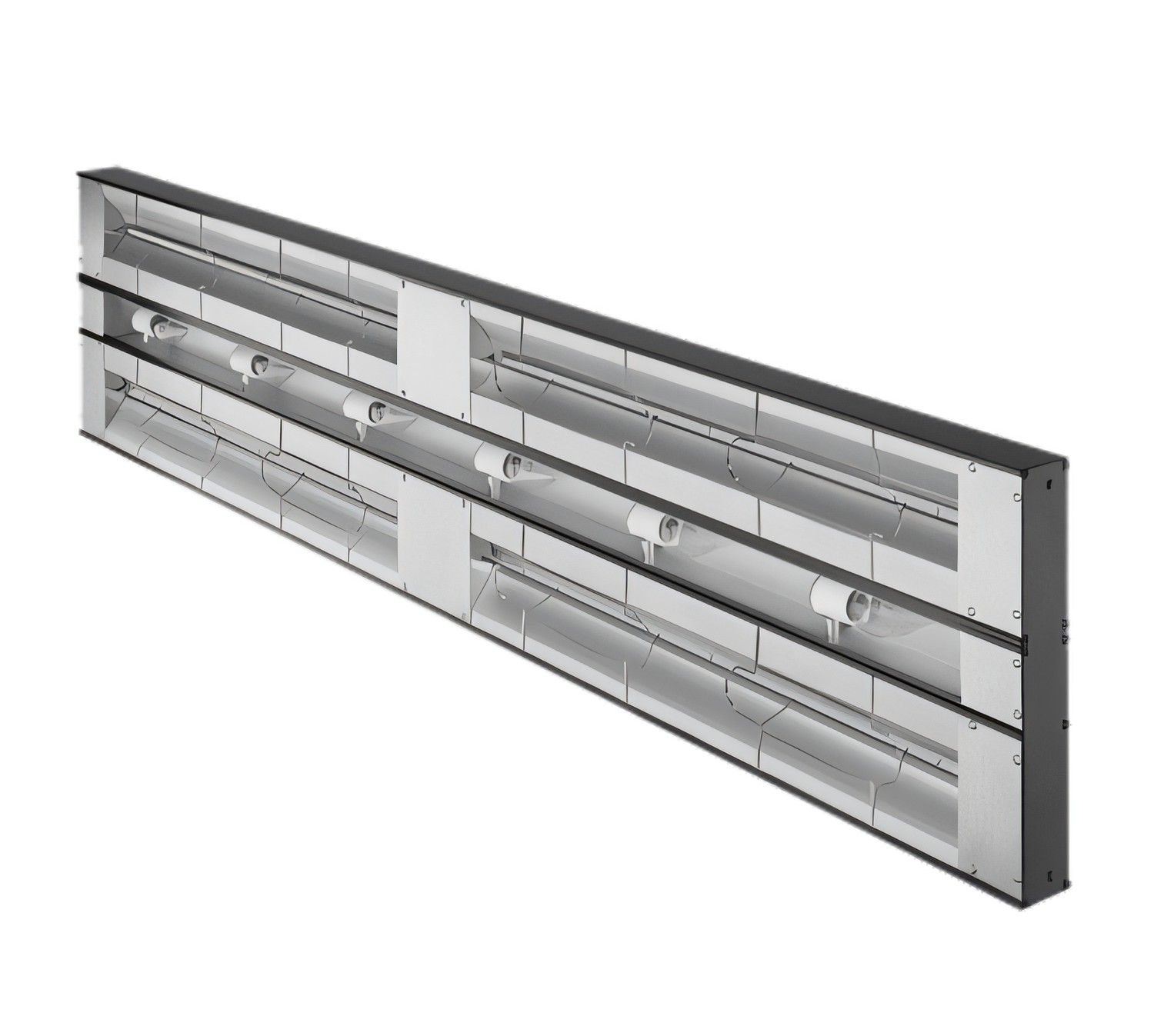

Hatco Glo-Ray® Dual Infrared Strip Heater with Lights – 66" (Model GRAML-66D)
4050 W • Maximum-Watt Output • Remote Controls & Mounting Brackets IncludedGive every plate the just-served appeal diners expect. Hatco’s GRAML-66D delivers a powerful, even blanket of infrared heat across 5½ feet of holding space while integrated, shatter-resistant lights keep foods looking fresh and vibrant. Built from rugged extruded aluminum and manufactured in the USA, this Max-Watt Glo-Ray® model is the industry workhorse for buffets, pass-through stations and carving lines that simply cannot cool down.
- 25 % more wattage than Hatco High-Watt models for superior heat recovery.
- Dual tubular metal-sheathed elements are pre-focused to warm the entire holding area without continuing to cook the food.
- Standard 3" (76 mm) spacer creates a deeper heat pattern for bulkier items.

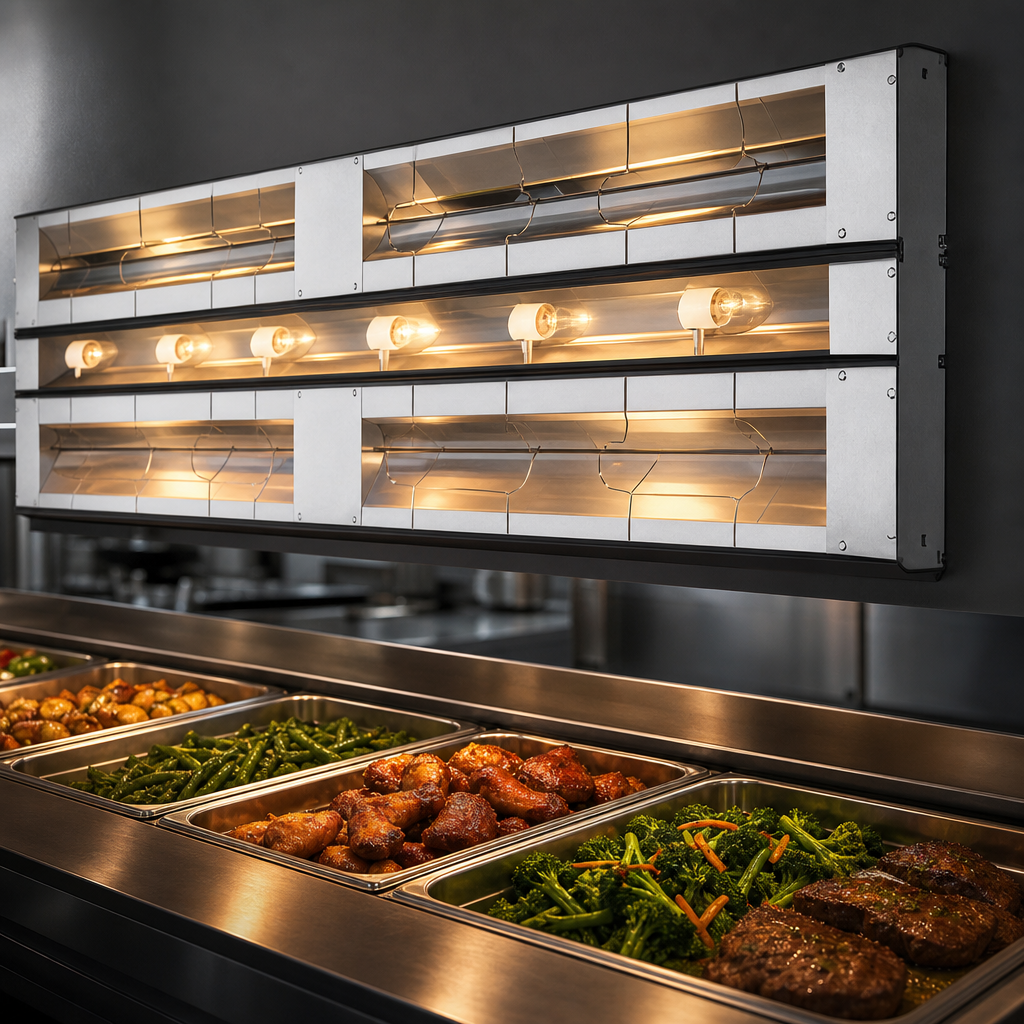

- Two shatter-resistant incandescent bulbs highlight product and withstand kitchen abuse (halogen or LED options available).
- Heavy-duty extruded aluminum housing eliminates sagging on long runs.
- Protective wire guard supports elements without blocking heat.
- Remote control enclosure with separate Heat & Light toggle switches and indicator light ships with the unit—no upsell required.
- Angle mounting brackets, 36" flexible metal conduit and 42" leads are included for fast, code-compliant installation.
- cULus & NSF listed; backed by Hatco’s 24/7 parts & service network.
Technical Specifications
| Model | GRAML-66D |
|---|---|
| Overall dimensions (with 3" spacer) |
66" W × 15" D × 2.5" H (1676 × 381 × 64 mm) |
| Construction | Clear-anodized extruded aluminum housing; dual tubular metal-sheathed elements |
| Heat output | 4050 watts (Max Watt) |
| Electrical |
• 120/208 V, 1-ph, 20.5 A (lights run on 120 V circuit) • 120/240 V, 1-ph, 18.1 A |
| Lighting | (2) 60 W shatter-resistant incandescent bulbs (standard) |
| Controls | Remote control enclosure with fused light circuit, heat & light toggle switches, indicator light |
| Included hardware | Remote control box, angle mounting brackets, 36" conduit & 42" leads |
| Shipping weight | ≈ 45 lbs / 20 kg |
| Certifications | cULus, NSF |
| Origin | Made in the USA |
Recommended Mounting Heights*
| Application | Target clearance to food |
|---|---|
| Pass-through shelf (12"–16" deep) | 18" (457 mm) |
| Undershelf / buffet line | 24" (610 mm) |
*Always follow the Hatco installation manual and local codes for final mounting requirements.
Looking for a Custom Look?
GRAML models are available (factory order) in Hatco Designer colors, with halogen or LED display lamps, 6" spacers, tubular stands and other accessories. Contact us for details and lead times.
