Description

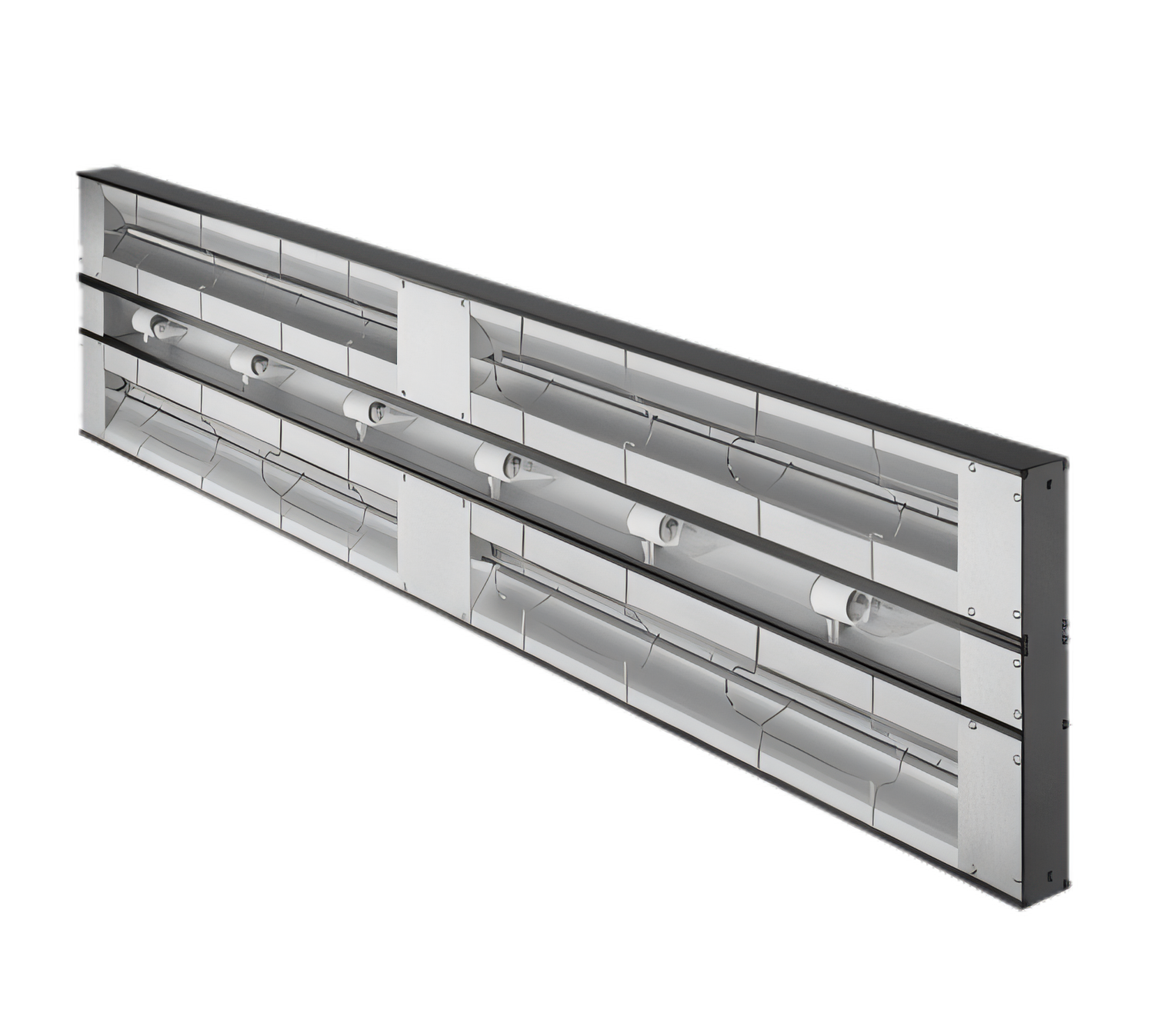

Hatco Glo-Ray® Dual Infrared Strip Heater – 60" Max Watt with Lights

Model GRAML-60D | 3700 W

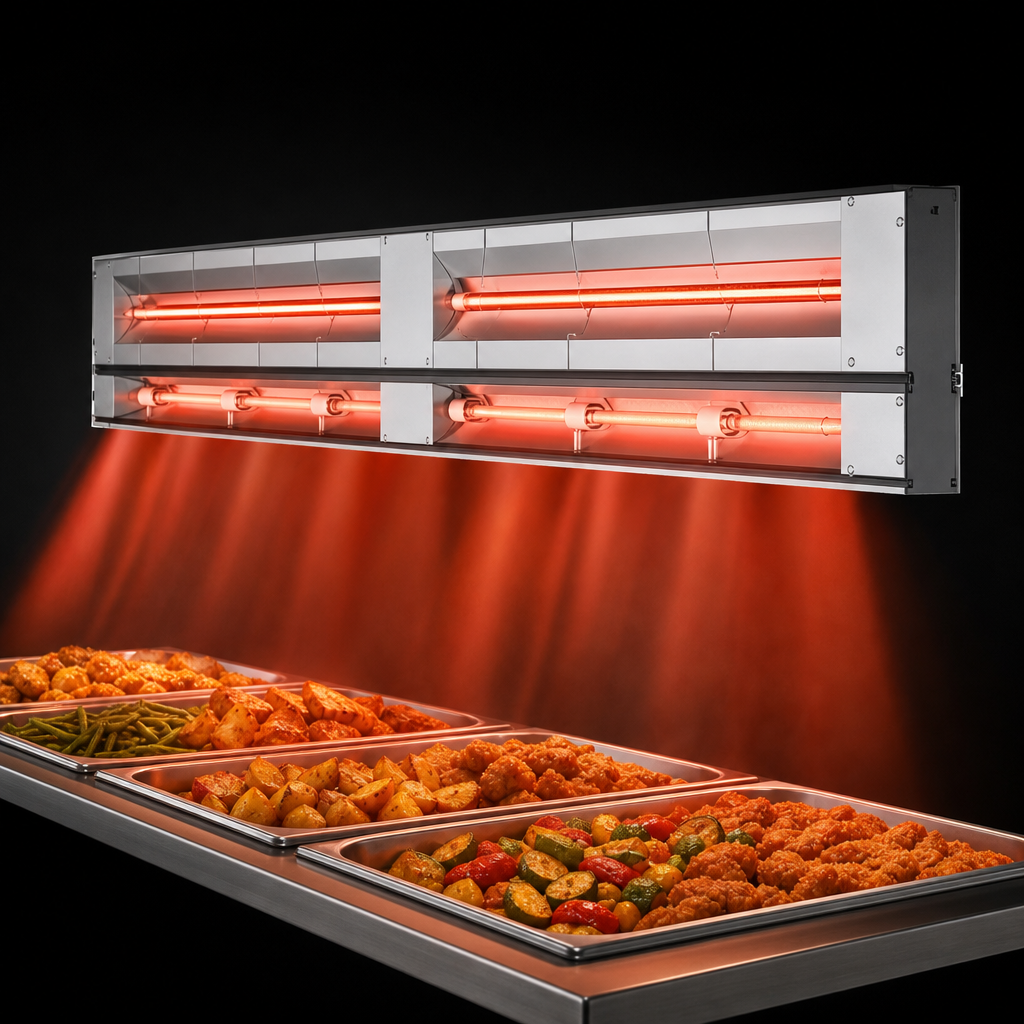

Deliver sizzling, plate-ready meals without over-cooking or drying them out. The Hatco Glo-Ray® GRAML-60D blankets a full 60 inch holding zone with intense, pre-focused infrared heat while built-in display lights keep every dish looking its best.

Why You’ll Love It
  • 25 % more output than standard high-watt heaters—3700 W of instant infrared heat.
  • Dual tubular metal-sheathed elements seated in a 6" (152 mm) spacer housing create a deeper heat pattern for wider pans and platters.
  • Shatter-resistant 60 W incandescent bulbs highlight food while protecting it from broken glass.
  • Rigid, extruded aluminum construction resists sagging and is fully insulated to minimize heat loss.
  • Protective wire guard shields the elements without impeding heat distribution.
  • Remote control enclosure with individual toggle switches for heat and lights keeps electronics safely out of the heat zone.
  • Includes heavy-duty angle mounting brackets for quick overshelf or pass-through installation.
  • cULus Listed, NSF compliant and proudly Made in the USA.
Technical Specs
Model GRAML-60D
Overall width 60" (1524 mm)
Spacer / Heat zone depth 6" (152 mm) dual-rod housing
Heating elements 2 × metal-sheathed tubular rods
Total wattage 3700 W
Voltage 120/208 V single-phase (120/240 V available)
Amperage 18.8 A @ 120/208 V
Display lights 2 × shatter-resistant 60 W incandescent (halogen & LED options)
Construction / Finish Clear anodized aluminum (designer colors & gloss finishes optional)
Mounting hardware Angle brackets (included)
Control box Remote enclosure, 36" flexible conduit & 42" leads
Approx. ship weight 38 lb (18 kg)
Certifications cULus, NSF
Perfect For

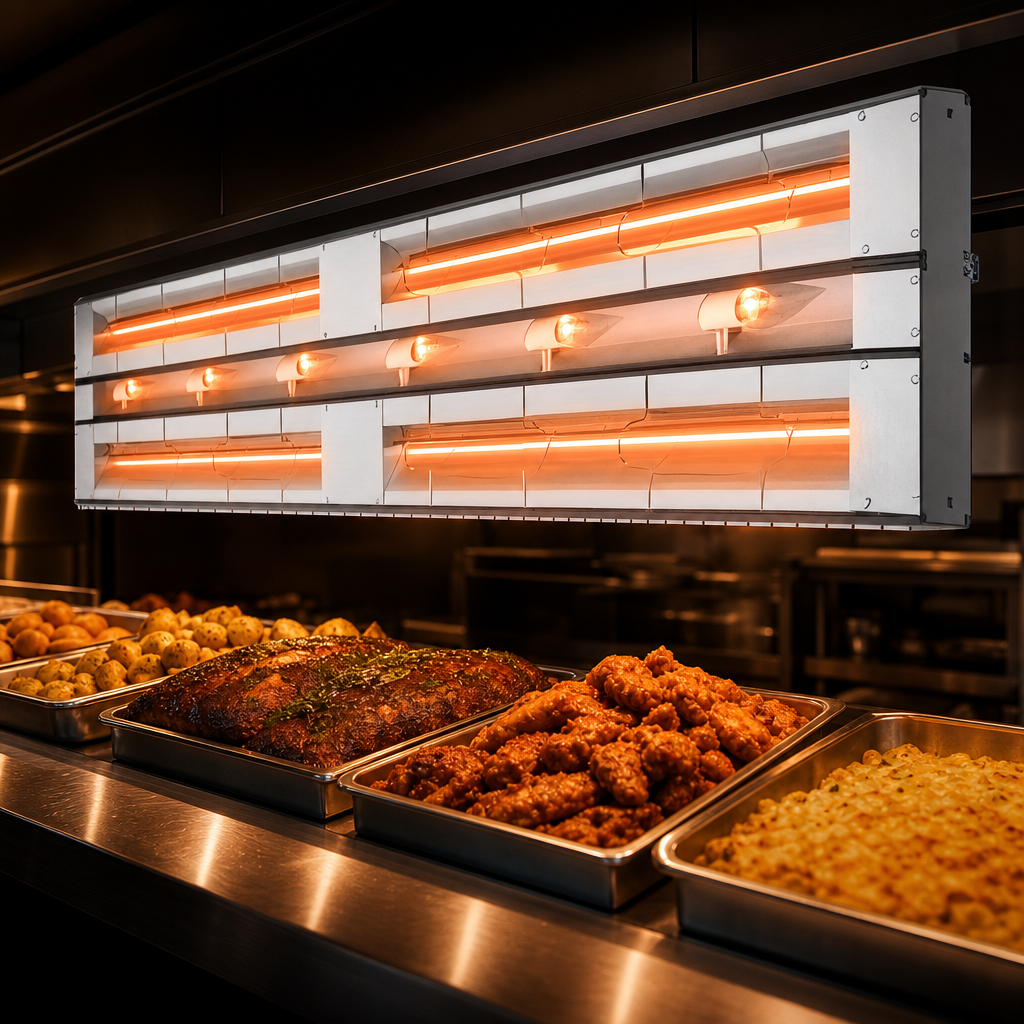

  • Buffet lines & carving stations

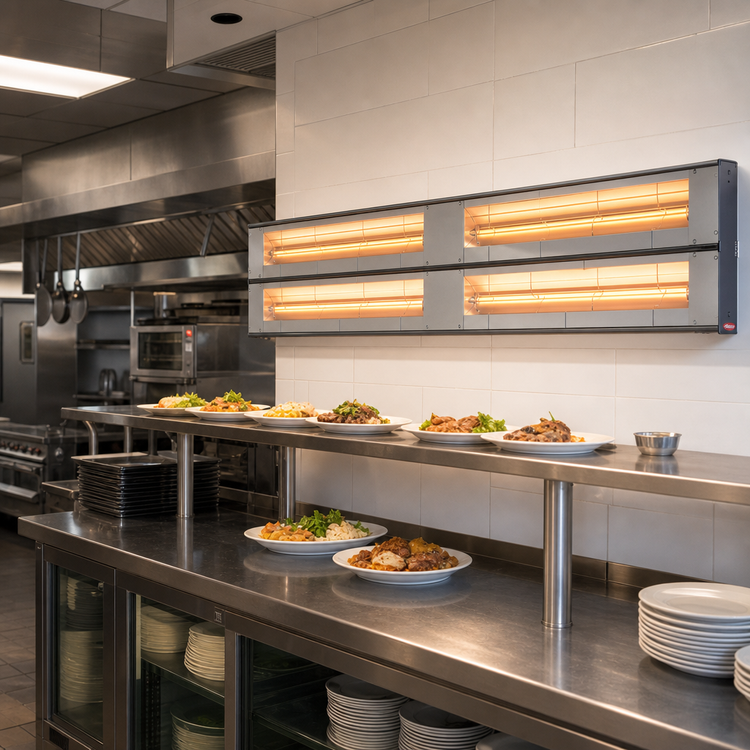

  • Restaurant pass-through windows
  • Cafeteria or school serving counters
  • C-stores, pizzerias & concessions
Installation note: Mount the remote control enclosure outside of the heater’s heat zone to prevent damage. Follow all clearances and electrical guidelines in the included installation manual.

Need a custom color, halogen bulbs or tubular stands? Ask our team about factory-installed options available at the time of order.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

cULus, Made in USA

Height

2.5in

Width

60.0in

Depth

18.0in

Shipping Weight

38.0lbs

Finish

aluminum

Length

55 - 60"

Type

lighted

Size

double

Type of element

metal heating rod

Specifications

Glo-Ray® Infrared Strip Heater, 60" W, maximum wattage with lights, tubular metal heater rod, double heater rod housing 6" spacing, aluminum construction, includes remote control enclosure & angle brackets, 3700 watts, cULus, Made in USA
