Hatco GRAML-60D3 Glo-Ray® Heat Lamps
Description

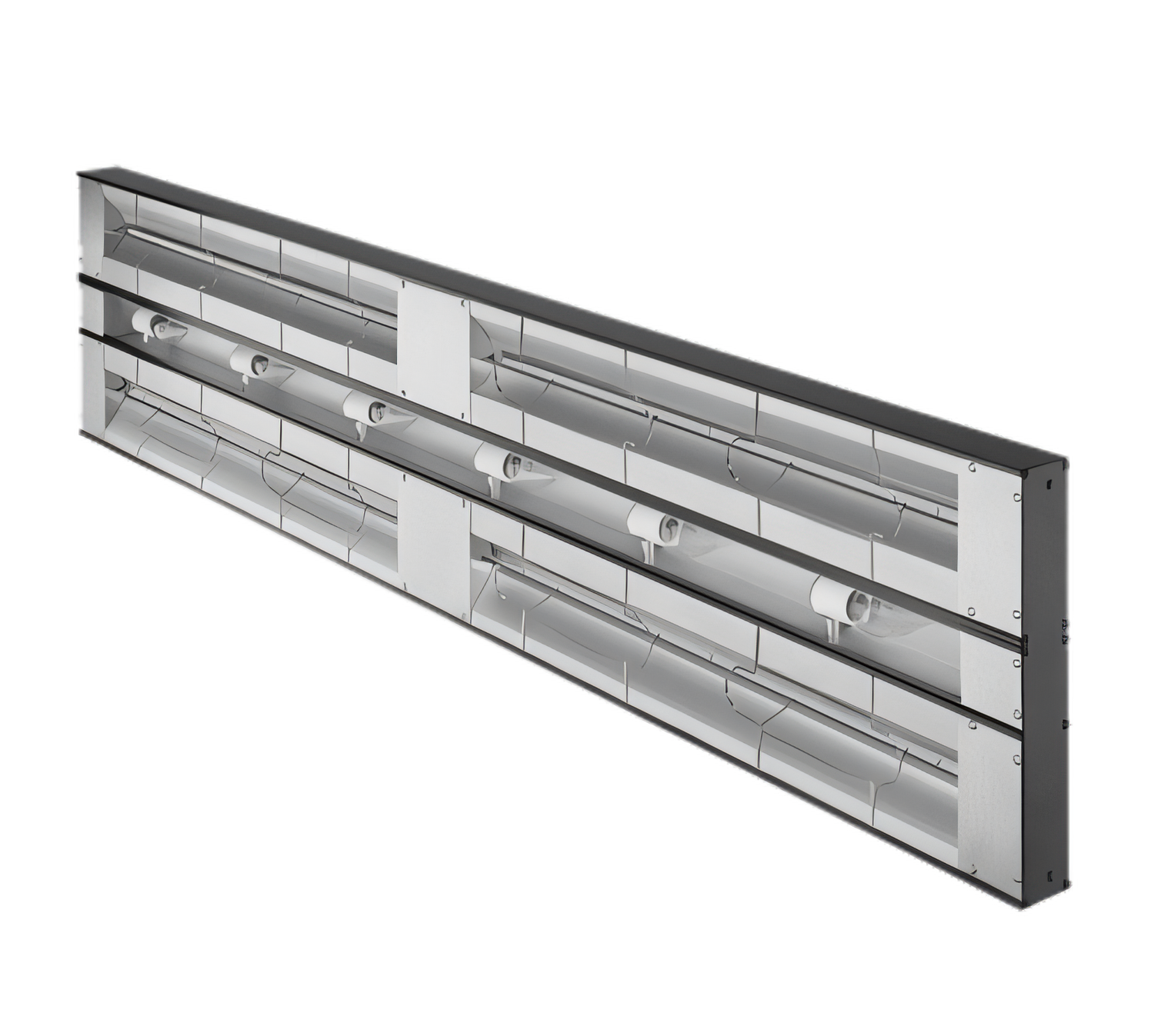

Hatco Glo-Ray® GRAML-60D 60" Max-Watt Dual Infrared Strip Heater with Lights
3700 W • Aluminum Housing • Remote Controls Included • Made in USAKeep every dish hot, fresh and photo-ready. Hatco’s GRAML-60D delivers 25 % more heat than standard high-watt models, flooding a full 60" holding zone with uniform infrared warmth while its built-in display lights showcase food at its best.
Why this heater wins in busy service lines
- Max-Watt performance – 3700 watts of pre-focused infrared heat for safe, appetising holding.
- Dual tubular elements spaced 3" (76 mm) apart create a deeper 15" heat zone that reaches every pan edge.

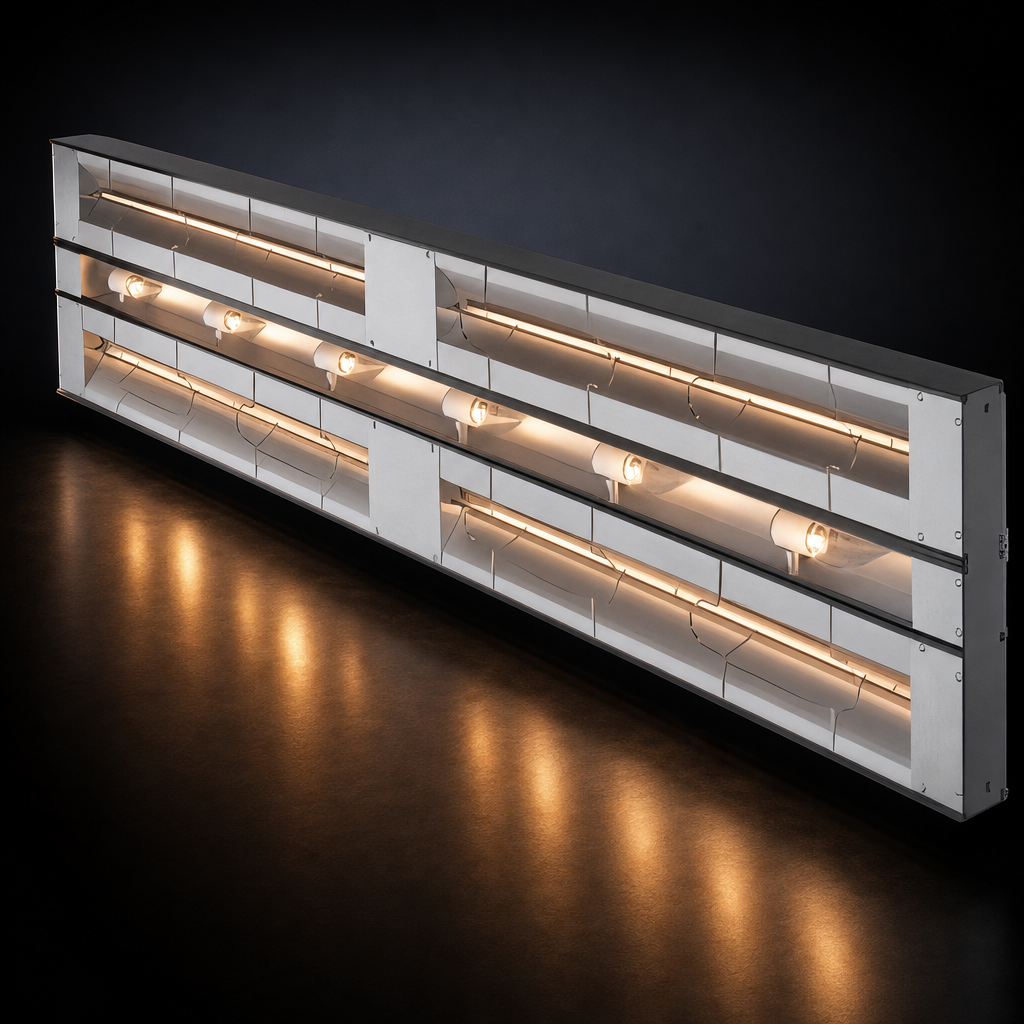

- Shatter-resistant incandescent bulbs (halogen optional) illuminate product and resist breakage.
- Rigid extruded aluminum housing will not sag, even after years of high-temperature operation.
- Protective wire guard supports elements without blocking heat distribution.
- Remote control enclosure with toggle switch and indicator light ships standard—mount it safely away from the heat.
- Heavy-duty internal insulation minimizes heat loss and keeps exterior surfaces cooler to the touch.
- cULus & NSF listed, built in Wisconsin and backed by Hatco’s 24/7 service network.
Perfect for
- Cafeterias & buffets
- Pass-through windows
- Carving stations & hot food bars
- Supermarket delis & convenience stores
Technical specifications
| Model | GRAML-60D |
|---|---|
| Overall width | 60" / 1524 mm |
| Depth × height | 15" D × 2.5" H (with standard 3" spacer) |
| Heating elements | (2) tubular metal-sheathed rods |
| Wattage | 3700 W (Max Watt) |
| Voltage | 120/208 V, 1-phase (separate light & heat circuits) |
| Amperage | 18.8 A |
| Lights | Shatter-resistant incandescent, 60 W each |
| Housing material | Clear anodized aluminum (Designer colors available) |
| Mounting hardware | Angle brackets (included) |
| Remote controls | Remote box with toggle switch & indicator light (included) |
| Certifications | cULus, NSF |
| Origin | Made in USA |
Need a different length, finish, voltage or halogen lights? Contact us—Hatco offers a complete range of GRAML strip heaters built to your exact specifications.
