Hatco GRAML-54D6 Glo-Ray® Heat Lamps
Description

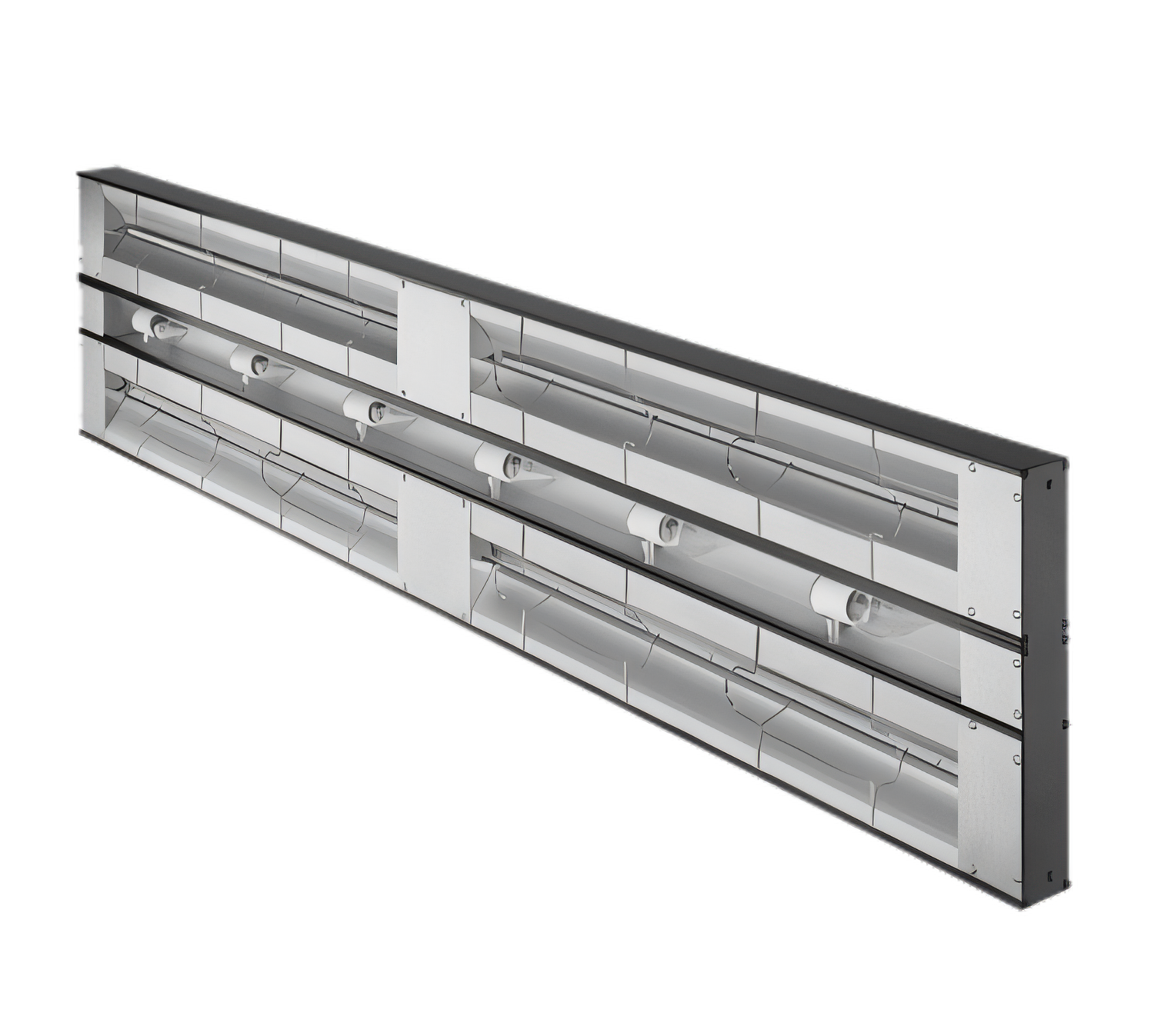

Hatco Glo-Ray® Max Watt Dual Infrared Strip Heater – 54" Wide w/ Lights (Model GRAML-54D)
3,240 W | Aluminum Housing | 6" Spacer | Remote Control Box IncludedKeep every French fry, slice of pizza and hotel pan entrée at peak serving temperature—without overcooking. Hatco’s 54-inch Glo-Ray GRAML-54D delivers intense, even infrared heat and shatter-resistant display lighting in a rugged, easy-to-install package that’s built, wired and certified in the USA.
Key benefits
- 25 % more heat than standard high-watt models—ideal for deeper food wells and drafty serving lines.

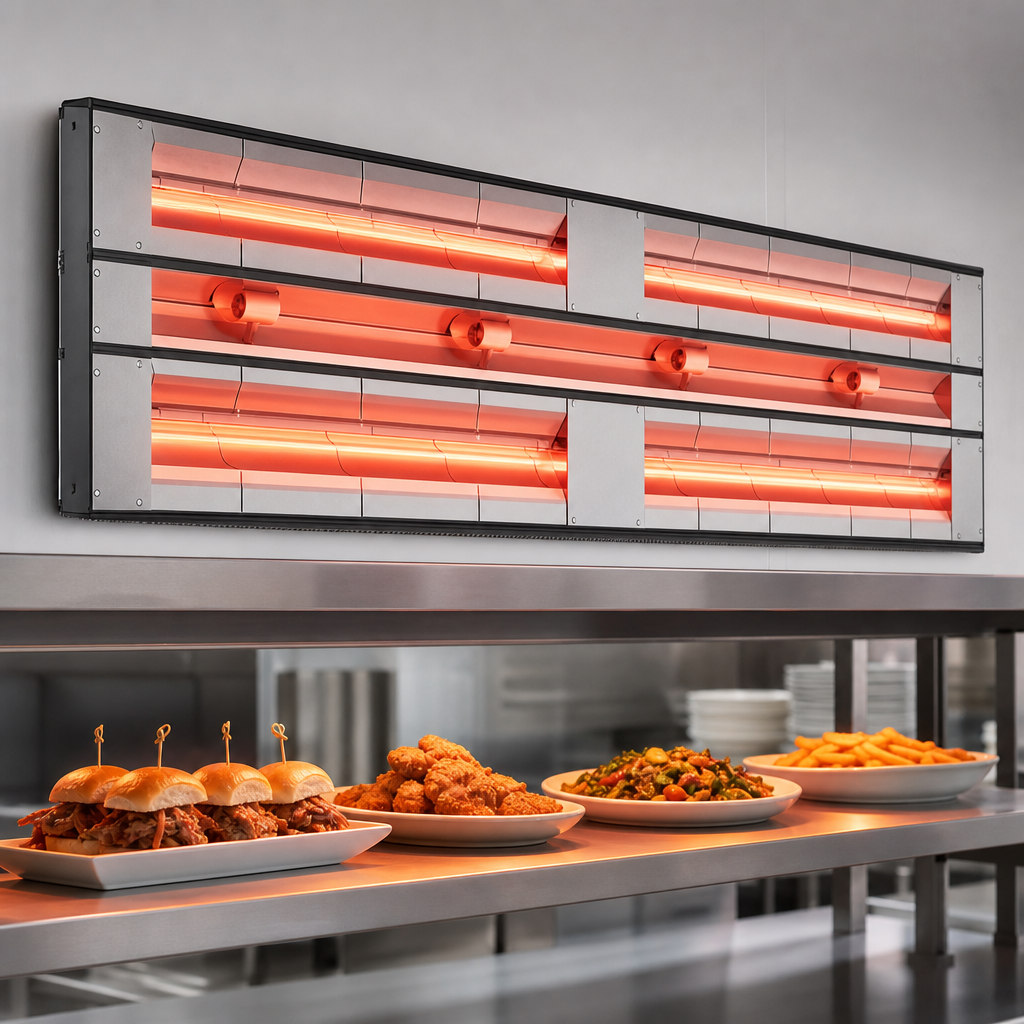

- Pre-focused infrared pattern blankets the entire holding surface, keeping food hot without continuing to cook it.

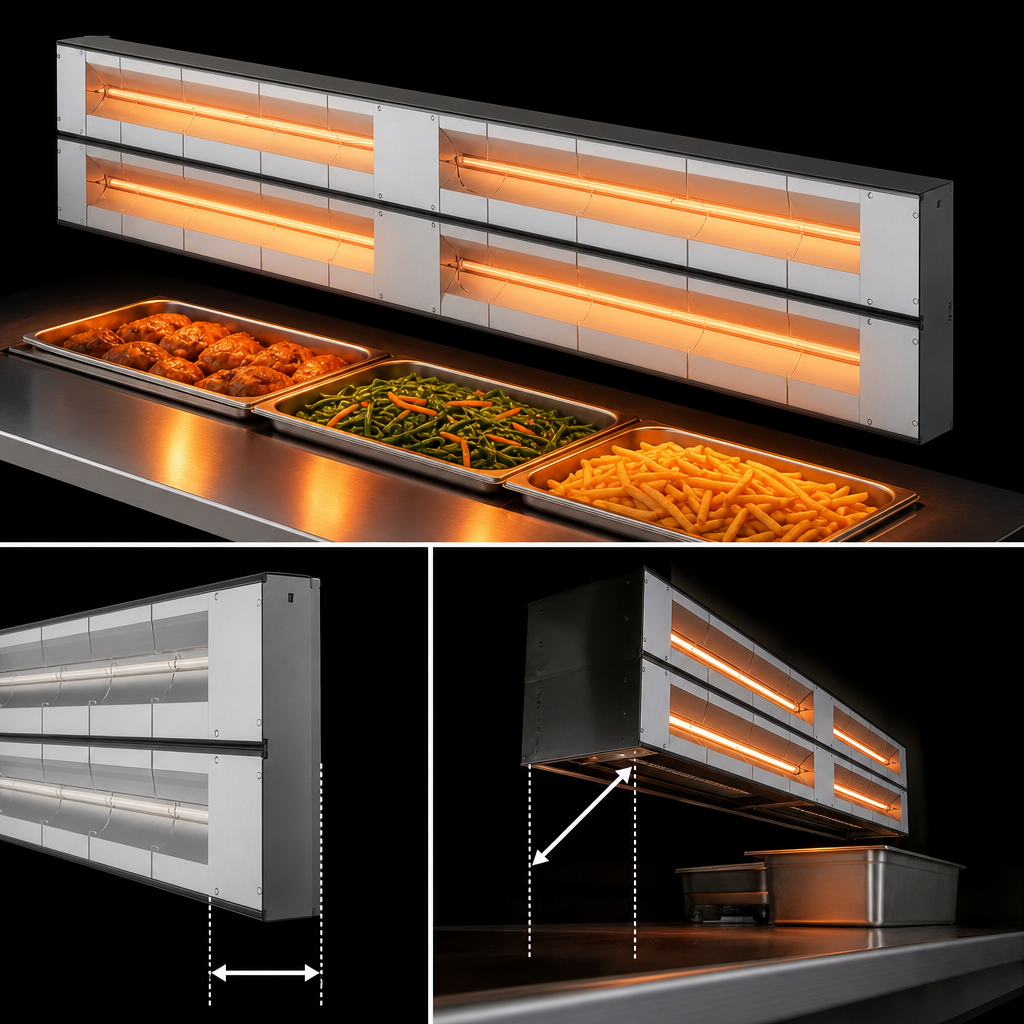

- Factory-installed 6" (152 mm) spacer provides an 18" total depth for perfect overshelf alignment.
- Dual, metal-sheathed tubular elements housed in heavy-duty extruded aluminum resist sagging and corrosion.
- Shatter-resistant incandescent bulbs highlight food while protecting it from broken glass.
- Remote control enclosure with toggle switches stays cool to the touch and simplifies wiring.
- Protective wire guard supports elements without blocking heat flow.
- Thick internal insulation reduces heat loss for lower energy costs.
Technical specifications
| Model | GRAML-54D |
|---|---|
| Overall width | 54" / 1,372 mm |
| Depth (with 6" spacer) | 18" / 457 mm |
| Height | 2.5" / 64 mm |
| Wattage | 3,240 W |
| Voltage / phase | 120/208 V or 120/240 V, 1-phase |
| Amperage | 16.4 A (120/208 V) | 14.5 A (120/240 V) |
| Elements | Dual tubular metal-sheathed rods |
| Controls | Remote box with toggle switches & indicator light (included) |
| Lighting | (2) Shatter-resistant incandescent bulbs |
| Housing material | Extruded aluminum, anodized finish |
| Included hardware | Angle mounting brackets |
| Ship weight | 33 lb / 15 kg |
| Certifications | cULus, NSF |
| Country of origin | Made in USA |
Recommended mounting heights*
- Pass-through counter: 18" – 24" (457 – 610 mm) above the holding surface
- Overshelf mounting: 14" – 24" (356 – 610 mm) above the holding surface
- Side-by-side installation: maintain at least 3" (76 mm) between heaters
*Always follow local codes and the Hatco installation manual for final clearances.
Looking for custom colors, halogen bulbs or extended power leads? Contact us before ordering—factory options are available only at time of purchase.
