Hatco GRAML-48D6 Glo-Ray® Heat Lamps
Description

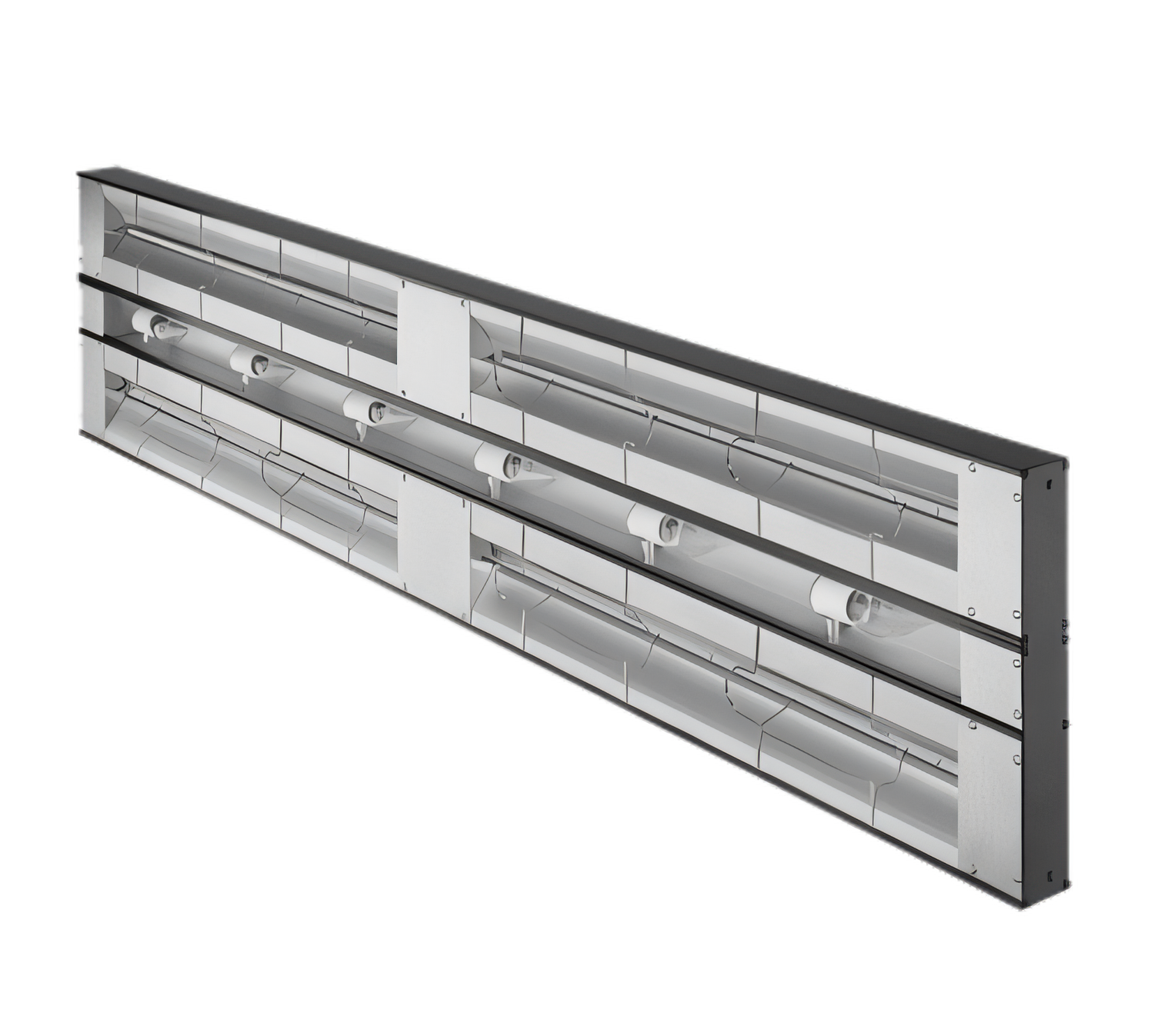

Hatco Glo-Ray® GRAML-48D Max-Watt Dual Infrared Strip Heater — 48" with Lights
High-performance heat and illumination for deeper, 6" food-holding zonesKeep entrées, sides and pizza slices hot, appetizing and ready to serve with Hatco’s most powerful 48" aluminum strip heater. The GRAML-48D couples two metal-sheathed elements with a 6" (152 mm) spacer, delivering 25 % more wattage than standard high-watt models while bathing the entire holding surface in uniform infrared heat.
Key features
- Max-Watt output — 2,840 W of pre-focused infrared energy for demanding serving lines.
- Dual tubular elements mounted 6" apart create a deeper heat field for full-size pans or stacked plates.

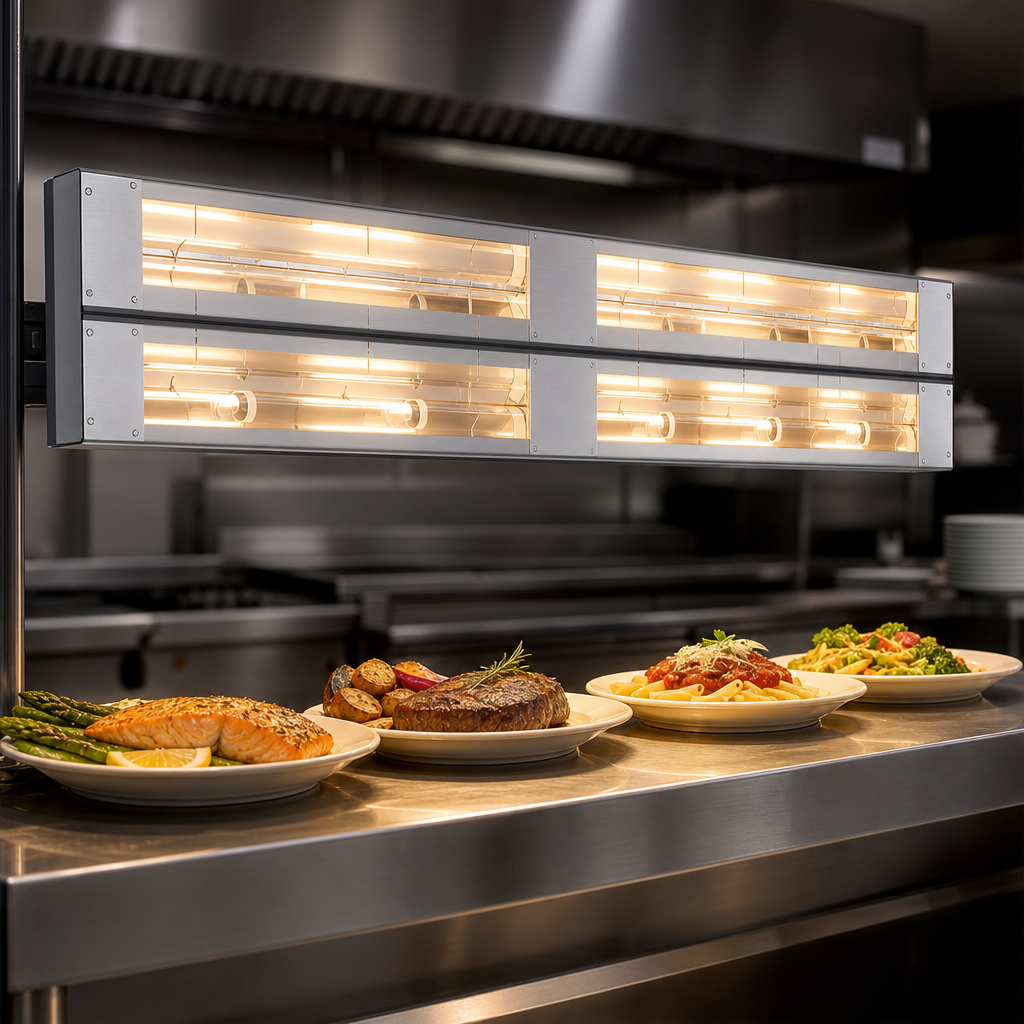

- Built-in, shatter-resistant incandescent display lights (60 W) showcase food and improve visibility.
- Heavy-duty extruded aluminum housing resists sagging and wipes clean in seconds.
- Protective wire guard supports the elements without blocking heat distribution.
- Remote control enclosure with toggle switch, indicator light and fuse is included — mount it outside the heat zone for safety.
- Angle mounting brackets ship with the unit for quick under-shelf, ceiling or pass-through installation.
- cULus and NSF listed; engineered and built in the USA.
Specifications
| Model | GRAML-48D |
|---|---|
| Overall width | 48" / 1,219 mm |
| Depth (with 6" spacer) | 18" / 457 mm |
| Height | 2.5" / 64 mm |
| Heating elements | 2 × tubular metal-sheathed |
| Wattage | 2,840 W (Max-Watt) |
| Voltage | 120/208 V, single-phase † |
| Amperage | 14.5 A |
| Lighting | Shatter-resistant incandescent (60 W each) |
| Housing material | Clear anodized aluminum (Designer colors available at time of order) |
| Included hardware | Angle brackets & remote control enclosure |
| Power lead | 36" (914 mm) flexible metal conduit + 42" (1,067 mm) leads |
| Certifications | cULus, NSF |
| Origin | Made in USA |
† Multi-circuit design: lights operate on 120 V while heater elements operate on 208 V.

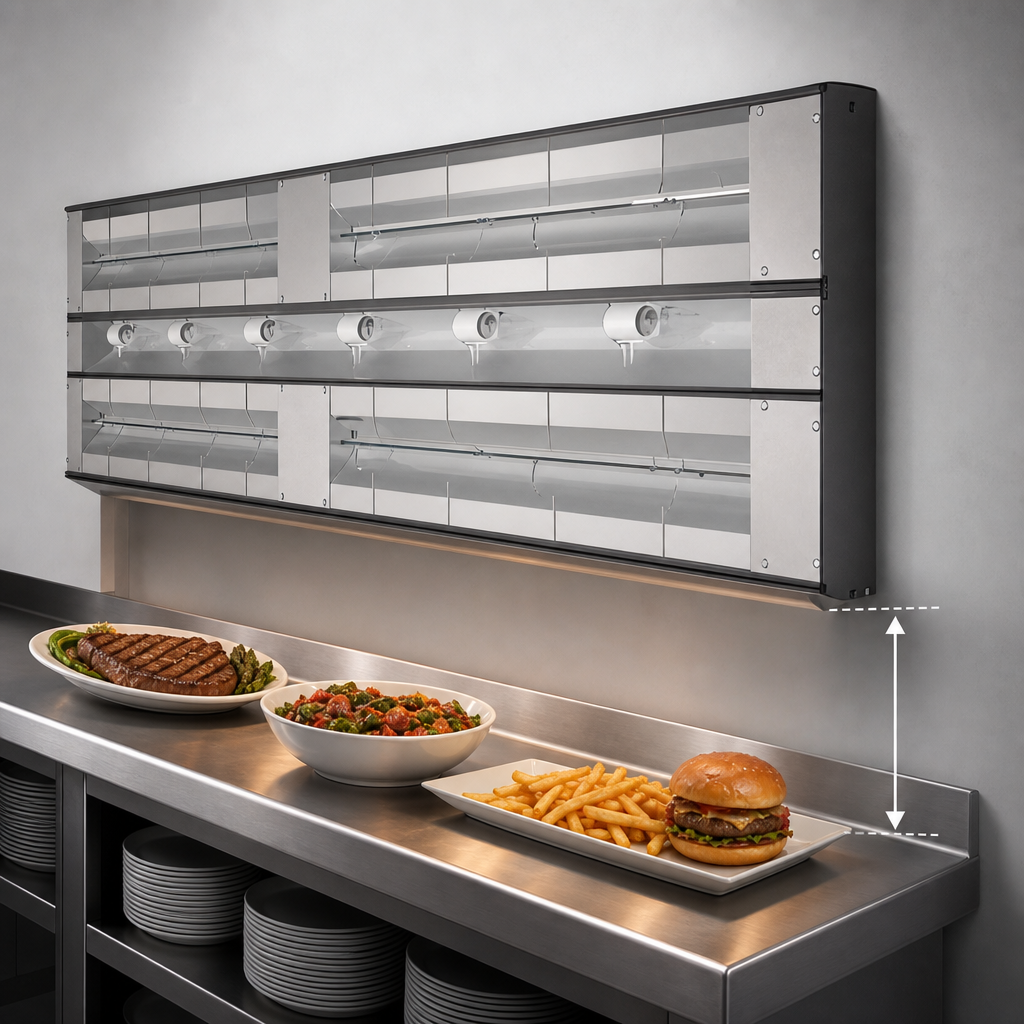

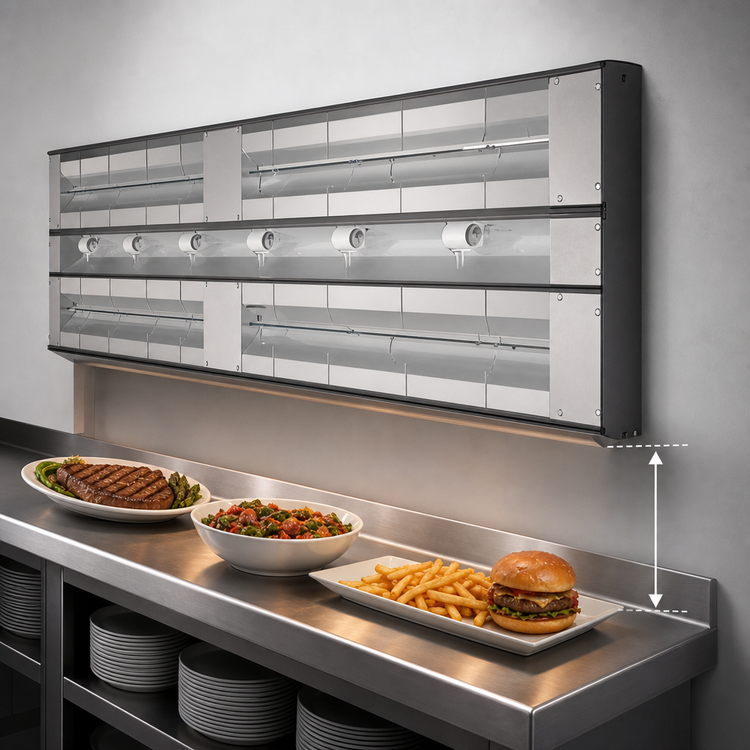

Recommended mounting heights
- Pass-through counters: 24"–32" (610–813 mm) above product.
- Under-shelf mounting: 17"–24" (432–610 mm) above product.
- Maintain at least 3" (76 mm) clearance at the rear when units are installed back-to-back.
Always follow the Installation & Operating Manual for complete mounting, wiring and clearance requirements.
Upgrade your buffet, cafeteria line or pass-through window with the durability, power and food-saving performance only Hatco’s Glo-Ray® technology can deliver.
