Hatco GRAML-42D6 Glo-Ray® Heat Lamps
Description

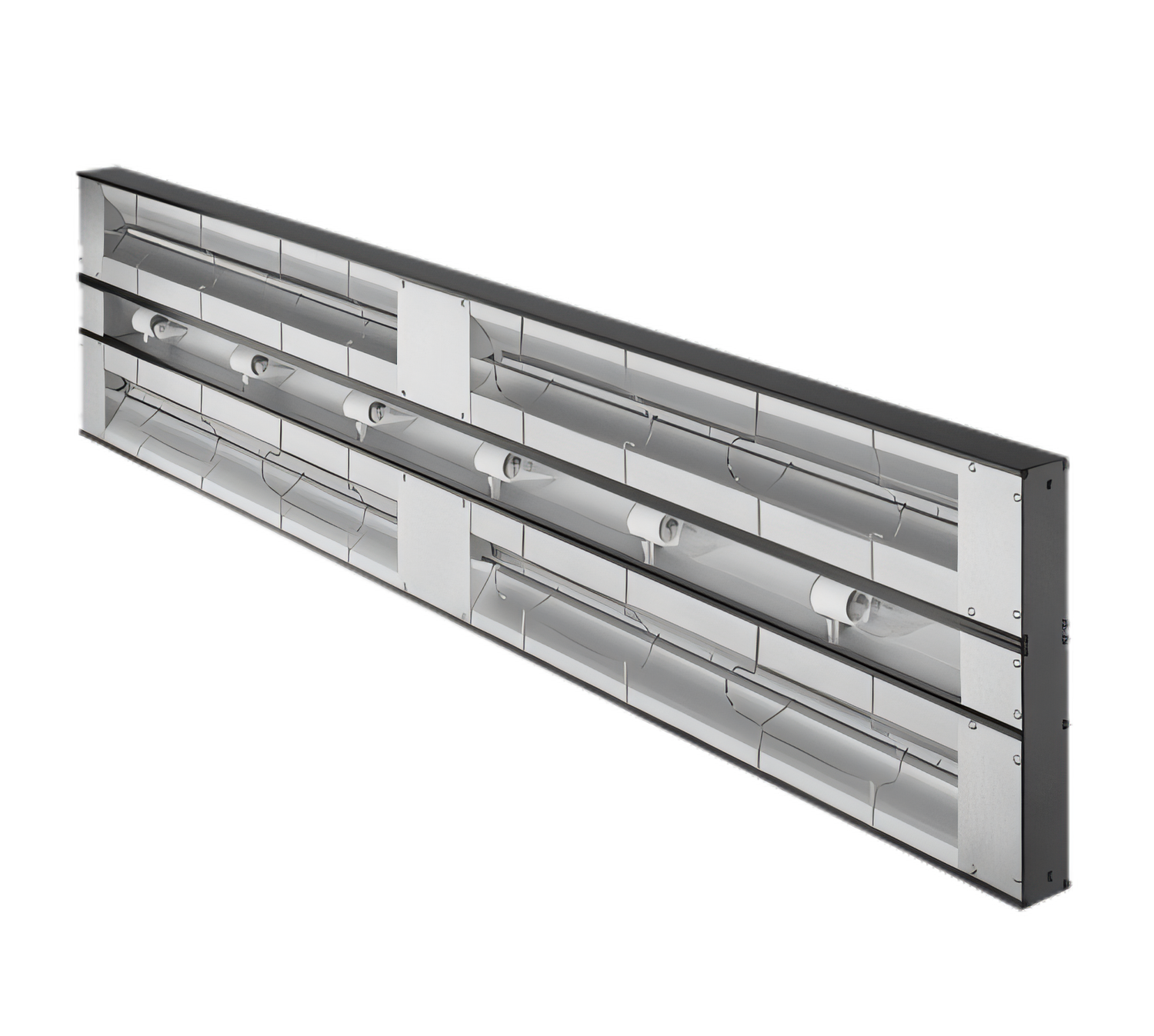

Hatco Glo-Ray® Infrared Strip Heater – 42" Dual-Rod Max Watt with Lights
(Model GRAML-42D)Give every plate the just-made warmth your guests expect. The Hatco Glo-Ray® 42" Max Watt Dual Infrared Strip Heater surrounds a full 42-inch holding area with pre-focused infrared heat—keeping food hot and appetizing without further cooking while built-in lights showcase the menu in its best light.
Why you’ll love it

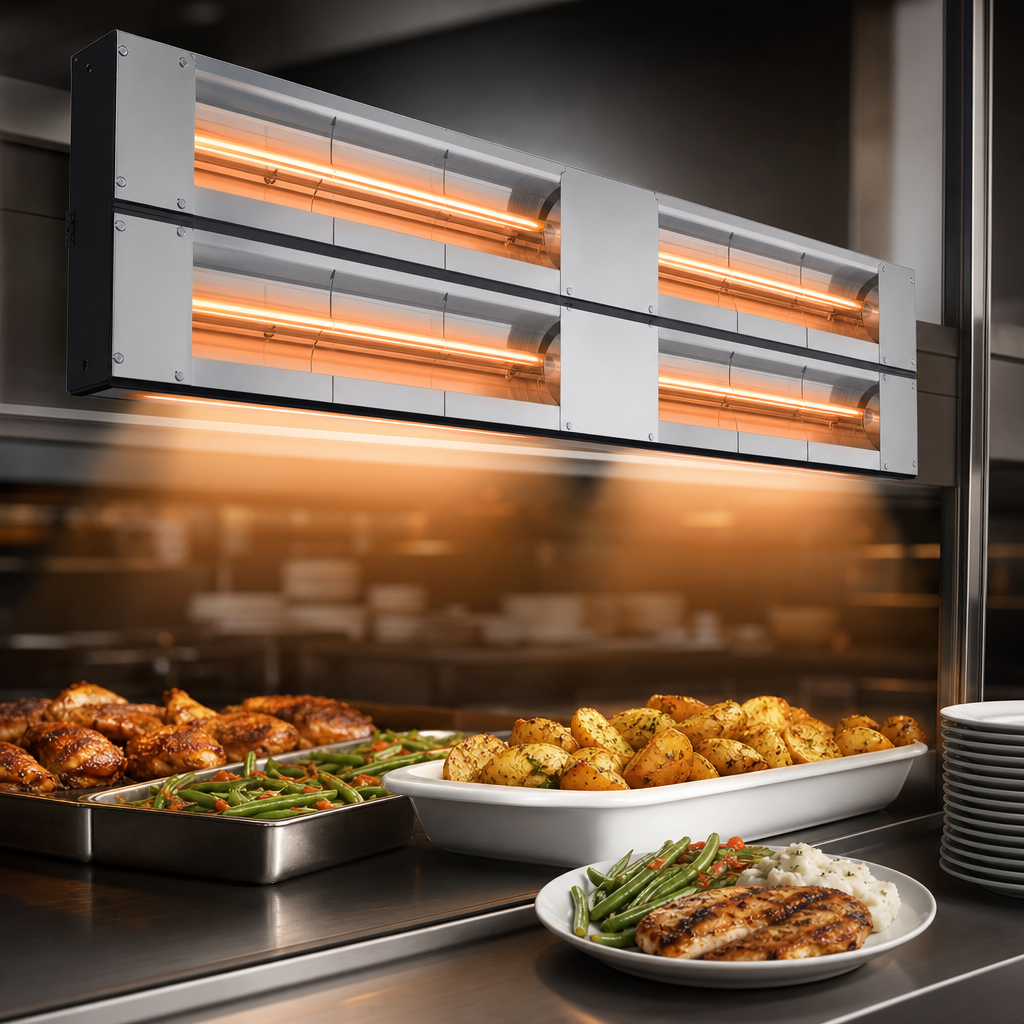

- Max Watt performance – delivers 25 % more heat than standard high-wattage models (2530 W total output).

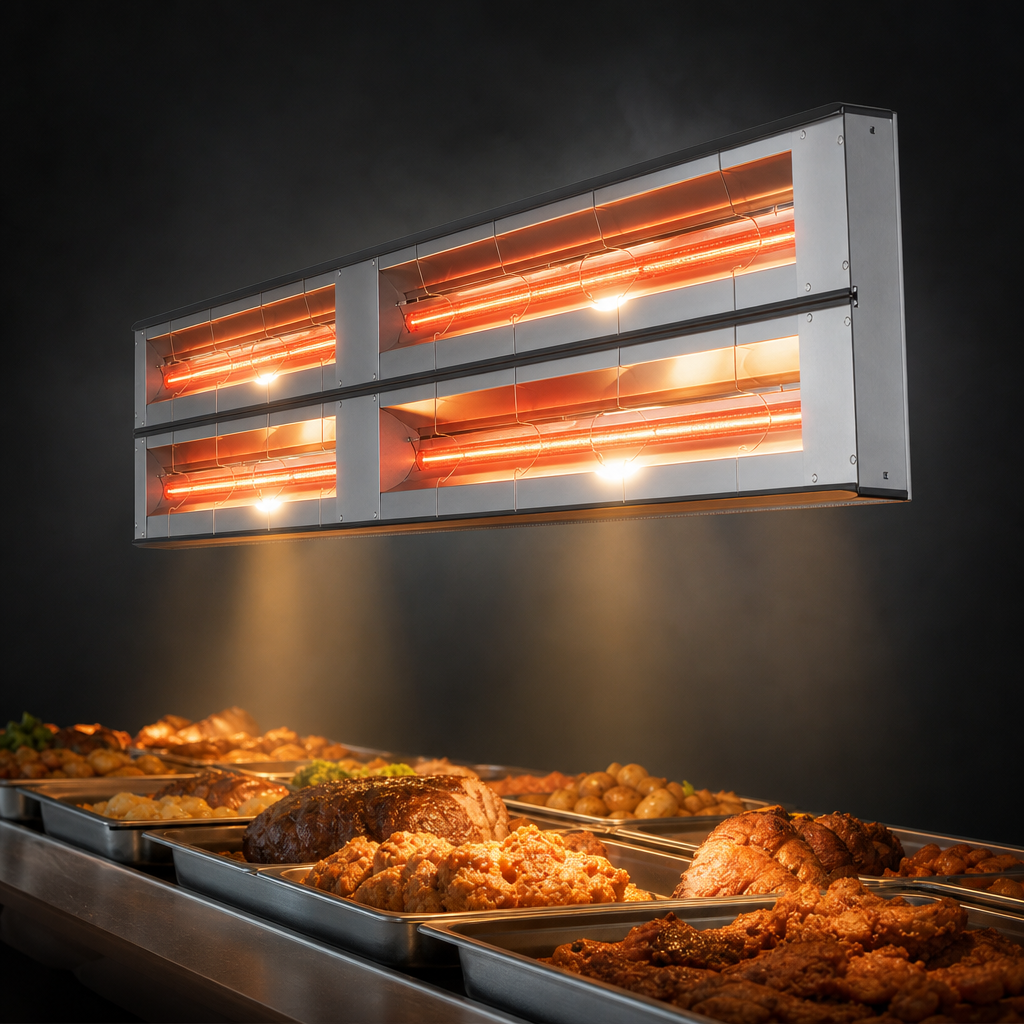

- Dual tubular metal-sheathed elements ensure even, edge-to-edge coverage with no “cold” spots.
- 6" (152 mm) spacer creates a deeper holding zone—ideal for buffets, pass-throughs and overshelf mounting.
- Shatter-resistant incandescent bulbs illuminate food and draw customer attention.
- Rigid extruded aluminum housing eliminates sagging and resists corrosion.
- Remote Control Enclosure with separate light & heat toggle switches keeps sensitive components safely outside the heat zone.
- Heavy-duty insulation minimizes heat loss for energy-efficient operation.
- Includes factory-installed angle brackets and 36" (914 mm) flexible conduit with 42" leads for fast, secure installation.
- cULus & NSF listed, 100 % Made in the USA.
Perfect for
- Cafeteria & buffet lines
- Restaurant pass-through windows
- Supermarket delis & hot cases
- Catering and banqueting setups
Technical specifications
| Model | GRAML-42D |
|---|---|
| Overall length | 42" (1067 mm) |
| Heat source | Dual tubular metal-sheathed infrared rods |
| Element spacing | 6" (152 mm) |
| Wattage | 2530 W (Max Watt) |
| Voltage | 120/208 V, single phase |
| Amperage | 12.8 A |
| Display lighting | Shatter-resistant incandescent, 60 W each |
| Housing material | Anodized aluminum with protective wire guard |
| Controls | Remote Control Enclosure – separate light & heat toggles |
| Mounting hardware | Angle brackets (included) |
| Certifications | cULus, NSF |
| Country of origin | USA |
Want a specific look? Hatco offers 15 Designer Colors and gloss finishes at the time of order—contact us for details.
Recommended mounting heights*
| Over-shelf installation | 18" (457 mm) above holding surface |
|---|---|
| Pass-through window | Top of opening 20–24" (508–610 mm) |
*Refer to the Hatco installation manual and local electrical codes for final placement.
From busy cafeterias to high-volume delis, the Hatco Glo-Ray® 42" Max Watt Infrared Strip Heater keeps every dish at the perfect serving temperature—so your guests enjoy food the way it was meant to be served.
