Hatco GRAML-144D6 Glo-Ray® Heat Lamps
Description

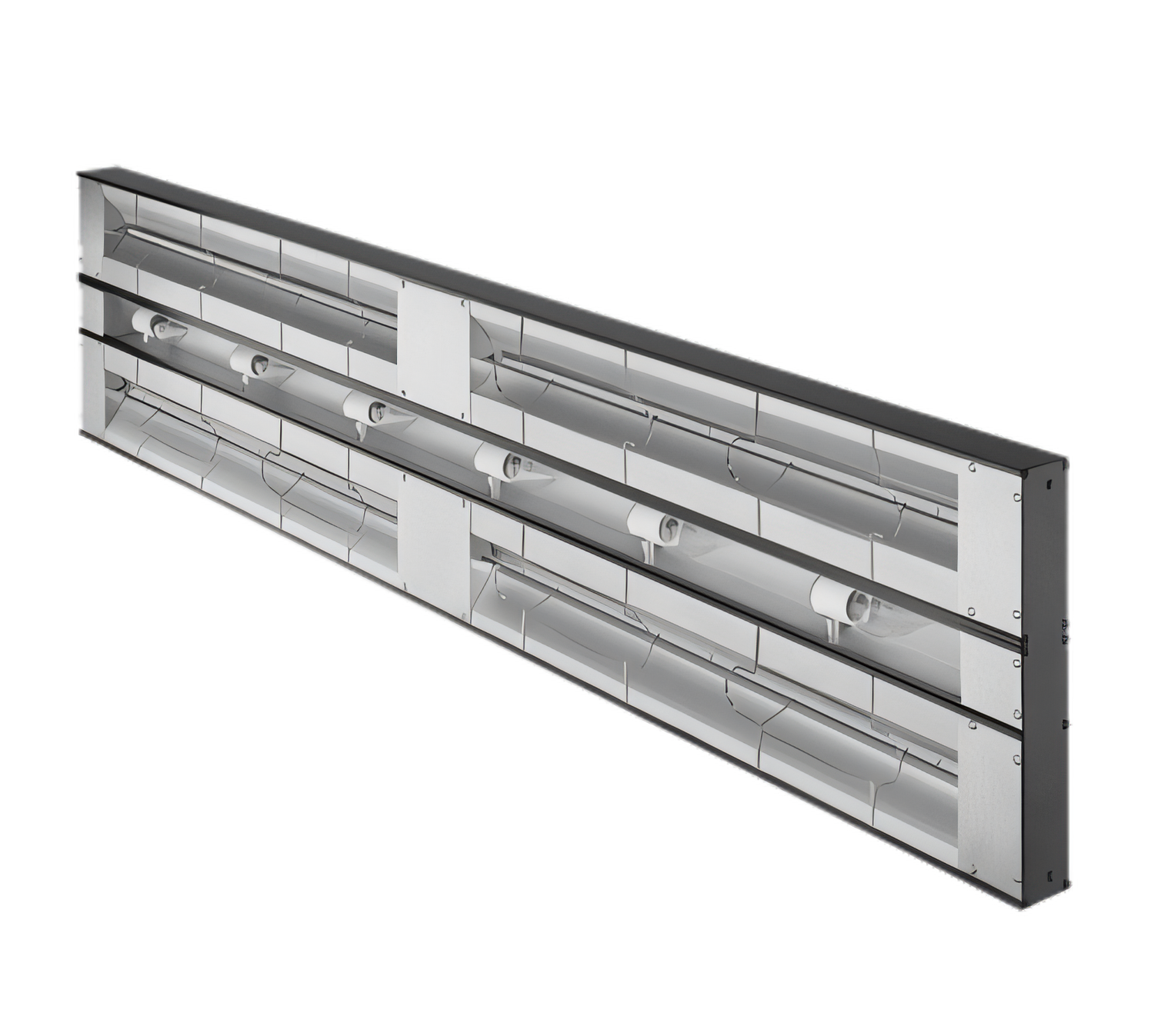

Hatco GRAML-144D Glo-Ray® Max Watt Dual Infrared Strip Heater – 144" W
9020 W • 6″ spacer • integrated lights • remote toggle controlsHold the longest pans, trays and full-size hotel pans at safe serving temperatures without sacrificing presentation. The GRAML-144D combines Hatco’s highest watt density with shatter-resistant display lighting in a rugged 12-foot, extruded-aluminum housing that is built for continuous, high-volume service.
Why you’ll love it
- More heat, less wait – “Max Watt” element delivers ≈25 % more output than standard high-watt models (9020 W total).

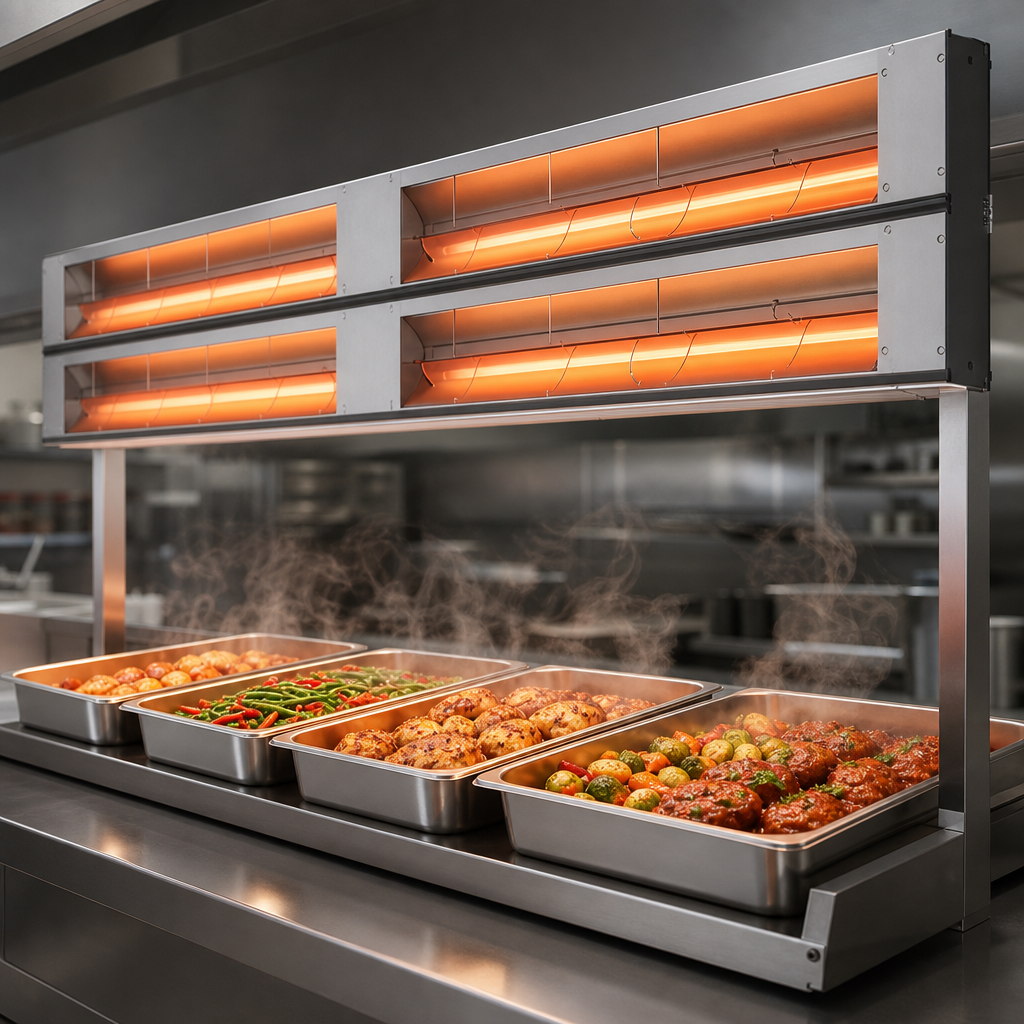

- Full-surface coverage – Dual tubular metal-sheathed rods are pre-focused to blanket the entire 144″ holding area evenly.
- 6″ (152 mm) spacer – Creates a deeper heat field, perfect for tall menu items or pass-through shelves.

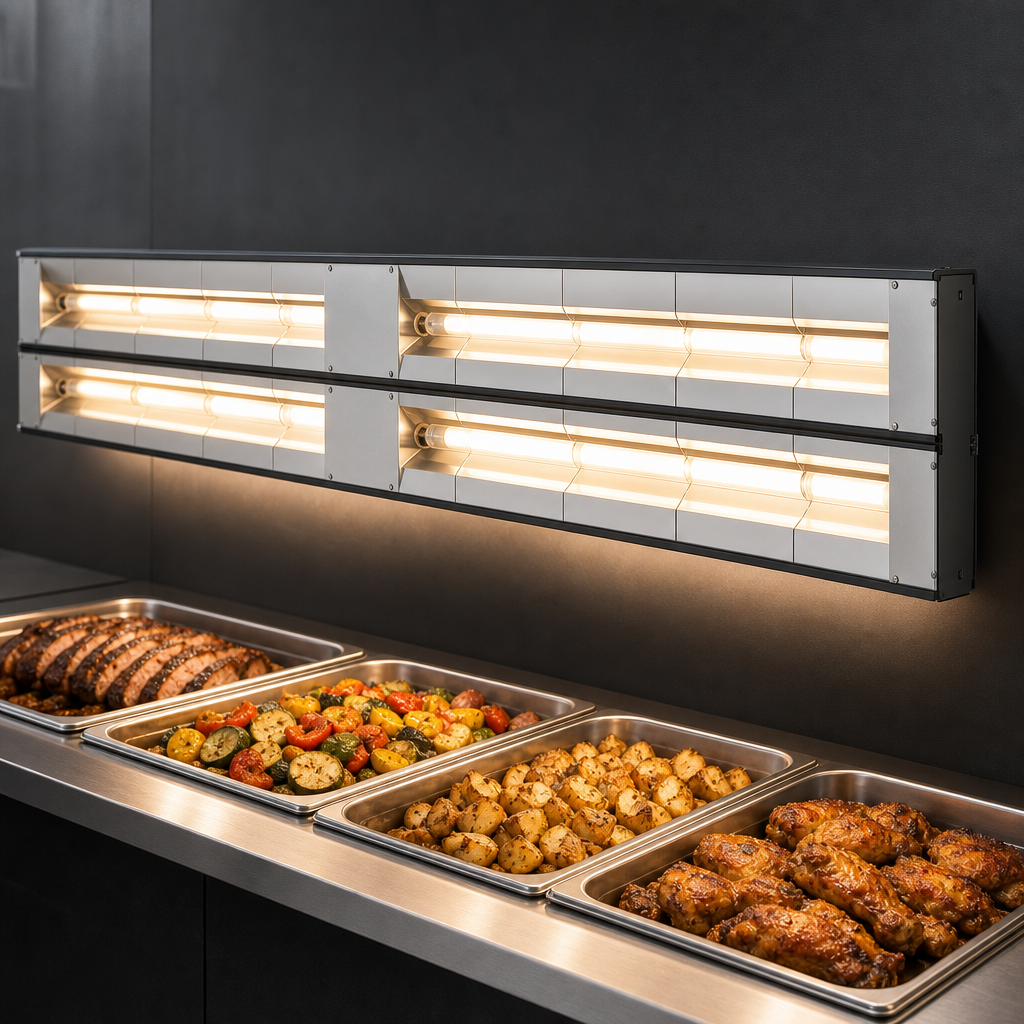

- Built-in lighting – Shatter-resistant incandescent bulbs boost product visibility while protecting food from glass fragments.
- Energy smart – Dense fiberglass insulation keeps heat directed at your food, not your ceiling.
- Ready to mount – Heavy-duty angle brackets and a remote control enclosure with light & heat toggles are included.
- Rock-solid construction – One-piece extruded aluminum housing will not sag, even at 12 feet long.
- Certified & serviceable – cULus & NSF listed, backed by Hatco’s 24/7 parts and service assistance.
Technical specs
| Model | GRAML-144D |
|---|---|
| Overall width | 144″ / 3658 mm |
| Heat output | 9020 watts (Max Watt) |
| Voltage | 120/240 V, single phase* |
| Amperage (heat circuit) | 40.6 A @ 240 V |
| Element type | Dual tubular metal-sheathed rods |
| Spacer distance | 6″ / 152 mm |
| Lighting | Shatter-resistant incandescent (60 W each) |
| Housing material | Clear anodized aluminum |
| Controls | Remote enclosure with individual light & heat toggle switches |
| Certifications | cULus, NSF |
| Country of origin | Made in USA |
*Dual-circuit design – lights operate on 120 V; heat operates on 240 V.
What’s in the box
- GRAML-144D strip heater with factory-attached 3′ flexible metal conduit & 42″ leads
- Remote control enclosure (surface-mount box, pre-wired)
- Pair of heavy-duty angle mounting brackets
- Installation & operating manual
Perfect for
- 14′ buffet or cafeteria lines
- Pass-through windows & plating rails
- Banquet kitchen overshelves
- Large pizza or sheet-pan holding areas
Installation notes
- Recommended mounting height (6″ spacer): 21″ – 27″ (533 – 686 mm) above the product.
- Remote control enclosure must be installed outside the heat zone.
- Maintain at least 1″ (25 mm) clearance from combustible surfaces.
- Field wiring should be performed by a qualified electrician.
Need a different length, custom color, halogen lights or tubular stands? Ask our team about the complete Hatco GRAML series or visit the Hatco website via the store chat.
