Hatco GRAML-144D3 Glo-Ray® Heat Lamps
Hatco GRAML-144D3 Glo-Ray® Heat Lamps is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hatco GRAML-144D3 Glo-Ray® Heat Lamps
Description

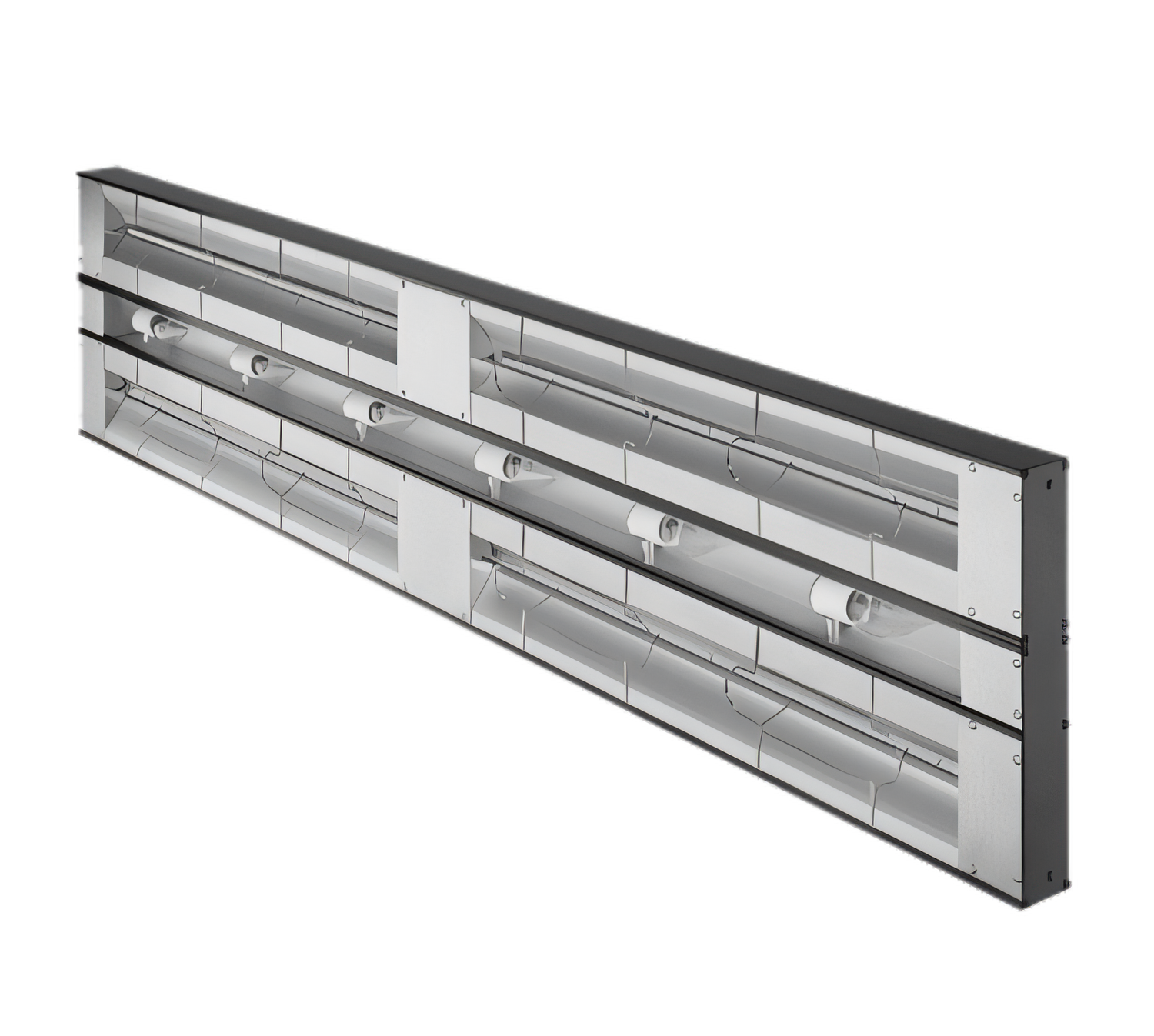

Hatco Glo-Ray® GRAML-144D Max Watt Dual Infrared Strip Heater – 144" with Lights
9020 W • 120/240 V • Extruded Aluminum Housing • Made in USAStretch heat and light the full length of a 12 ft service line. Hatco’s GRAML-144D delivers intense, pre-focused infrared heat and brilliant product illumination, keeping every pan at safe serving temperature without sacrificing food quality.
Why you’ll love it
- Max Watt output—approximately 25 % more heat than standard high-watt models for unmatched holding power.

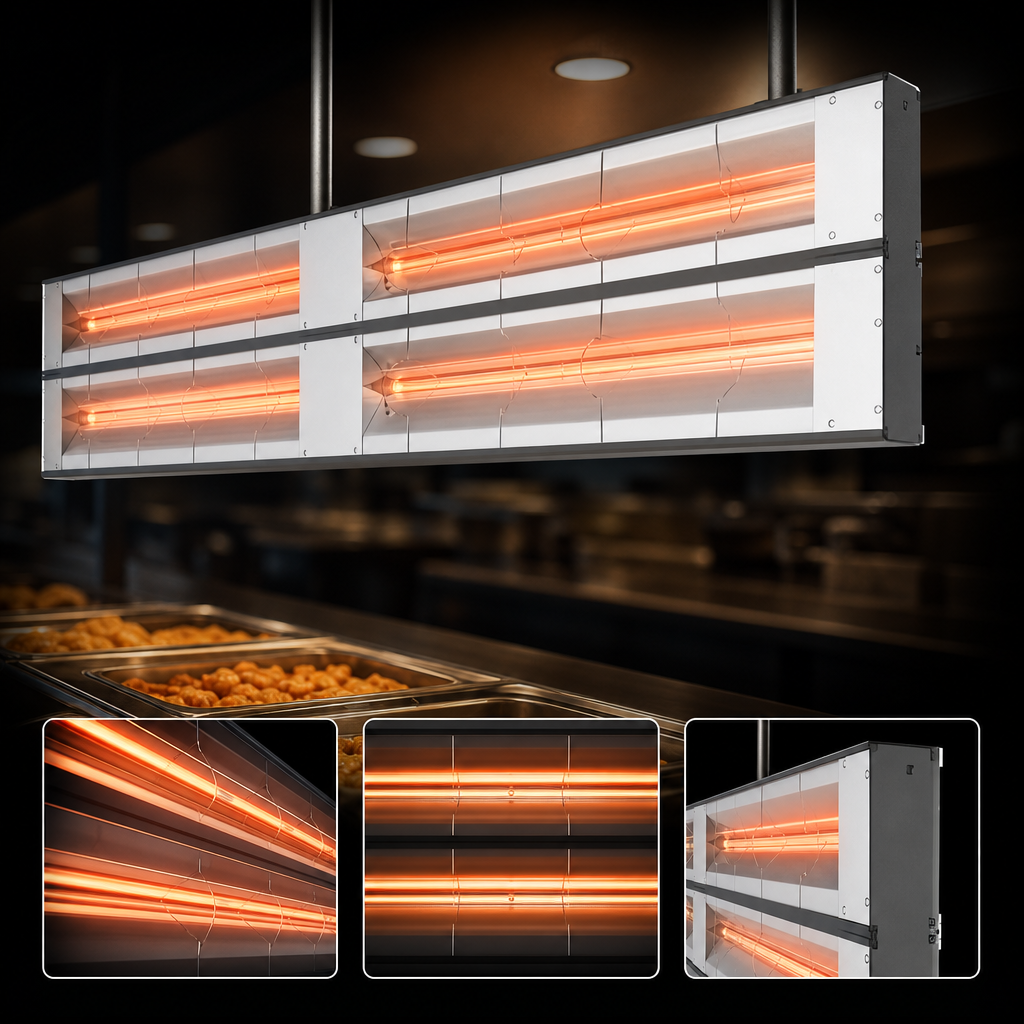

- Dual tubular metal-sheathed elements with a factory-set 3" (76 mm) spacer create a deeper, more even heat pattern.

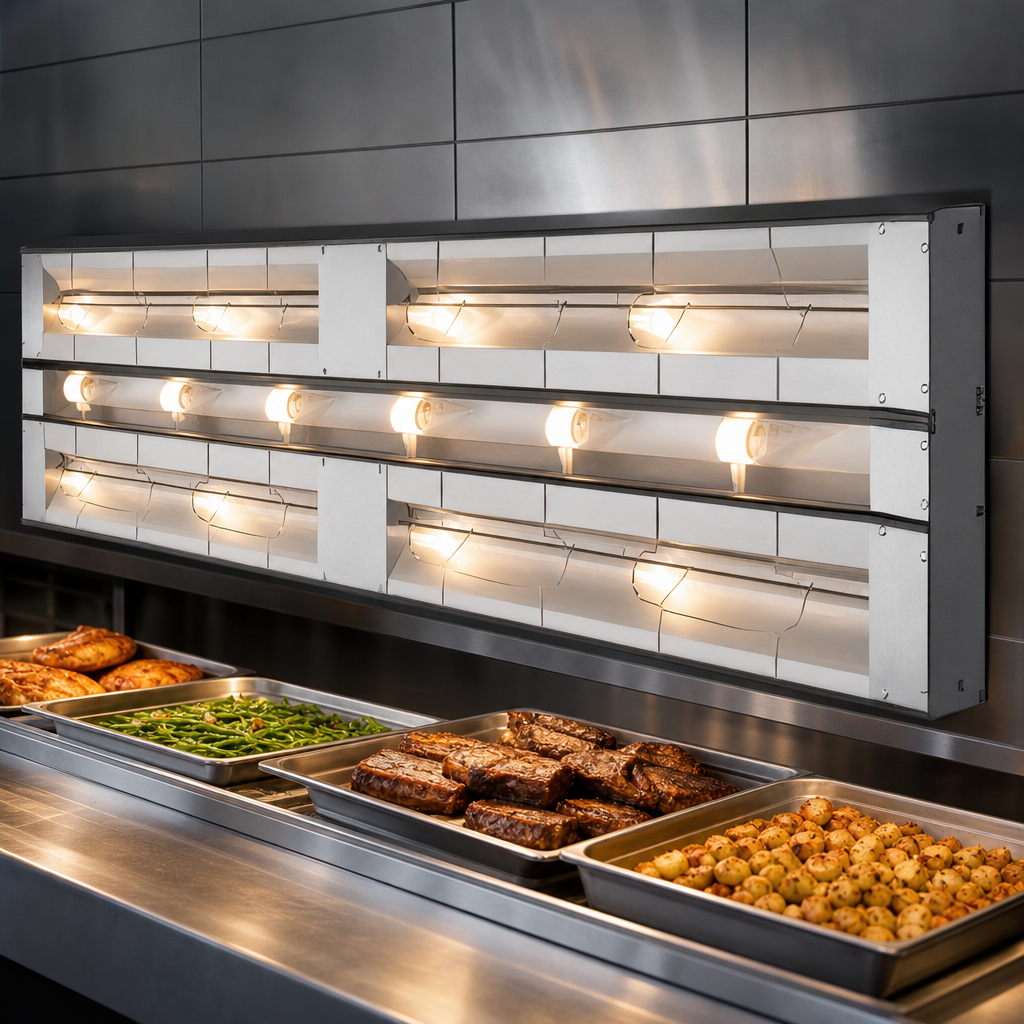

- Shatter-resistant 60 W incandescent bulbs highlight food while protecting it from bulb breakage (optional halogen or LED available).
- Rugged, clear-anodized extruded aluminum housing prevents sagging and stands up to heavy commercial use.
- Remote Control Enclosure (included) places on/off toggles and infinite heat control where staff can reach them—well outside the heat zone.
- Protective wire guard, high-temperature insulation and enclosed wiring enhance operator safety.
- cULus listed and proudly manufactured in Wisconsin, USA.
Technical snapshot
| Model | GRAML-144D |
|---|---|
| Overall width | 144" (3658 mm) |
| Depth × Height | 15" × 2.5" (381 × 64 mm) |
| Spacer between heaters | 3" (76 mm) |
| Wattage | 9020 W (Max Watt) |
| Voltage / phase | 120/240 V, 1 ø (120 V light circuit & 240 V heat circuit) |
| Amperage | 40.6 A |
| Heating elements | Dual tubular metal-sheathed rods |
| Display lighting | Shatter-resistant incandescent (60 W) |
| Housing material | Extruded aluminum, clear anodized |
| Included hardware | Remote Control Enclosure, 36" flexible conduit with 42" leads, angle mounting brackets |
| Certifications | cULus, NSF, Made in USA |
| Approx. ship weight | 86 lb (39 kg) |
Perfect for
- Cafeterias & school lunch lines
- Buffets & carving stations
- Restaurant pass-through windows
- Supermarkets, delis & C-stores
Need a different length, color or control option? Glo-Ray Max Watt Dual Strip Heaters are available in 18"–144" widths with dozens of Designer colors, LED or halogen lighting, and stand-mount configurations. Contact us for details.
