Hatco  |  Glo-Ray®  |  SKU: GRAML-144

Hatco GRAML-144 Glo-Ray® Heat Lamps

$1,640.86
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog brochure Color chart Owner's manual
Related Searches
Heat Lamps Serving & Display Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

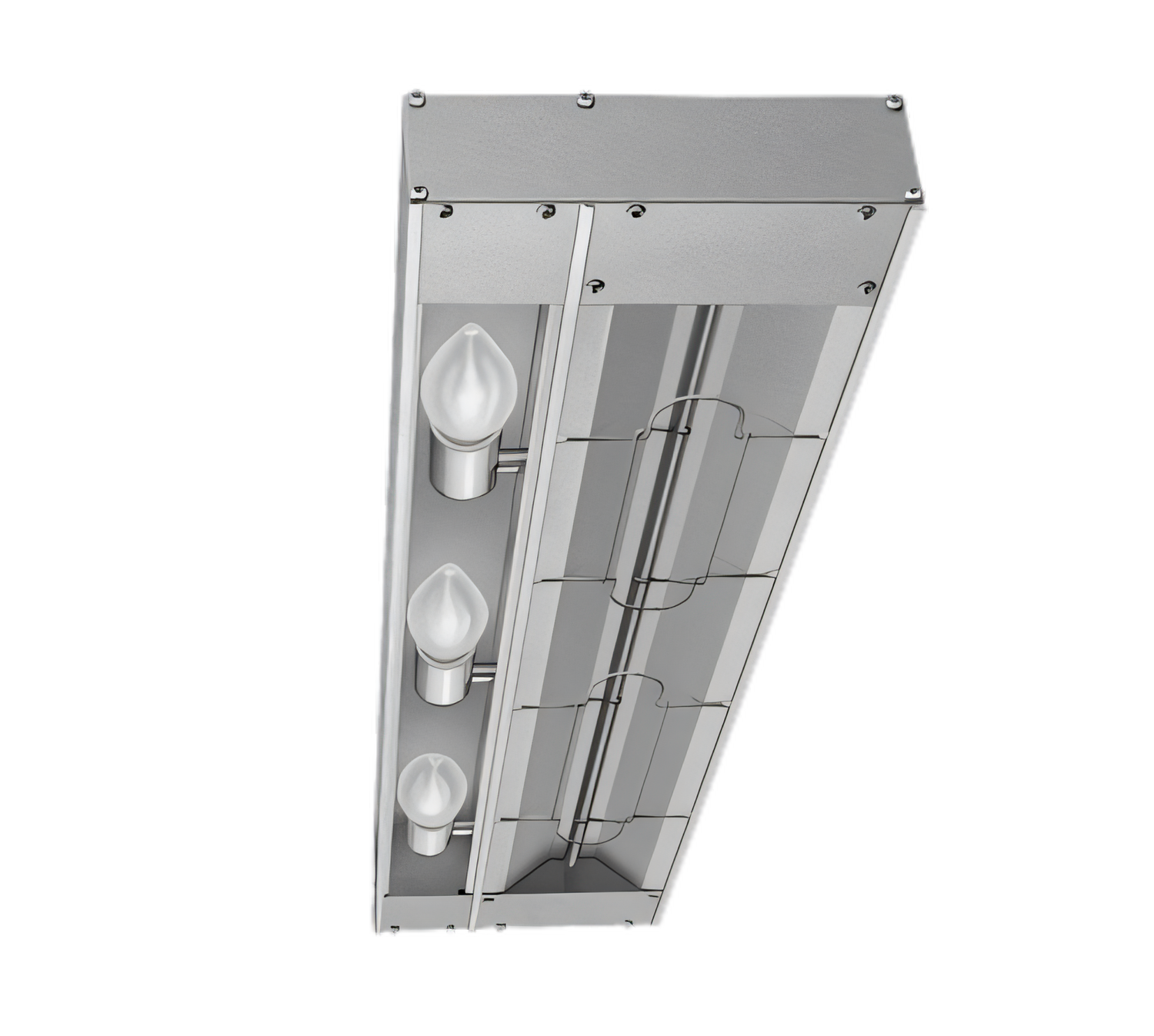

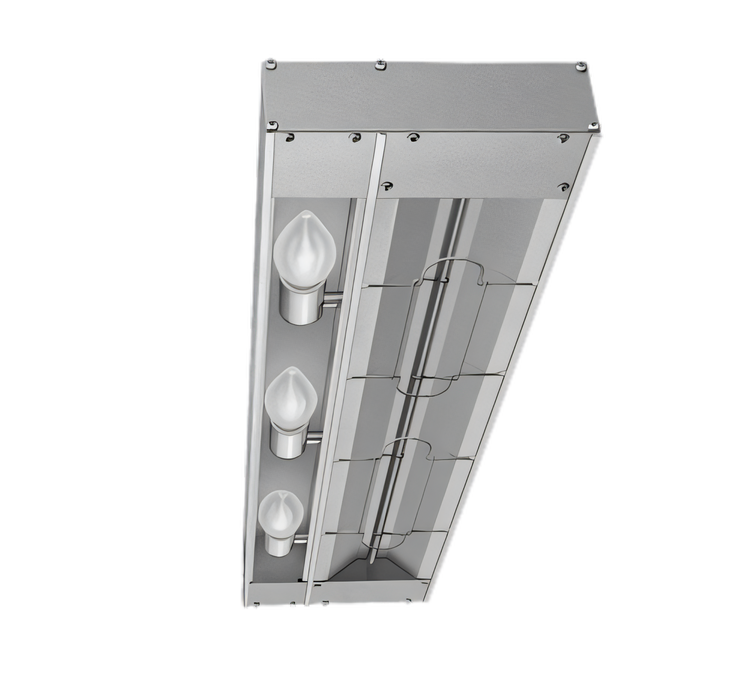

Hatco Glo-Ray® Max Watt Infrared Strip Heater with Lights – 144 in.

Model GRAML-144 | 4,870 W | NSF & cULus

The longest Glo-Ray ever built—now with extra punch. Hatco’s 12-ft GRAML-144 delivers 4,870 watts of pre-focused infrared heat and shatter-resistant lighting in a single, rugged housing that installs in minutes and keeps high-volume menu items at perfect serving temperature for hours.

Key benefits

  • Max-watt output—25 % hotter than standard high-watt Glo-Ray models for rapid recovery and even holding.
  • Tubular metal-sheathed element produces a wide, uniform heat pattern—no hot or cold spots.
  • Safety-coated incandescent lamps illuminate food and resist shattering.
  • One-piece extruded aluminum housing (144 in.) won’t sag and is fully insulated to cut energy loss.
  • Reinforced wire guard protects the element without blocking heat.
  • Remote control enclosure with separate element & light switches plus pilot light keeps controls cool and handy.
  • Includes a pair of adjustable 9 in. angle brackets for fast, secure mounting.
  • NSF & cULus listed and proudly Made in the USA.

Specifications

Model GRAML-144
Overall width 144 in. / 12 ft (3658 mm)
Depth × height 9 in. × 2.5 in. (229 × 64 mm)
Housing material Extruded aluminum, clear anodized finish (designer colors available at order time)
Heat source Tubular metal-sheathed infrared element
Display lights Shatter-resistant incandescent bulbs (included)
Total wattage 4,870 W (max watt)
Voltage / phase 120/208 V or 120/240 V, single phase
Amperage 26.0 A @ 120/208 V | 23.3 A @ 120/240 V
Electrical connection 3 ft flexible metal conduit with 42 in. leads (server’s right)
Controls Remote control box with toggle element switch, light switch & indicator light
Included mounting Two adjustable 9 in. angle brackets
Recommended clearance 14-18 in. (356-457 mm) above product
Certifications NSF, cULus
Shipping weight 48 lb (22 kg)
Origin Milwaukee, WI USA
Installation note: Mount the supplied remote control enclosure outside the heater’s heat zone. Installing it directly beneath the unit may damage components and void the warranty.

Looking for a different length, finish or halogen lighting? Glo-Ray GRAML models are built to order in 6 in. increments from 18 – 144 in.—just ask!

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

NSF, cULus, Made in USA

Height

2.5in

Width

144.0in

Depth

10.2in

Shipping Weight

48.0lbs

Size

single

Type

lighted

Length

121 - 144"

Type of element

metal heating rod

Finish

aluminum

Specifications

Glo-Ray® Infrared Strip Heater, 144" W, maximum wattage with lights, tubular metal heater rod, aluminum construction, includes remote control enclosure & angle brackets, 4870 watts, NSF, cULus, Made in USA
