Hatco  |  Glo-Ray®  |  SKU: GRAML-132D6

Hatco GRAML-132D6 Glo-Ray® Heat Lamps

$2,395.80
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

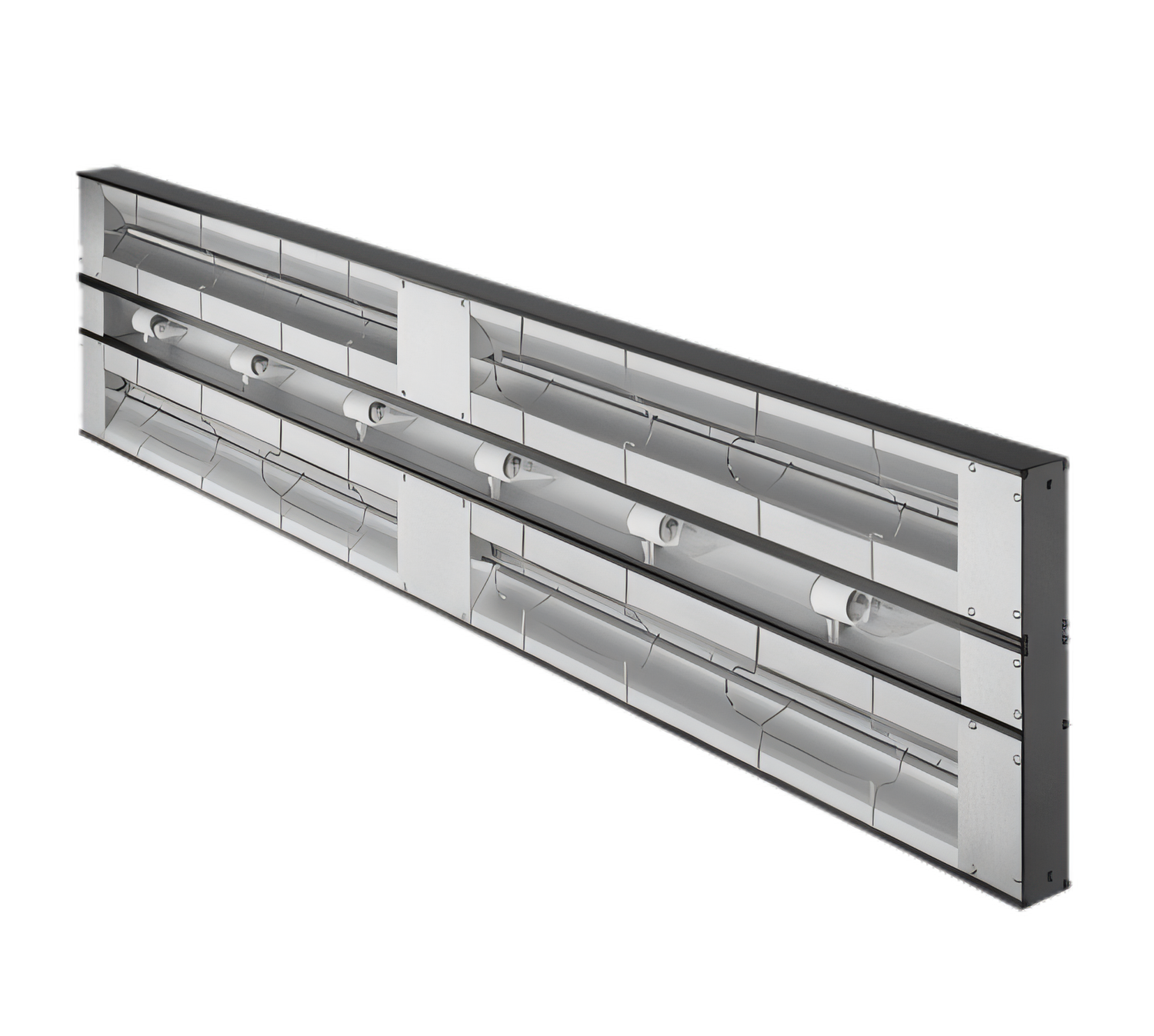

Hatco Glo-Ray® Aluminum Max Watt Dual Infrared Strip Heater – 132" W with Lights

Model GRAML-132D | 8 160 W | cULus Listed

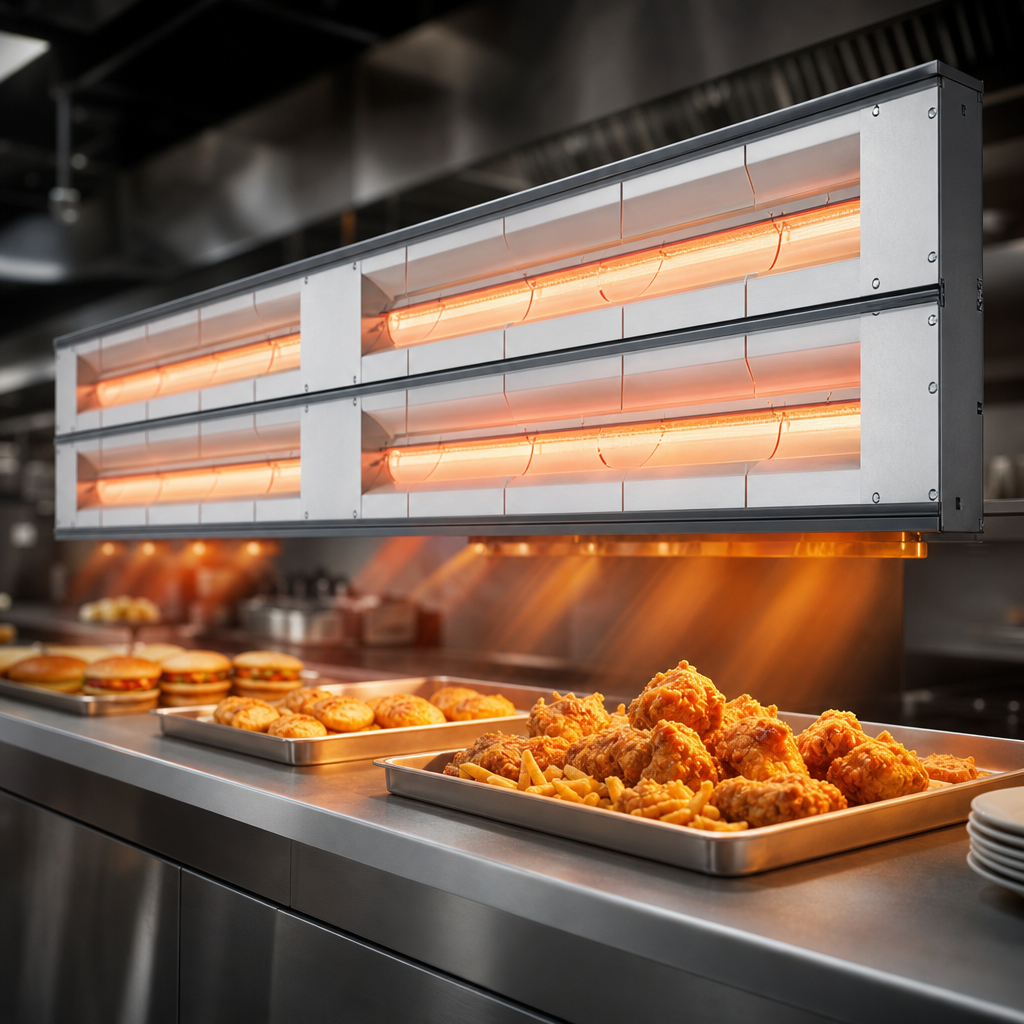

When you need powerful, even heat across a long serving line, the Hatco GRAML-132D delivers. This 132-inch dual-element strip heater combines maximum-watt infrared performance with shatter-resistant display lights to keep every pan fresh, appetizing, and at safe serving temperatures.

Key advantages

  • Maximum-watt output — 25 % more heat than standard high-watt models for demanding, high-volume operations.
  • Dual tubular metal-sheathed elements mounted in a 6" (152 mm) deep housing create a wider, deeper heat pattern that covers large or tiered displays.
  • Pre-focused infrared technology heats the holding surface evenly without further cooking the food.

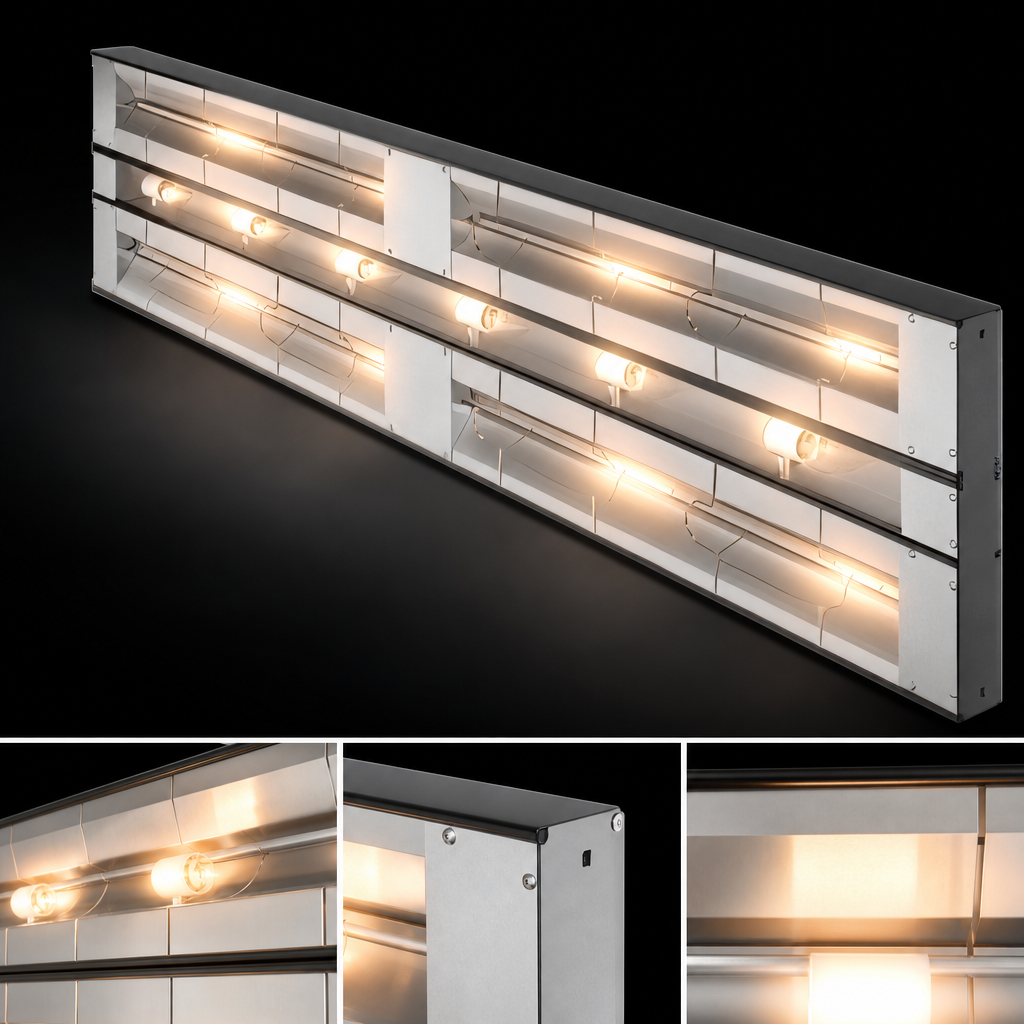

  • Shatter-resistant incandescent bulbs (included) enhance product appeal while safeguarding food from glass fragments.
  • Rigid extruded aluminum construction prevents sagging across the entire 11-foot (3.35 m) span.
  • Heavy-duty insulation and a full-length wire guard reduce heat loss and protect the elements.
  • Remote Control Enclosure (RMB) with toggle switches ships with the unit—mount it outside the heat zone for safe, convenient operation.
  • Factory-installed angle brackets speed up installation under shelves, over pass-throughs, or on custom stands.
  • 3' flexible metal conduit with 42" leads simplifies hard-wiring.
  • cULus certified and proudly Made in the USA.

Product specifications

Model GRAML-132D
Overall width 132" / 3 353 mm
Depth (with 6" spacer) 18" / 457 mm
Height 2.5" / 64 mm
Heat output 8 160 watts (max-watt)
Voltage / phase 120/240 V, 1-phase (separate light and heat circuits)
Amperage 36.8 A
Heater elements Dual tubular metal-sheathed rods
Lighting Shatter-resistant incandescent display lamps (standard)
Construction Clear anodized aluminum housing with heavy-duty insulation & wire guard
Controls Remote Control Enclosure with on/off toggles (heat & lights)
Included mounting Extruded angle brackets (pair)
Certifications cULus, NSF 4
Country of origin USA

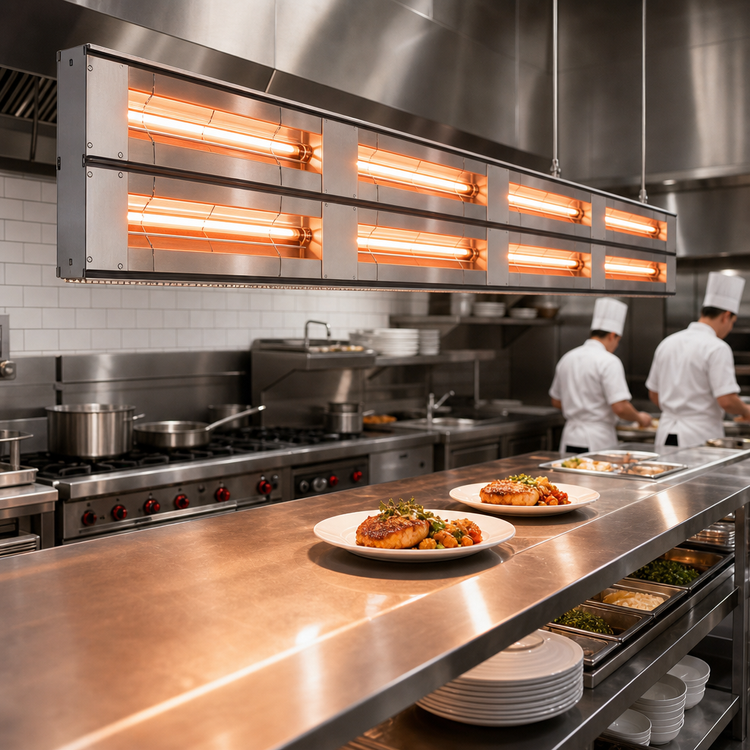

Perfect for

  • Cafeteria & buffet lines
  • Pass-through windows
  • Large banquet or catering set-ups
  • Supermarkets & delis with extended hot cases
Installation note: Mount the included Remote Control Enclosure outside the heat zone. Follow the Hatco installation manual for required clearances and breaker sizing.

Need a specific color or control option? Hatco offers a full palette of Designer powder-coat and gloss finishes, electronic infinite controls, and custom stands—ask our team for details.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

cULus, Made in USA

Height

2.5in

Width

132.0in

Depth

18.0in

Shipping Weight

79.0lbs

Length

121 - 144"

Size

double

Finish

aluminum

Type

lighted

Type of element

metal heating rod

Specifications

Glo-Ray® Infrared Strip Heater, 132" W, maximum wattage with lights, tubular metal heater rod, double heater rod housing 6" spacing, aluminum construction, includes remote control enclosure & angle brackets, 8160 watts, cULus, Made in USA
