Hatco GRAML-132D3 Glo-Ray® Heat Lamps
Description

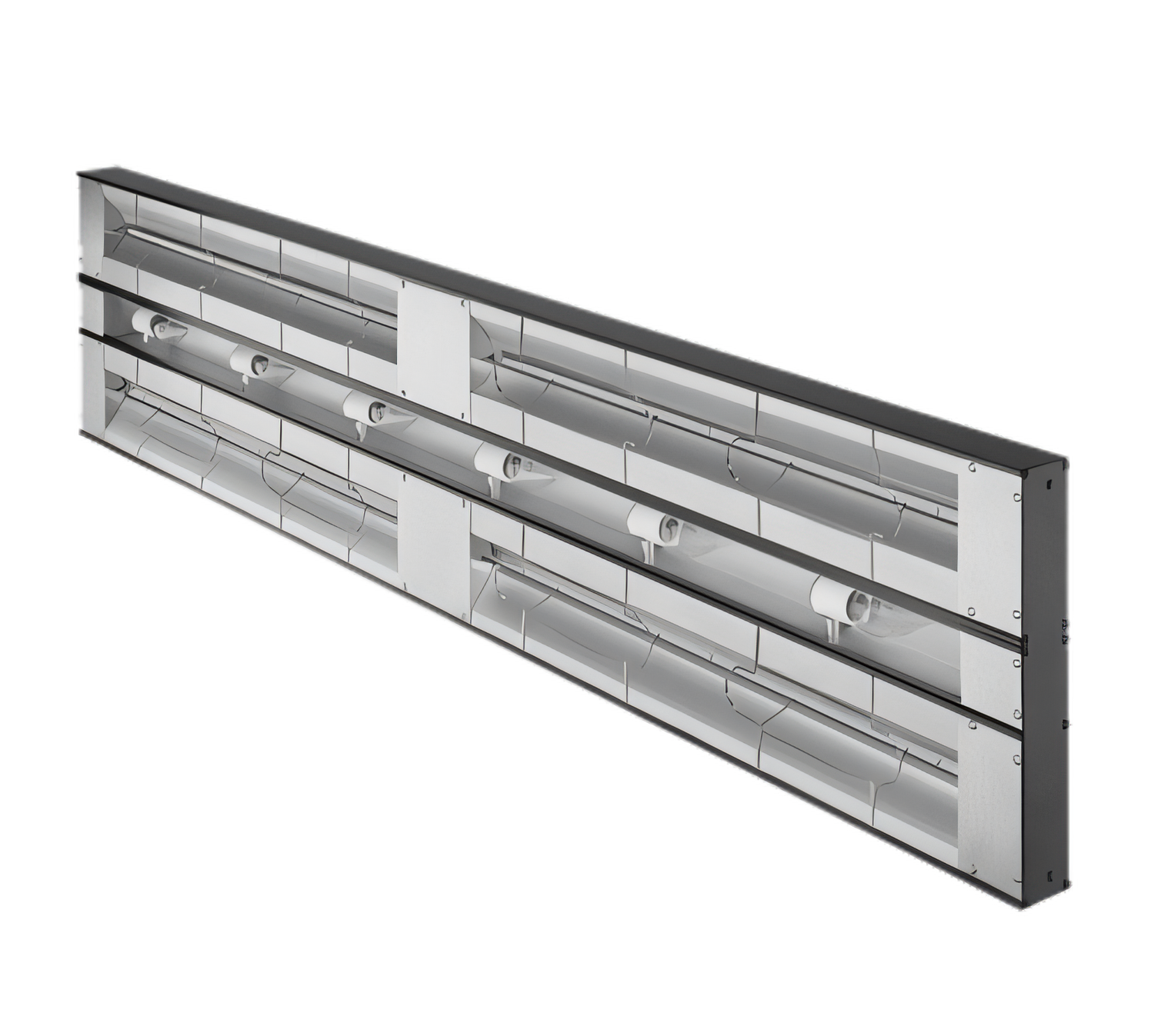

Hatco Glo-Ray® GRAML-132D Max Watt Dual Infrared Strip Heater – 132 in W

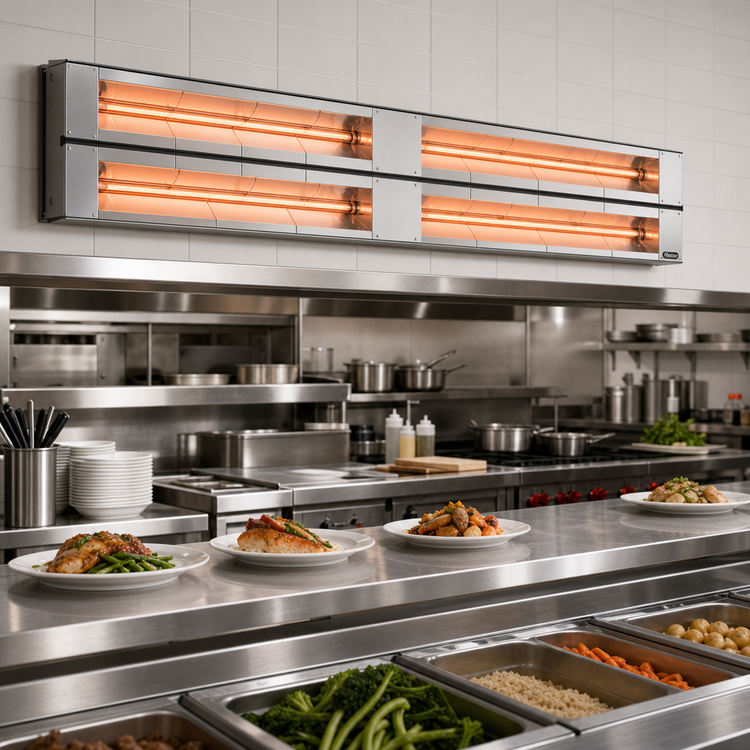

8160 W • Pre-focused infrared heat with display lights • Made in USAEngineered for the busiest cafeterias, buffets and production lines, the GRAML-132D delivers Hatco’s highest watt density across an impressive 11-foot span. Dual tubular metal-sheathed elements blanket food with even, intense infrared heat, while built-in shatter-resistant lamps keep every entrée looking irresistible.
Key benefits
- Max Watt design provides 25 % more output than High Watt models for deep holding zones and rapid temperature recovery.

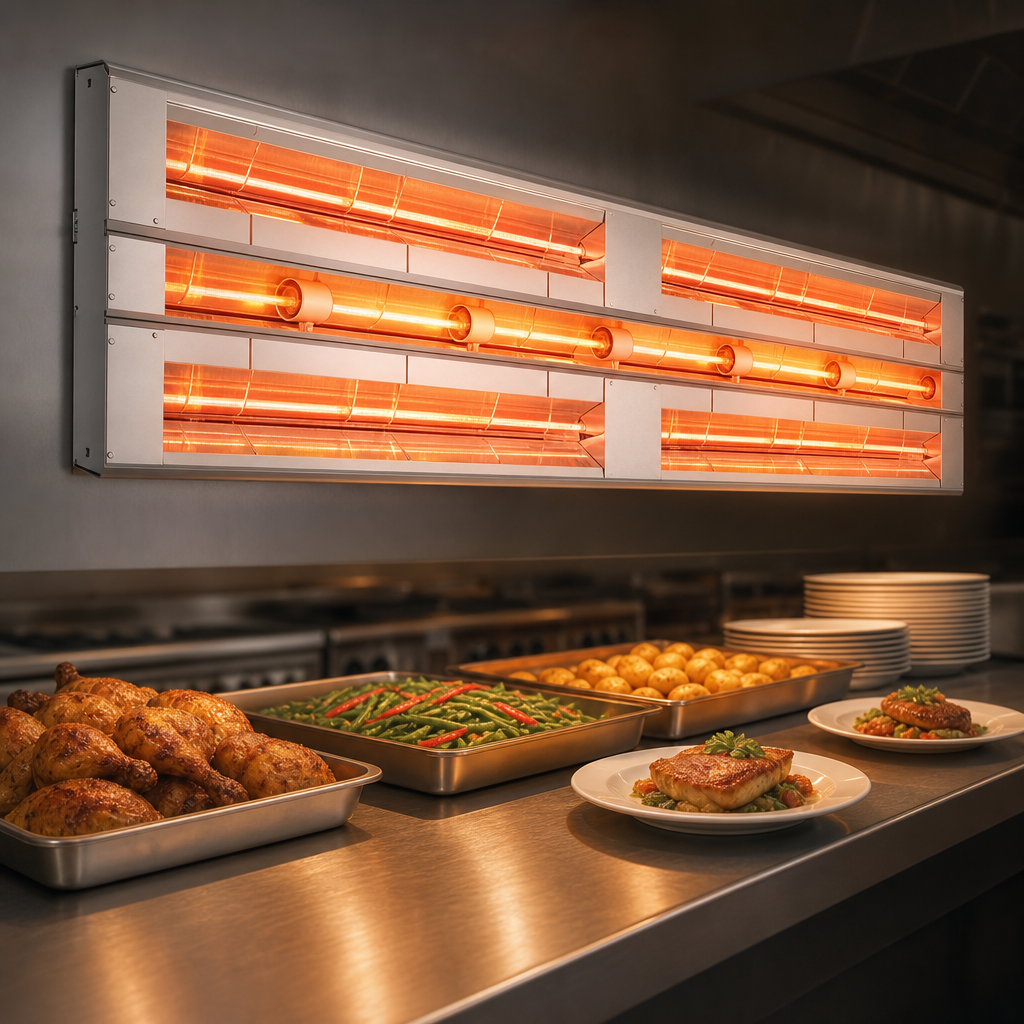

- Pre-focused infrared pattern maintains safe serving temps without continuing to cook the food.
- 3" (76 mm) spacer between element housings widens the heat plume for large countertops and multi-pan layouts.
- Six shatter-resistant incandescent lamps (120 V) highlight food while protecting against broken glass.*
- Heavy-gauge extruded aluminum housing prevents sagging over long runs and dissipates excess heat.
- Protective wire guard secures the elements without blocking radiant output.
- Remote control enclosure with separate light & heat toggle switches and indicator light is included and pre-wired.
- Angle brackets ship standard for quick overhead, pass-through or undershelf mounting.
- cULus listed, NSF compliant and backed by Hatco’s 24/7 parts & service assurance.
Performance at a glance
| Model | GRAML-132D |
|---|---|
| Overall width | 132" (3353 mm) |
| Housing depth × height | 15" × 2.5" (381 × 64 mm) with 3" spacer |
| Wattage / voltage | 8160 W • 120/240 V, 1-phase (heat circuit 240 V, lights 120 V) |
| Amperage | 36.8 A (heat) + 1 A (lights) |
| Heating elements | 2 × tubular metal-sheathed rods |
| Display lights | 6 × 60 W shatter-resistant incandescent |
| Controls | Remote box with individual light & heat toggles, indicator light, 36" (914 mm) flex conduit |
| Construction | Clear anodized aluminum with heavy-duty insulation |
| Included mounting | Angle brackets & hardware |
| Approx. ship weight | 86 lb (39 kg) |
| Certifications | cULus, NSF/ANSI 4 |
Recommended mounting heights*
| Application | Clearance (bottom of heater → surface) |
|---|---|
| Pass-through / overhead | 18" – 24" (457 – 610 mm) |
| Under-shelf | 14" – 18" (356 – 457 mm) |
*For units with a 3" spacer. Always follow the Installation & Operating Manual for site-specific requirements.
Available options (factory-installed)
- Designer-color or gloss housings to match any décor
- Extended power leads up to 20 ft (6.1 m)
- Halogen or LED display lamps
- Non-adjustable tubular stands for portable use
- Sneeze guards, bright-annealed light reflectors and more
