Hatco GRAML-132 Glo-Ray® Heat Lamps
Description

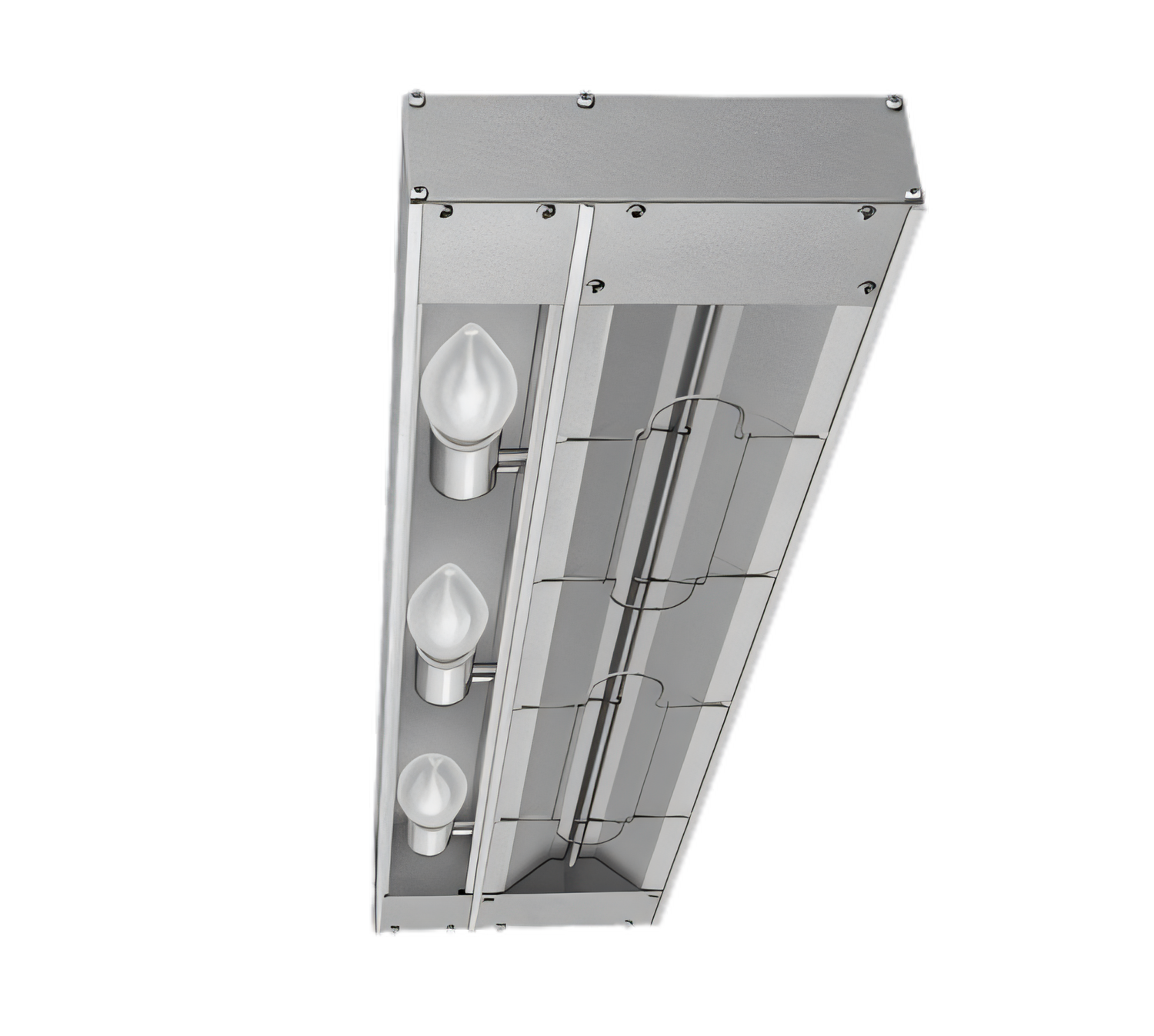

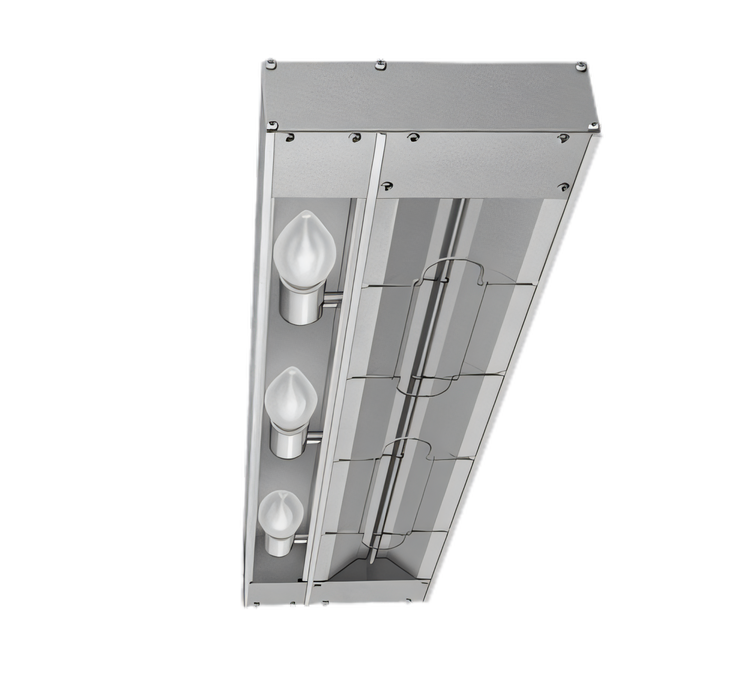

Hatco Glo-Ray® Max Watt Infrared Strip Heater – 132" With Lights
Model GRAML-132 • 4,410 W • Remote Controls & Angle Brackets IncludedKeep full-length buffet lines, pass-throughs and production counters at safe-serving temperatures without over-cooking. Hatco’s GRAML-132 stretches a generous 11 feet (132") and delivers 25 % more heat than standard high-watt warmers while illuminating product with shatter-resistant display lights.
Why Choose the GRAML-132
- Maximum-watt tubular metal heating element focuses infrared heat across the entire 132" holding surface.

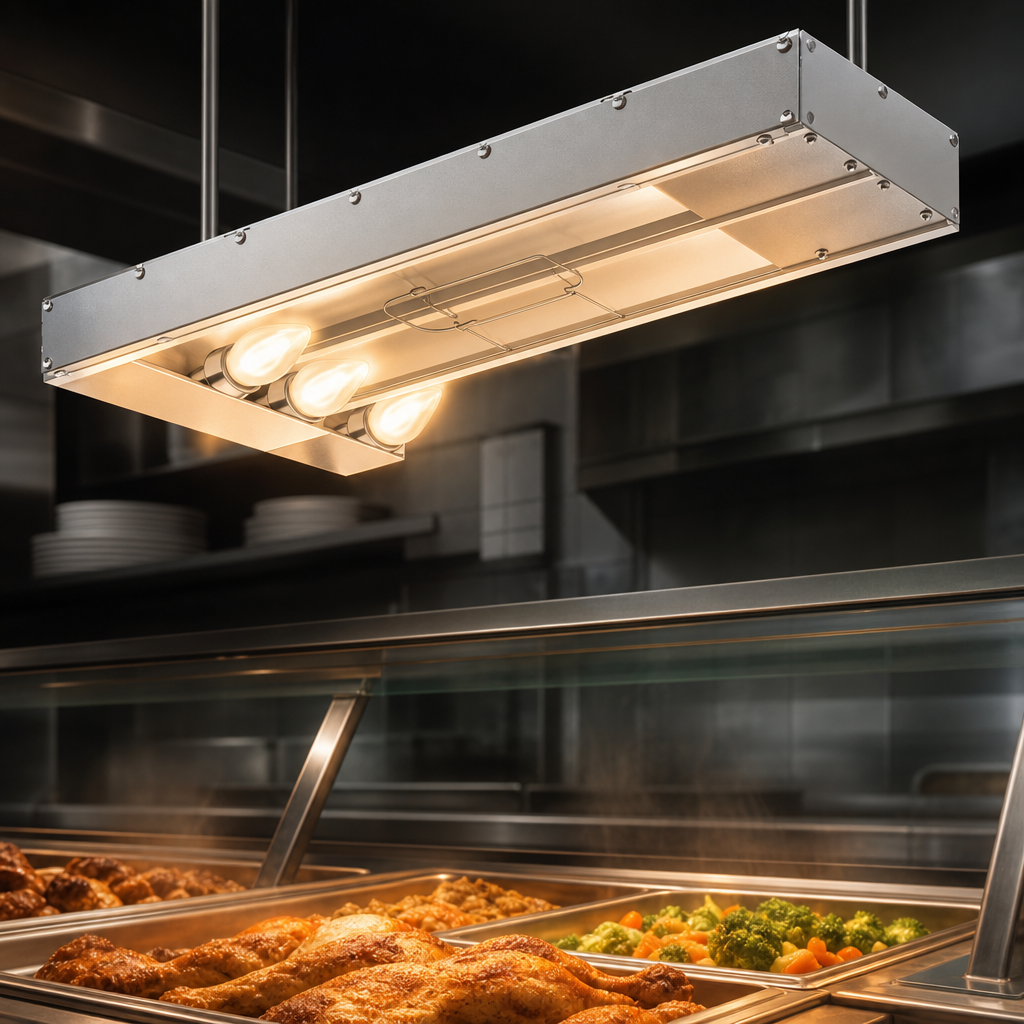

- Shatter-resistant incandescent bulbs highlight food quality and safeguard against broken glass above the serving area.
- Extruded aluminum housing will not sag and includes heavy-duty insulation to minimize heat loss.
- Reinforced wire guard protects users while maintaining full heat dispersion.
- Factory-wired remote control enclosure with toggle element switch, indicator light and separate light switch for simple, out-of-the-heat-zone operation.
- Adjustable angle brackets (shipped loose) allow quick installation and precise aiming of the heat pattern.
- NSF & cULus listed and proudly Made in the USA.
Serve Hot, Not Over-Cooked

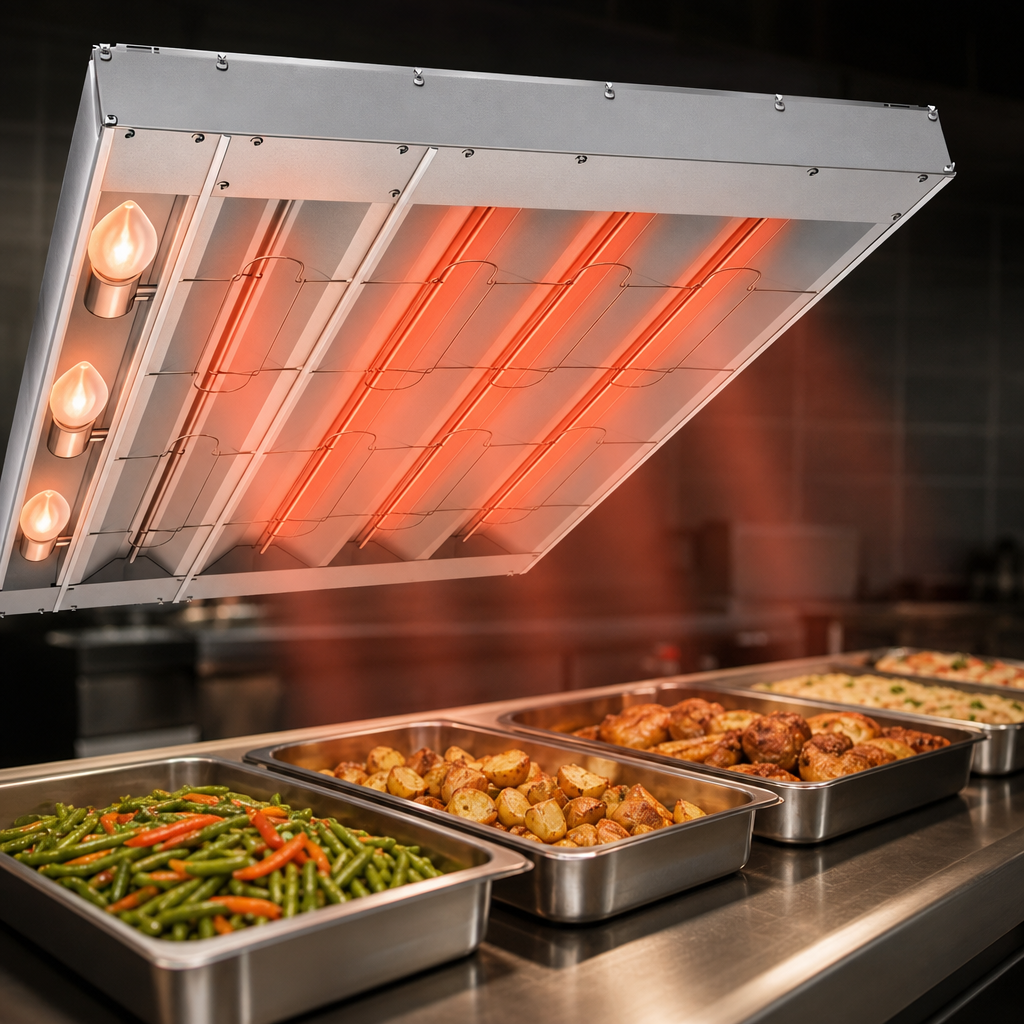

- Pre-focused heat holds foods at optimum serving temperatures longer than overhead lamps or steam wells alone.
- 4410 watts of power combats heat loss on expansive counters, ensuring the first and last pan stay equally appetizing.
- Lights and heat circuits are isolated, letting you run display lighting without adding unnecessary heat during slower periods.
What Comes in the Box
- GRAML-132 infrared strip heater with attached 3' flexible conduit & 42" leads
- Remote control enclosure (single-phase) with:
- Toggle element control switch & indicator light
- Separate toggle light switch
- Pair of adjustable angle brackets
- Factory-installed shatter-resistant incandescent bulbs
- Installation & operation manual
Technical Specifications
| Model | GRAML-132 |
|---|---|
| Overall Dimensions | 132" W × 9" D × 2.5" H (3353 × 229 × 64 mm) |
| Wattage | 4,410 W |
| Voltage / Phase | 120/208 V or 120/240 V, 1-phase (dual circuits – 120 V lights / 208-240 V heat) |
| Amperage | 23.5 A (max) |
| Heating Element | Tubular metal-sheathed rod |
| Housing Material | Extruded aluminum with reinforced wire guard |
| Ship Weight | 44 lb / 20 kg (approx.) |
| Certifications | NSF, cULus |
| Country of Origin | Made in USA |
| Warranty | 24/7 parts & service support (U.S. & Canada) |

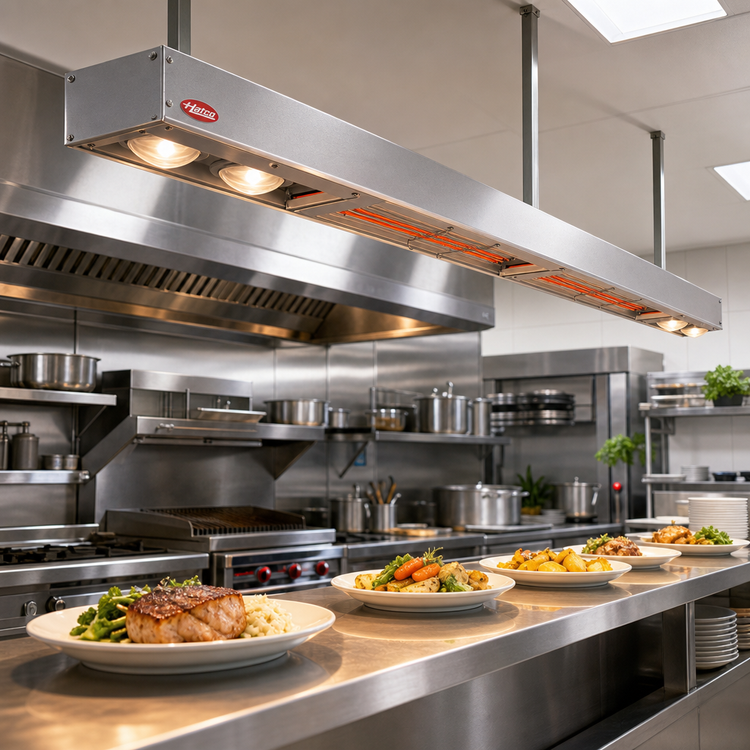

Perfect For
- Full-length buffet or carving stations
- High-volume catering lines and banquets
- Institutional cafeterias and commissaries
- Pass-through windows and staging shelves
Recommended mounting height: 14"–18" (356–457 mm) above the holding surface using the supplied angle brackets. Maintain at least 12" (305 mm) clearance to non-combustibles. Refer to the installation manual for complete details.
