Hatco GRAML-120D6 Glo-Ray® Heat Lamps
Description

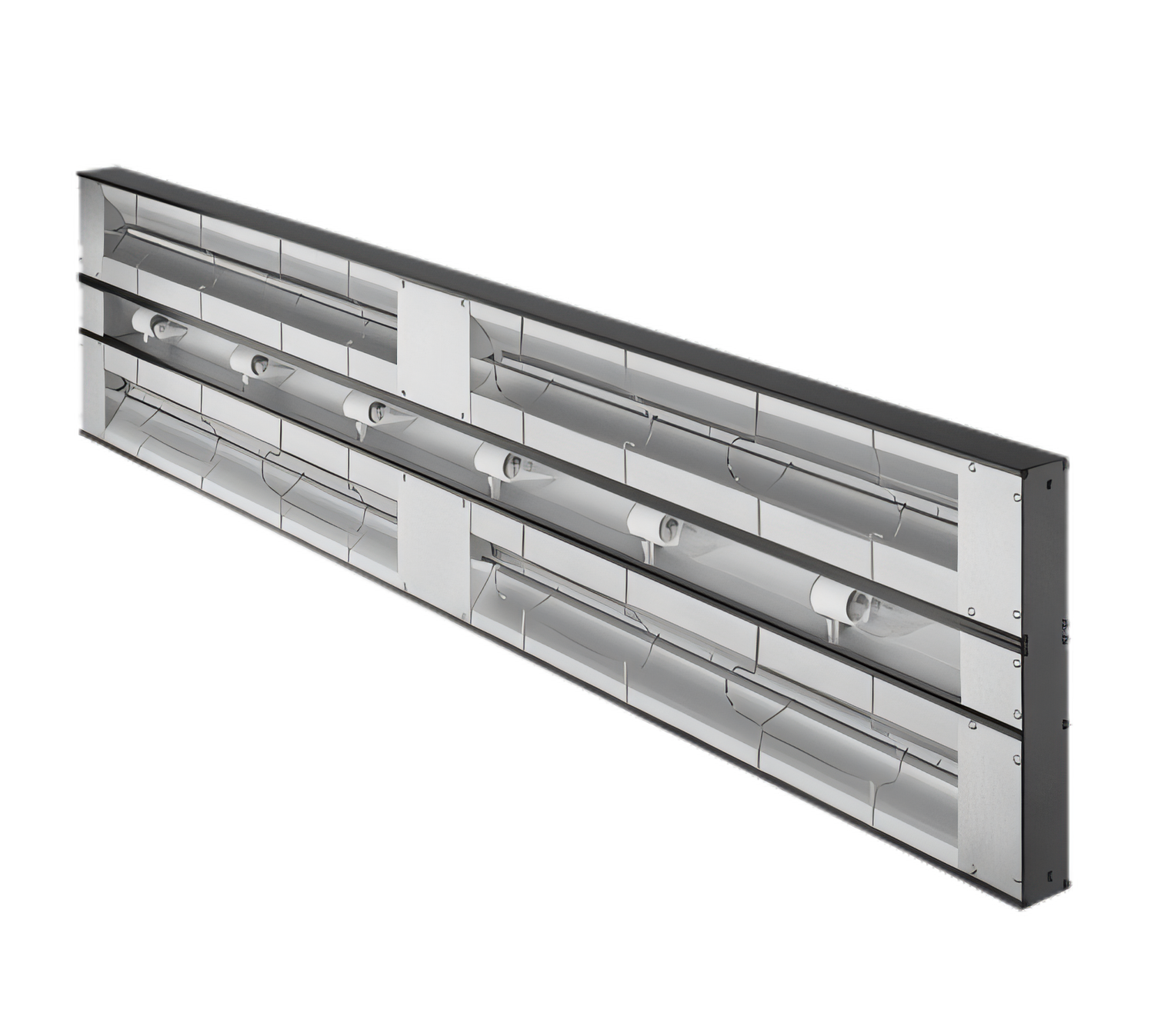

Hatco Glo-Ray® Max Watt Dual Infrared Strip Heater – 120"
Model GRAML-120D | 7,400 W with Display LightsBring banquet-level volume and flawless presentation to your pass-through, buffet or production line. The 120" Glo-Ray Max Watt Dual Infrared Strip Heater delivers relentless, even heat across its entire span while integrated lamps keep every dish looking its best—all in a slim, rugged aluminum housing made in the USA.
Key Advantages

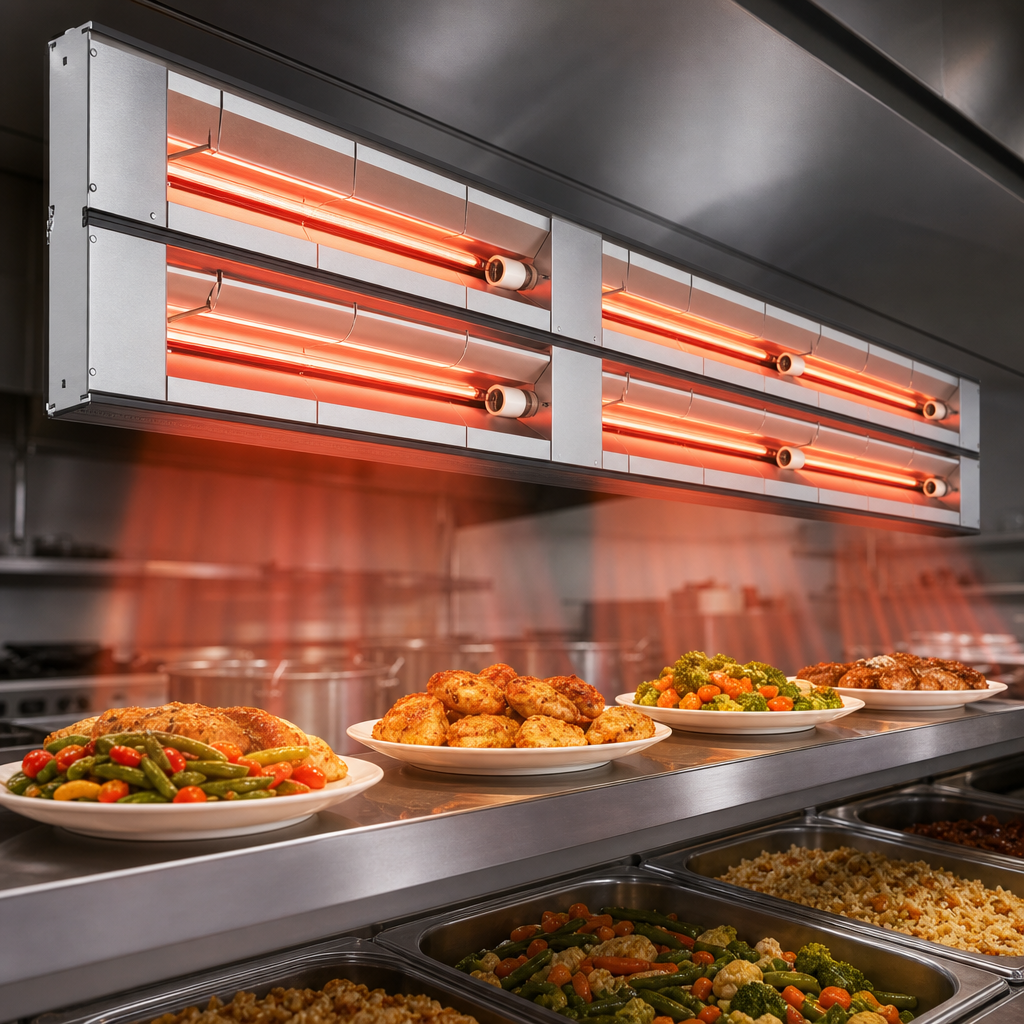

- Maximum-watt dual tubular metal-sheathed elements—25 % more output than standard high-watt models.
- 6" (152 mm) vertical spacing between heater rods creates a deeper holding zone for stacked pans or tall platters.
- Shatter-resistant incandescent lamps enhance merchandising without the risk of glass contamination.
- Extruded aluminum housing resists sagging; high-density insulation cuts heat loss and saves energy.

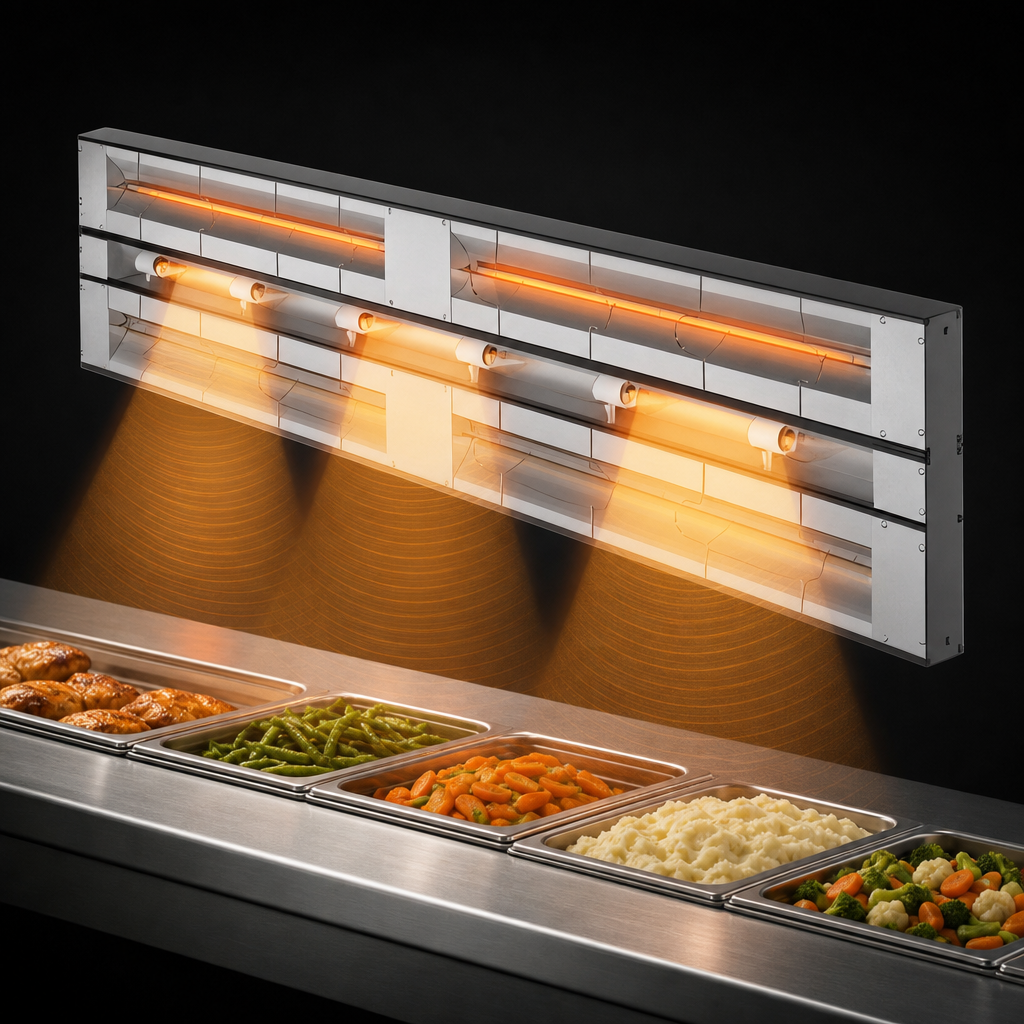

- Pre-focused infrared pattern maintains safe serving temperatures without further cooking the food.
- Remote Control Enclosure with on/off toggles keeps switches cool and within easy reach.
- Ships with heavy-duty angle brackets, 36" flexible metal conduit and 42" leads for fast installation.
- Certified cULus & NSF for commercial foodservice—no additional approvals needed.
- Backed by Hatco’s 24/7 parts & service support network.
Technical Specifications
| Model | GRAML-120D |
|---|---|
| Overall width | 120" / 3,048 mm |
| Depth (with 6" spacer) | 18" / 457 mm |
| Height | 2.5" / 64 mm |
| Wattage | 7,400 W |
| Voltage | 120/240 V, single phase (120 V lights / 240 V heat) |
| Amperage | 33.3 A |
| Element type | Dual tubular metal-sheathed rods |
| Heat-zone spacing | 6" / 152 mm |
| Ship weight | ≈ 72 lb / 33 kg |
| Included hardware | Remote Control Enclosure, angle brackets, flexible conduit & leads |
| Certifications | cULus, NSF |
| Country of origin | USA |
Factory Options
- Designer or gloss color housings to match your décor
- Halogen or energy-saving Chef LED bulbs
- Extended power leads (up to 20' / 6 m)
- Bright annealed reflectors
- Non-adjustable tubular stands (18"–24" clearance)
Please specify options when ordering; factory-installed items cannot be added later.
What’s in the Box
- GRAML-120D strip heater
- Remote Control Enclosure with toggle switches
- Angle mounting brackets
- 36" (914 mm) flexible metal conduit with 42" (1,067 mm) leads
- Installation & operation manual
Upgrade to Hatco’s longest, most powerful Glo-Ray and ensure every plate leaves the line hot, safe and picture-perfect—order your GRAML-120D today!
