Hatco GRAML-120D3 Glo-Ray® Heat Lamps
Description

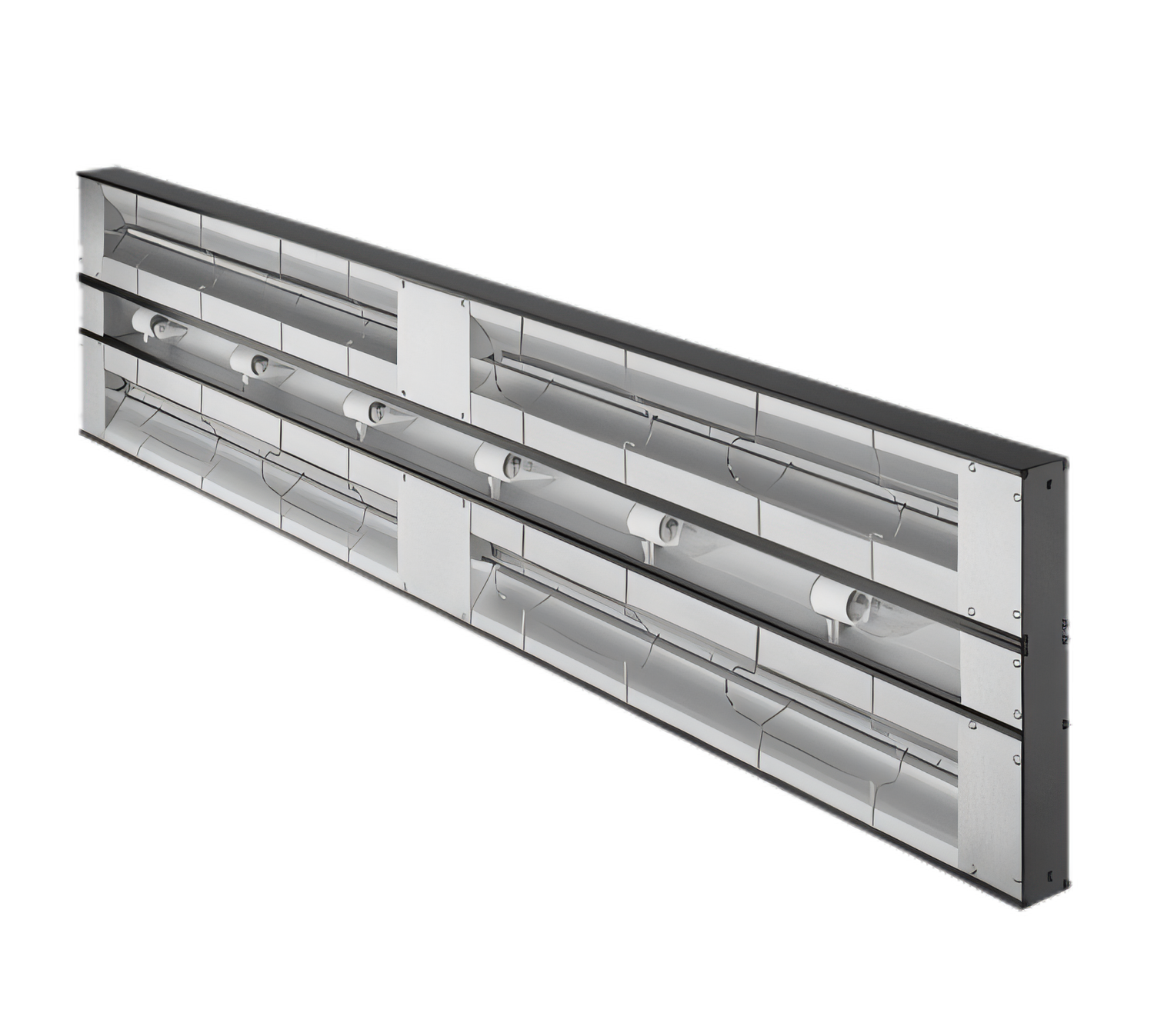

Hatco Glo-Ray® GRAML-120D Max Watt Dual Infrared Strip Heater – 120"
10-foot span • 7,400 W • Lights & Remote Control Box IncludedTurn long pass-through lines into perfectly heated serving stations with the GRAML-120D. Hatco’s most powerful 120-inch strip heater combines twin tubular elements, built-in lighting and a rugged aluminum chassis to hold hot foods safely—without over-cooking—shift after shift.
Key advantages
- Max-Watt design delivers up to 25 % more heat than standard high-watt models.
- Dual tubular metal heater rods, mounted in a 3" (76 mm) spaced housing, blanket the entire 10 ft run with even, pre-focused infrared warmth.
- Shatter-resistant incandescent bulbs illuminate product and enhance presentation (halogen upgrade available).
- Rigid extruded aluminum construction eliminates sagging and resists corrosion.
- Remote control enclosure with toggle switches ships factory-wired for safe, code-compliant installation outside the heat zone.
- Protective wire guard supports elements without obstructing heat flow.
- Heavy-duty internal insulation minimizes heat loss and keeps kitchen temperatures comfortable.
- Certified cULus & NSF and proudly Made in the USA.
Ideal for
- 12-foot pass-through counters
- High-volume cafeterias and buffets
- Back-bar or expo shelves that demand full-length heat and lighting
Technical specifications
| Model | GRAML-120D |
|---|---|
| Overall width | 120" / 3,048 mm |
| Depth × height | 15" × 2.5" (381 × 64 mm) — with standard 3" spacer |
| Voltage | 120/240 V, single-phase (separate circuits for heat & lights) |
| Wattage | 7,400 W |
| Amperage | 33.3 A |
| Heating elements | Two metal-sheathed tubular rods |
| Lighting | Shatter-resistant incandescent bulbs |
| Controls | Remote box w/ toggle switches, 36" flex conduit & 42" leads |
| Construction | Anodized aluminum housing, wire guard, angle brackets |
| Certifications | cULus, NSF |
| Origin | Made in USA |
| Warranty | 1-year parts & labor – 24/7 Hatco service assistance |
Quick installation guide
- Includes heavy-gauge angle brackets for overhead or undershelf mounting.
- Recommended mounting height (3" spacer): 18-24" (457-610 mm) above product for pass-through use or 14-21" (356-533 mm) for undershelf applications.
- Maintain a minimum 3" (76 mm) gap between side-by-side units.
Looking for a different length, control style or designer color? The Glo-Ray® GRAML series ranges from 18" to 144". Reach out for custom configurations.
