Hatco GRAML-120 Glo-Ray® Heat Lamps
Description

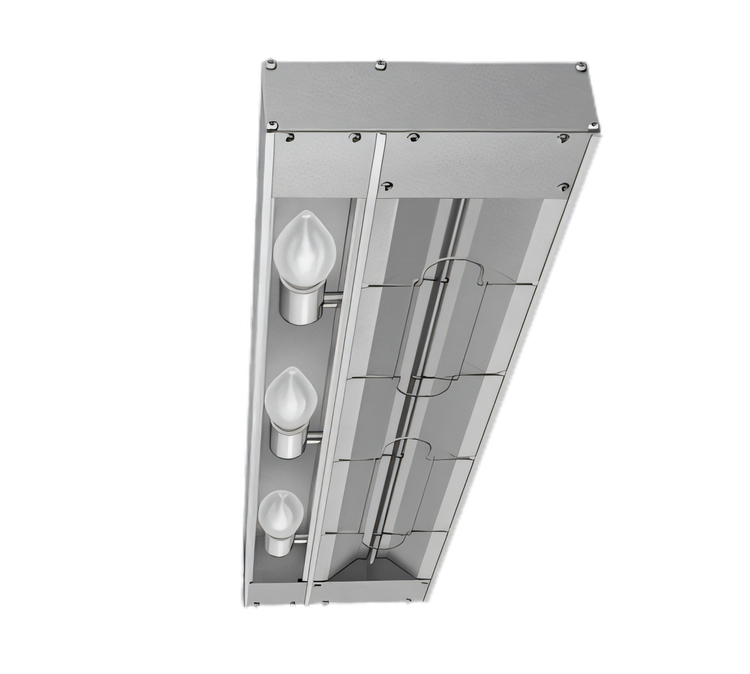

Hatco Glo-Ray® Max Watt Infrared Strip Heater — 120" With Lights
Model GRAML-120 · 4000 W · Made in USAStretching a full 10 feet, the Hatco Glo-Ray® GRAML-120 keeps pans, platters and plates at perfect serving temperature without continuing to cook the food. Its high-output tubular element concentrates 25 % more heat than standard Glo-Ray models, while shatter-resistant incandescent bulbs bathe your menu in appetising light. Supplied ready to mount with adjustable angle brackets and a remote control enclosure, this is the ultimate heat strip for long buffet lines, banqueting operations and high-volume pass-throughs.
Key benefits
- 4000 watts of maximum-watt infrared power over a continuous 120" (305 cm) heat zone.

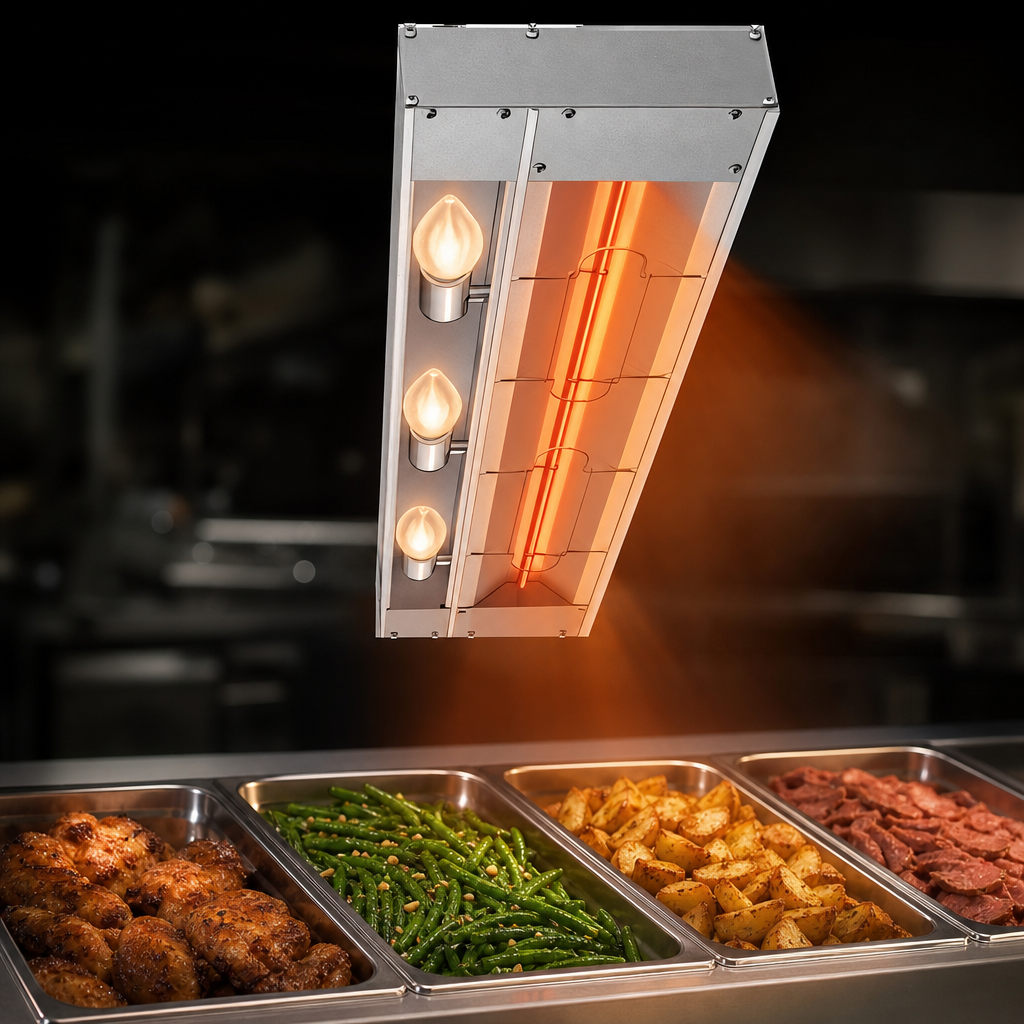

- Pre-focused tubular metal heater rod blankets the entire holding surface for even temperatures end to end.

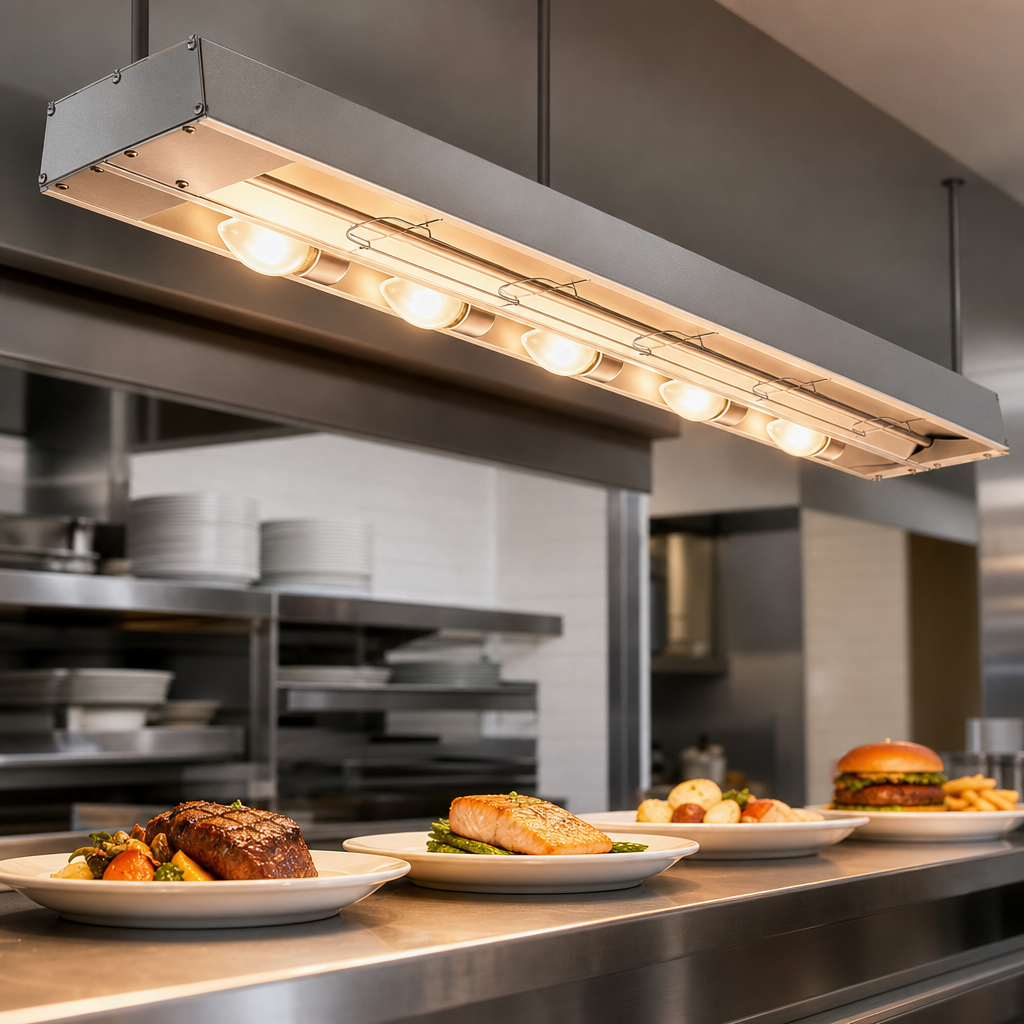

- Shatter-resistant incandescent lights enhance food presentation and safety.
- Rigid extruded-aluminium housing eliminates sagging on long runs.
- Heavy-duty insulation minimises heat loss and improves energy efficiency.
- Reinforced wire guard protects staff without blocking heat dispersion.
- Remote control enclosure ships pre-wired with:
- Toggle element switch with indicator light
- Separate light switch (for quick lamp replacement)
- Includes 9" (229 mm) adjustable angle brackets for fast, secure installation.
- NSF & cULus listed for compliance and safety.
- Proudly manufactured in Milwaukee, Wisconsin, USA.
Technical specifications
| Model | GRAML-120 |
|---|---|
| Overall dimensions | 120" W × 9" D × 2.5" H (3048 × 229 × 64 mm) |
| Housing material | Extruded aluminium, brushed finish |
| Heating element | Tubular metal-sheathed infrared rod |
| Rated wattage | 4000 W |
| Voltage / phase | 120/208 V or 120/240 V, single phase |
| Amperage | 21.3 A (120/208 V) | 19.2 A (120/240 V) |
| Controls | Remote toggle switch (heat) & remote toggle switch (lights) |
| Shipping weight | Approx. 40 lb (19 kg) |
| Certifications | NSF, cULus |
| Included accessories | Remote control enclosure, pair of 9" adjustable angle brackets |
| Country of origin | USA |
Installation & mounting
- Recommended clearance with supplied brackets: 14"–18" (356–457 mm) above the warm zone.
- Minimum spacing to non-combustibles: 12" (305 mm) above, 1" (25 mm) to back wall.
- Remote control enclosure must be installed outside the heat zone.
- Chain suspension kits, tubular stands and designer finish housings available by special order.
Looking for a shorter size or different finish? Ask our team about the full Hatco Glo-Ray® Max Watt range (18" – 144" widths) and designer colour options.
