Hatco GRAML-108D6 Glo-Ray® Heat Lamps
Description

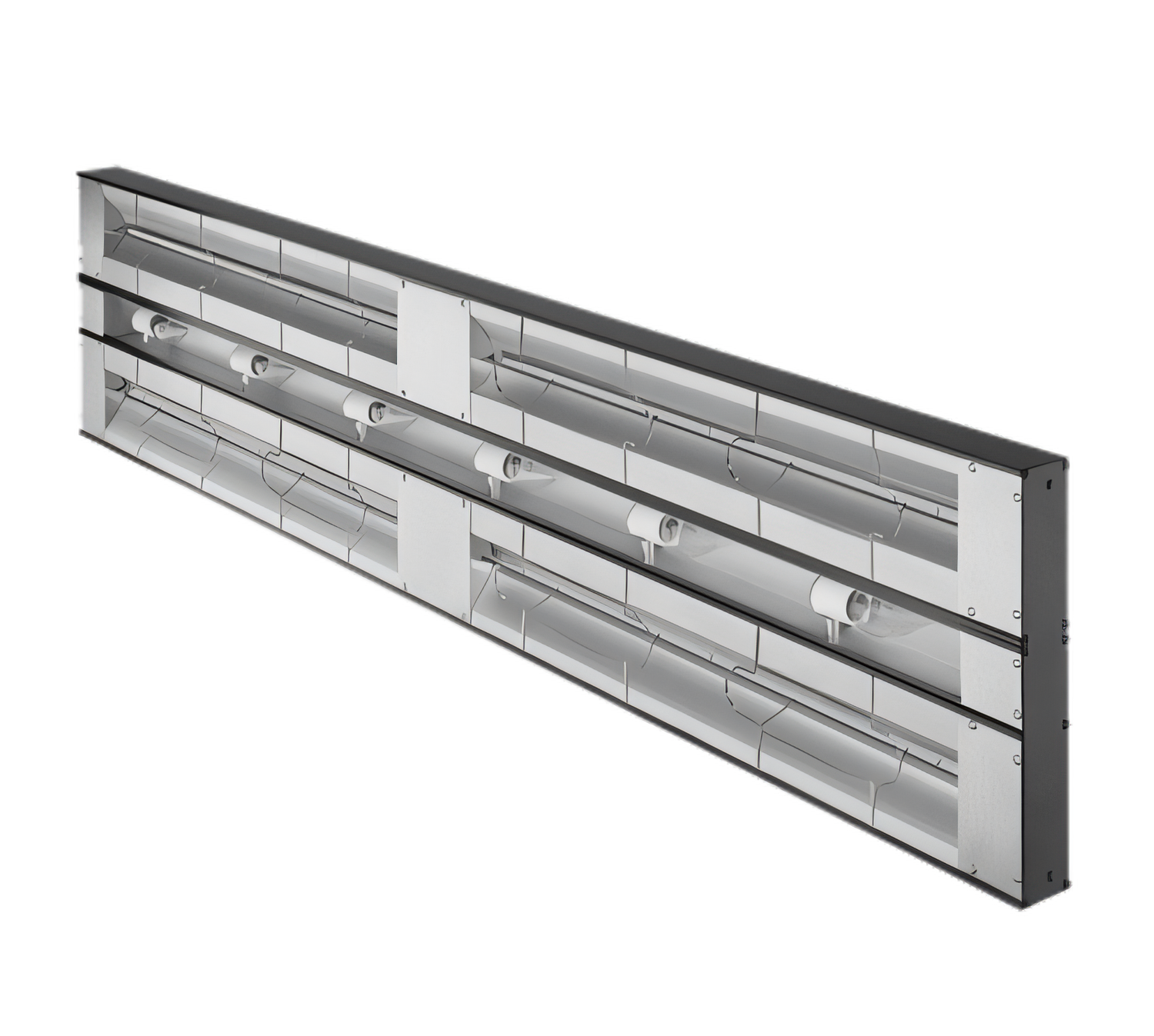

Hatco Glo-Ray® GRAML-108D Max Watt Dual Infrared Strip Heater – 108"
6540 W • 6" Spacer • Integral Lights • Remote Controls IncludedGive every plate the just-made taste it deserves. The 108"-wide Hatco Glo-Ray® GRAML-108D blankets even the largest pass-throughs or buffet lines with consistent infrared heat, keeping food at safe, serve-ready temperatures without over-cooking or drying out.
Why you’ll love it
- Maximum watt output — 6540 W. Delivers 25 % more heat than standard high-watt models for faster recovery and rock-steady holding temps.

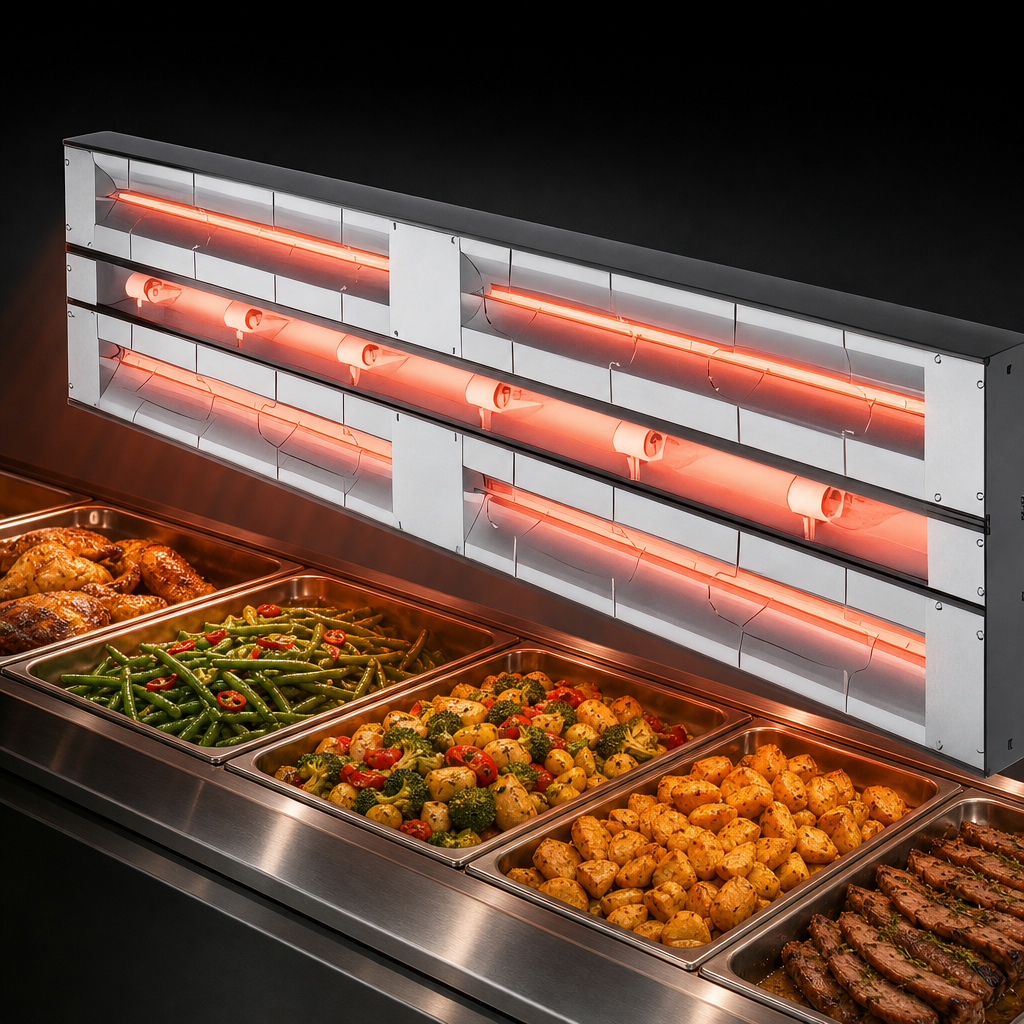

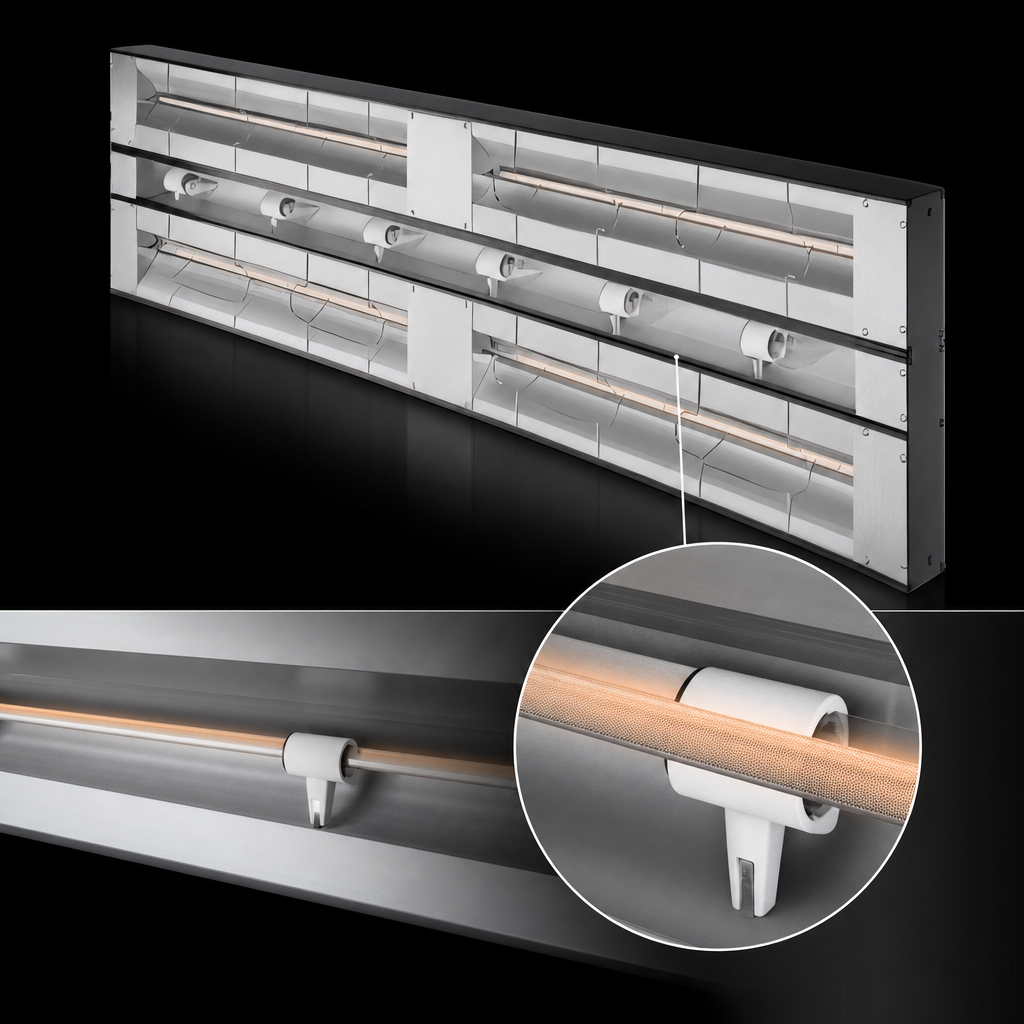

- Dual tubular metal-sheathed elements. Pre-focused infrared pattern eliminates cold spots across the full 108" span.
- 6" (152 mm) spacer. Creates a deeper heating envelope, ideal for high-volume pans, tall to-go packaging and side-by-side mounting.
- Built-in shatter-resistant display lights. Warm incandescent lamps spotlight the food while protecting it from glass fragments.
- Rugged extruded aluminum housing. Will not sag and is fully insulated to minimize heat loss.
- Remote control enclosure & angle brackets included. Mount out of the heat zone for long switch life and cleaner counters.
- Simple, field-friendly installation. Supplied with a 36" (914 mm) flexible metal conduit and 42" (1067 mm) leads.
- Certified cULus & NSF; proudly Made in the USA.
Technical details
| Model | GRAML-108D |
|---|---|
| Overall width | 108" / 2743 mm |
| Depth × Height | 18" D × 2.5" H (with 6" spacer) |
| Wattage | 6540 W @ 240 V (Max Watt) |
| Voltage & Amps | 120/240 V, 1-phase | 27.3 A heat circuit + 120 V light circuit |
| Shipping weight | ≈ 64 lb / 29 kg |
| Heating elements | Two tubular metal rods, 6" on-center |
| Lamp type | Shatter-resistant incandescent (optional halogen) |
| Included hardware | Angle mounting brackets, remote control enclosure with toggle switch & indicator light |
| Certifications | cULus, NSF |
Mounting & clearance
- Target mounting height with 6" spacer: 21–27" (533–686 mm) above the holding surface.
- For pass-through use, maintain a minimum spacing of 3" (76 mm) between stacked units.
- Remote control enclosure must be mounted outside the heat zone.
Always follow the Hatco installation manual and local electrical codes.
Hatco backs every Glo-Ray® heater with 24/7 parts and service assistance throughout the U.S. and Canada.
