Hatco GRAML-108D3 Glo-Ray® Heat Lamps
Hatco GRAML-108D3 Glo-Ray® Heat Lamps is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

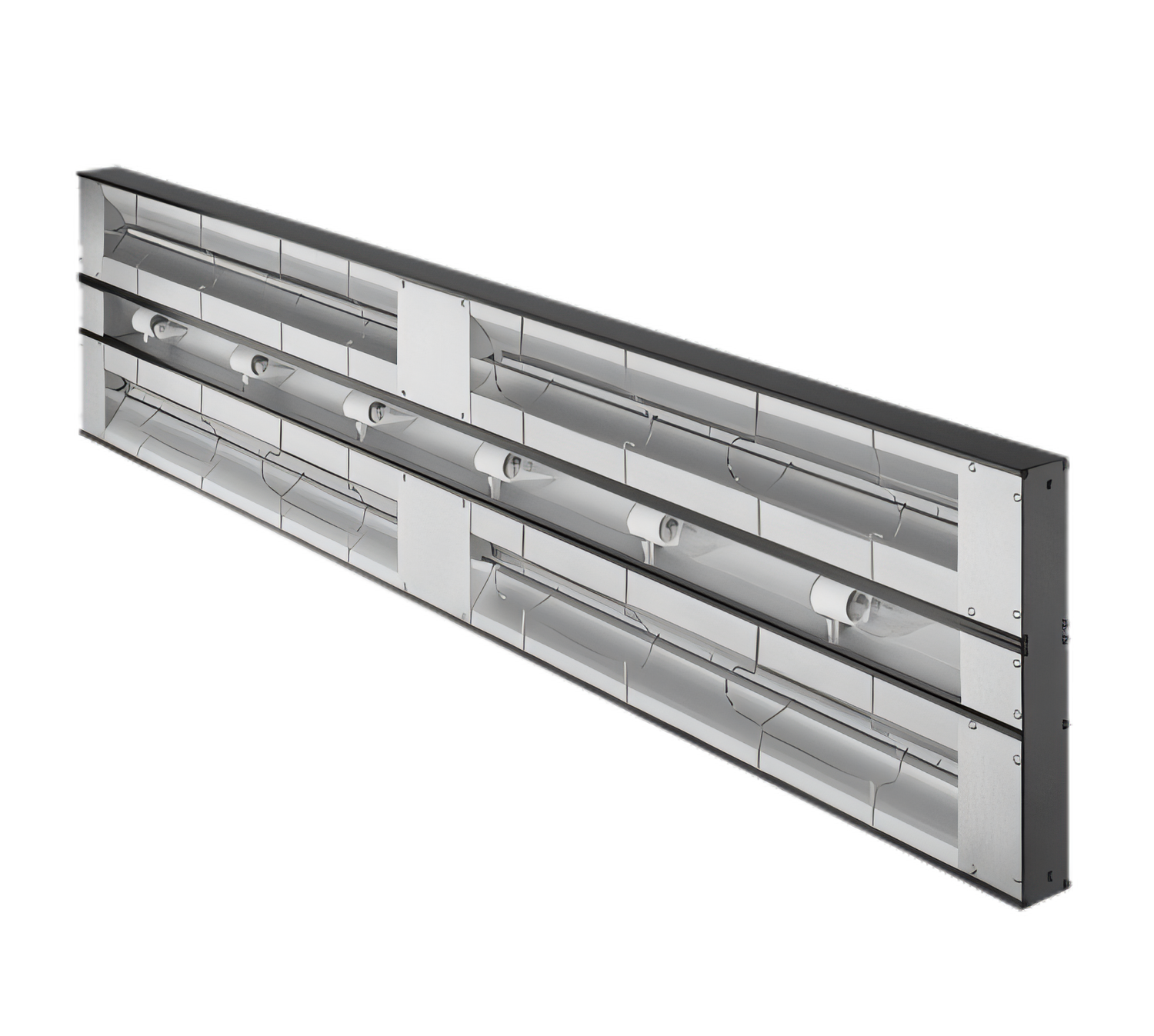

Hatco Glo-Ray® 108" Max Watt Dual Infrared Strip Heater
Model GRAML-108D | 6,540 W | With Lights & Remote Control EnclosureStretching a full nine feet, the Hatco Glo-Ray® GRAML-108D blankets large pass-throughs and countertops with powerful, even heat to keep entrées, sides and baked goods at perfectly held temperatures—without continuing to cook them. Its dual tubular heater rods, integrated display lighting and rugged aluminum construction make it the professional’s choice for high-volume kitchens, cafeterias and buffets.
Why You’ll Love It
- Max Watt Output (+25%) – 6,540 watts of infrared heat delivers faster recovery and wider holding coverage than standard high-watt strips.
- Dual Heater Rods, 3" Spacing – Creates a deeper heat pattern for pans stacked front-to-back or side-by-side.
- Pre-Focused Infrared – Directs heat down onto food, not into the air, keeping products hot without drying them out.
- Shatter-Resistant Lights Included – Incandescent bulbs illuminate the serving area while safeguarding food from broken glass.
- Extruded Aluminum Housing – Lightweight yet rigid frame eliminates sagging over long spans.
- Heavy-Duty Insulation – Minimizes heat loss and keeps outer surfaces cooler to the touch.
- Ready to Install – Ships with adjustable angle brackets and a remote control enclosure (toggle/on-off & infinite heat settings); 36" flexible conduit with 42" leads simplifies wiring.
- Certified & Built to Last – cULus & NSF listed, assembled in the USA and backed by Hatco’s 24/7 parts-and-service support.
Technical Specs
Model | GRAML-108D |
---|---|
Overall Width | 108" (2,743 mm) |
Depth × Height | 15" × 2.5" (381 × 64 mm) – with 3" spacer |
Wattage | 6,540 W |
Voltage / Phase | 120/240 V, 1-phase |
Amperage | 29.5 A (at 240 V) |
Heater Elements | Two tubular metal-sheathed rods |
Lamp Type | Shatter-resistant incandescent, 60 W each |
Housing Material | Anodized extruded aluminum |
Included Accessories | Remote control enclosure, angle mounting brackets, 36" flexible conduit (42" leads) |
Recommended Mounting Height* | 18" ± 2" above holding surface (3" spacer) |
Certifications | cULus, NSF |
Country of Origin | Made in USA |
Approx. Ship Weight | 64 lbs (29 kg) |
*Refer to the Hatco installation manual for complete mounting and clearance requirements. Remote control enclosure must be located outside the heat zone to prevent switch damage.
