Hatco GRAML-108 Glo-Ray® Heat Lamps
Description

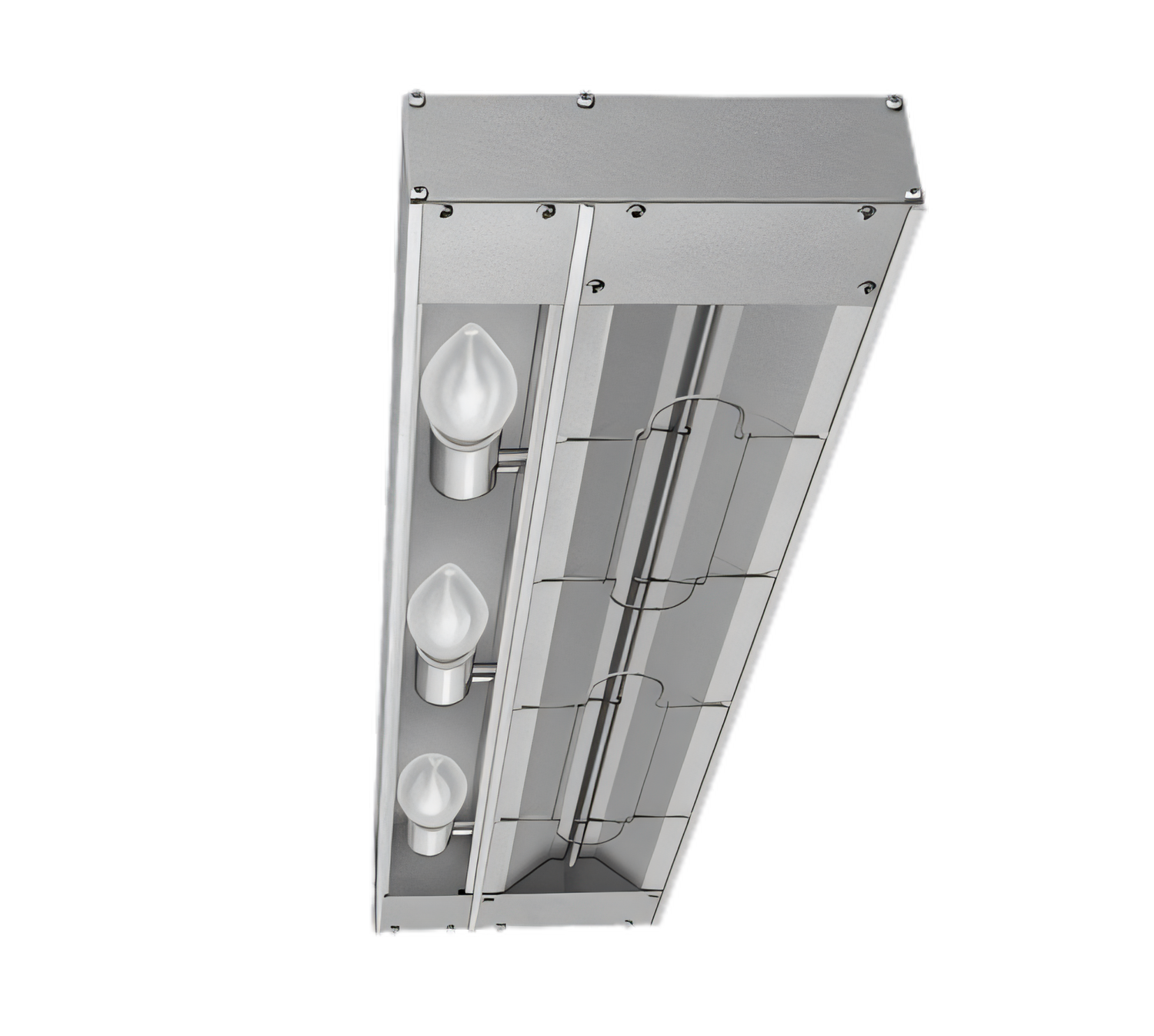

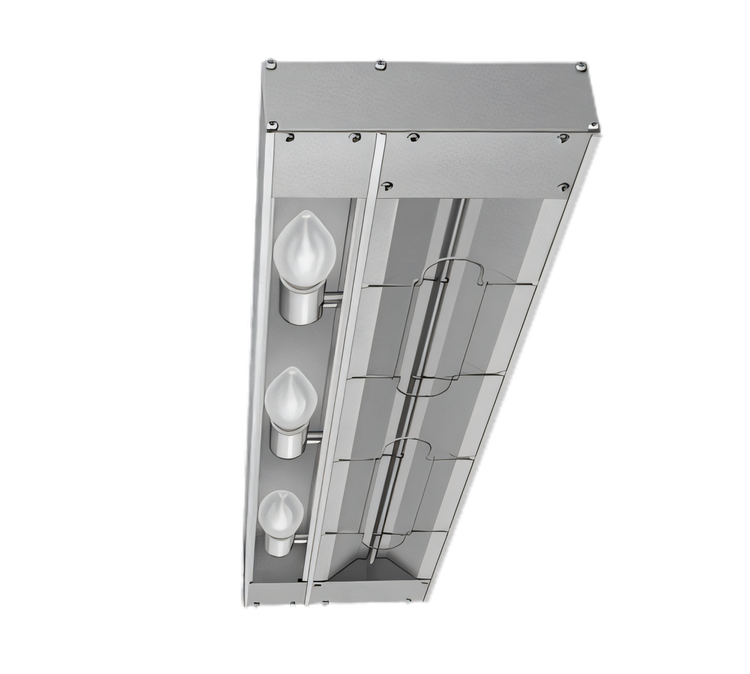

Glo-Ray® Max Watt Infrared Strip Heater – 108"

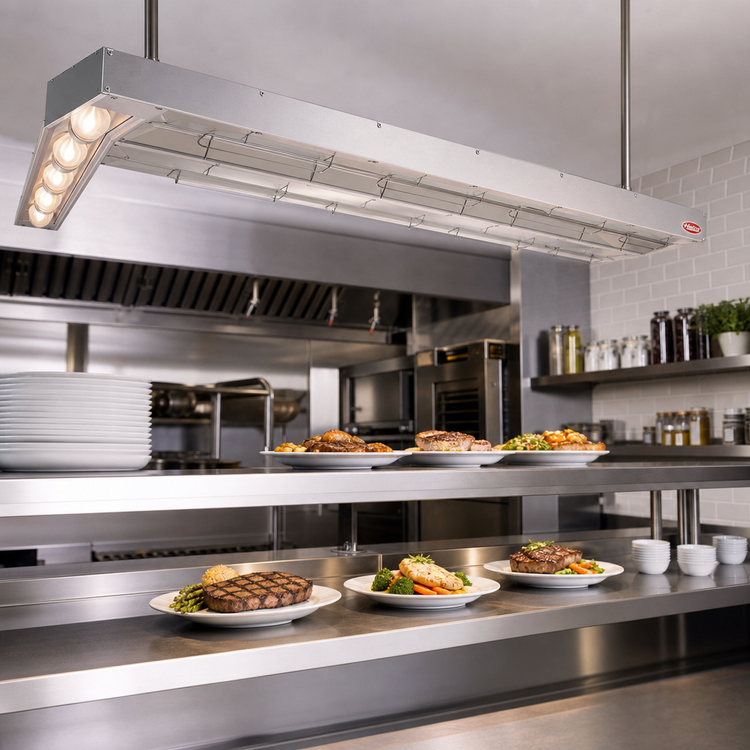

Model GRAML-108 | 3540 W with Shatter-Resistant LightsBuilt to outperform ordinary food warmers, the Hatco Glo-Ray GRAML-108 delivers powerful, evenly-distributed infrared heat across a full 9 ft holding area—keeping entrées, sides, and bakery items at perfect serving temperature without continuing to cook them.
Why You’ll Love It
- Maximum Wattage Output – 25 % more heat than standard high-watt units for superior holding performance.

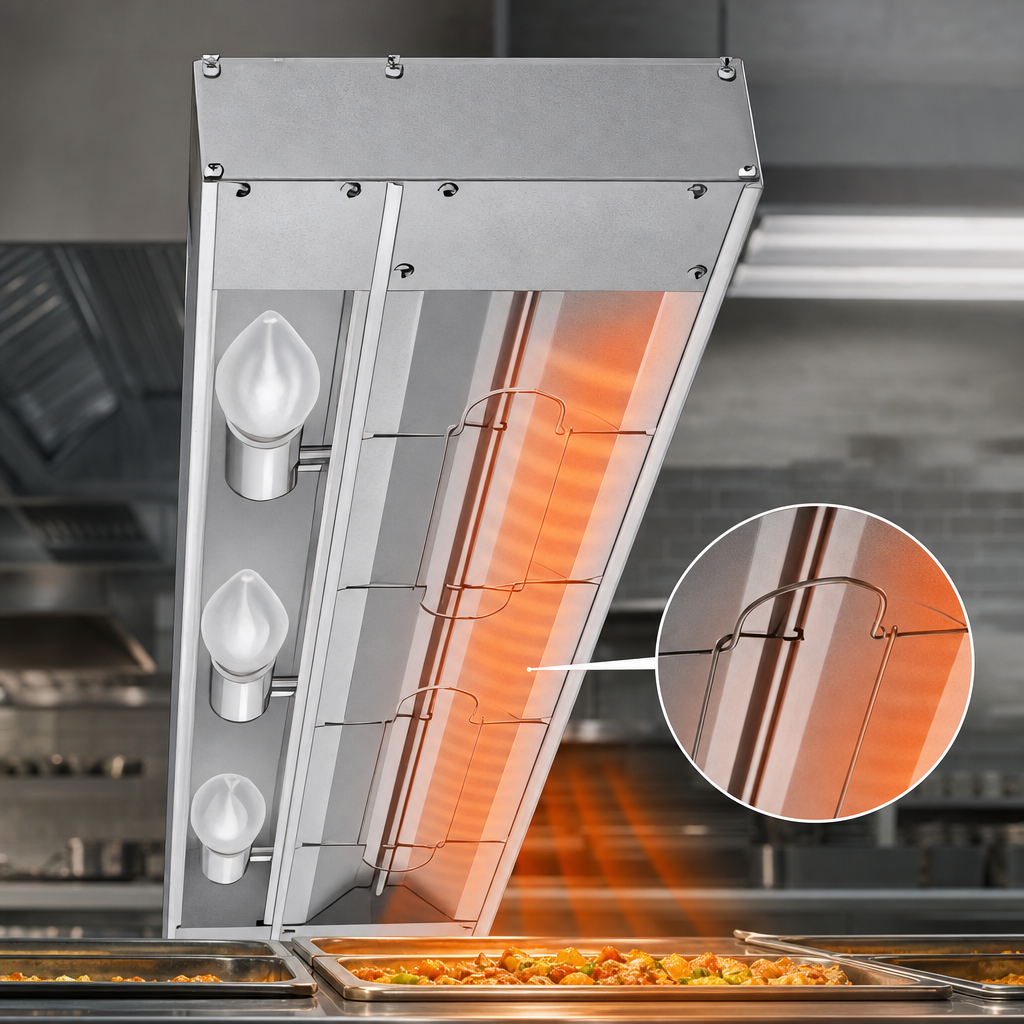

- Pre-Focused Tubular Heating Rod blankets the entire holding surface with consistent heat.

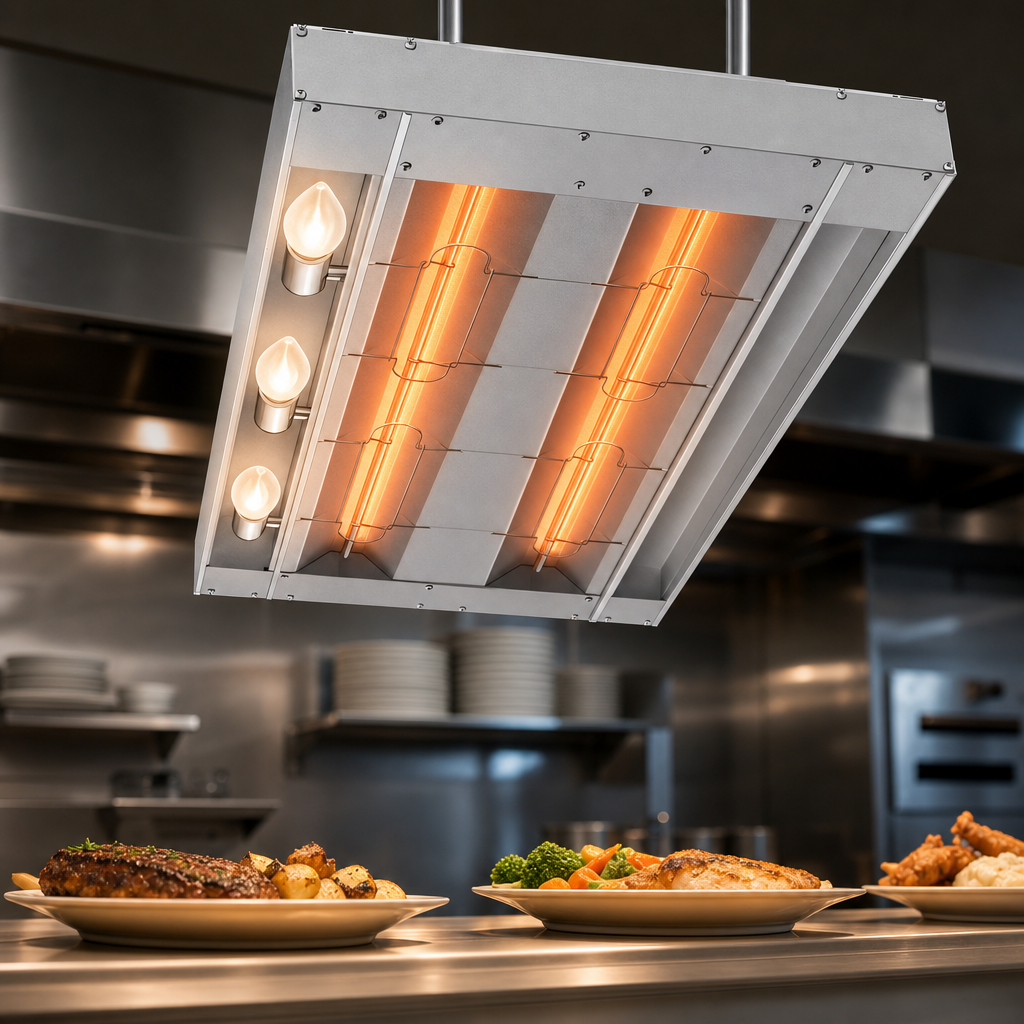

- Shatter-Resistant Incandescent Lights (factory-installed) illuminate product and protect food from bulb breakage.
- Extruded Aluminum Housing prevents sagging and is fully insulated to minimize heat loss.
- Remote Control Enclosure (included) with separate toggle switches for heat and lights plus indicator light.
- Easy Installation – adjustable 9" angle brackets and 36" flexible conduit with 42" leads arrive ready to mount.
- Certified NSF & cULus for safe, sanitary operation in commercial kitchens.
- Made in the USA and backed by Hatco’s 24/7 parts & service network.
Technical Specs
| Overall Length | 108" (2743 mm) |
|---|---|
| Depth × Height | 9" × 2.5" (229 mm × 64 mm) |
| Wattage | 3540 W (maximum) |
| Voltage / Phase | 120 V (lights) / 208 V (heat), 1-phase Also field-wired 120/240 V; see wiring diagram. |
| Amperage | 18.9 A @ 208 V |
| Heating Element | Tubular metal sheathed rod |
| Included Controls | Remote toggle switch for element, separate toggle for lights, indicator light |
| Mounting Hardware | Pair of adjustable 9" angle brackets (ships loose) |
| Construction | Heavy-duty, anodized aluminum; reinforced wire guard |
| Certifications | NSF, cULus |
| Origin | Made in USA |
Recommended mounting height with supplied angle brackets: 14–18" (356–457 mm) above the food surface, providing 13"-2.5" (83 mm) clearance below the heater. Glo-Ray Max Watt food warmers are not for use in combustible surroundings.
