Hatco GRAM-96D6 Glo-Ray® Heat Lamps
Description

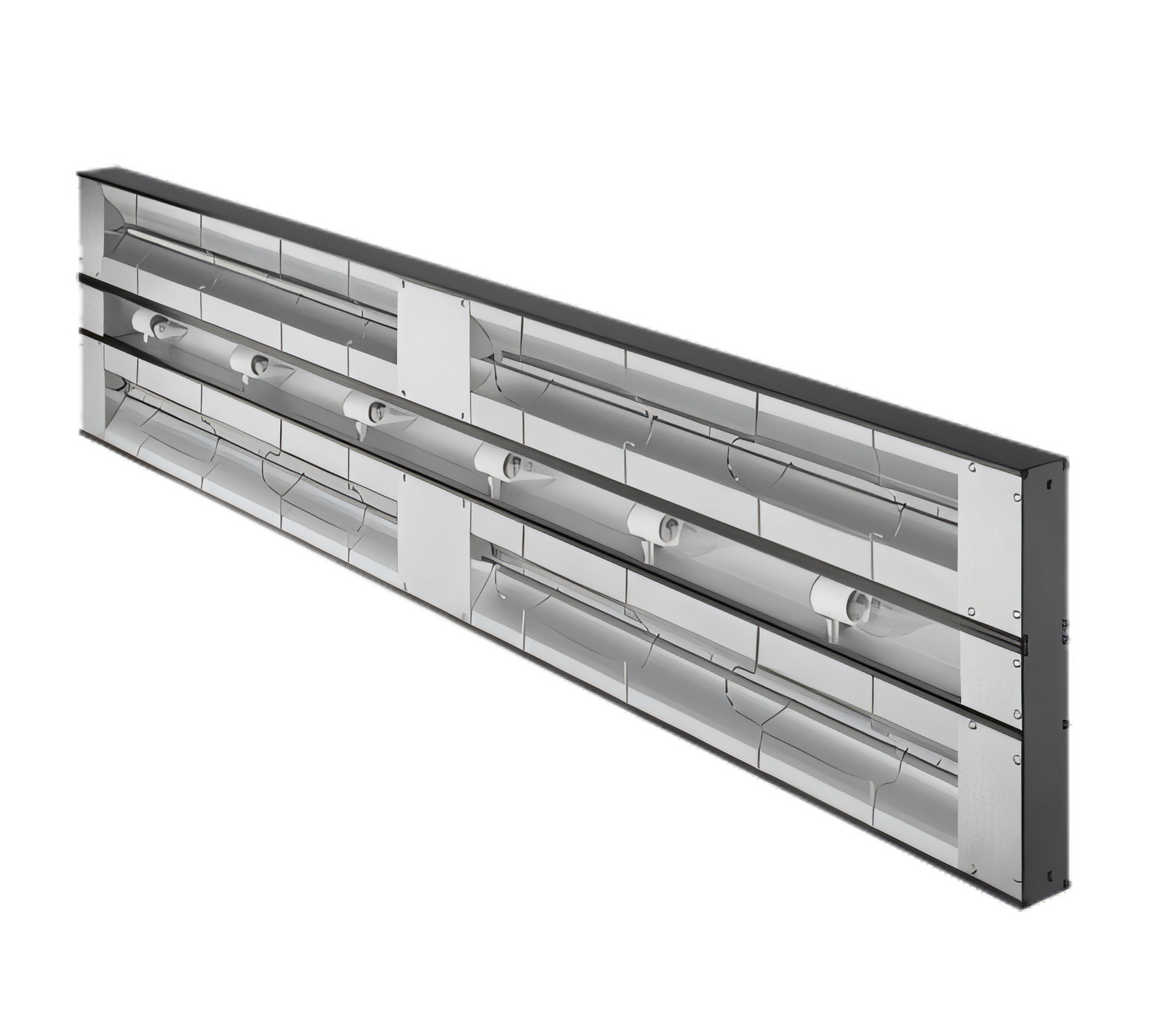

Hatco Glo-Ray® GRAM-96D Max-Watt Dual Infrared Strip Heater – 96"
8 ft • 5 350 W • Dual tubular elements with 6" spacerServe every dish at the perfect temperature with the most powerful Glo-Ray strip heater available. The GRAM-96D floods a full 96" holding area with even, high-intensity infrared heat—ideal for long pass-through windows, buffets, and banquet lines.
Why you’ll love it
- Maximum output – delivers 25 % more wattage than standard high-watt models for fast recovery during rushes.

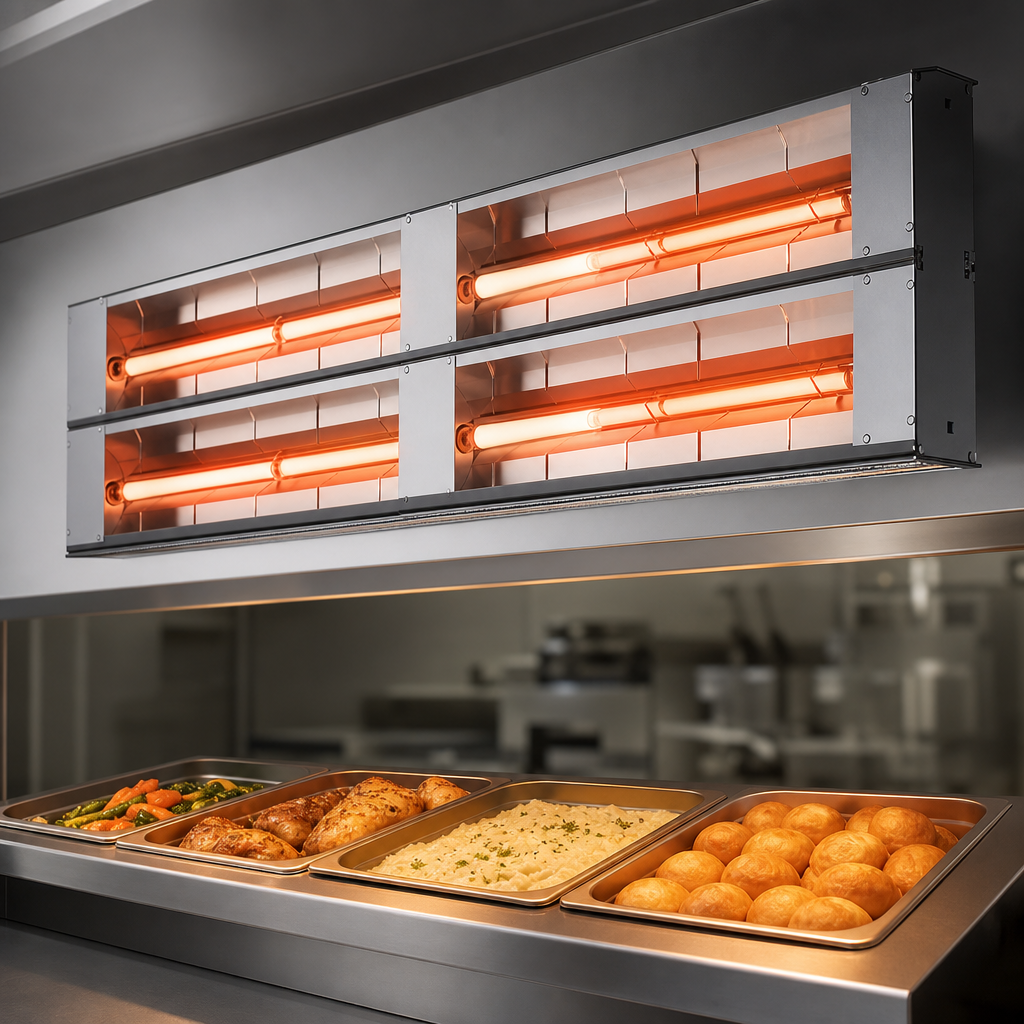

- Dual metal-sheathed tubular elements, separated by a 6" (152 mm) spacer, create a deeper, wider heat blanket without overcooking.
- Pre-focused aluminum reflectors bathe the entire surface in consistent infrared heat—no cold spots.
- Rigid extruded aluminum housing resists sagging across the long 8-ft span and will not rust or corrode.
- Heavy insulation minimizes heat loss for greater energy efficiency and a cooler kitchen.
- Protective wire guards shield elements while allowing full heat transfer.
- Remote control enclosure with on/off toggle switches keeps electronics safely outside the heat zone.
- Includes angle mounting brackets plus 36" flexible conduit with 42" leads for quick, code-compliant installation.
- cULus and NSF listed; proudly made in the USA.
Ideal for
- Cafeteria & buffet lines
- Restaurant pass-through windows
- Banquet plating areas
- Grab-and-go merchandising shelves
Specifications
| Model | GRAM-96D |
|---|---|
| Heat output | 5 350 W (Max-Watt dual rod) |
| Overall width | 96" / 2 438 mm |
| Housing depth × height | 18" × 2.5" (with 6" spacer) |
| Voltage options (1 Ø) | 120 V, 208 V, or 240 V |
| Current draw | 43.3 A @ 120 V • 25.7 A @ 208 V • 22.3 A @ 240 V |

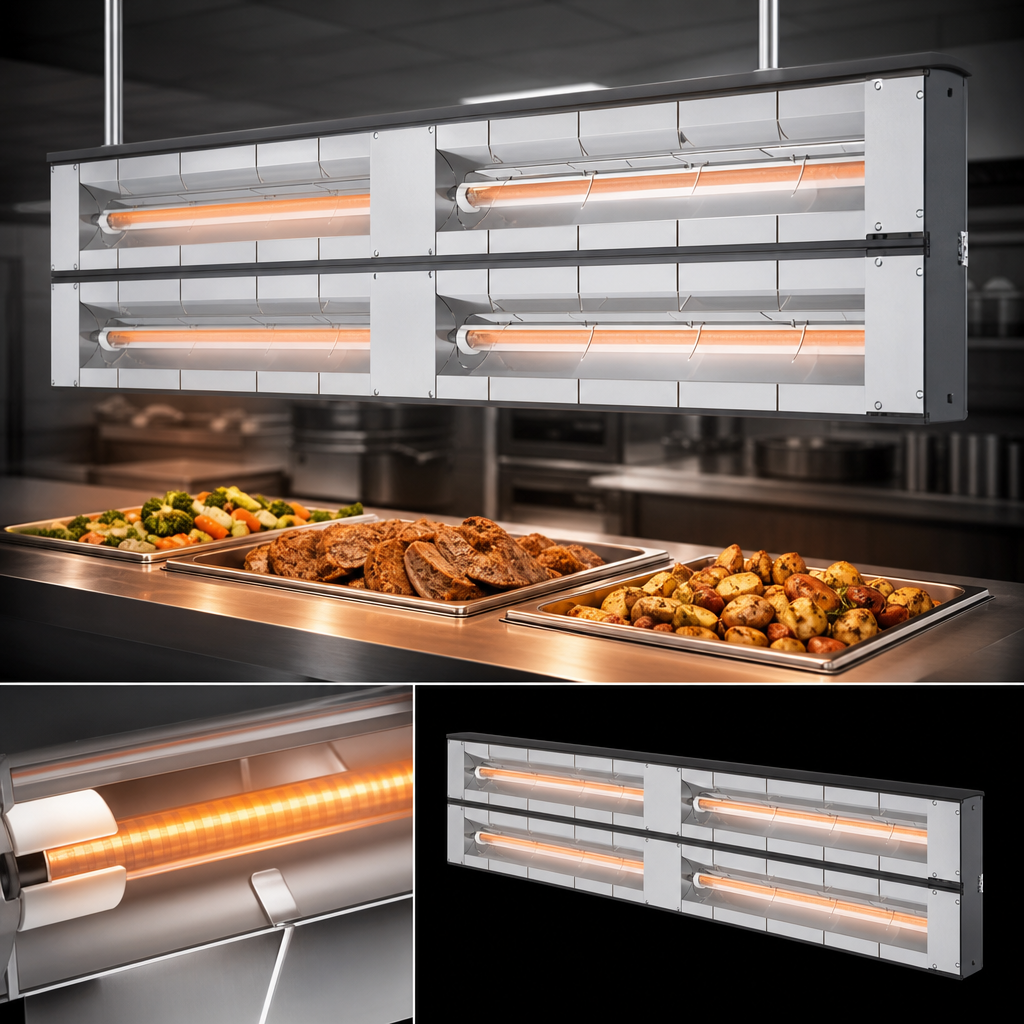

| Element type | Metal-sheathed tubular infrared rods × 2 |
| Rod spacing | 6" / 152 mm |
| Construction | Clear anodized extruded aluminum with wire guards |
| Controls | Remote toggle switches (enclosure included) |
| Mounting hardware | Angle brackets (included) |
| Certifications | cULus, NSF |
| Origin | Made in USA |
Recommended mounting height with 6" spacer: 18–24" (457–610 mm) above the target surface. Install the remote control enclosure outside the heat zone.
What’s in the box
- Hatco GRAM-96D strip heater
- Remote control enclosure with toggle switches
- 36" flex metal conduit & 42" leads (pre-installed)
- Angle mounting brackets
- Installation & operating manual
Factory-fit options
- Designer powder-coat colors or gloss finishes
- Extended power leads up to 20' (specify length)
- Electronic infinite control or relay box
- Non-adjustable tubular stands (18"–24" clearances)
- Special reflectors for focused lighting
