Hatco GRAM-96D3 Glo-Ray® Heat Lamps
Description

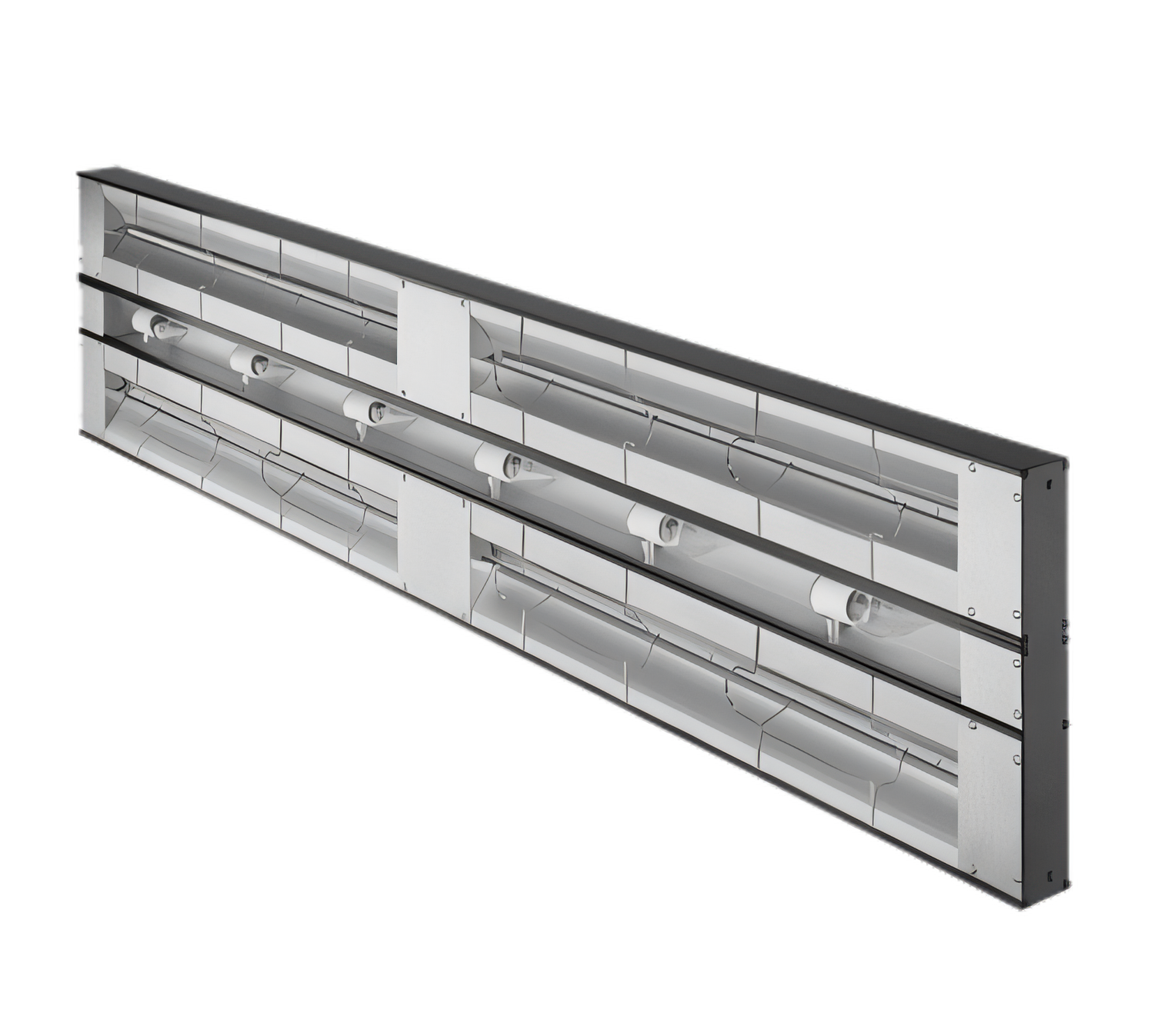

Hatco Glo-Ray® GRAM-96D 96" Max-Watt Dual Infrared Strip Heater

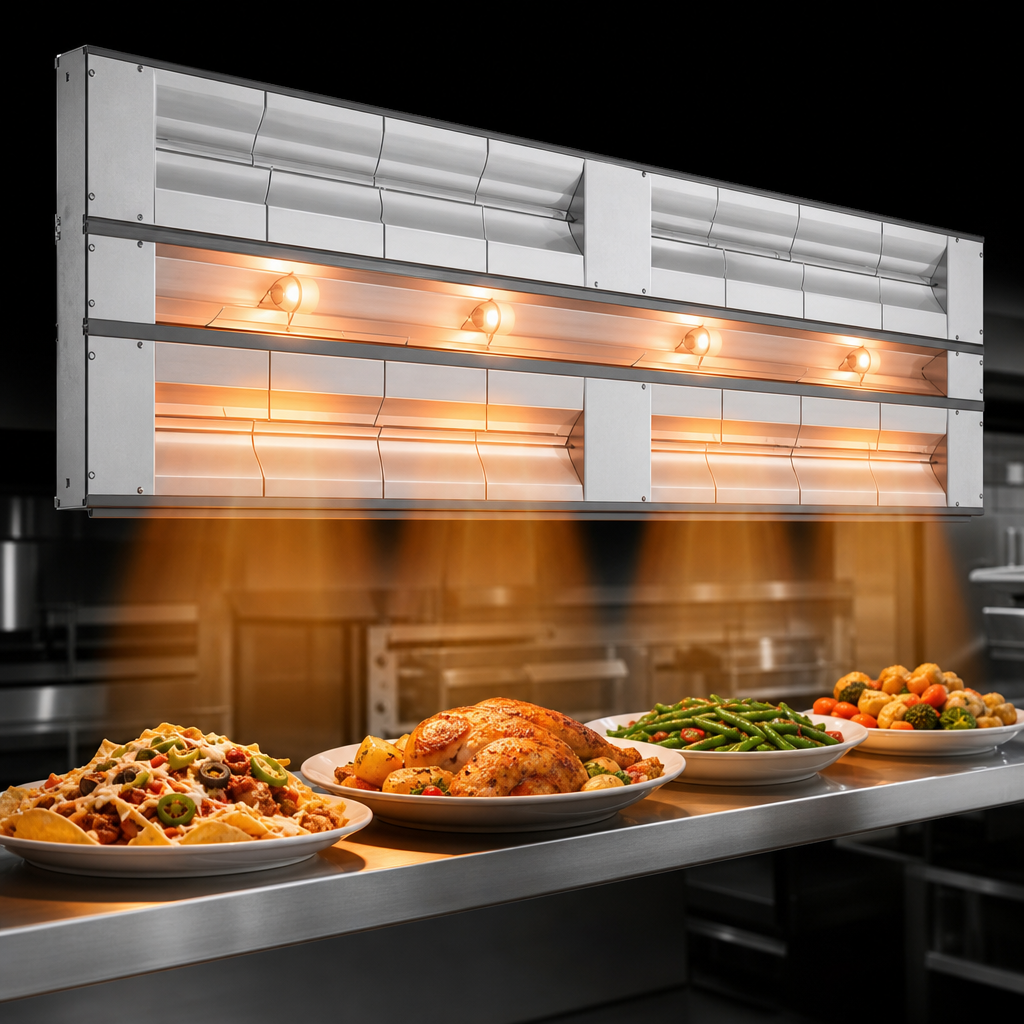

5,350 W • Dual tubular elements • 3" spacer • Remote control enclosure includedTurn up the heat on performance, not on your food. The Hatco Glo-Ray® GRAM-96D saturates an extra-deep 96-inch holding zone with powerful, pre-focused infrared heat—keeping entrées, sides and plated meals at perfect serving temperature without continuing to cook them.
Key advantages
- 25 % higher output than standard High-Watt Glo-Ray models for high-volume lines.
- Dual tubular metal-sheathed heater rods, spaced 3" (76 mm) apart, eliminate cold spots across wide pans and platters.
- Rigid, extruded aluminum housing prevents sagging and resists corrosion.
- Heavy-duty insulation cuts heat loss for improved energy efficiency.
- Protective wire guard supports elements without blocking radiant heat.
- Remote control enclosure with toggle switches keeps operators clear of the heat zone—pre-wired and ready to install.
- Angle mounting brackets and 36" flexible metal conduit with 42" leads are included.
- cULus & NSF listed and proudly Made in the USA.
Ideal applications
- Buffets & cafeterias
- Supermarket hot bars
- Restaurant pass-through windows
- Catering/banquet plating lines
At-a-Glance Specifications
| Model | GRAM-96D |
|---|---|
| Overall width | 96" (2438 mm) |
| Depth × height | 15" × 2.5" (381 × 64 mm) |
| Spacer | 3" (76 mm) between heater rods |
| Wattage | 5,350 W (max) |
| Voltage / phase | 208 V, 1-phase (120 V & 240 V versions also available) |
| Amperage (208 V) | 25.7 A |
| Element type | Dual tubular metal-sheathed |
| Housing material | Clear-anodized extruded aluminum |
| Controls | Remote control enclosure with toggle switches |
| Mounting hardware | Angle brackets (included) |
| Shipping weight | Approx. 54 lb (25 kg) |
| Certifications | cULus, NSF |
| Origin | Made in USA |
Installation notes
- Recommended mounting height with 3" spacer: 18"-24" (457-610 mm) above the holding surface.
- Minimum clearance above combustibles: 1" (25 mm); below non-combustibles: 15" (381 mm).
- Remote control enclosure must be mounted outside the heat zone to prevent switch damage.
Need a custom Designer Color finish, 6" spacer, or lights? Hatco can factory-configure the GRAM-96D to match your setup—ask us for details.
