Hatco GRAM-84D6 Glo-Ray® Heat Lamps
Description

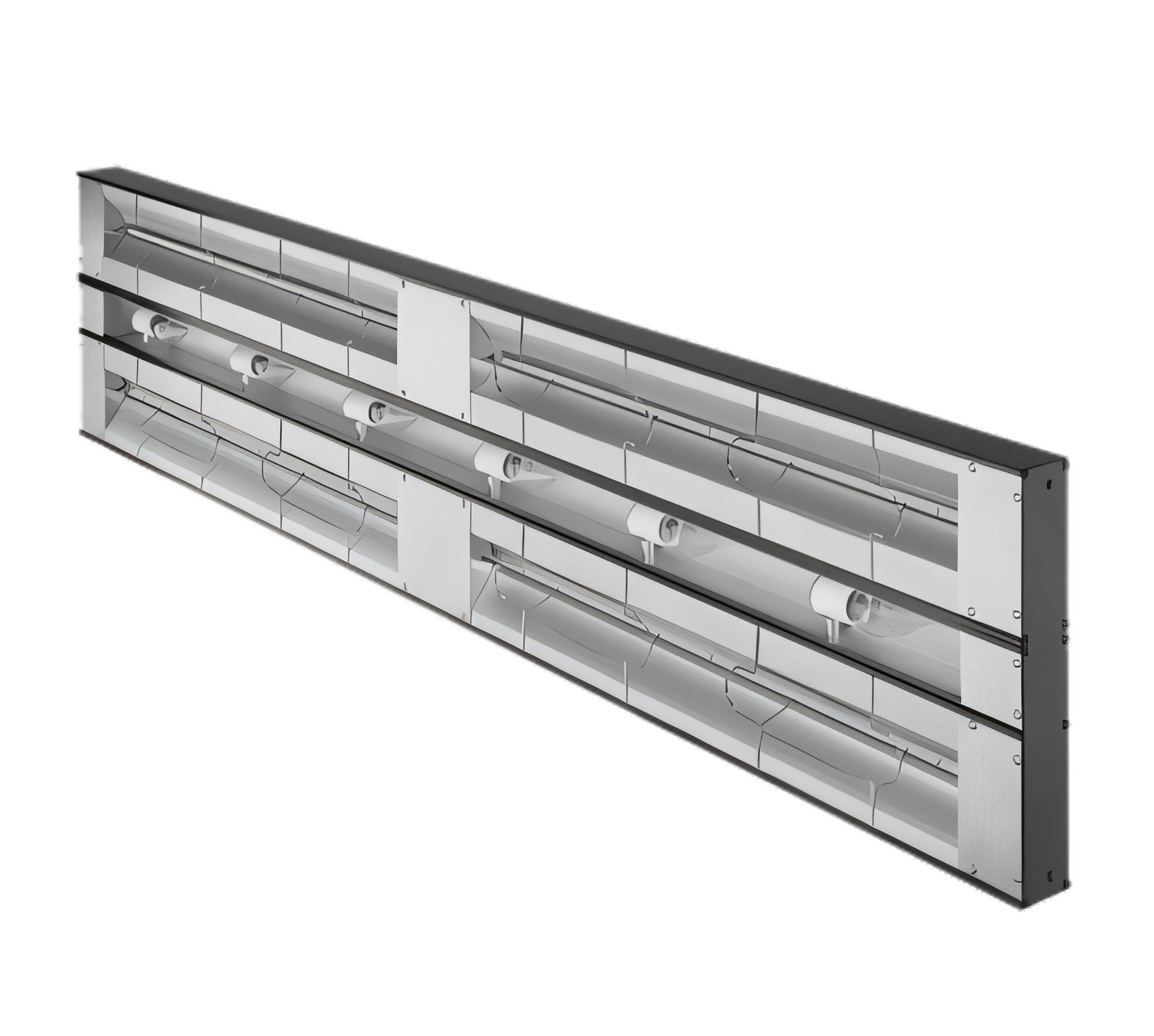

Hatco Glo-Ray® GRAM-84D Max-Watt Dual Infrared Strip Heater – 84"

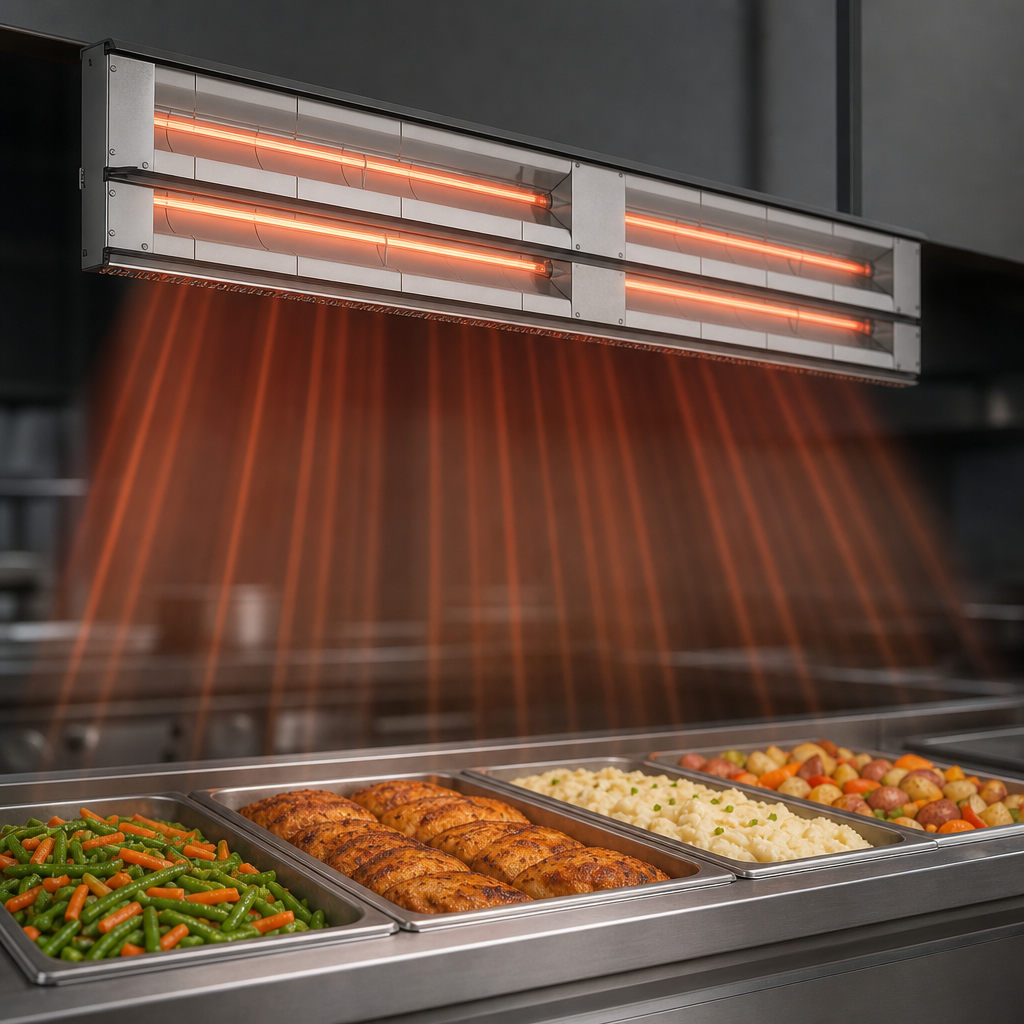

Model GRAM-84D • 4800 W • 6" Spacer • Remote Control IncludedGive every plate the “just-made” appeal guests crave. Hatco’s GRAM-84D Glo-Ray® Aluminum Max-Watt Strip Heater delivers a powerful, pre-focused infrared blanket that covers an 84 inch (2134 mm) holding surface, keeping food at safe, appetizing temperatures without continuing to cook it. The twin tubular metal-sheathed elements sit inside a rugged, extruded aluminum housing with a 6 inch (152 mm) spacer—perfect for deeper steam-table pans, buffet lines and pass-through shelves.
Key Features
- Max-watt output – 25 % more heat than standard high-watt models.

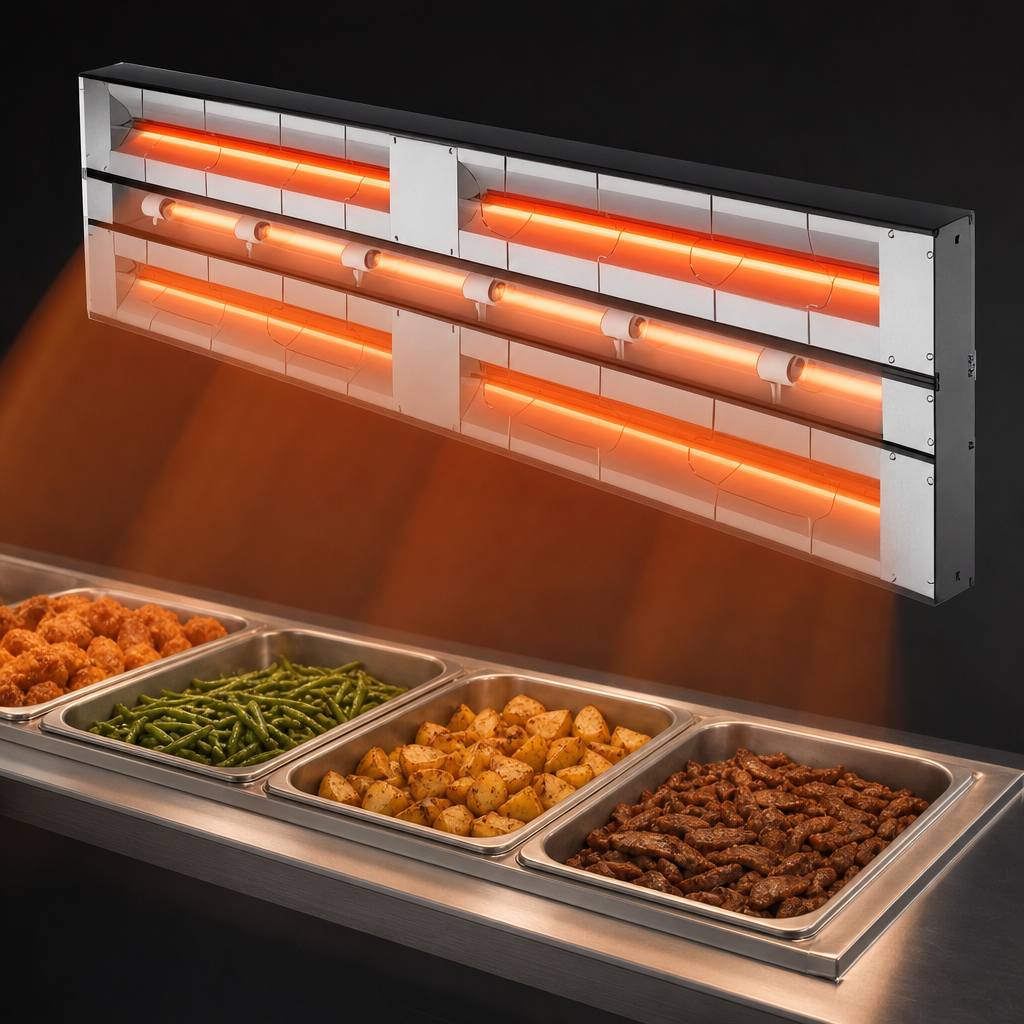

- Dual tubular metal elements for even, edge-to-edge heat distribution.
- 6" (152 mm) spacer creates a deeper heat pattern for taller pans and platters.
- Heavy-duty extruded aluminum housing resists sagging over long spans.
- Remote control enclosure with on/off toggle switch keeps wiring away from the heat zone (included).
- Factory-installed angle brackets for quick, secure overhead mounting (included).
- Internal high-temperature insulation minimizes heat loss and saves energy.
- Protective wire element guard supports the heater rod without blocking heat.
- cULus & NSF listed for electrical and sanitation safety.
- Proudly made in the USA and backed by Hatco’s 24/7 parts & service assistance.
Ideal Applications
- Buffet & carving stations
- Pass-through windows & holding shelves
- Quick-service make lines
- Cafeterias, delis & supermarkets
- Banquet plating areas
Specifications
| Model | GRAM-84D |
|---|---|
| Overall length | 84" / 2134 mm |
| Depth × Height | 18" D × 2.5" H (457 mm × 64 mm) *with 6" spacer |
| Heat source | Dual tubular metal-sheathed elements |
| Wattage | 4800 W (max watt) |
| Voltage / Phase | 208 V, 23.1 A | 240 V, 20.0 A (1-phase) |
| Power connection | 36" (914 mm) flexible metal conduit with 42" (1067 mm) leads |
| Spacer | 6" (152 mm) welded aluminum standoffs |
| Controls | Remote control enclosure with on/off toggle switch (RMB), field-wired |
| Mounting hardware | Factory-installed angle brackets |
| Shipping weight | Approx. 44 lb / 20 kg |
| Certifications | cULus, NSF |
| Country of origin | USA |
Installation & Clearances
- Recommended mounting height with 6" spacer: 24"–27" (610–686 mm) above the holding surface.
- Minimum to non-combustible surface below: 15" (381 mm).
- Maintain 3" (76 mm) clearance to back wall.
- Remote control enclosure must be installed outside the heat zone.
Optional Accessories (sold separately)
- Designer Color or Gloss Finish housings to match your décor
- Electronic infinite control remote box for variable heat output
- Extended power leads (up to 20 ft / 6096 mm)
- Non-adjustable tubular stands for counter or pass-through mounting
- Bright annealed reflector (for heaters ordered with lights)
Need a different length, color, control option or 3" spacer version? Contact our team—Hatco’s full GRAM series ranges from 18" to 144" to fit any hot holding application.
