Hatco GRAM-84D3 Glo-Ray® Heat Lamps
Description

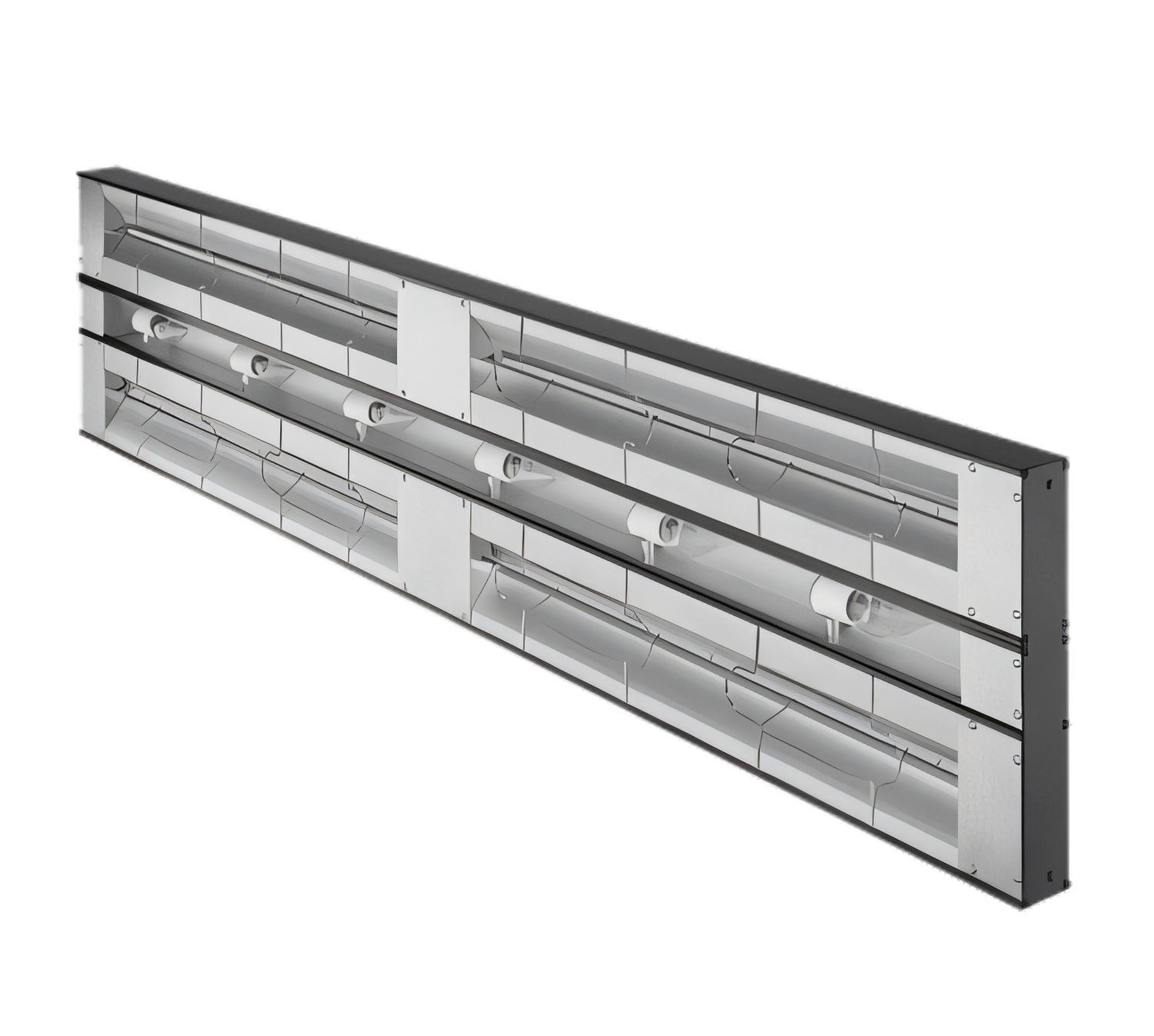

Hatco Glo-Ray® GRAM-84D 84" Max-Watt Dual Infrared Strip Heater
4,800 W • dual metal-sheathed elements • remote control box includedKeep every plate hot and appetizing across an extra-long 7 ft service line. The GRAM-84D delivers 25 % more heat than standard high-watt models, providing even, edge-to-edge coverage without over-cooking your menu items.
Key features
- Max-watt output: powerful 4,800 W for demanding buffet and pass-through stations.

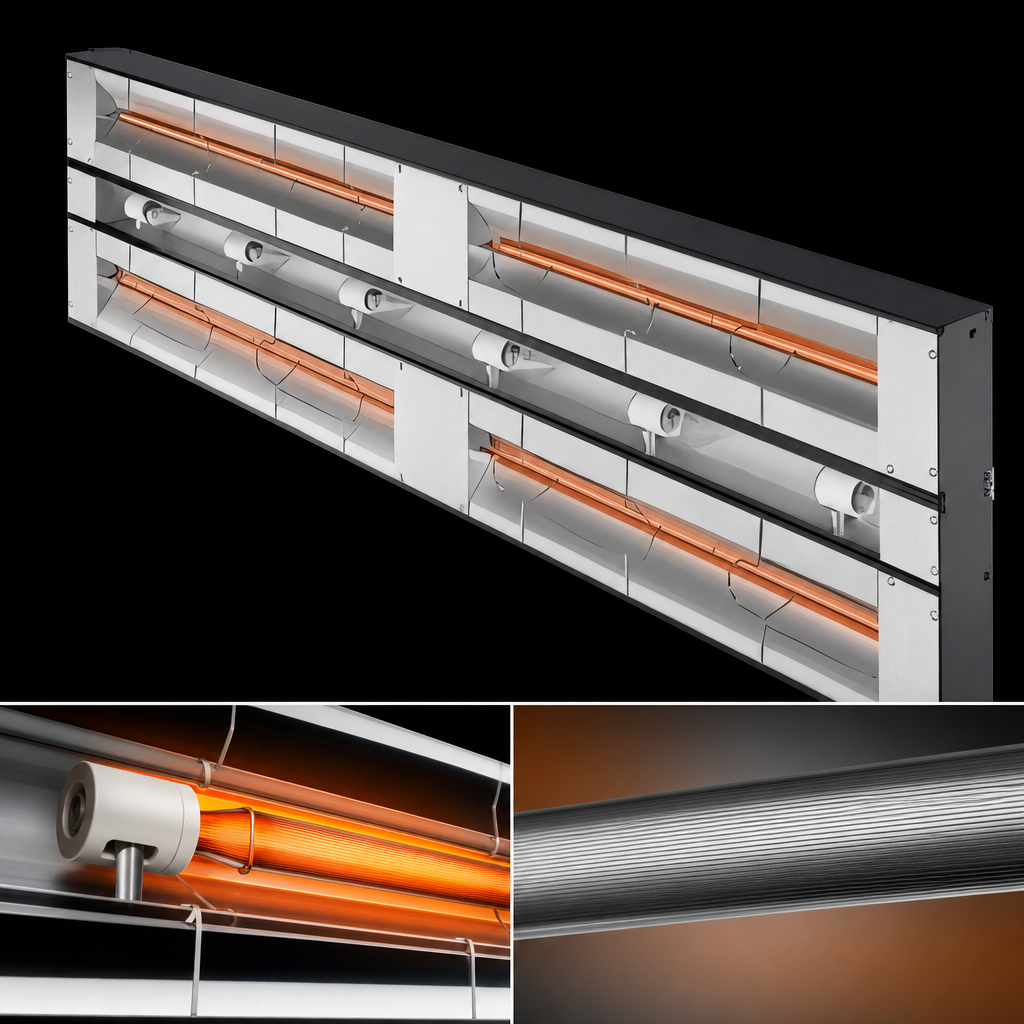

- Dual tubular metal-sheathed heating rods with 3" (76 mm) fixed spacer broaden the heat pattern for deeper holding zones.

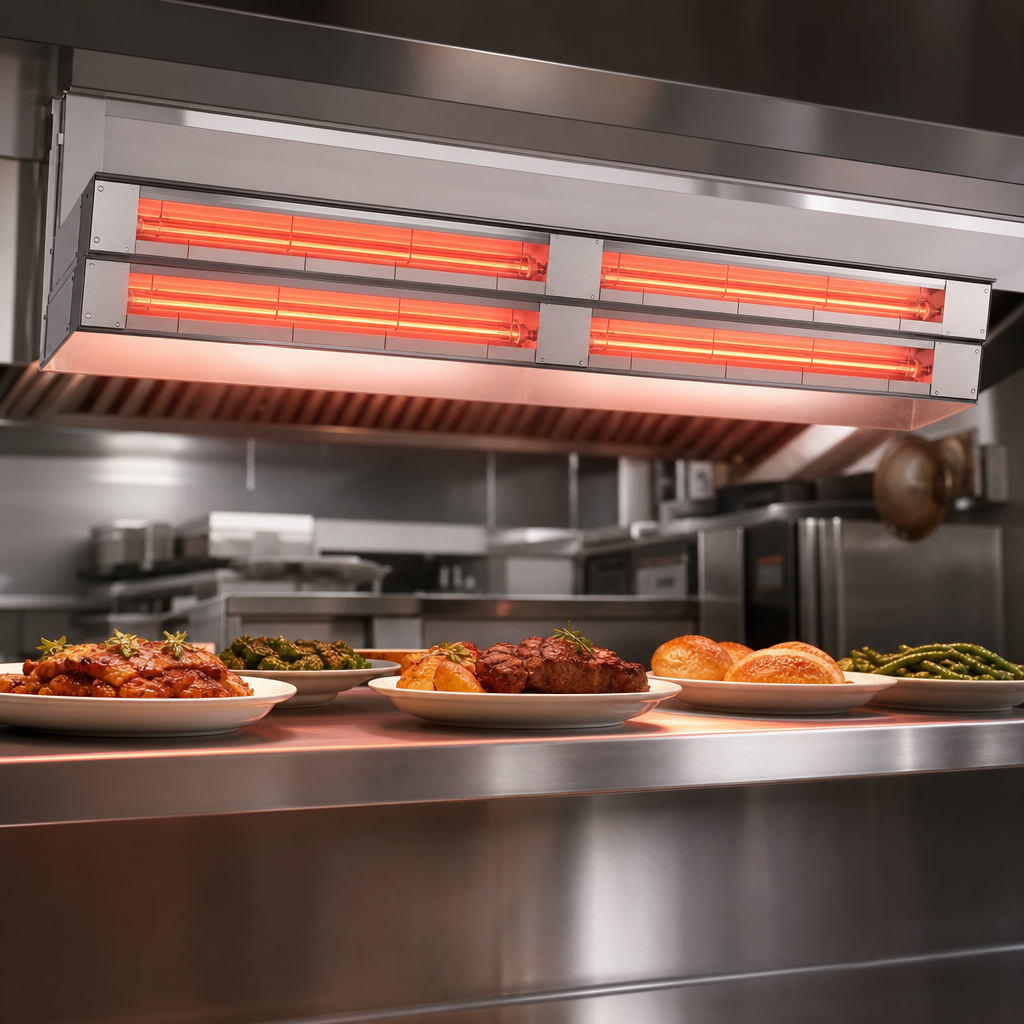

- Pre-focused infrared heat maintains safe serving temperatures yet prevents product drying.
- Rigid extruded aluminum housing resists sagging and includes heavy-duty insulation to minimize heat loss.
- Protective wire guard supports elements while allowing unrestricted heat flow.
- Remote control enclosure with illuminated toggle switch keeps controls cool, safe and easy to reach.
- Factory-supplied angle brackets speed up under-shelf or pass-through mounting.
- Certified cULus & NSF; proudly made in the USA for long-term reliability.
Specifications
| Model | GRAM-84D |
|---|---|
| Overall width | 84" / 2,134 mm |
| Depth × height | 15" × 2.5" (381 × 64 mm) |
| Element spacing | 3" (76 mm) dual-rod housing |
| Total wattage | 4,800 W |
| Voltage options | 120 V, 208 V or 240 V, 1-phase |
| Amps | 120 V — 40 A* | 208 V — 23.1 A | 240 V — 20 A |
| Power lead | 36" (914 mm) flex metal conduit with 42" (1,067 mm) leads |
| Housing | Clear-anodized extruded aluminum |
| Included hardware | Angle brackets, remote control enclosure, protective wire guard |
| Certifications | cULus, NSF |
| Country of origin | Made in USA |
*120 V models require tandem heating elements and additional switches or an electronic infinite control (RMB-GRAM-INF).
Installation & clearance guidelines
- Pass-through applications: mount 18"–24" (457–610 mm) above the holding surface.
- Under-shelf installations: typical clearance is 14"–20" (356–508 mm).
- Maintain at least 1" (25 mm) from non-combustible surfaces. Do not install over combustible materials.
- If placing units side-by-side, leave a minimum 3" (76 mm) gap between heaters.
From cafeterias and buffets to stadium concessions, choose the Hatco GRAM-84D for high-performance holding power that keeps food hot, safe and irresistible—shift after shift.
