Hatco GRAM-72D6 Glo-Ray® Heat Lamps
Description

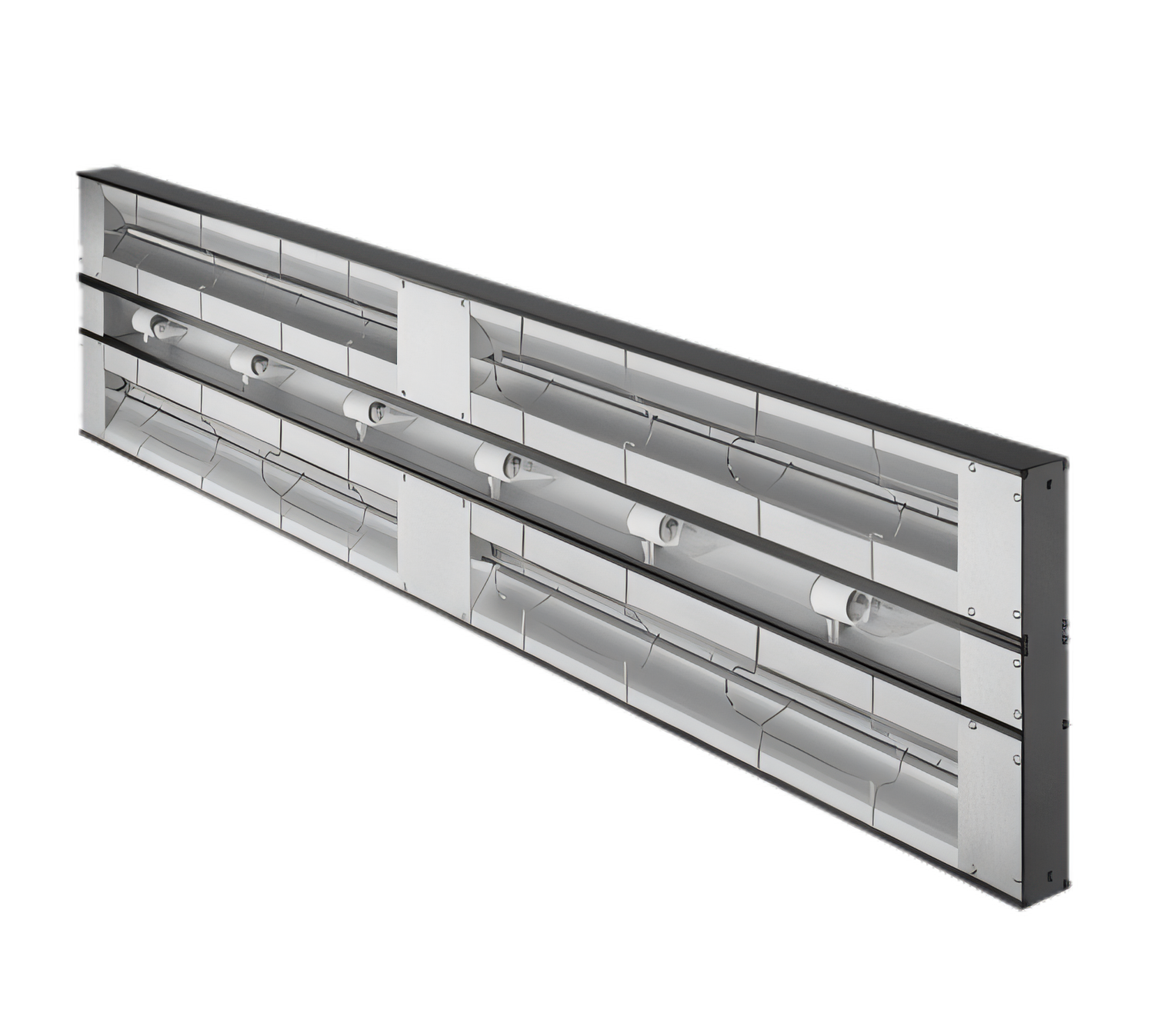

Hatco Glo-Ray® GRAM-72D Max-Watt Dual Infrared Strip Heater
72" W • 4150 W • Dual tubular elements with 6" spacingKeep every pan on your 6-foot line sizzling-hot and ready to serve with the GRAM-72D, Hatco’s most powerful 72-inch aluminum strip heater. Delivering 25 % more wattage than standard high-watt models, its dual tubular metal-sheathed elements blanket the entire holding surface with pre-focused infrared heat—maintaining safe food temperatures without overcooking. A rugged, sag-free aluminum housing, heavy insulation and built-in wire guards make this Made-in-USA workhorse ideal for buffets, pass-through stations and back-of-house staging areas that refuse to compromise on quality or uptime.
Why you’ll love it
- Maximum watt density – 4150 watts of heating power for deep, consistent holding.
- Dual 6" (152 mm) heater-rod housing creates a wider heat pattern for higher clearances and larger pans.

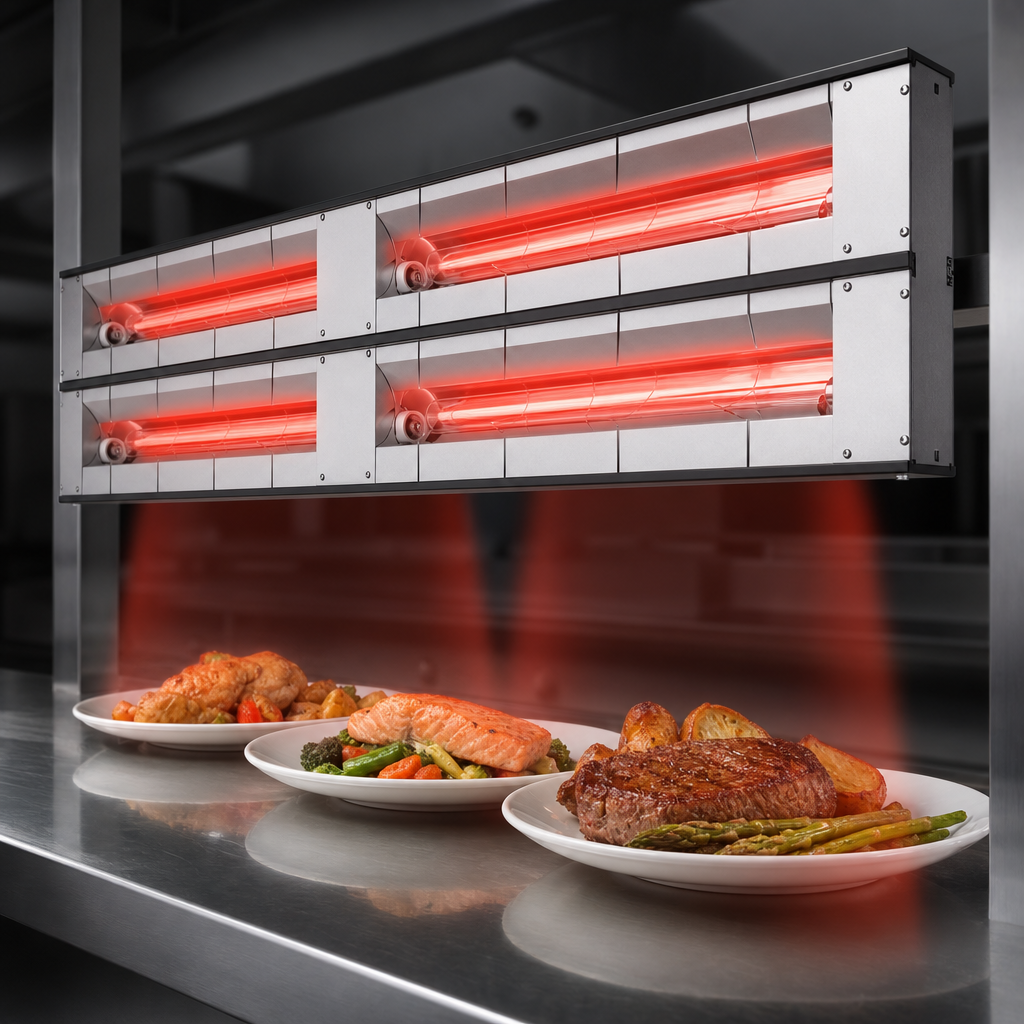

- Pre-focused infrared directs heat to the food—not the air—reducing energy waste and food dehydration.
- Extruded aluminum body will not sag, twist or corrode in the harshest kitchen environments.
- Protective wire guards shield the elements without disrupting heat distribution.
- Remote Control Enclosure (RMB) & angle brackets included for safe, code-compliant mounting and fingertip operation.
- Safe & certified – cULus & NSF listed; built and supported in the USA.
Perfect for
- Buffet lines & cafeterias
- Pass-through windows
- Full-service & quick-service restaurants
- Supermarket hot deli cases
- Catering & banquet holding areas
Technical specifications
| Model | GRAM-72D |
|---|---|
| Overall width | 72" / 1829 mm |

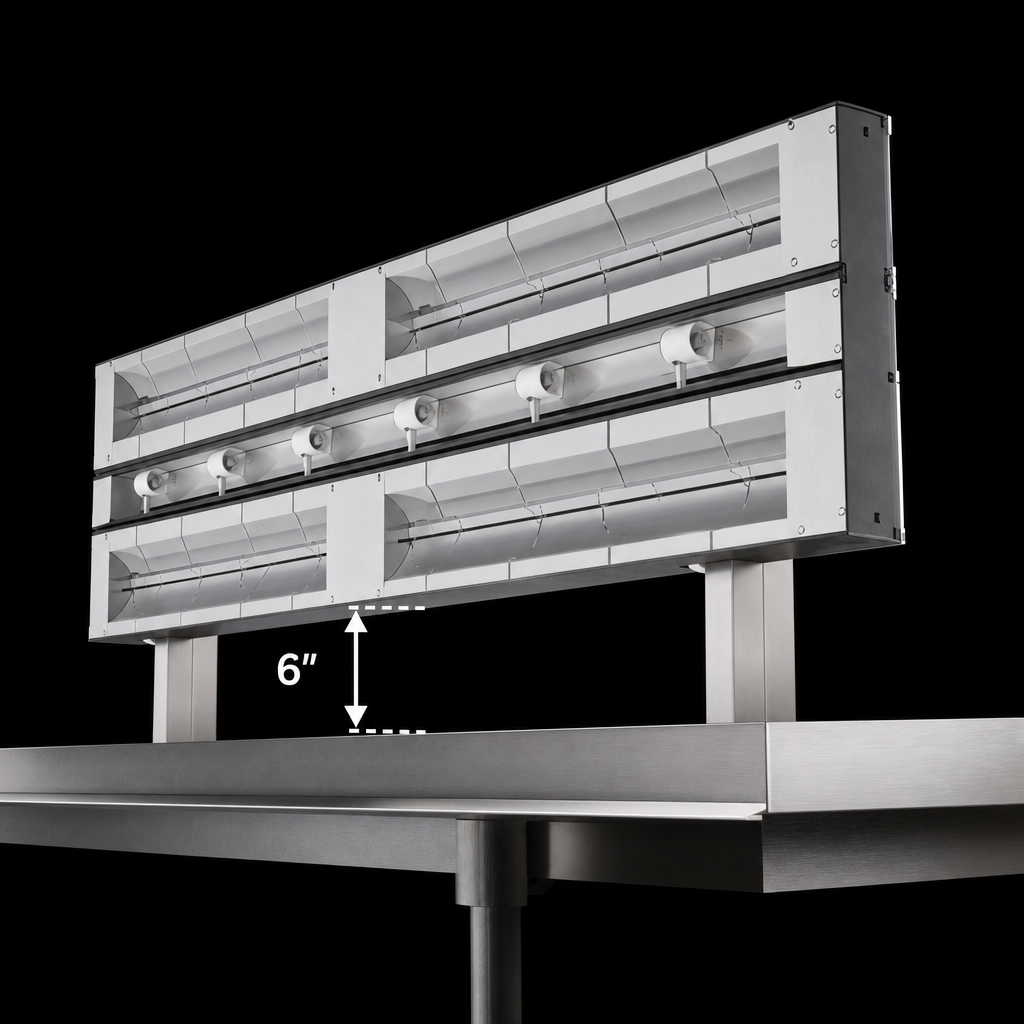

| Depth × Height | 18" × 2.5" (with 6" spacer) |
| Heating elements | 2 × tubular metal-sheathed rods |
| Wattage | 4150 W (maximum) |
| Voltage / Amps |
120 V • 34.6 A 208 V • 20.0 A 240 V • 17.3 A |
| Construction | Extruded aluminum housing, bright-annealed reflector, high-temp insulation |
| Controls | Remote Control Enclosure with on/off toggle switches (36" conduit & 42" leads) |
| Mounting hardware | Angle brackets included (for overhead or shelf undersurface installation) |
| Certifications | cULus, NSF, Made in USA |
| Approx. ship weight | 43 lb / 20 kg |
Factory options (order with unit)
- Designer powder-coat colors or gloss finishes to match your venue
- Extended power leads (up to 20 ft / 6 m)
- Electronic infinite control or relay box in lieu of standard toggle box
- Non-adjustable tubular stands for counter or pass-through mounting
All options are factory-installed and non-returnable.
Backed by Hatco’s renowned 24/7 parts and service assistance. Have questions? Contact your Hatco representative or call the Hatco service team anytime.
