Hatco GRAM-66D6 Glo-Ray® Heat Lamps
Description

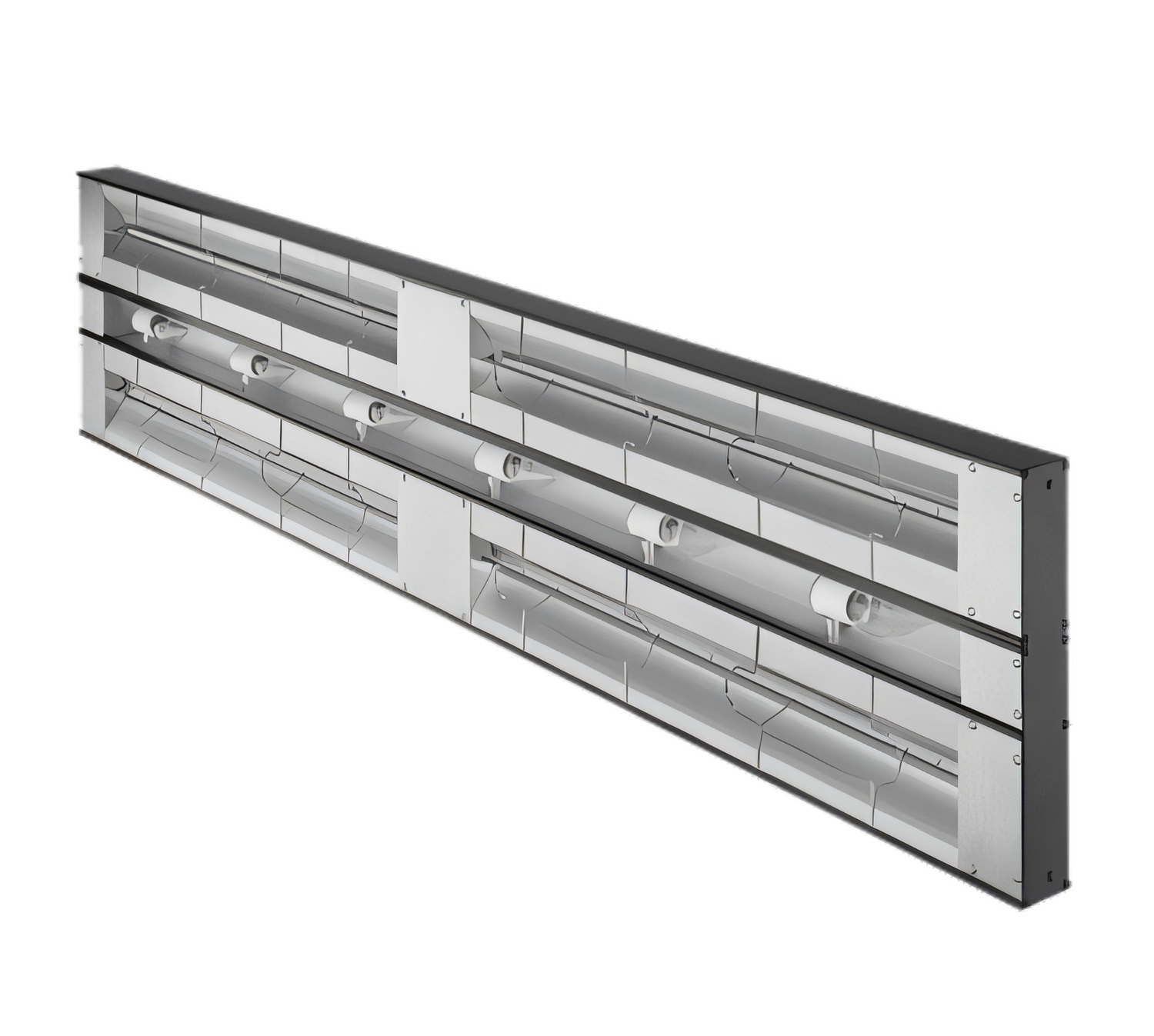

Glo-Ray® GRAM-66D Max Watt Dual Infrared Strip Heater – 66" W
High-output tubular heater with 6" spacer, remote controls & angle bracketsKeep entrées, sides and grab-&-go items at perfect serving temperature without over-cooking. Hatco’s made-in-USA Glo-Ray® GRAM-66D delivers a blanket of pre-focused infrared heat across an 18"-deep holding area—ideal for buffets, pass-throughs, cafeteria lines and carving stations.
Why You’ll Love It
- Max Watt Output (+25%) – dual tubular metal-sheathed elements provide 3,750 W of instant, even heat.
- 6" (152 mm) Spacer creates a deeper heat field for oversized pans and elevated displays.

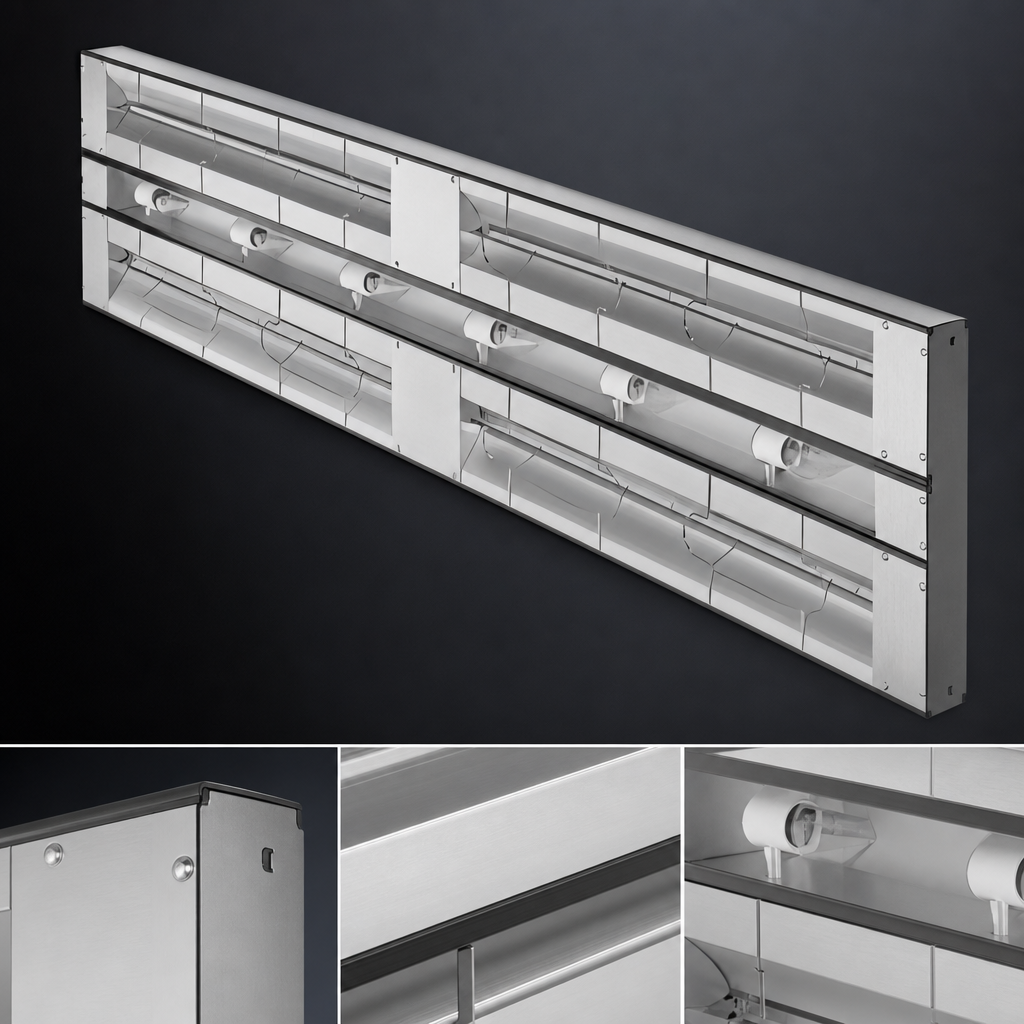

- Extruded Aluminum Housing won’t sag and resists warping in high-heat kitchens.

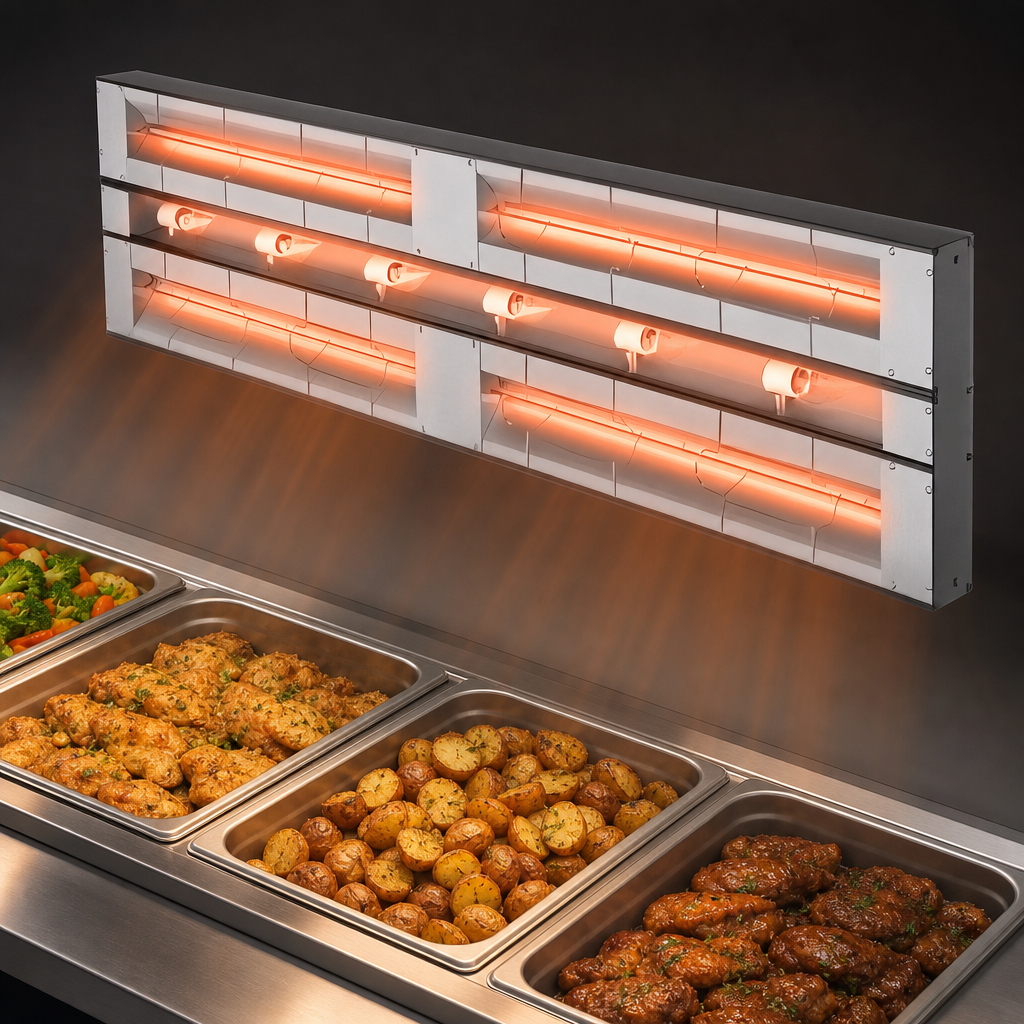

- Pre-Focused Infrared warms the entire holding surface while avoiding further cooking.
- Protective Wire Guard supports the elements without blocking heat distribution.
- Heavy-Duty Insulation minimizes heat loss and saves energy.
- Remote Control Enclosure (included) keeps toggle switches safely outside the heat zone.
- Easy Installation – angle mounting brackets and 3' flexible conduit with 42" leads come factory-attached.
- cULus & NSF listed for sanitation and safety; proudly Made in the USA.
Perfect For
- Buffet and self-service lines

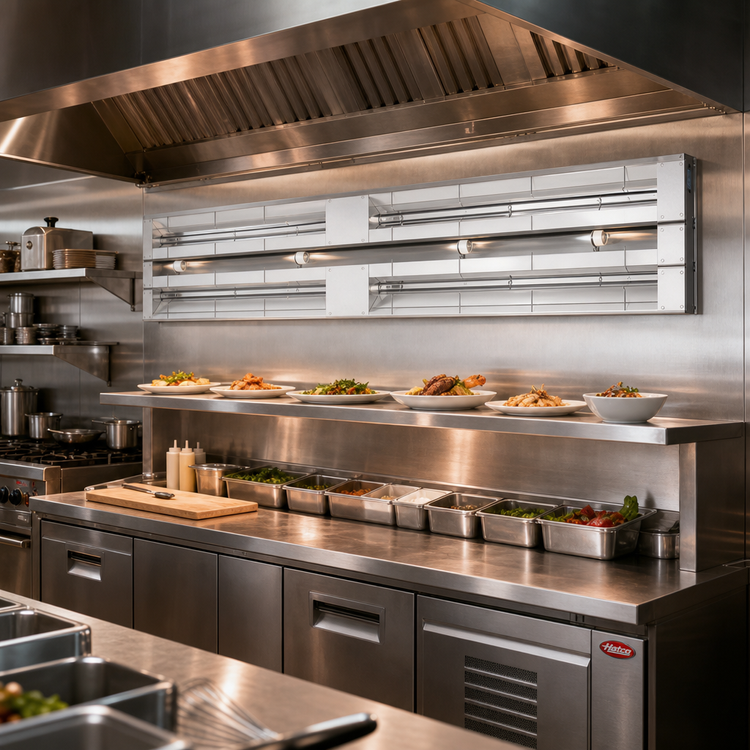

- Pass-through windows & expo counters
- Cafeterias, QSRs and convenience stores
- Carving stations & deli displays
Technical Specs
| Model | GRAM-66D |
|---|---|
| Overall Width | 66" (1,676 mm) |
| Depth / Height | 18" D × 2.5" H (with 6" spacer) |
| Wattage | 3,750 W (max watt) |
| Voltage / Amps | 208 V / 18 A | 240 V / 15.6 A (single phase) 120 V models require special switching—consult factory. |
| Element Type | Dual tubular metal-sheathed infrared rods |
| Controls | Remote toggle switches in separate enclosure (3' conduit, 42" leads) |
| Construction | Clear-anodized aluminum (Designer colors available at time of order) |
| Shipping Weight | ≈ 37 lb (17 kg) |
| Certifications | cULus, NSF |
Recommended Mounting Heights*
| Application | Target Height (surface → heater) |
|---|---|
| Pass-through / carving station | 24" – 32" (610 – 813 mm) |
| Under-shelf mounting | 24" (610 mm) max |
*Heights are guidelines; always follow local codes and the Installation & Operating Manual.
Need a custom color, extended power leads or alternative controls? Ask us before ordering—factory options are only available at time of purchase.
