Hatco GRAM-60D6 Glo-Ray® Heat Lamps
Description

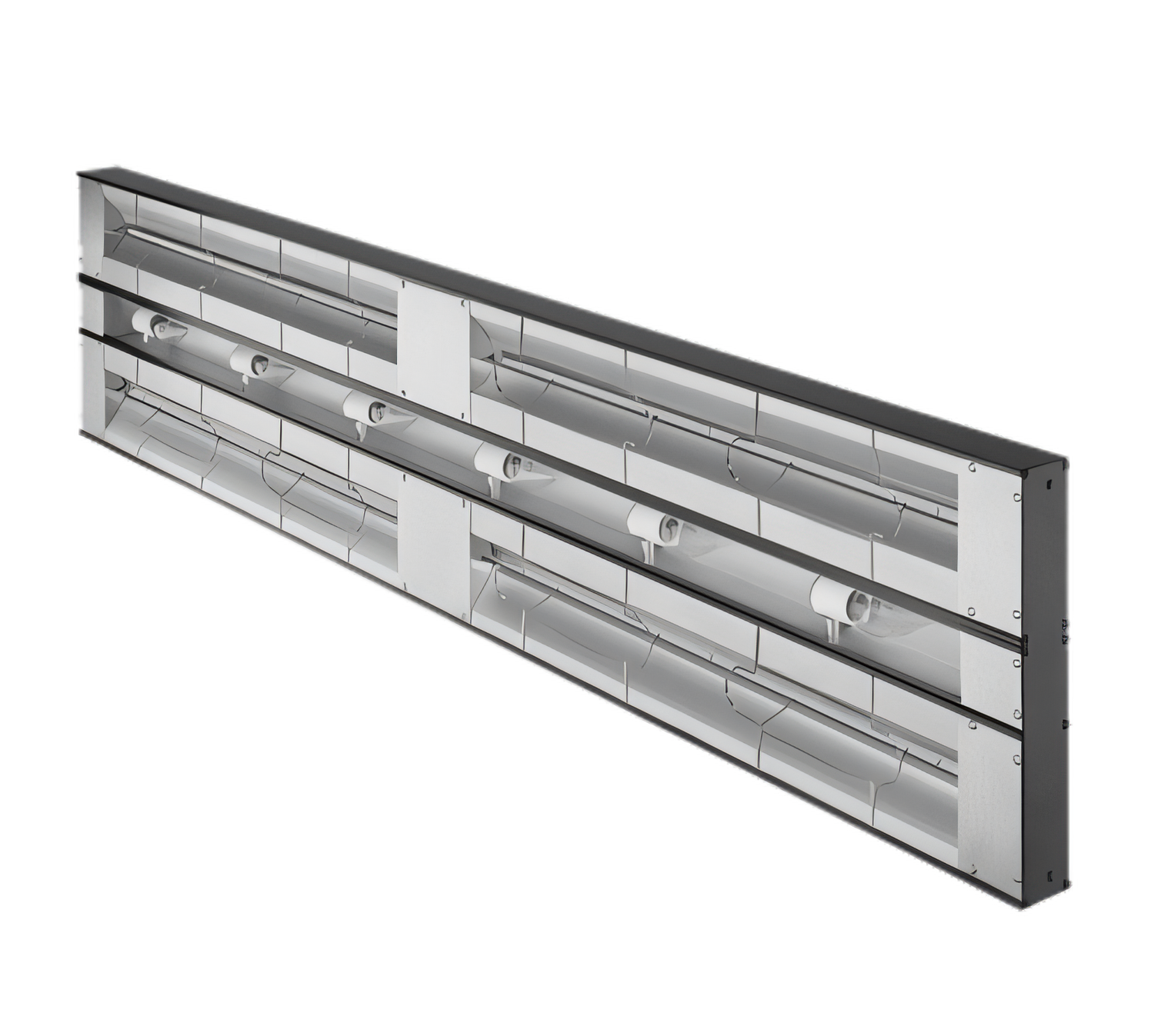

Hatco Glo-Ray® GRAM-60D Max-Watt Dual Infrared Strip Heater – 60" (1524 mm)
3400 watts • double tubular elements • 6" spacer • remote control enclosure includedEngineered for the busiest pass-throughs and buffet lines, the GRAM-60D delivers Hatco’s highest infrared output in a slim, rugged aluminum package. Its pre-focused, dual-element heat pattern keeps a full 60" holding zone at safe-serving temperatures without continuing to cook the food—so every plate leaves the window looking and tasting its best.
Key advantages
- Max-watt design provides roughly 25 % more heat than standard Glo-Ray high-watt models.

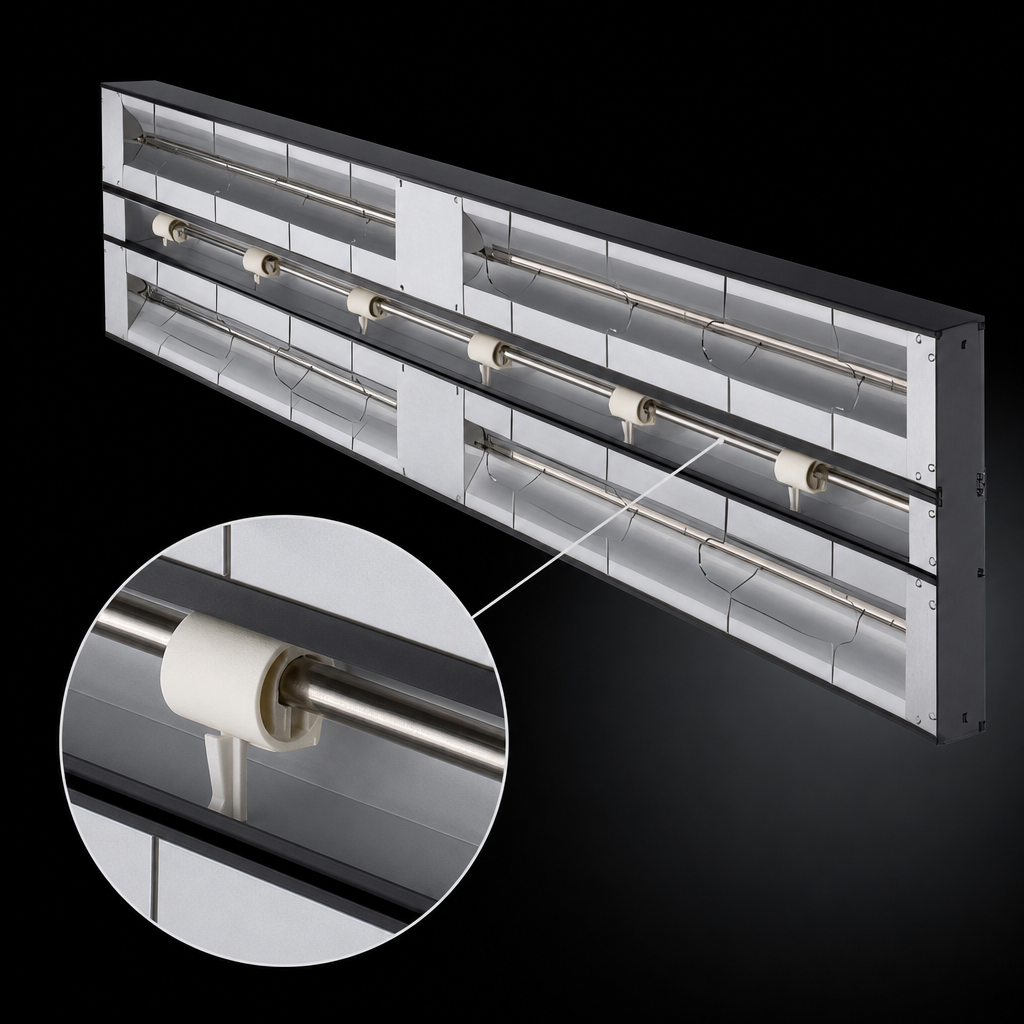

- Dual tubular metal-sheathed elements are factory-aligned for even blanket coverage across the entire holding surface.
- 6" (152 mm) built-in spacer creates a deeper heat zone—ideal for taller pans or stacked plates.
- Heavy-gauge extruded aluminum housing resists sagging on long spans and is fully insulated to minimize heat loss.
- Protective wire guards support the elements without disrupting the heat pattern.
- Remote control enclosure with on/off toggle ships pre-wired for fast, code-compliant installation outside the heat zone.
- Angle mounting brackets included for underside, pass-through, or drop-in applications.
- Certified cULus for safety & sanitation and proudly Made in the USA.
Technical specifications
| Model | GRAM-60D |
|---|---|
| Overall width | 60" (1524 mm) |
| Heat source | Dual tubular metal-sheathed infrared rods |
| Spacer distance | 6" (152 mm) between housing and elements |
| Construction | Anodized aluminum housing with heavy-duty insulation & wire guards |
| Power rating | 3400 W max • see amps below |
| Current draw |
120 V – 28.3 A 208 V – 16.3 A 240 V – 14.2 A |
| Included components | Remote control enclosure (36" flexible conduit, 42" leads) & angle brackets |
| Certifications | cULus, NSF 4 |
| Country of origin | USA |
Mounting & clearance guidelines
- Pass-through installation height: 21" ±2" (533 ±51 mm) from the holding surface.
- Undershelf mounting: maintain a minimum 15" (381 mm) clearance from the surface below and 3" (76 mm) from the back wall.
- Remote control enclosure must be located outside the heat zone to prevent damage.
- Unit is intended for non-combustible surroundings only.
Need a different width, lower wattage, or integral lights? Hatco Glo-Ray Max-Watt models are available in 18"–144" lengths and numerous control, color, and spacer options—contact us for a custom quote.
