Hatco GRAM-144D3 Glo-Ray® Heat Lamps
Description

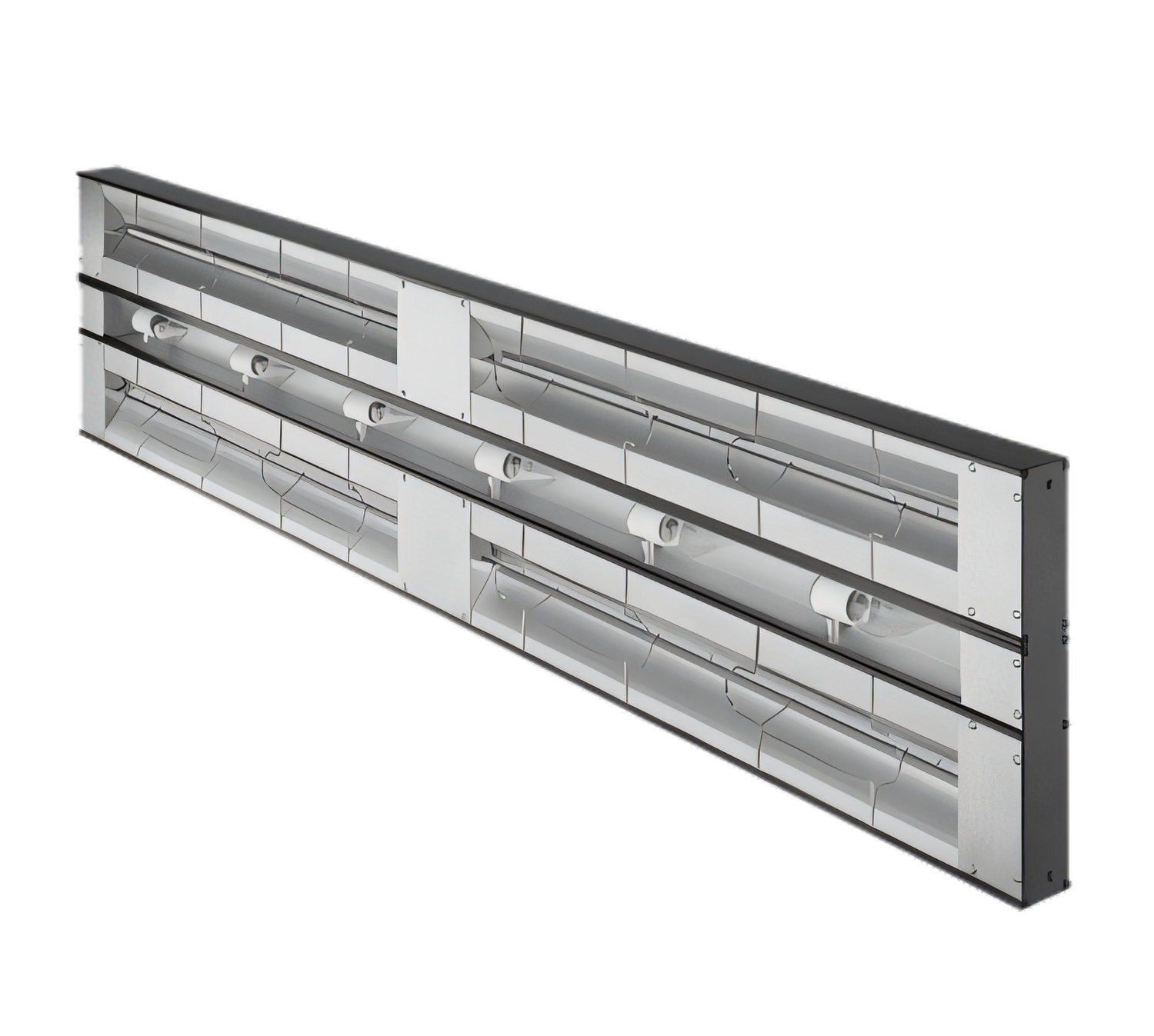

Hatco Glo-Ray® GRAM-144D Max Watt Dual Infrared Strip Heater — 144 in.
8300 W • 240 V • Single Phase • Made in USADeliver consistent, high-intensity heat across a full 12 ft serving line with the GRAM-144D. Hatco’s Max Watt Dual Infrared Strip Heater uses a pair of metal-sheathed elements and a pre-focused heat pattern to keep foods at safe, appetizing temperatures without continuing to cook them.
Key Benefits
- 25 % greater wattage than standard Glo-Ray high-watt models for maximum holding power.
- Dual tubular elements housed 3 in (76 mm) below the reflector create a deeper heat zone for tall pans or platters.
- Rugged extruded-aluminum housing resists sagging over the 144 in span.
- Protective wire guard stabilizes elements without blocking heat.
- Heavy-duty internal insulation minimizes heat loss and keeps outer surfaces cooler.
- Remote control enclosure with lighted toggle switches lets staff adjust heat safely outside the hot zone.
- Supplied angle brackets simplify wall, shelf, or pass-through mounting.
- cULus and NSF listed for sanitation and electrical safety.
Technical Specifications
| Model | GRAM-144D |
|---|---|
| Overall length | 144 in (3658 mm) |
| Heater type | Dual tubular metal-sheathed elements |
| Element spacing | 3 in (76 mm) |
| Wattage | 8300 W |
| Voltage / Phase | 240 V, 1-phase |
| Amperage | 34.6 A |
| Power connection | 36 in (914 mm) flexible metal conduit with 42 in (1067 mm) leads |
| Construction | Heavy-gauge anodized aluminum |
| Included hardware | Remote control enclosure (toggle), angle mounting brackets |
| Certifications | cULus, NSF |
| Shipping weight | ≈ 80 lb (36 kg) |
| Country of origin | USA |
Recommended Uses
- Full-length cafeteria or buffet lines
- High-volume pass-through windows
- Back-of-house plating and staging areas
- Catering and banquet service counters
Installation Guidelines
- Mount 15 in (381 mm) above the holding surface for optimal performance.
- Maintain a minimum back-of-unit clearance of 3 in (76 mm).
- If installing multiple heaters side-by-side, leave at least 3 in (76 mm) between units.
- Suitable for shelf, pass-through, or ceiling suspension using Hatco stands (sold separately).
Looking for other lengths, colors, or control styles? The Glo-Ray® GRAM series is available from 18 in to 144 in with multiple options — contact us for details.
