Hatco  |  Glo-Ray®  |  SKU: GRAM-132D6

Hatco GRAM-132D6 Glo-Ray® Heat Lamps

$2,102.86
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

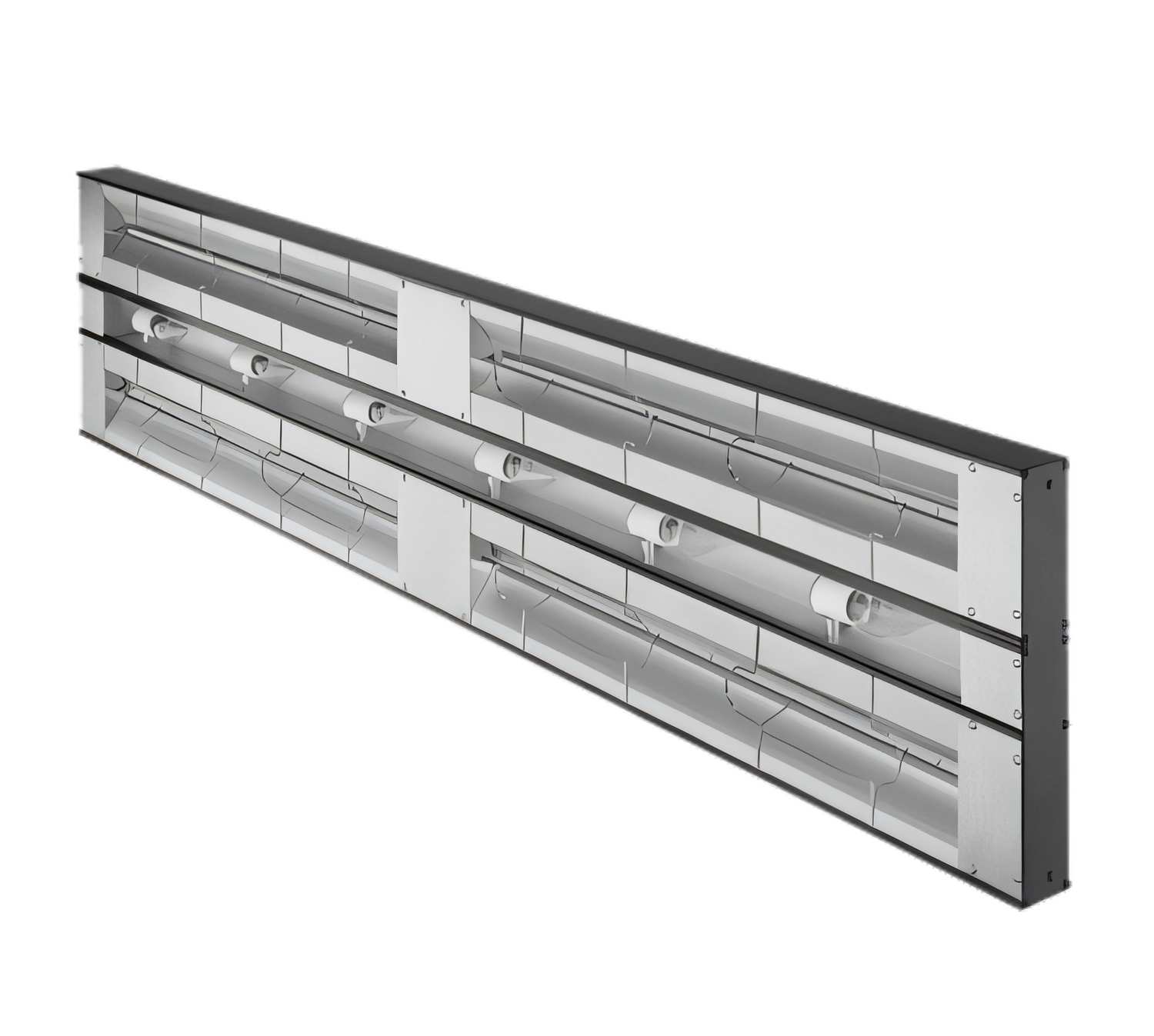

Hatco Glo-Ray® GRAM-132D Max-Watt Dual Infrared Strip Heater – 132 in W

7500 W • Aluminum Housing • 6 in Spacer • Made in USA

Stretch your hot-hold capacity to an impressive 11 feet with Hatco’s most powerful Glo-Ray® strip heater. The GRAM-132D delivers intense, even infrared heat across extended counters, buffets or pass-through shelves, keeping foods hot and appetizing without further cooking.

Key benefits

  • Max-Watt design provides 25 % more heat than standard high-watt models for rapid recovery and superior holding.

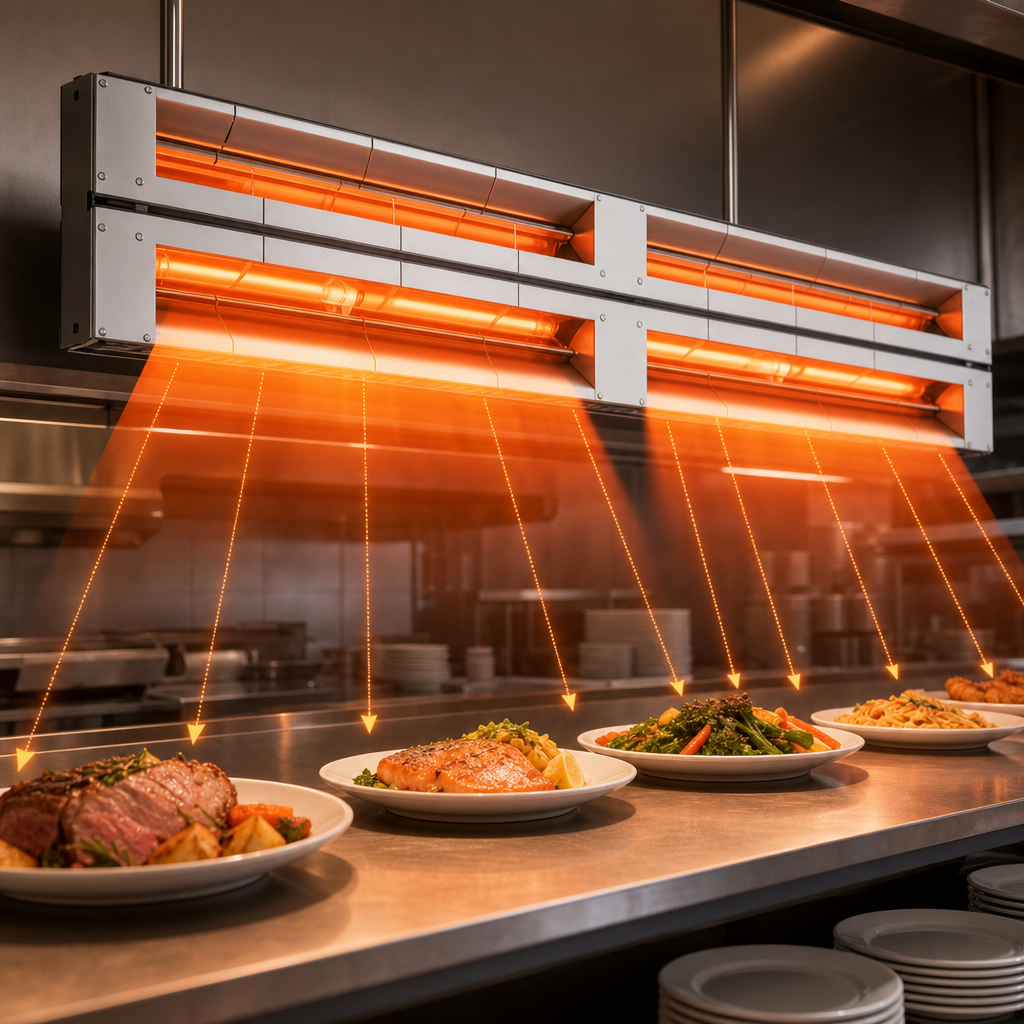

  • Dual tubular metal heater rods mounted 6 in (152 mm) apart blanket the entire holding surface in uniform heat.

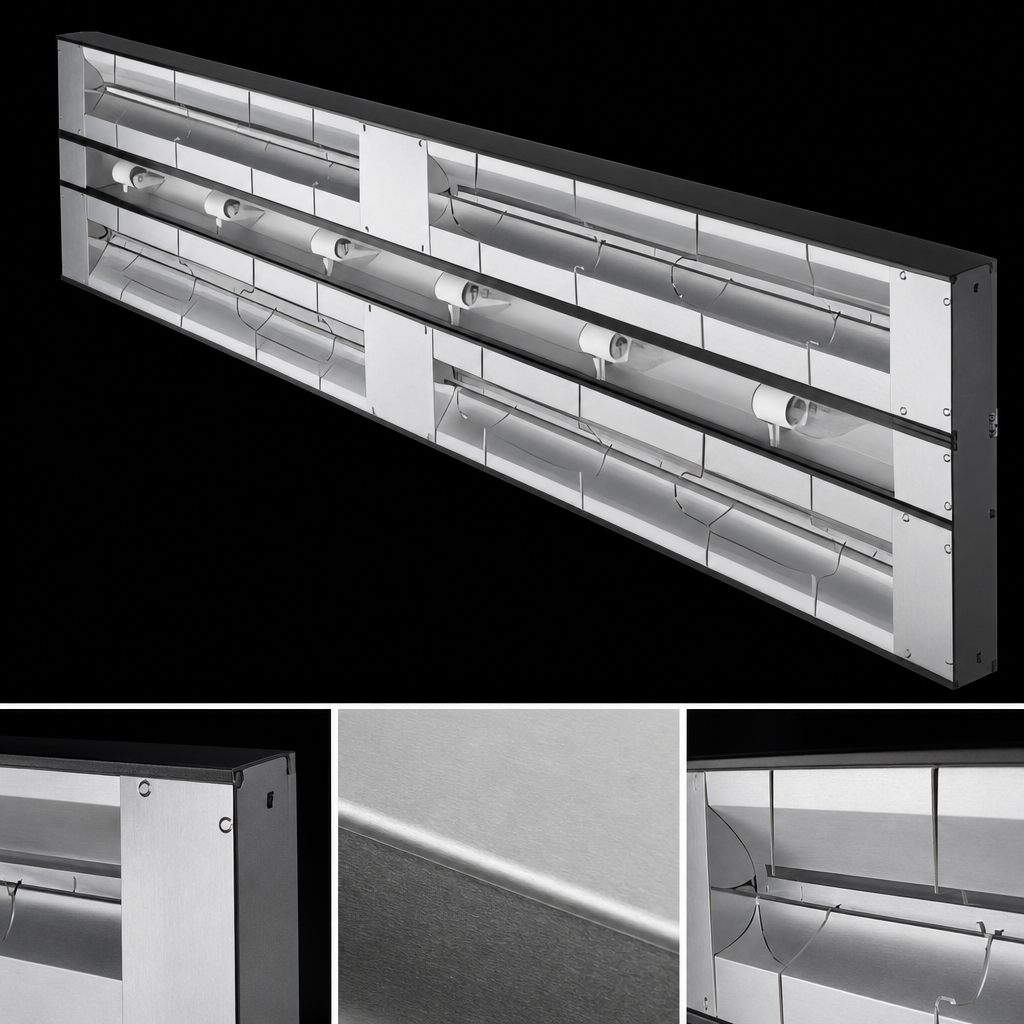

  • Rigid, extruded aluminum housing prevents sagging over long spans and resists corrosion.
  • Heavy-duty internal insulation cuts heat loss and keeps kitchen temperatures comfortable.
  • Remote Control Enclosure with toggle switch arrives pre-wired for safe, convenient operation outside the heat zone.
  • Supplied angle brackets make overhead, shelf or ceiling installation fast and secure.
  • cULus listed and NSF compliant – engineered and built in Milwaukee, WI.

Technical specifications

Model GRAM-132D
Heat source Dual tubular metal infrared elements
Overall width 132 in (3353 mm)
Spacer 6 in (152 mm) mounting spacer
Power 7500 W
Voltage (single phase) 208 V or 240 V – specify
Amperage 36.1 A @ 208 V  |  31.3 A @ 240 V
Housing material Anodized aluminum
Shipping weight ≈ 73 lb (33 kg)
Certifications cULus, NSF
Origin United States

Perfect for

  • Banquet plating and hotel catering lines
  • High-volume restaurant pass-throughs
  • Institutional and corporate cafeterias
  • Large buffet or carving stations
Installation note: Mount the supplied Remote Control Enclosure outside the heater’s heat zone. Maintain at least 15 in (381 mm) clearance below the heater and 3 in (76 mm) from the back wall when installed over combustible surfaces.

Looking for custom colors, lighting, or alternate lengths? Contact us – Hatco builds Glo-Ray® heaters to order.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

cULus, Made in USA

Height

2.5in

Width

132.0in

Depth

18.0in

Shipping Weight

73.0lbs

Length

121 - 144"

Type of element

metal heating rod

Finish

aluminum

Size

double

Type

unlighted

Specifications

Glo-Ray® Infrared Strip Heater, 132" W, maximum wattage, tubular metal heater rod, double heater rod housing 6" spacing, aluminum construction, includes remote control enclosure & angle brackets, 7500 watts, cULus, Made in USA
