Hatco  |  Glo-Ray®  |  SKU: GRAM-120D6

Hatco GRAM-120D6 Glo-Ray® Heat Lamps

$1,956.39
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

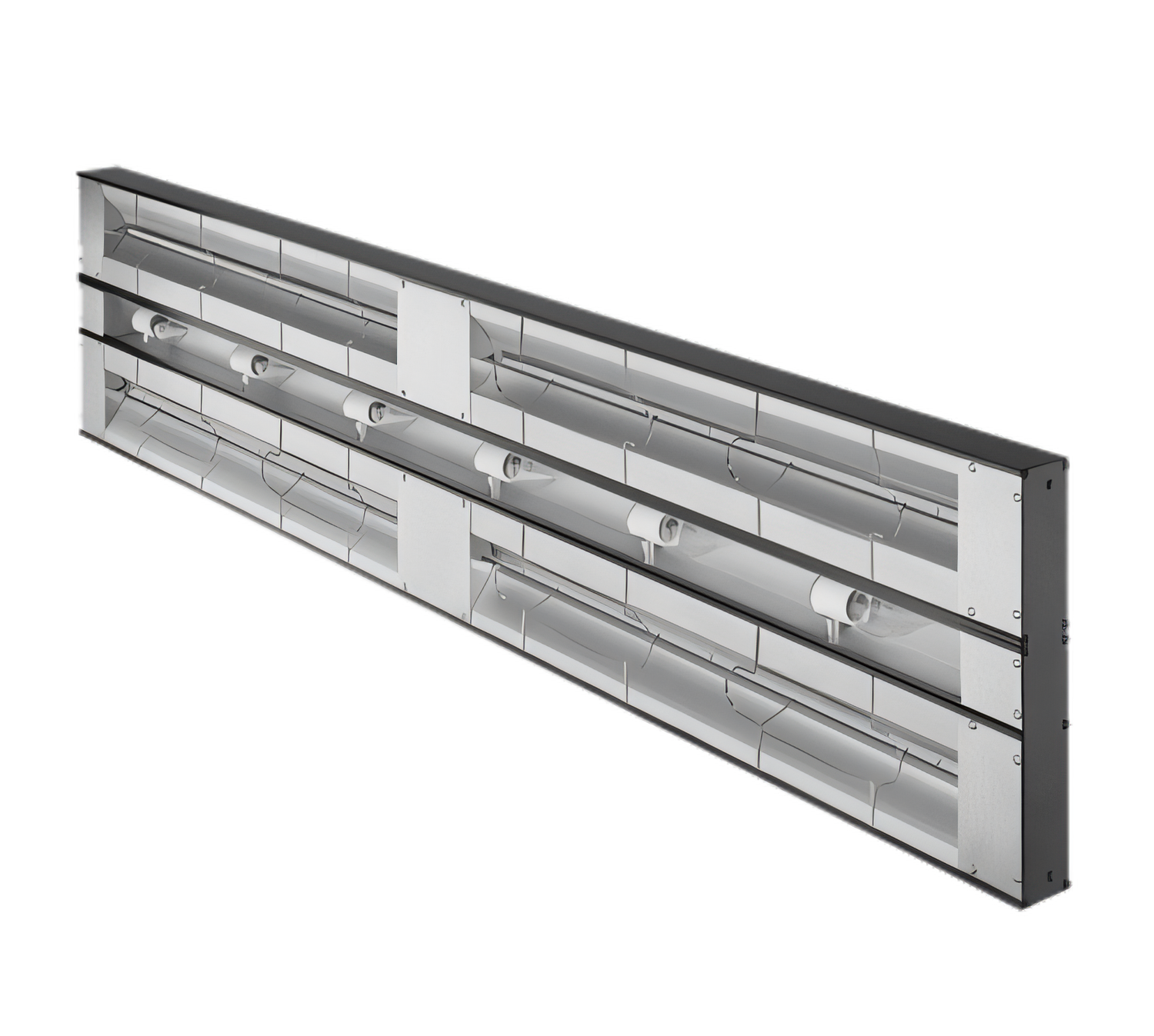

Hatco Glo-Ray® GRAM-120D Max-Watt Dual Infrared Strip Heater – 120"

Power-packed 6,800 W blanket of heat with 6" dual-rod spacing

Stretching a full ten feet, the GRAM-120D keeps every pan on your buffet, pass-through or plating line at a safe, appetizing temperature—without continuing to cook the food. Hatco’s pre-focused infrared technology delivers 25 % more heat than standard high-watt models, making it the go-to choice when you need deeper holding areas or extra clearance between the heater and the food.

Key benefits

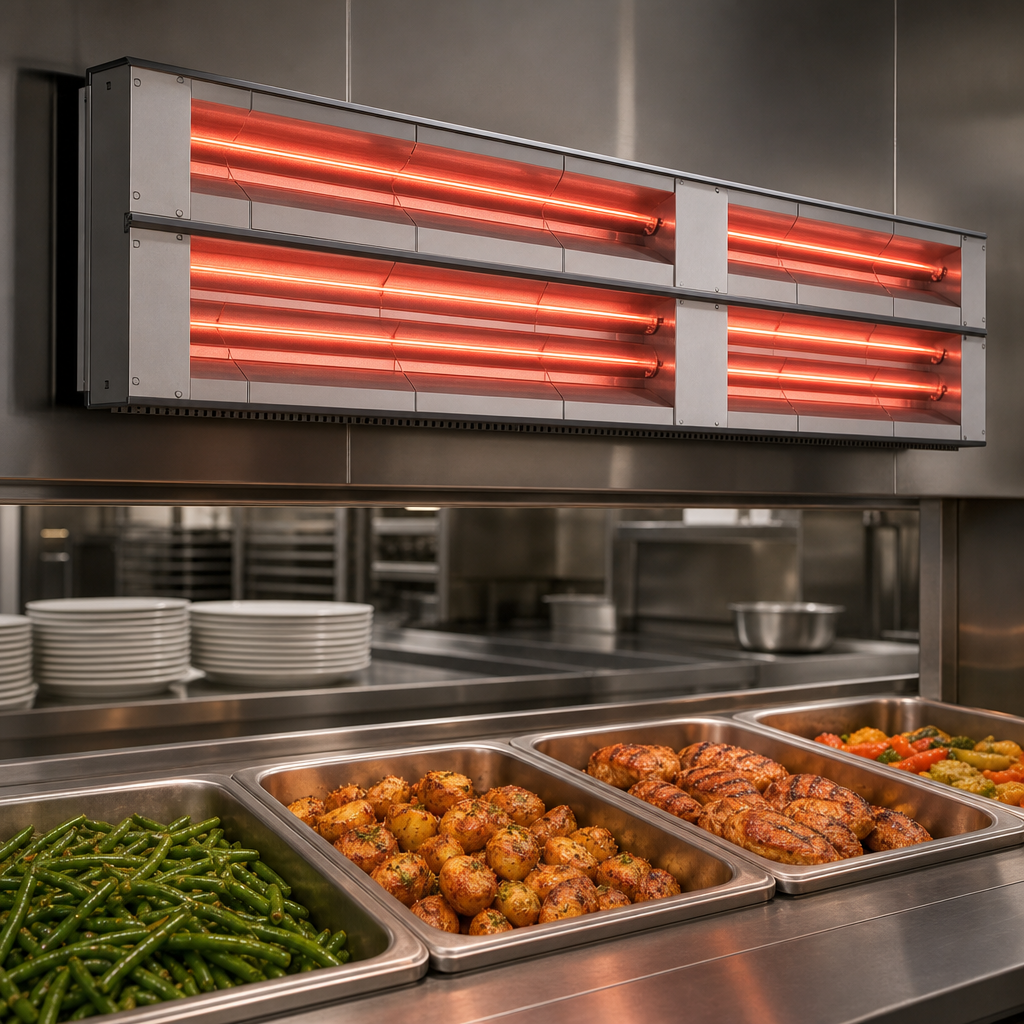

  • Max-watt output (6,800 W) maintains NSF hot-holding temps even on the busiest lines.

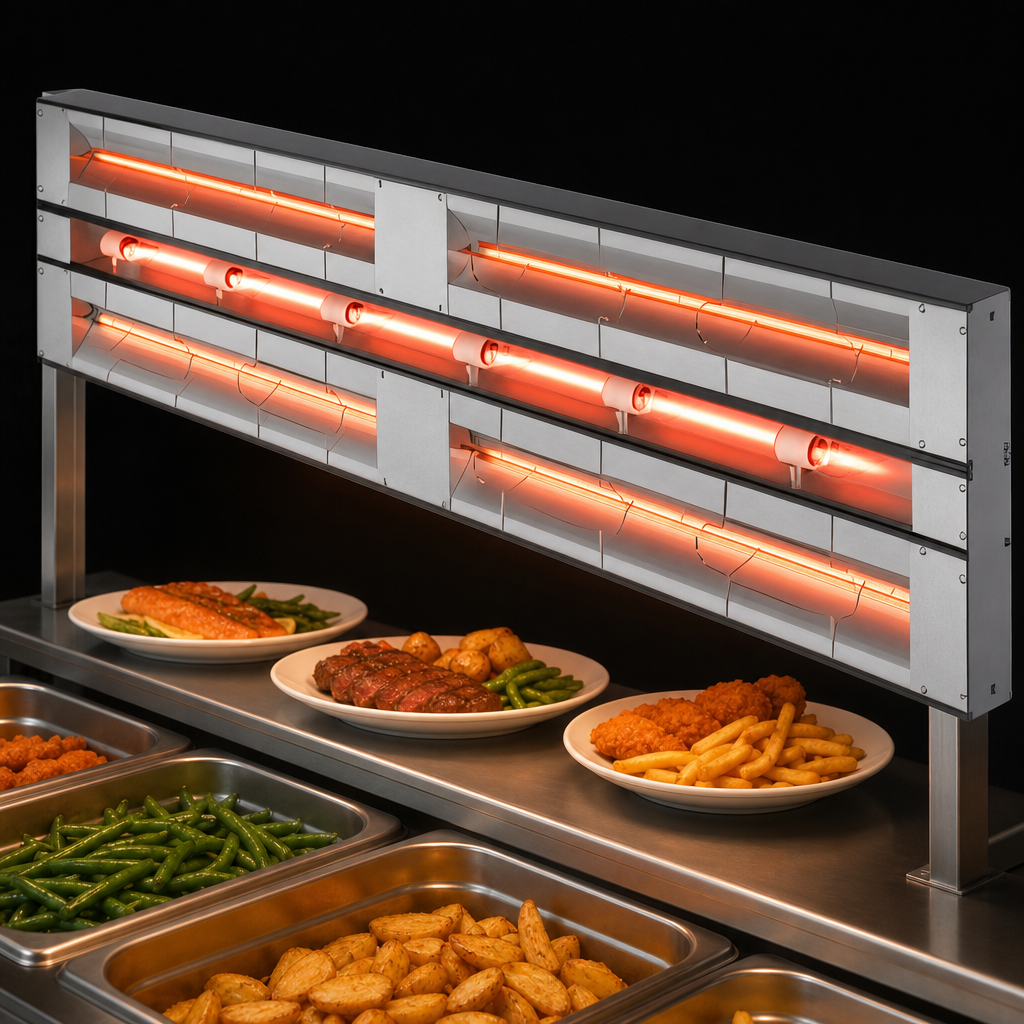

  • Dual tubular metal-sheathed heater rods spaced 6" apart bathe the entire 18"-deep holding zone in even heat.
  • Extruded aluminum housing resists sagging and looks sharp in any front-of-house setting.
  • Heavy-duty insulation minimizes energy loss and keeps the exterior cool to the touch.
  • Protective wire guard supports the elements without blocking heat.
  • Remote control enclosure with toggle switches lets staff adjust heat away from the hot zone (included).
  • Angle brackets ship standard for quick overhead or undershelf mounting.
  • cULus listed and proudly Made in the USA.

At-a-glance specs

Model GRAM-120D
Overall width 120" / 3048 mm
Depth (with 6" spacer) 18" / 457 mm
Height 2.5" / 64 mm
Heating elements 2 × tubular metal rods, 6" (152 mm) spacing
Total wattage 6,800 W (max)
Voltage / phase 240 V, 1-phase (28.3 A)  |  208 V option available
Housing material Clear anodized aluminum
Controls Remote control enclosure with heat toggles (included)
Mounting hardware Angle brackets (included)
Power connection 36" flexible metal conduit with 42" leads
Certifications cULus
Country of origin USA
Installation note: This unit ships for hard-wired installation only. Mount the remote control enclosure outside the heater’s heat zone to avoid damage and comply with code.

Need a different length, color or control style? Ask our team about the full Hatco Glo-Ray® Max-Watt lineup, available from 18" to 144" with designer finishes, lighted models and additional control options.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

cULus, Made in USA

Height

2.5in

Width

120.0in

Depth

18.0in

Shipping Weight

66.0lbs

Finish

aluminum

Type of element

metal heating rod

Size

double

Type

unlighted

Length

97 -120"

Specifications

Glo-Ray® Infrared Strip Heater, 120" W, maximum wattage, tubular metal heater rod, double heater rod housing 6" spacing, aluminum construction, includes remote control enclosure & angle brackets, 6800 watts, cULus, Made in USA
