Hatco GRAM-108D3 Glo-Ray® Heat Lamps
Description

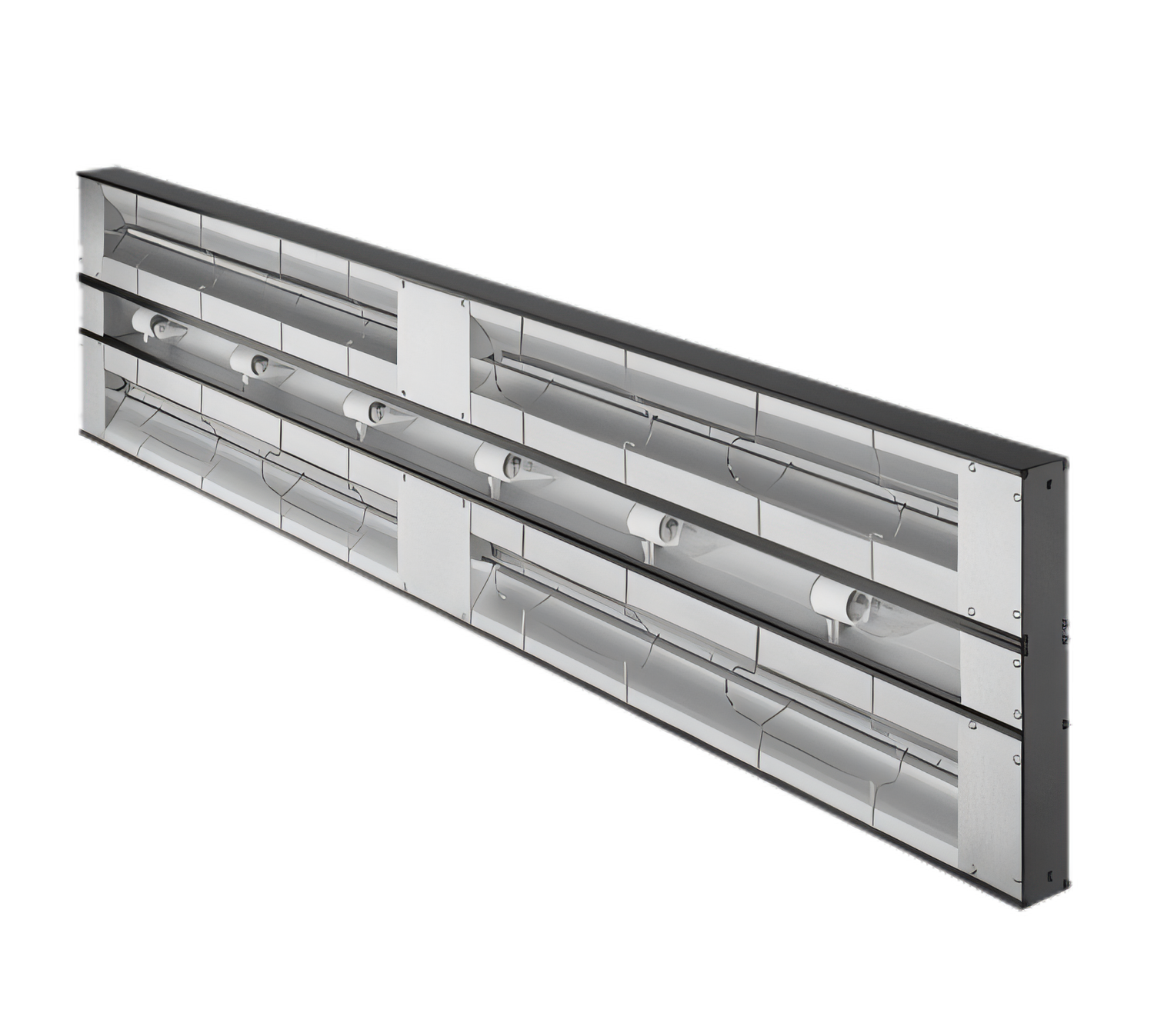

Hatco Glo-Ray® GRAM-108D Max Watt Dual Infrared Strip Heater – 108″
Powerful, even heat for extra-long pass-throughs, buffets & service linesStretching a full 108 inches, the GRAM-108D is Hatco’s largest Max Watt dual-element strip heater. Its pre-focused infrared heat blankets an oversized holding surface, keeping food hot and appetizing without continuing to cook it. 25 % more wattage than standard high-watt models means dependable temperature maintenance across the entire length of your line.
Why you’ll love it

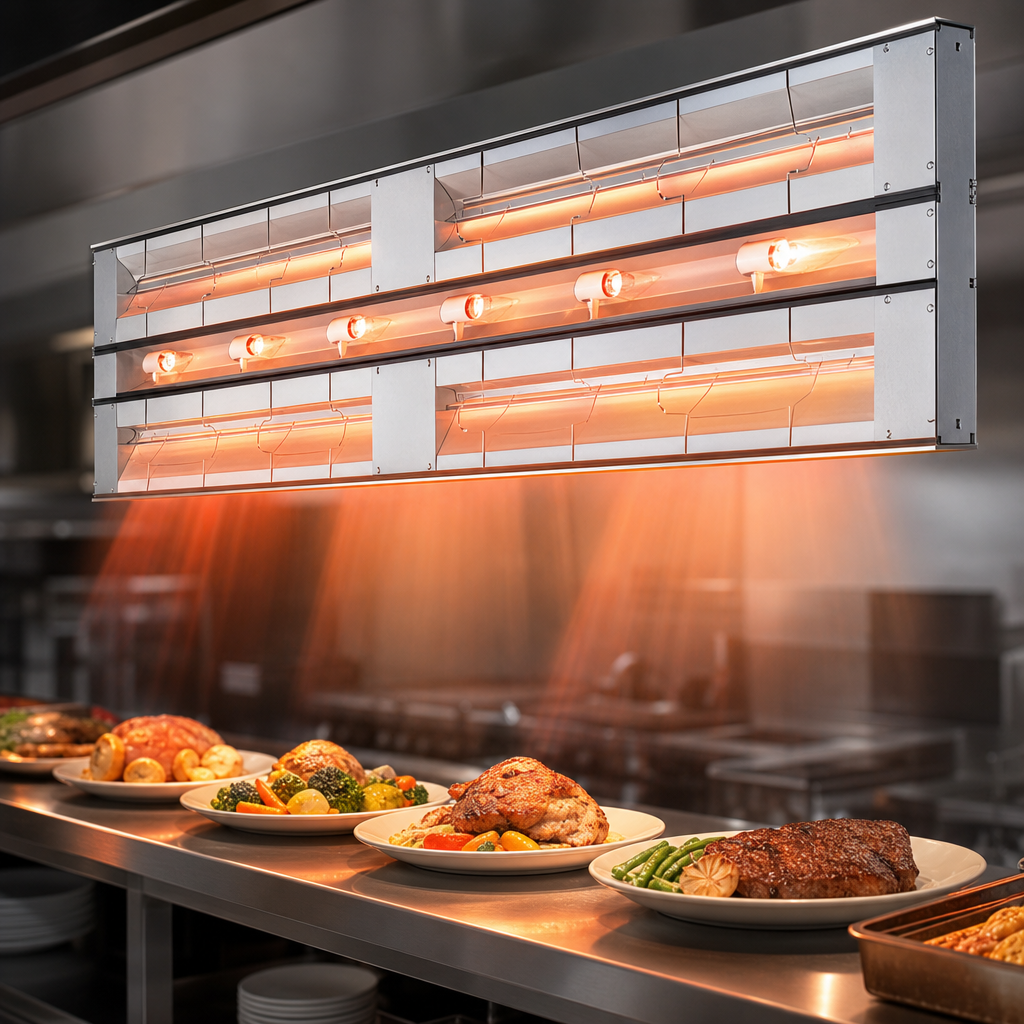

- 6000 W Max Watt output delivers intense, even infrared heat across 9 ft of holding space.
- Dual tubular metal-sheathed elements with 3″ (76 mm) spacing create a deeper heat zone for bulk pans and tall platters.

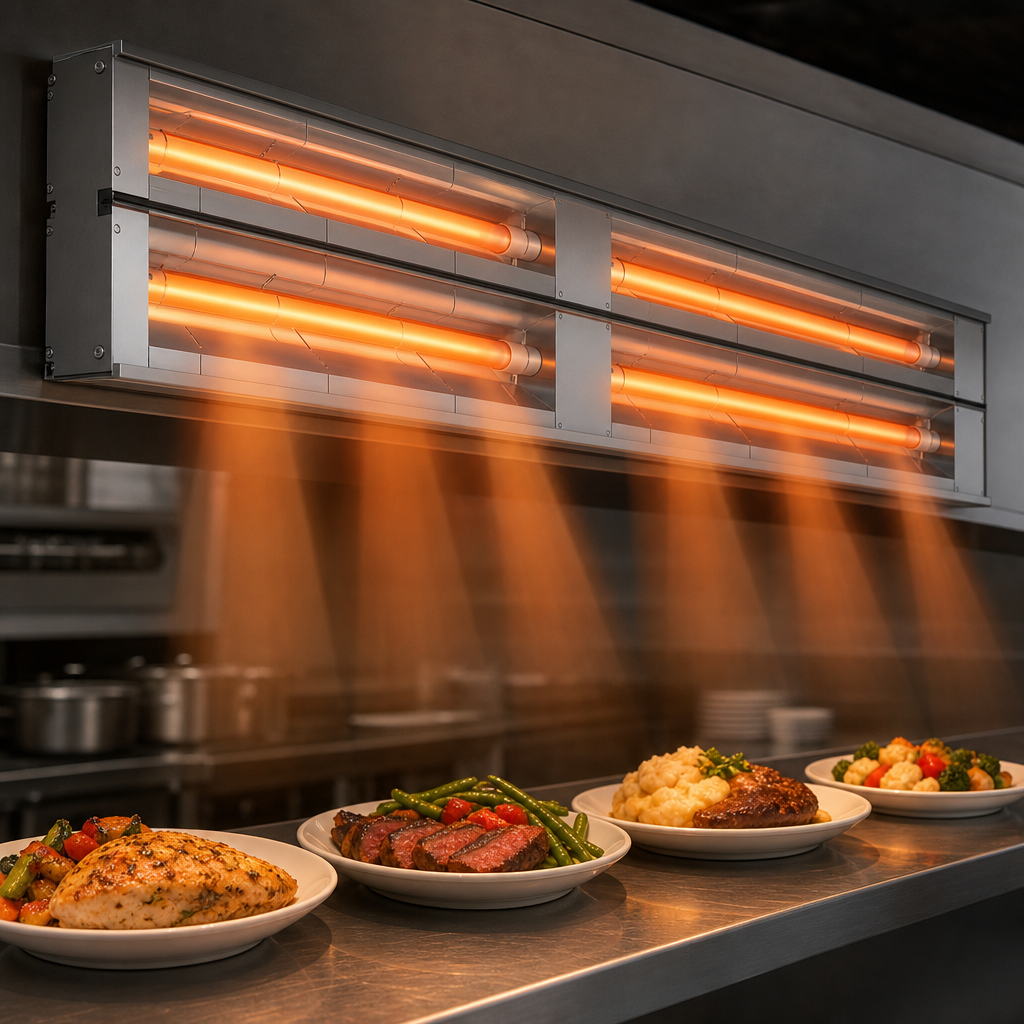

- Pre-focused heat pattern keeps food at safe serving temps without drying or over-cooking.
- Rugged extruded aluminum housing resists sagging and looks sleek in any service area.
- Protective wire guard supports the elements while leaving the heat pattern undisturbed.
- Heavy-duty insulation minimizes heat loss and keeps the top surface cooler to the touch.
- Remote control enclosure with individual toggle switches included – mount it outside the heat zone for safe, convenient operation.
- Factory-supplied angle brackets make ceiling, pass-through or under-shelf mounting fast and simple.
- cULus listed, NSF compliant and proudly Made in the USA.
At-a-glance specs
| Model | GRAM-108D |
|---|---|
| Overall width | 108″ / 2743 mm |
| Depth × height | 15″ × 2.5″ (381 × 64 mm) with standard 3″ spacer |
| Wattage | 6000 W (Max Watt) |
| Voltage / phase | 208 V / 29 A or 240 V / 25 A, 1-phase |
| Heating elements | 2 × tubular metal-sheathed rods |
| Spacer | 3″ (76 mm) fixed |
| Housing | Clear anodized extruded aluminum |
| Included hardware | Remote control enclosure with 36″ conduit & 42″ leads, angle brackets |
| Approx. shipping weight | 59 lb / 27 kg |
| Certifications | cULus, NSF |
| Country of origin | United States |
Optional add-ons (sold separately)
- Designer powder-coat colors or gloss finishes to match your brand.
- Non-adjustable tubular stands (18″ – 24″ clearance) for countertop use.
- Bright-annealed reflectors or integrated LED/halogen lighting (GRAML series).
Looking for a different length, finish or control style? Contact us – we’ll configure the perfect Hatco Glo-Ray solution for your operation.
