Hatco GRAL-96D6 Glo-Ray® Heat Lamps
Description

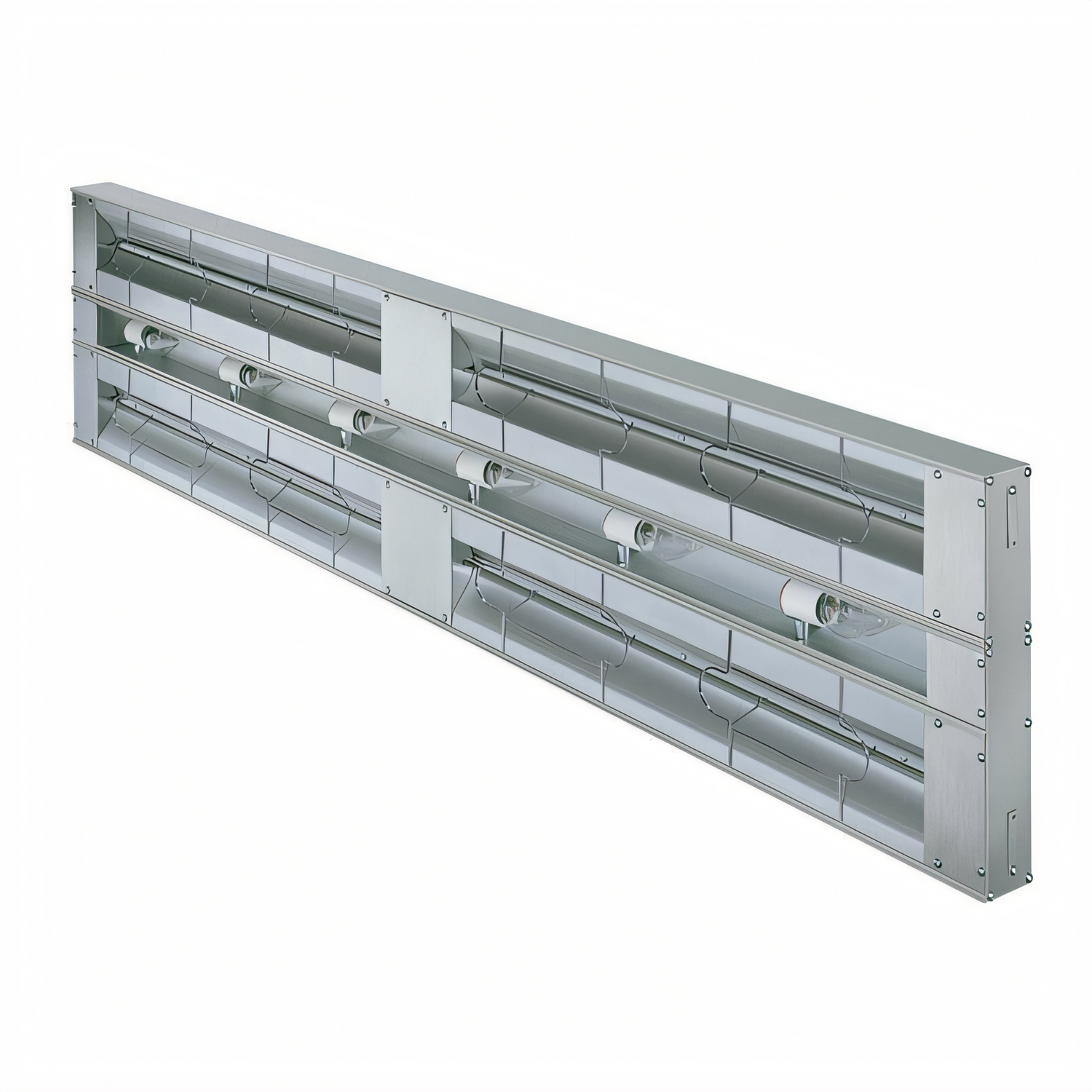

Glo-Ray® GRAL-96D Dual Infrared Strip Heater with Lights – 96"
Standard wattage • 6" (152 mm) rod spacing • Made in USAKeep an 8-ft serving line hot, appetizing and brilliantly lit with the Hatco Glo-Ray® GRAL-96D. This NSF-listed strip heater uses two tubular metal sheathed elements and a built-in 6" spacer to blanket deeper food wells with even, pre-focused infrared heat while eight shatter-resistant lamps showcase your menu items.
Why you’ll love it
- Even heat distribution – eliminates “cold spots” across the entire 96" holding surface.

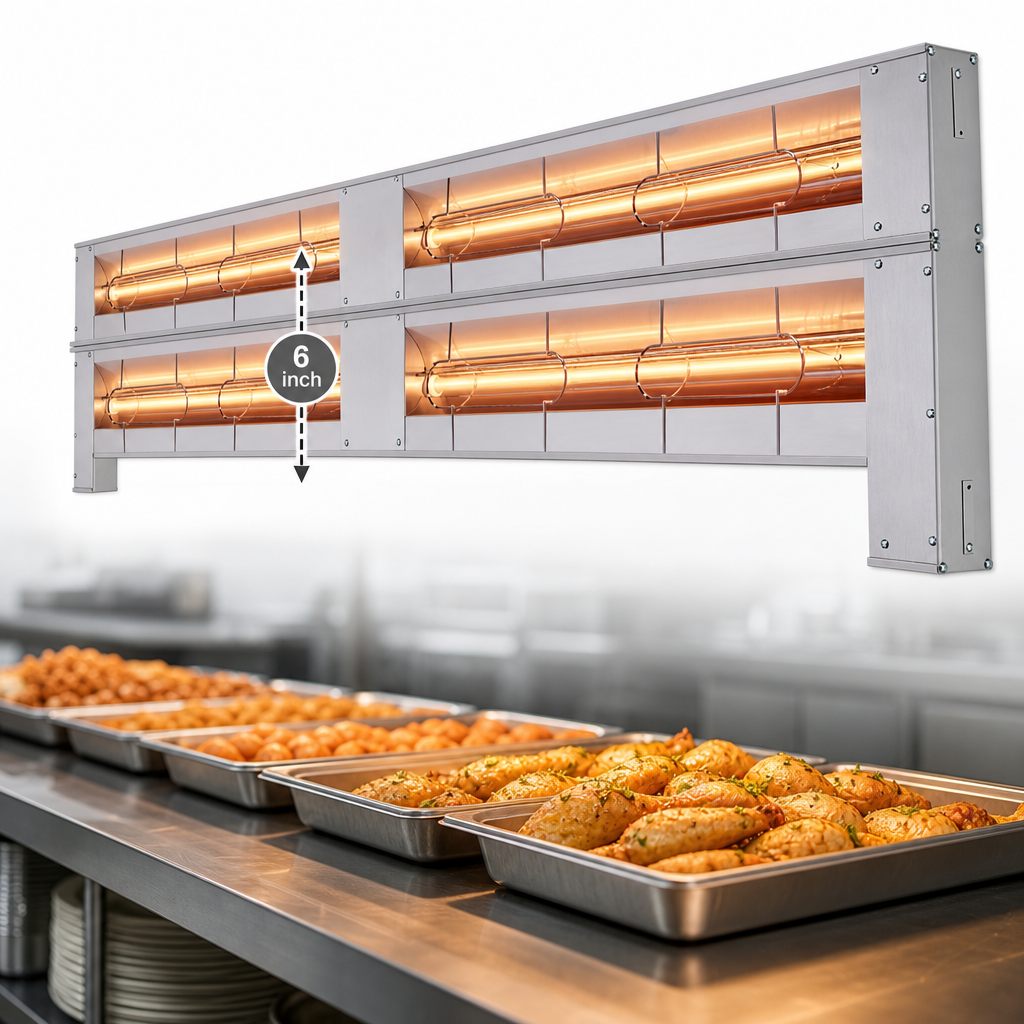

- 6" spacer between heater rods creates a deeper heat zone for double-pan layouts.
- Dual tubular metal elements are guaranteed 2 years against burnout and breakage.

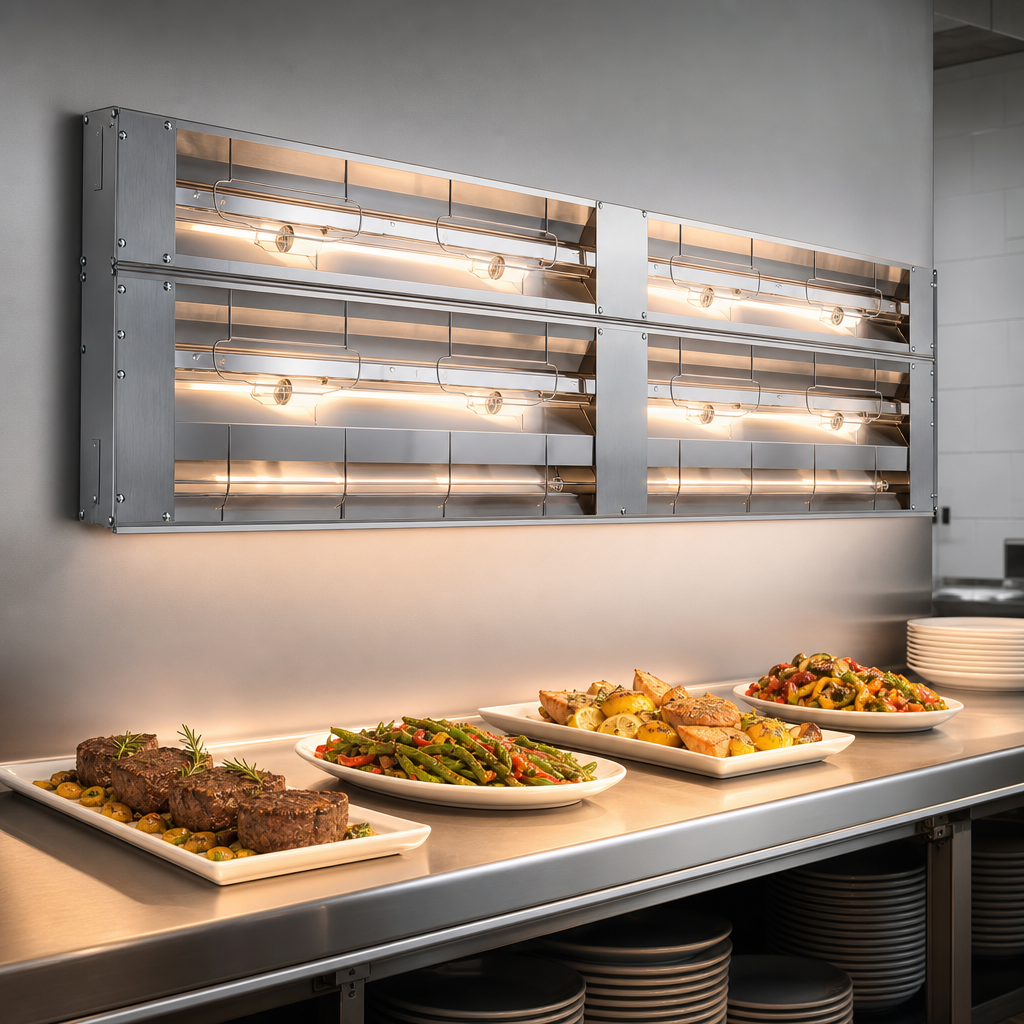

- Coated, shatter-resistant incandescent lights both illuminate food and protect it from glass shards.
- Extruded aluminum housing will not sag, even at 8 ft (2.4 m) long.
- Reinforced wire guard ensures operator safety without blocking heat.
- Heavy-duty insulation reduces heat loss and keeps outer surfaces cooler.
- NSF & cULus certified for safe, code-compliant installation.
- Proudly manufactured in Milwaukee, WI USA.
Specifications
| Model | GRAL-96D |
|---|---|
| Length | 96" (2438 mm) |
| Overall depth / height | 18" D × 2.5" H (with 6" spacer) |
| Housing material | Clear anodized aluminum (Designer colors & gloss finishes available at time of order) |
| Heat output | 3,930 W • single phase |
| Voltage options | 120/208 V, 120/240 V, 208 V, 240 V (consult electrical diagram for multi-circuit units) |
| Lamp quantity / type | 8 × 40 W coated incandescent display lamps (1 per foot standard) |
| Shipping weight | Approx. 56 lb (24 kg) |
| Certifications | NSF, cULus |
| Country of origin | United States of America |
Popular accessories (ordered with unit)
- Sneeze guards – one- or two-sided in 9.375" or 14" heights.
- Remote toggle or infinite switches (control up to 12.2 A per circuit).
- Tubular stands – adjustable (10"/14") or fixed (10"-16") for portable buffet use.
- Chef LED replacement bulbs – 3000 K or 4000 K.
- Custom designer colors, gloss or plated finishes with antimicrobial powder coat.
Minimum clearance to combustible surfaces: 15" (381 mm) below units with built-in switches; 18"
(457 mm) below units with remote switches.
Always install remote control boxes outside the heat zone.
Upgrade your pass-through, carving station or buffet line with the industry-standard Hatco Glo-Ray® – trusted by operators worldwide to keep food hot, safe and irresistible.
