Hatco GRAL-84D3 Glo-Ray® Heat Lamps
Description

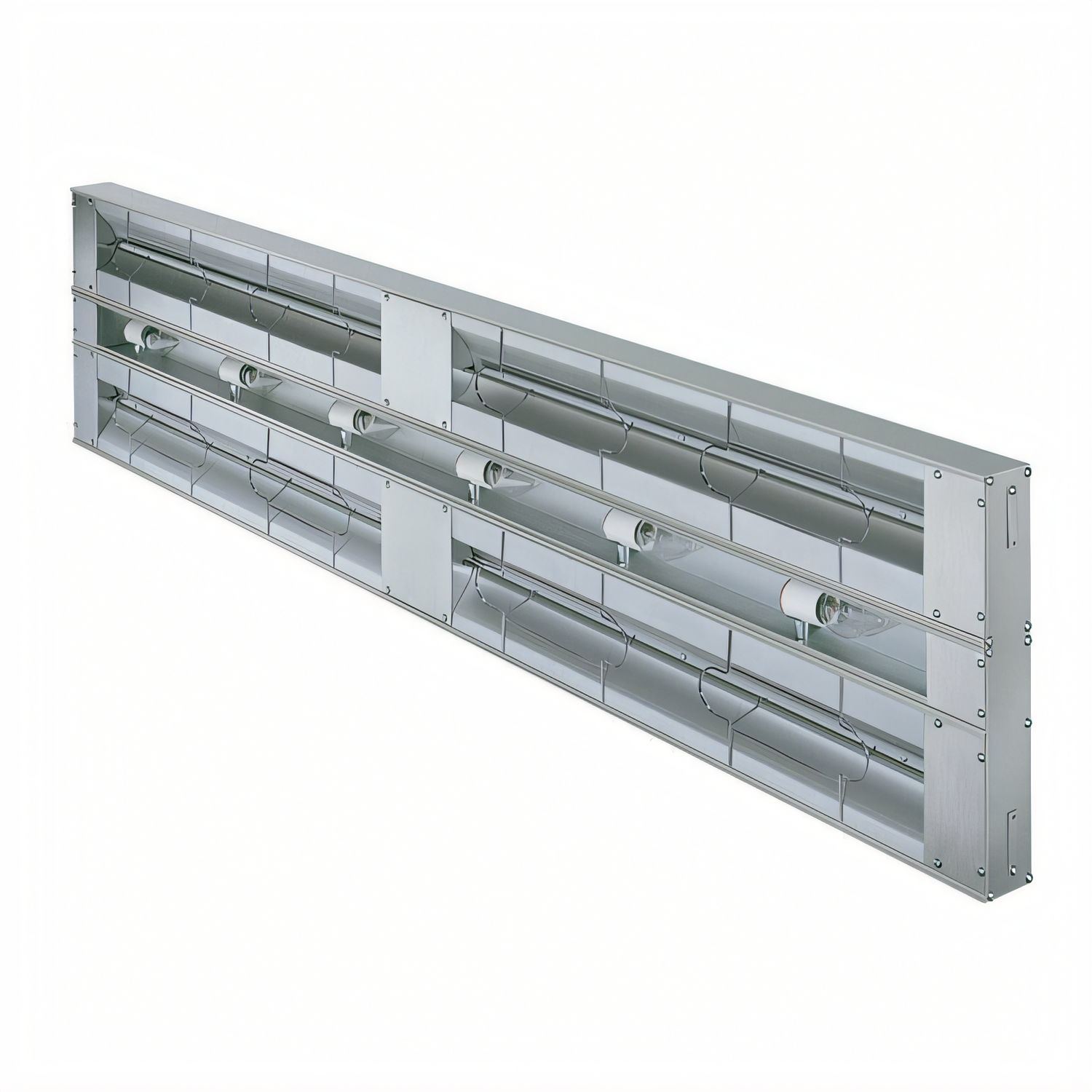

Hatco Glo-Ray® GRAL-84D Dual Infrared Strip Heater with Lights – 84"
Standard-watt • 3" (76 mm) spacer • 3420 W • NSF & cULus • Made in USAStretch your pass-thru window or buffet line an extra seven feet without sacrificing food quality. The Hatco Glo-Ray GRAL-84D combines twin pre-focused infrared heater rods with built-in display lighting to hold fried entrées, plated meals and sheet pans at safe, appetizing temperatures—no cold corners, no dried-out portions.
Key benefits
- Even, blanket-wide heat pattern thanks to dual tubular metal sheathed elements.

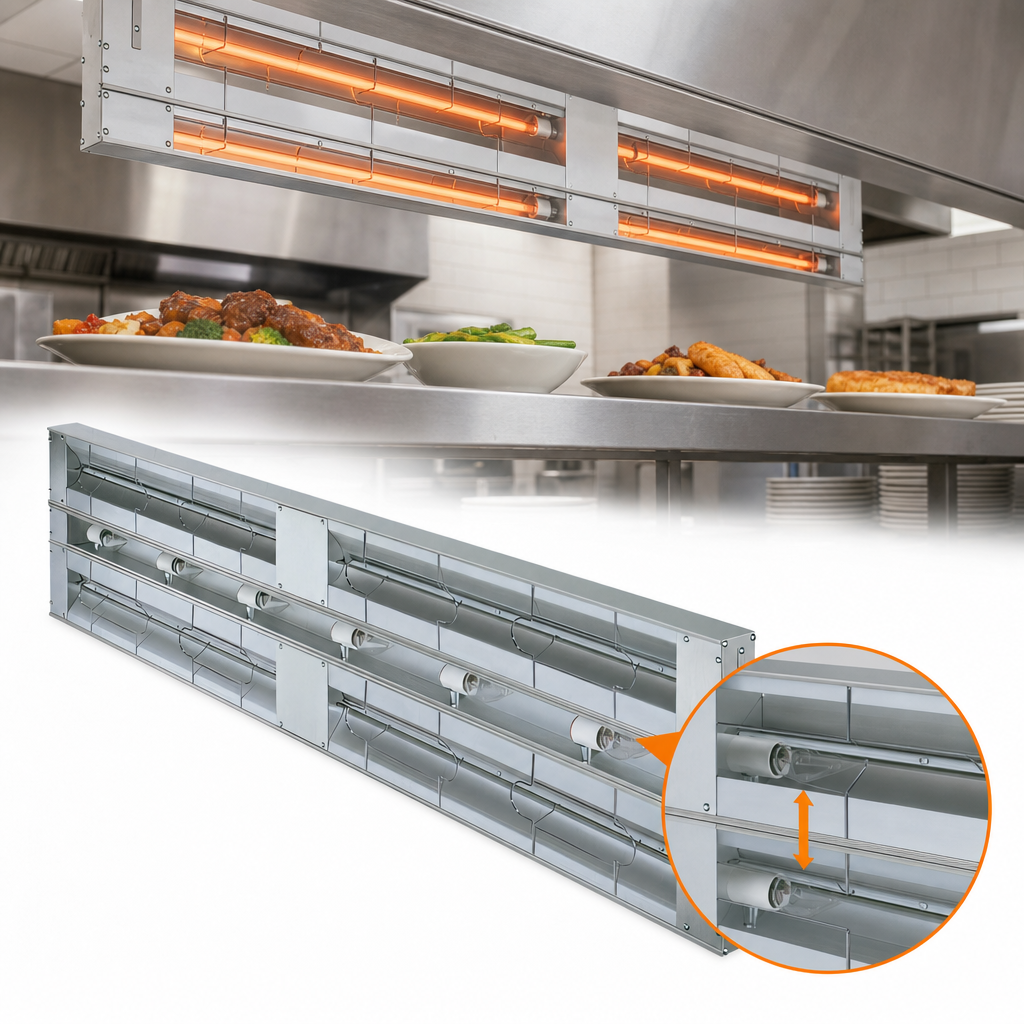

- 3" spacer between heater rods creates a deeper, more forgiving holding zone.

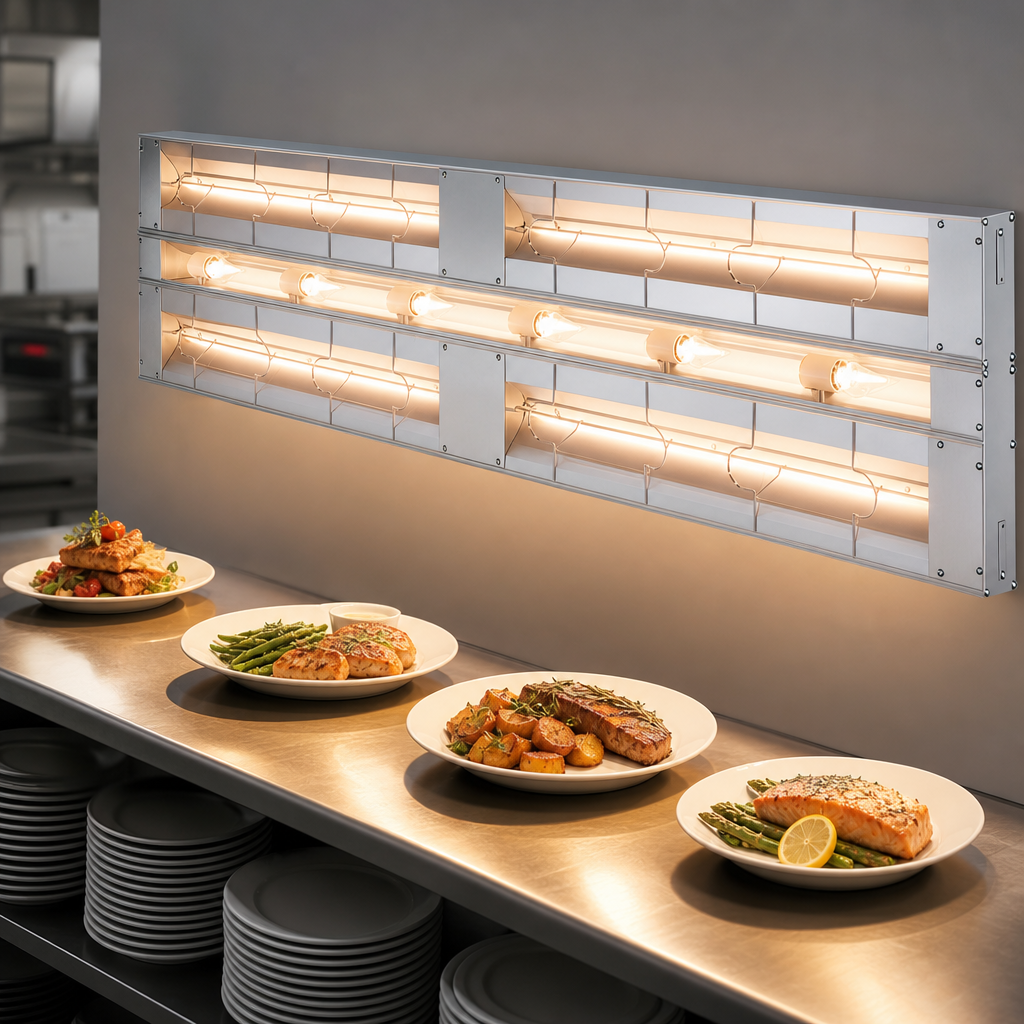

- Seven shatter-resistant incandescent bulbs (included) illuminate product and boost impulse sales.
- Rigid extruded aluminum housing will not sag—even at 84" span.
- Reinforced wire guard protects elements without blocking heat.
- Heavy-duty thermal insulation reduces heat loss and keeps work areas cooler.
- Elements are guaranteed for two years against burnout or breakage.
- NSF, cULus listed and proudly manufactured in Wisconsin, USA.
At-a-glance specs
| Overall width | 84" (2134 mm) |
|---|---|
| Housing depth × height | 15" D × 2.5" H (381 × 64 mm) |
| Heater spacing | 3" (76 mm) |
| Total wattage | 3420 W (standard-watt model) |
| Voltage options / amps* | 120 V 28.5 A | 208 V 16.4 A | 240 V 14.3 A |
| Phase | Single |
| Lighting | 7 × 40 W coated, shatter-resistant lamps (included) |
| Construction | Anodized aluminum with bright-annealed reflector |
| Certifications | NSF, cULus |
| Warranty | 2-yr element warranty; 1-yr parts & labor |
*Current draw shown for heat circuit only. Lamps operate on a 120 V lighting circuit when ordered as 120/208 V or 120/240 V units.
What’s included
- GRAL-84D strip heater with attached 36" (914 mm) flexible conduit & 42" (1067 mm) leads
- Seven coated incandescent display lamps
- Factory-installed toggle switch (heat & lights)
- Mounting brackets & hardware
- Installation & operation manual
Popular factory options (order with unit)
- Designer color or gloss housing finishes
- 6" (152 mm) heater spacer for extra-deep holding areas
- Remote toggle or infinite control boxes
- Integrated acrylic sneeze guards (one- or two-sided)
- Adjustable or fixed tubular stands for countertop service
- Halogen or Chef-LED bulb upgrades
From busy expo lines to self-serve buffets, the Hatco GRAL-84D keeps every plate picture-perfect and ready to go. Add it to your order today and make lukewarm service a thing of the past.
