Hatco GRAL-72D6 Glo-Ray® Heat Lamps
Description

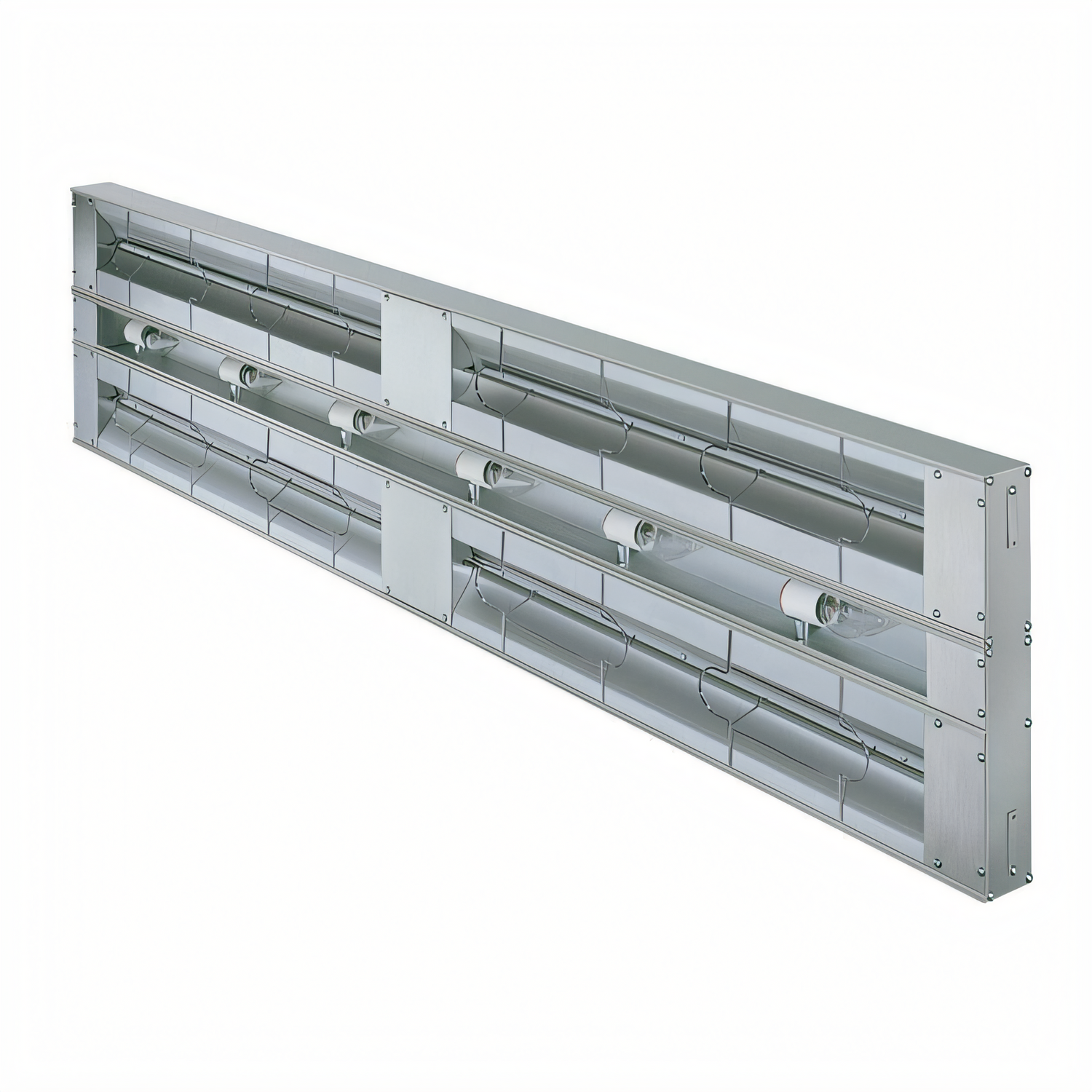

Hatco Glo-Ray® GRAL-72D Dual Infrared Strip Heater – 72" with Lights
Standard-Watt • 6" (152 mm) Spacer • 2,910 W • NSF & cULus • Made in USAGive every order the just-made glow it deserves. The 72" Glo-Ray® GRAL-72D blankets an extra-deep 18" holding area with consistent infrared heat while six shatter-resistant bulbs showcase food in its best light. Built for the busiest lines, this dual-element heater keeps entrées hot, appetizing and ready to serve.
Key benefits
- Even, pre-focused infrared heat eliminates “cold spots” across the entire 6 ft run.

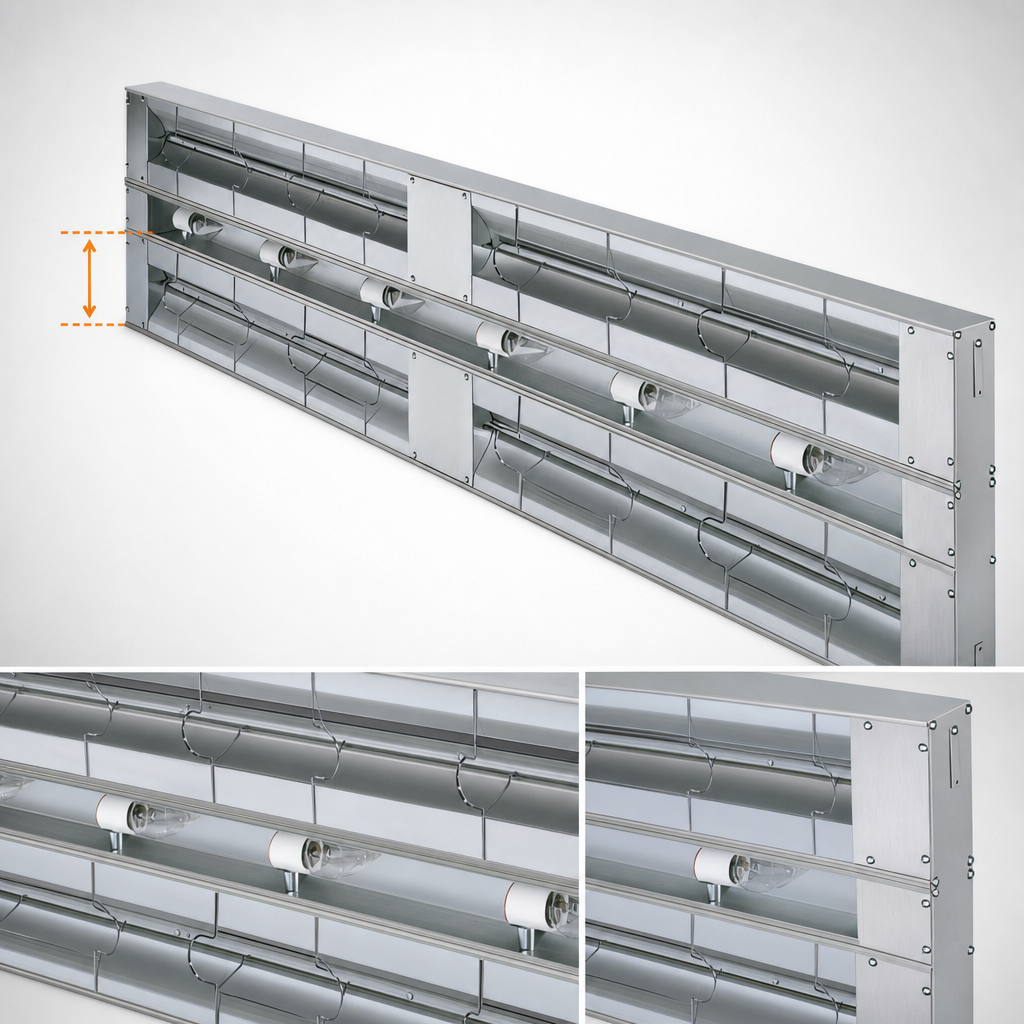

- Dual tubular metal elements in a double-rod housing maximize heat density and recovery.
- 6" element spacing creates an 18" deep holding zone—perfect for taller pans or multiple plates.
- Six coated, shatter-resistant incandescent bulbs (40 W ea.) highlight food while protecting it from broken glass.
- Rugged, sag-free extruded aluminum housing stands up to high-volume kitchens.
- Reinforced wire guard shields users without impeding heat flow.
- Heavy-duty insulation minimizes heat loss and keeps exterior surfaces cooler.
- Metal-sheathed elements are guaranteed against burnout & breakage for two years.
- NSF-listed, cULus certified and proudly manufactured in Wisconsin, USA.
Ideal applications
- Cook-to-order pickup counters
- Buffet or cafeteria lines
- Stadium & concession stands
- Catering and banquets
Technical specifications
| Model | GRAL-72D |
|---|---|
| Overall width | 72" (1829 mm) |
| Overall depth | 18" (457 mm) • 6" spacer between heater rods |
| Overall height | 2.5" (64 mm) |
| Construction | Extruded aluminum housing, bright-annealed reflector |
| Heating elements | Dual tubular metal sheathed rods |
| Wattage | 2,910 W (standard-watt) |
| Voltage options | 120/208 V, 120/240 V, 208 V or 240 V, single phase |
| Approx. amperage | 14.0 A @ 208 V | 12.1 A @ 240 V |
| Lighting | 6 × 40 W shatter-resistant incandescent display bulbs (included) |
| Shipping weight | ≈ 41 lb (19 kg) |
| Minimum clearance below unit | 15" (381 mm) to combustible & non-combustible surfaces |
| Certifications | NSF, cULus |
| Country of origin | United States of America |
| Warranty | 1-year parts & labor • 2-year element warranty |
Looking for designer colors, remote controls or sneeze-guard options? Ask our team for factory-installed accessories available at time of order.
