Hatco GRAL-144D6 Glo-Ray® Heat Lamps
Description

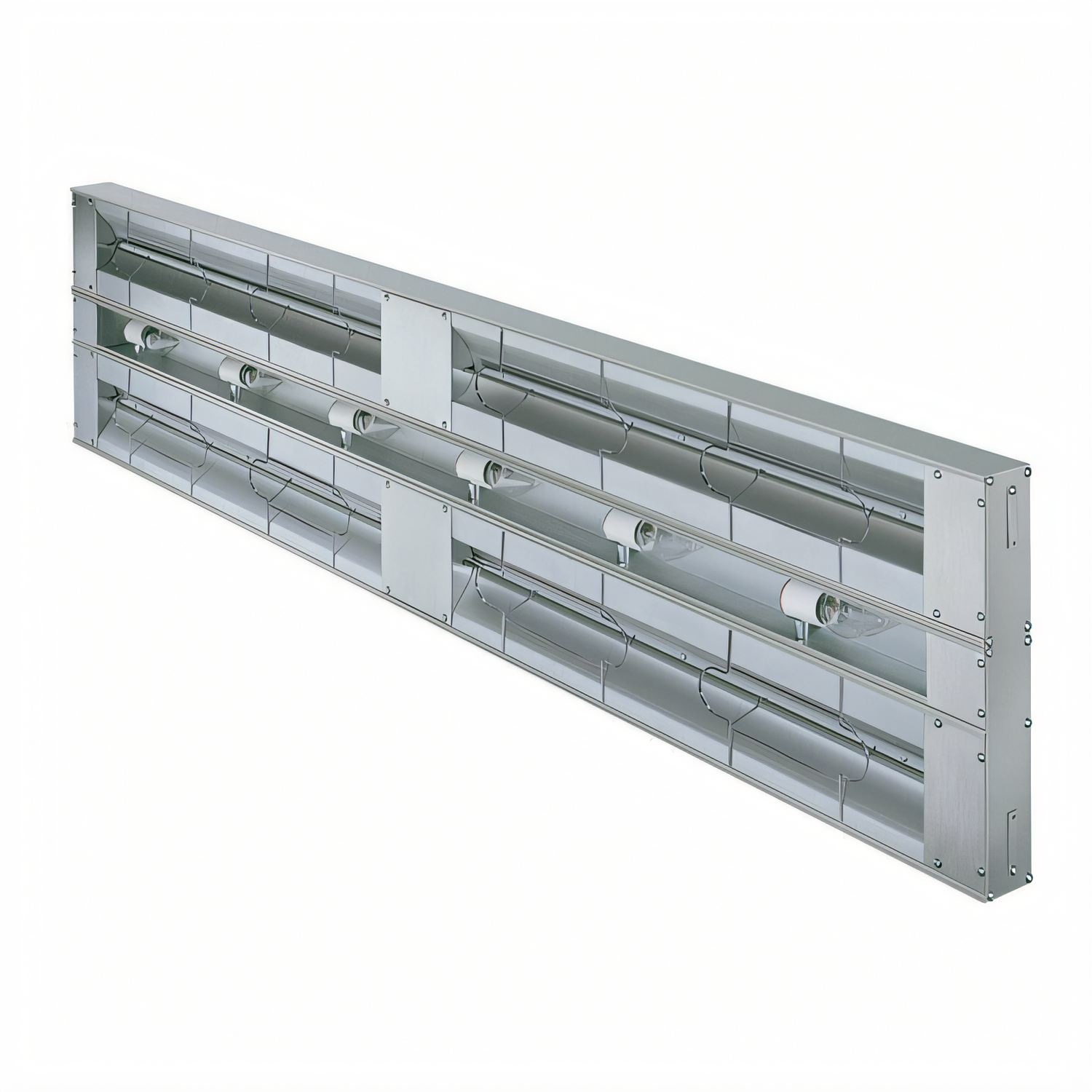

Hatco Glo-Ray® GRAL-144D Dual Infrared Strip Heater with Lights – 144"
Standard-watt • 6" tandem housing • 5,820 WBlanket an entire 12-foot serving line in consistent, energy-efficient heat. The Hatco Glo-Ray® GRAL-144D uses pre-focused infrared technology and brilliant display lighting to keep entrées, sides and garnishes at safe, appetizing temperatures from the first plate to the last.
Why it outperforms ordinary warmers
- Full-length infrared pattern eliminates cold spots over 144" (3,658 mm) of holding surface.

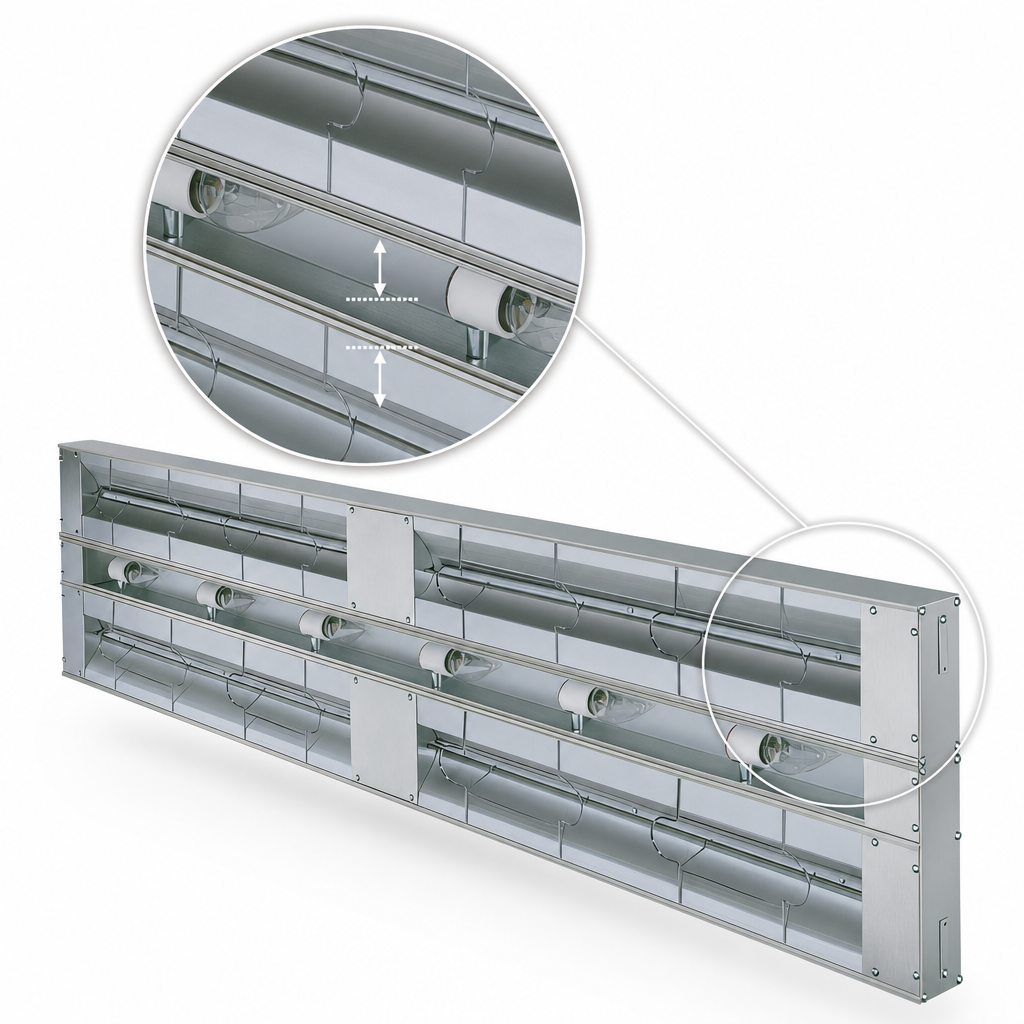

- Dual tubular metal-sheathed elements mounted 6" (152 mm) apart create a deeper, higher-capacity heat zone.
- Standard-watt design delivers 5,820 W of gentle heat (240 V) without over-drying foods.

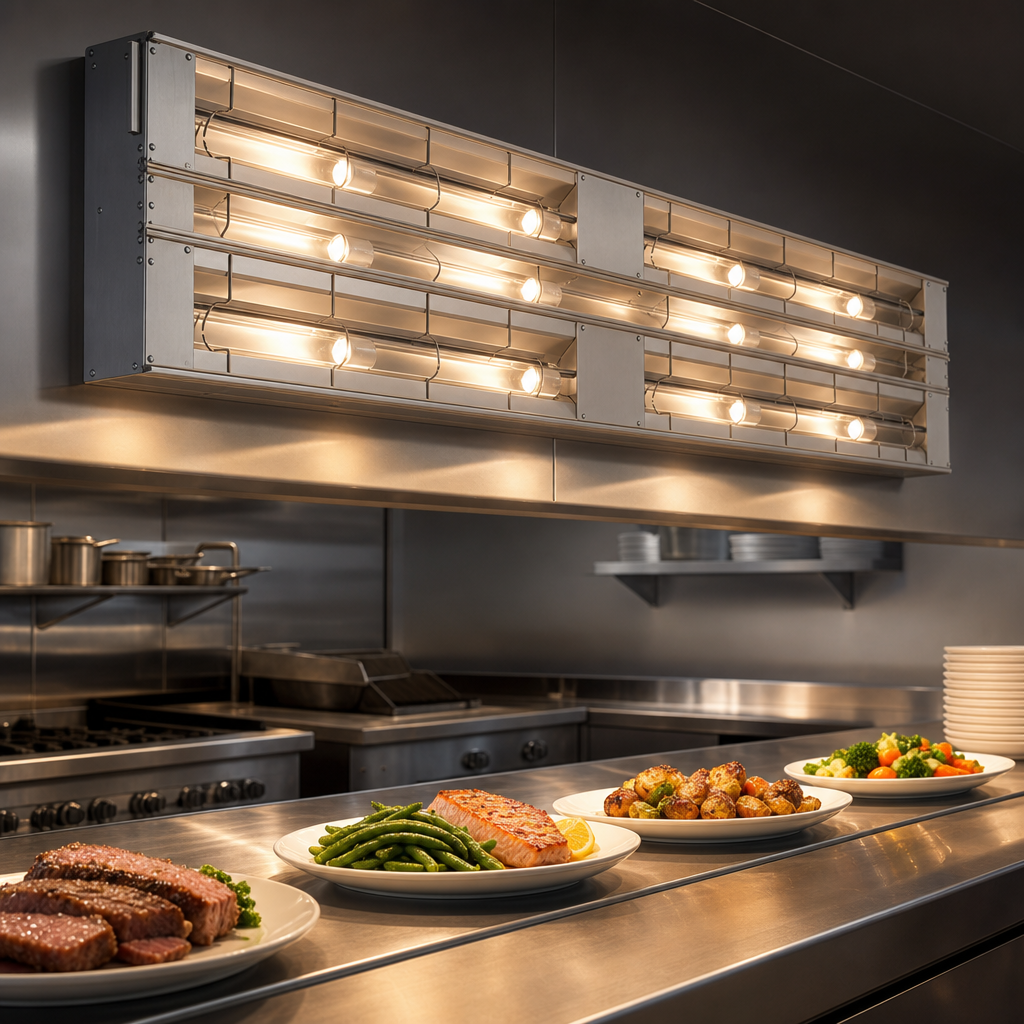

- Shatter-resistant incandescent bulbs (12 included) illuminate product while safeguarding food.
- Rigid extruded-aluminum housing won’t bow or sag—even at a full 12-ft span.
- Bright-annealed reflector maintains its shine; heat pattern never degrades or blackens.
- Reinforced wire guard and heavy insulation maximize operator safety and minimize heat loss.
- NSF & cULus listed for global compliance; made in the USA and backed by Hatco’s 24/7 service network.
Perfect for
- Cafeteria and buffet lines
- Hotel banquet or breakfast setups
- High-volume QSR pass-through windows
- Casino, resort & convention catering
- Institutional tray-makeup operations
Specifications
| Model | GRAL-144D (Dual strip with lights) |
|---|---|
| Overall width | 144" / 3,658 mm |
| Depth | 18" / 457 mm (6" spacer) |
| Height | 2.5" / 64 mm |
| Housing material | Clear-anodized extruded aluminum |
| Heating elements | Dual tubular metal-sheathed, tandem configuration |
| Wattage | 5,820 W (240 V) | 5,300 W (208 V) |
| Voltage options | 120/240 V, 120/208 V, 208 V, 240 V – single phase |
| Amperage (240 V) | ≈ 24 A |
| Lighting | 12 × 40 W shatter-resistant incandescent display lamps |
| Certifications | NSF, cULus |
| Country of origin | Made in USA |
| Warranty | 2-year element warranty & Hatco 24/7 support |
Installation notes
• Mount 15"–18" (381–457 mm) above the food surface for optimum performance.
• Must be hard-wired by a qualified electrician.
• Remote or attached control boxes, designer colors, sneeze guards and tubular
stands are available at time of order.
Need another length? The Glo-Ray® GRAL-D series is available from 18" to 144" to fit any line or pass-through.
