Hatco GRAL-144D3 Glo-Ray® Heat Lamps
$2,507.42
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Hatco GRAL-144D3 Glo-Ray® Heat Lamps is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hatco GRAL-144D3 Glo-Ray® Heat Lamps
$2,507.42
Unit price
/
Unavailable
Description

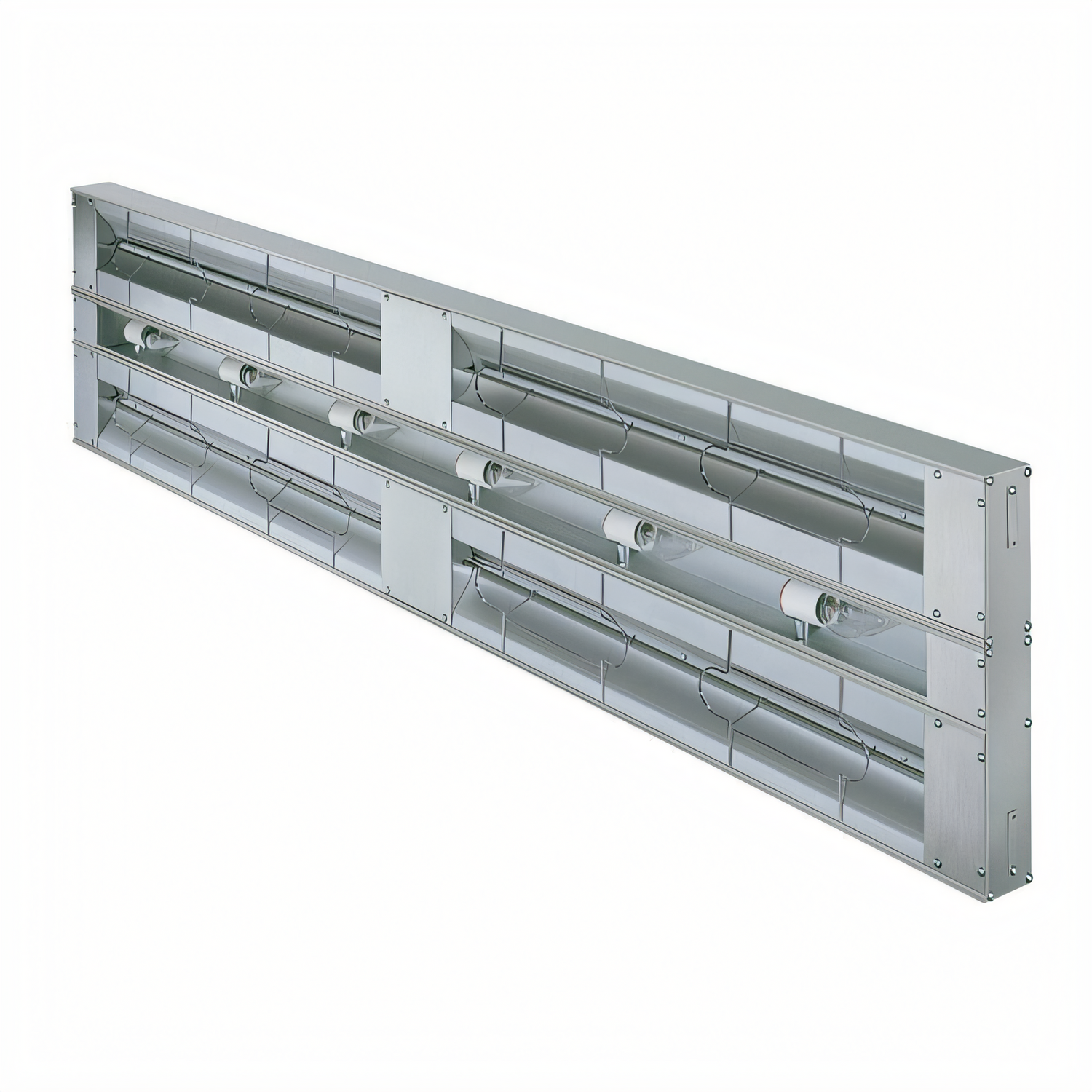

Hatco Glo-Ray® Dual Infrared Strip Heater – 144" with Lights
Model GRAL-144D | Standard wattage | Double heater housing (3" spacer)Stretch your holding power the full length of a 12-foot line with the largest Glo-Ray® available. The GRAL-144D bathes food in steady infrared heat while 12 shatter-resistant display lamps turn every pan into an irresistible profit zone.
Why you’ll love it
- Blanket-wide coverage – tandem tubular elements eliminate cold spots across the entire 144" span.

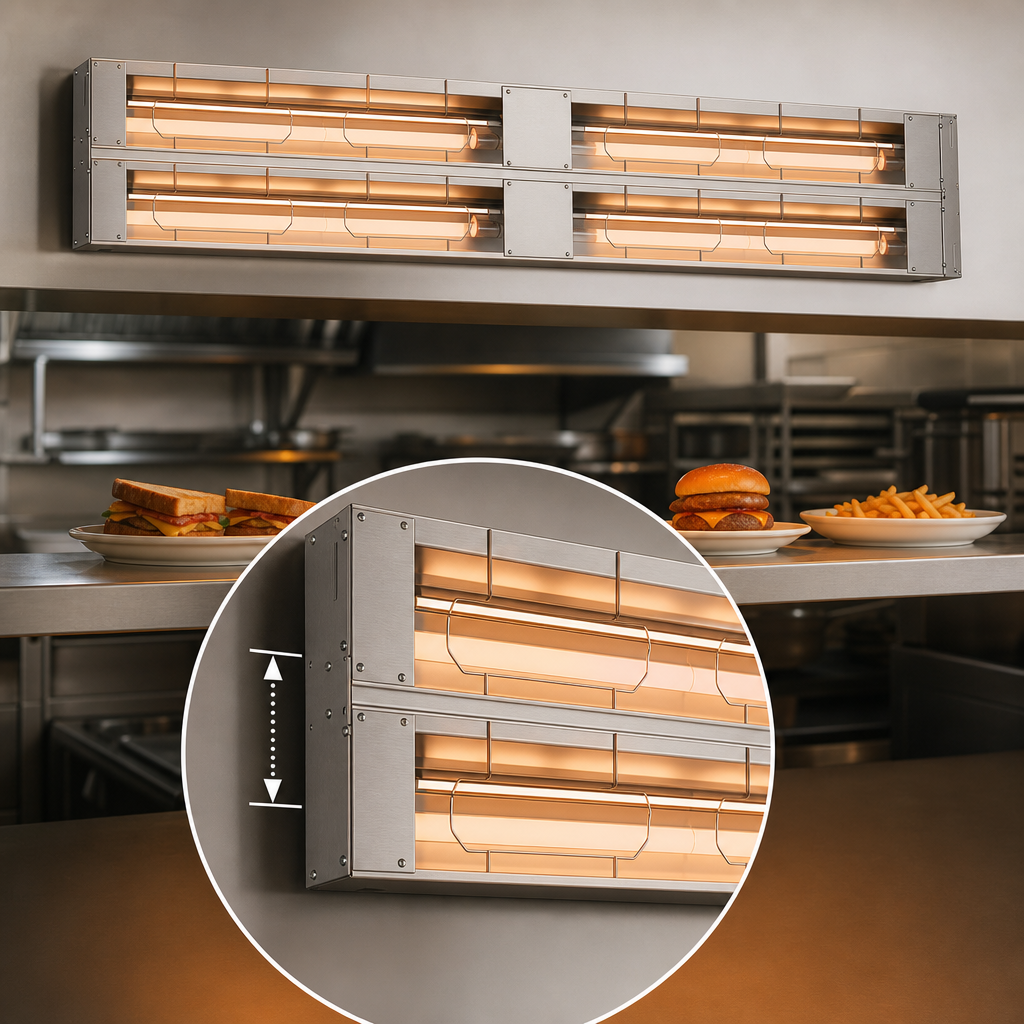

- Deeper holding area – dual 3"-spaced housings focus heat up to 15" (381 mm) from the unit for bulky platters or tall pans.

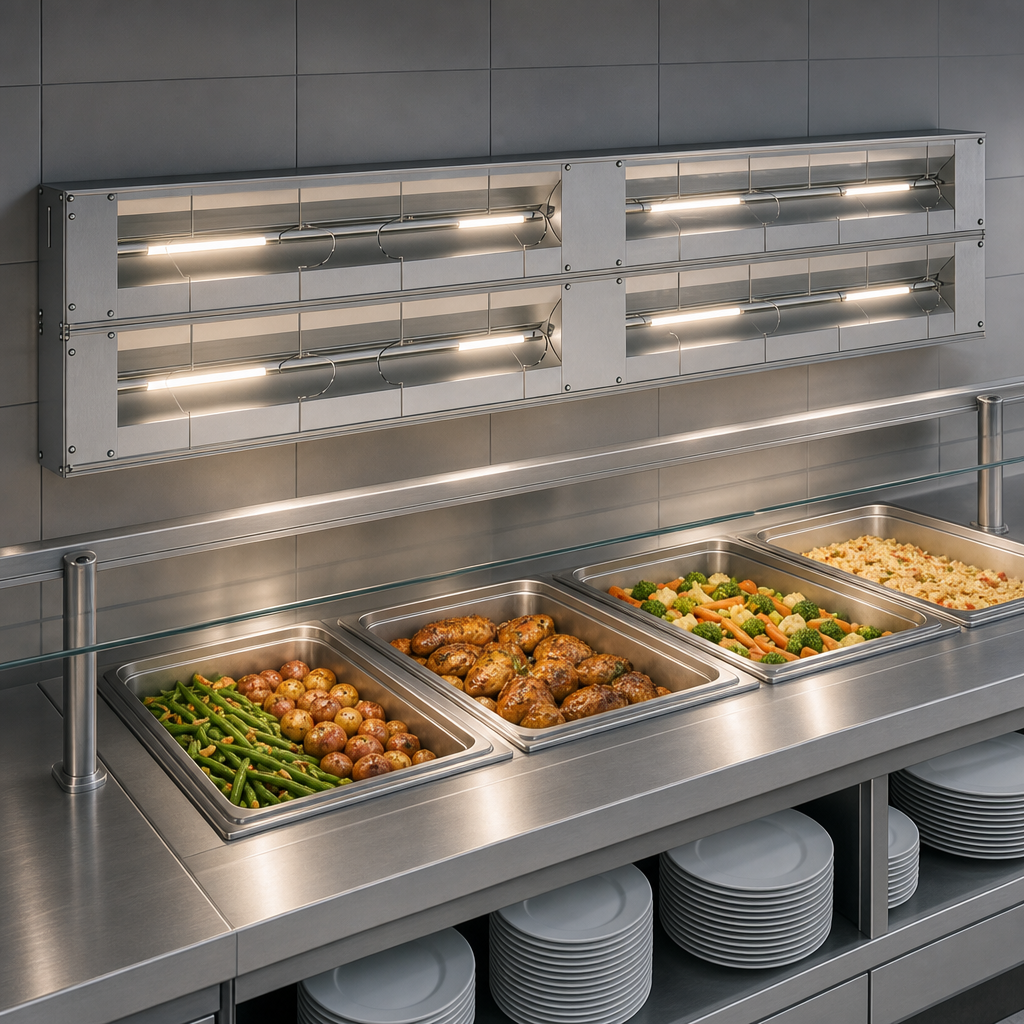

- Show & sell – (12) coated, shatter-resistant incandescent bulbs highlight product while protecting food from glass fragments.
- Built to last – extruded aluminum body won’t sag; metal-sheathed elements carry a 2-year burnout/breakage warranty.
- Operator-safe – reinforced wire guard prevents contact without blocking heat.
- Energy smart – heavy-duty insulation directs more heat to food, not the kitchen.
- Field-friendly – multiple mounting options (chain, T-leg or C-leg stands, adjustable angle brackets) and remote control boxes available.
- Fully certified – NSF & cULus listed and proudly Made in the USA.
At-a-glance specs
| Model | GRAL-144D (standard watt with lights) |
|---|---|
| Overall width | 144" / 12 ft (3658 mm) |
| Heat output | 5,820 W (standard watt tandem elements) |
| Voltage options | 120/208 V, 120/240 V, 208 V, 240 V, 220-240 V 50/60 Hz (single phase) |
| Max. current draw | Up to 30.5 A (at 240 V) |
| Heating elements | (2) Tandem tubular metal sheathed rods |
| Lighting | (12) × 40 W shatter-resistant incandescent bulbs (included) |
| Housing material | Extruded aluminum, clear anodized finish |
| Certifications | NSF, cULus |
| Country of origin | USA |
| Warranty | 24/7 parts & service support; 2-year element warranty |
Perfect for
- High-volume cafeterias & buffets
- Stadium or arena concessions
- Large catering lines & banquets
- Supermarket hot bars & delis
Installation note: Mount standard-watt GRAL heaters 15"–18" (381–457 mm) above the holding surface.
Units with built-in switches cannot be installed in combustible surroundings.
Strip heaters drawing over 20 A for the heat circuit require a separate ≤20 A circuit for the light circuit.
Need color-matched housings, sneeze guards, or remote control enclosures? Ask our team about factory-installed options available at time of order.
Features & Specs
Features & Specs
Manufacturer
Hatco
Brand_name
Glo-Ray®
Certifications
NSF, cULus, Made in USA
Height
2.5in
Width
144.0in
Depth
15.0in
Shipping Weight
86.0lbs
Size
double
Length
121 - 144"
Type
lighted
Finish
aluminum
Type of element
metal heating rod
Specifications
Glo-Ray® Infrared Strip Heater, 144" W, standard wattage with lights, tubular metal heater rod, double heater rod housing 3" spacing, aluminum construction, 5820 watts, contain tandem elements, NSF, cULus, Made in USA
