Hatco GRAL-144 Glo-Ray® Heat Lamps
Description

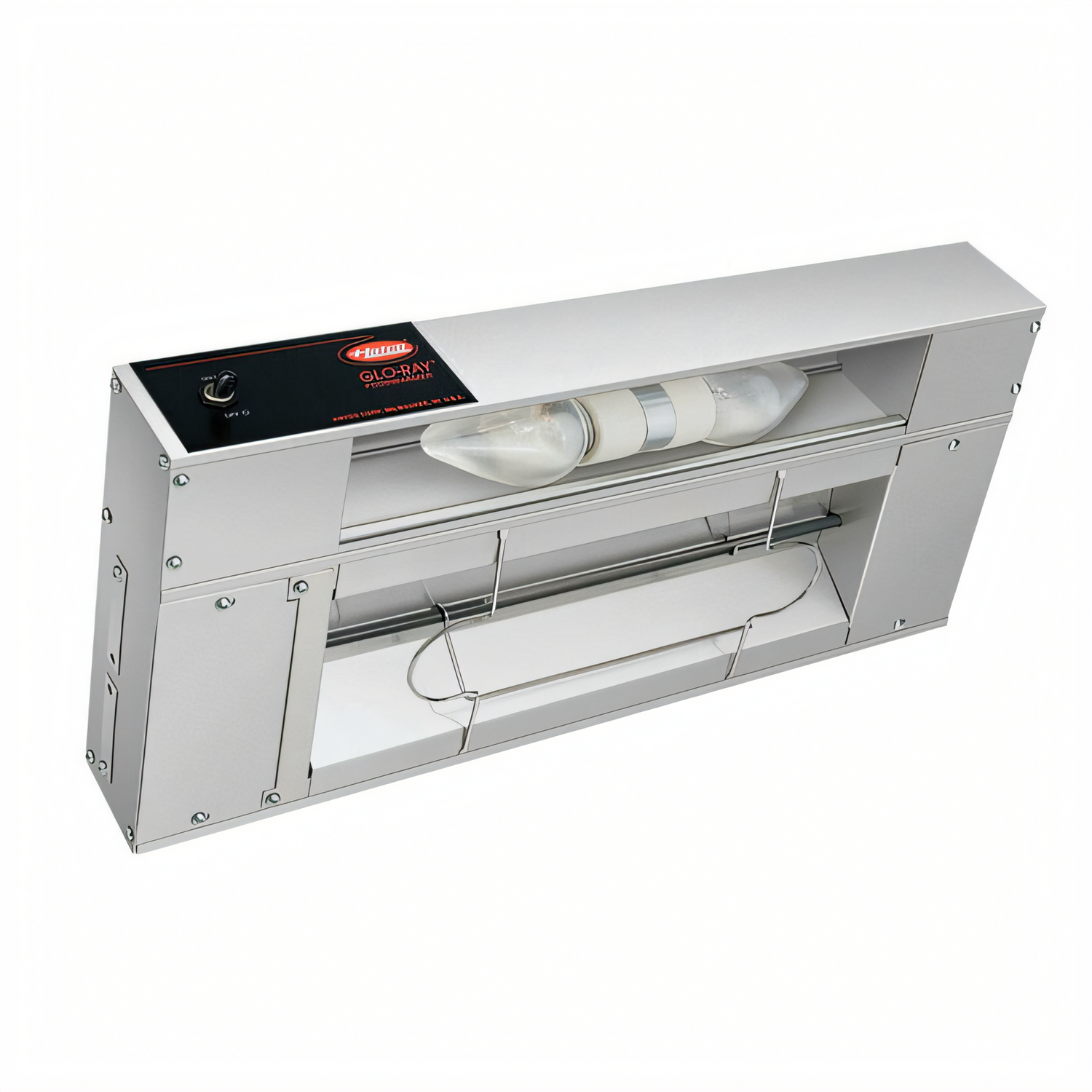

Hatco Glo-Ray® GRAL-144 Infrared Strip Heater with Lights

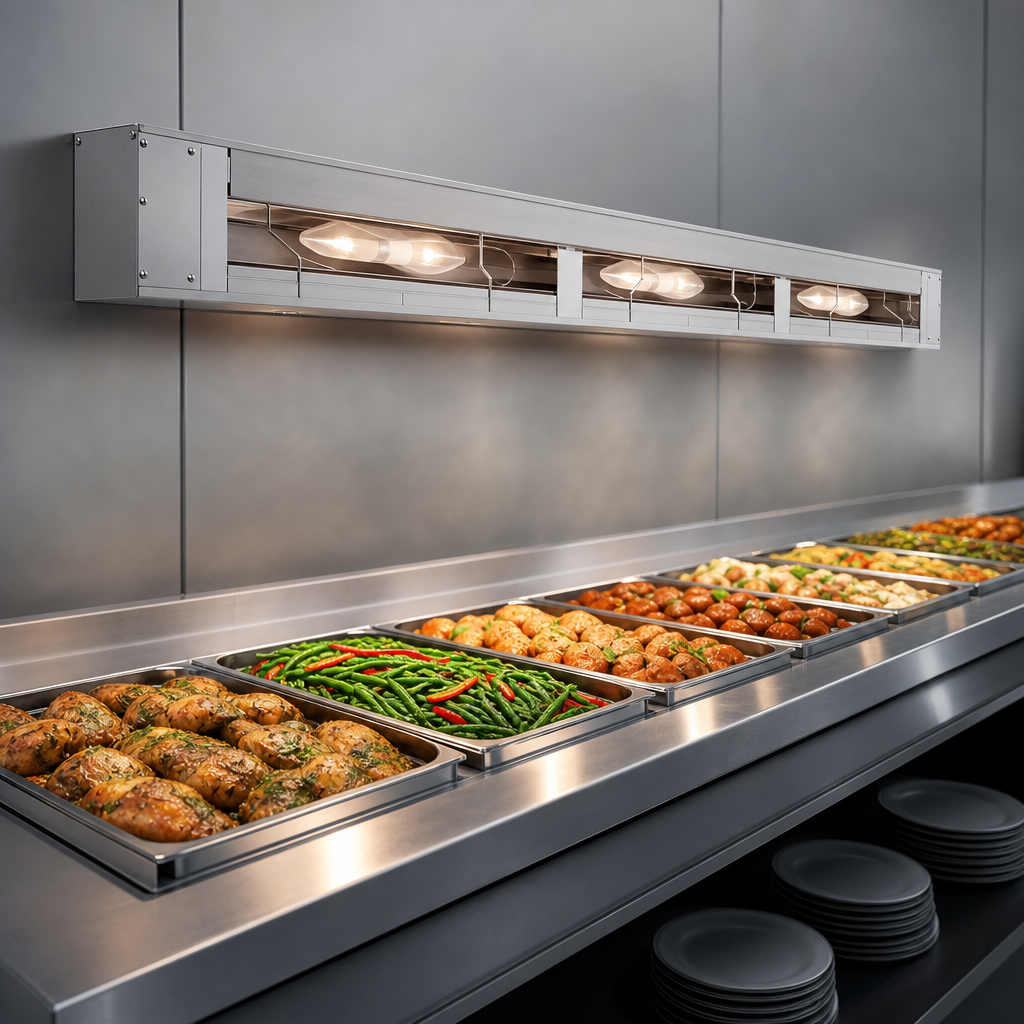

144 in (12 ft) • 3 270 W • Standard-watt • Aluminum housingGive every inch of your 12-foot serving line the perfect finishing touch. The GRAL-144 combines Hatco’s legendary Glo-Ray® infrared heat with shatter-resistant display lighting, keeping entrees hot, appetizing and safely illuminated from the first plate to the last.
Key benefits
- Even infrared heat – pre-focused tubular metal element eliminates cold spots across the entire 144″ span.

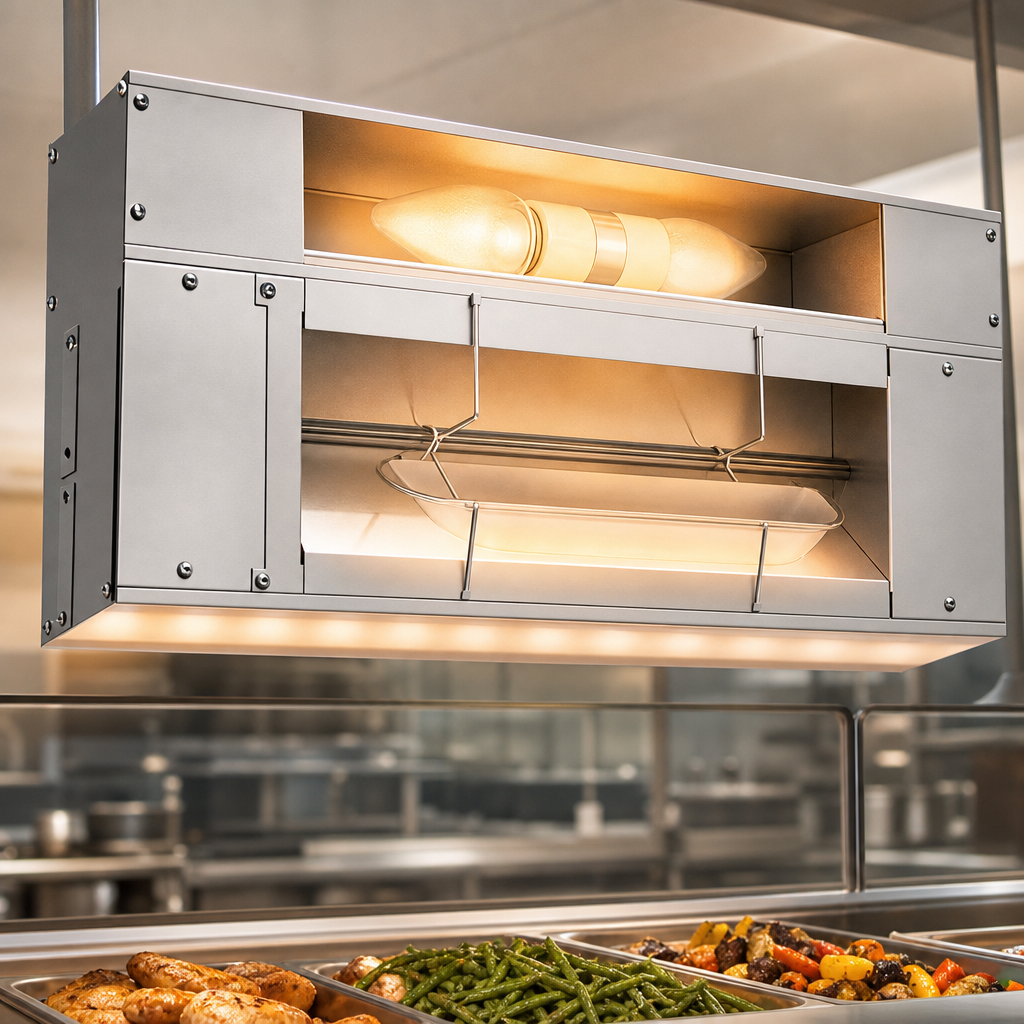

- Integrated lighting – (12) 60 W Teflon®-coated incandescent bulbs showcase food while containing glass in the unlikely event of breakage.
- Rugged & lightweight – extruded aluminum housing will not sag, even at full 12-foot length.
- Tandem end-to-end elements for consistent output over long runs.
- Reinforced wire guard protects element and bulbs without blocking heat.
- Simple toggle switch and 36″ flexible conduit supplied for fast, code-compliant installation.
- Certified NSF, CE, cULus and proudly Made in the USA.
Common applications
- Full-service and self-service buffet lines
- Pass-through windows
- Cafeteria and school serving counters
- Catering pickup stations
Specifications
| Model | GRAL-144 |
|---|---|
| Overall length | 144 in • 3 658 mm |
| Housing dimensions | 144 in W × 9 in D × 2.5 in H (3 658 × 229 × 64 mm) |
| Wattage | 3 270 W (standard) |
| Typical electrical | 120/208 V or 120/240 V, single-phase, 27.3 A / 16.6 A (other voltages available; consult factory) |
| Heat source | Tubular metal sheathed element, tandem configuration |
| Lights | Incandescent, shatter-resistant, 60 W – one per foot (12 total) |
| Construction | Extruded aluminum with bright-annealed reflector |
| Shipping weight | ≈48 lb • 22 kg |
| Certifications | NSF, CE, cULus |
| Country of origin | United States of America |
| Warranty | 2-year element warranty; 1-year parts & labor |
Popular factory options
- Designer powder-coat colors & gloss finishes
- Remote infinite control or toggle switches
- Sneeze guards in 9⅜″ or 14″ heights (single or double-sided)
- C-leg, T-leg or tubular stands for counter mounting
- Chain-suspension kit with S-hooks
- Halogen or LED bulb upgrade
Options must be specified at time of order. Non-standard colors are non-returnable.
Need help tailoring a Glo-Ray system for your line? Contact our team or visit the Hatco resource center for spec sheets and planning guides.
