Hatco GRAL-132D6 Glo-Ray® Heat Lamps
Description

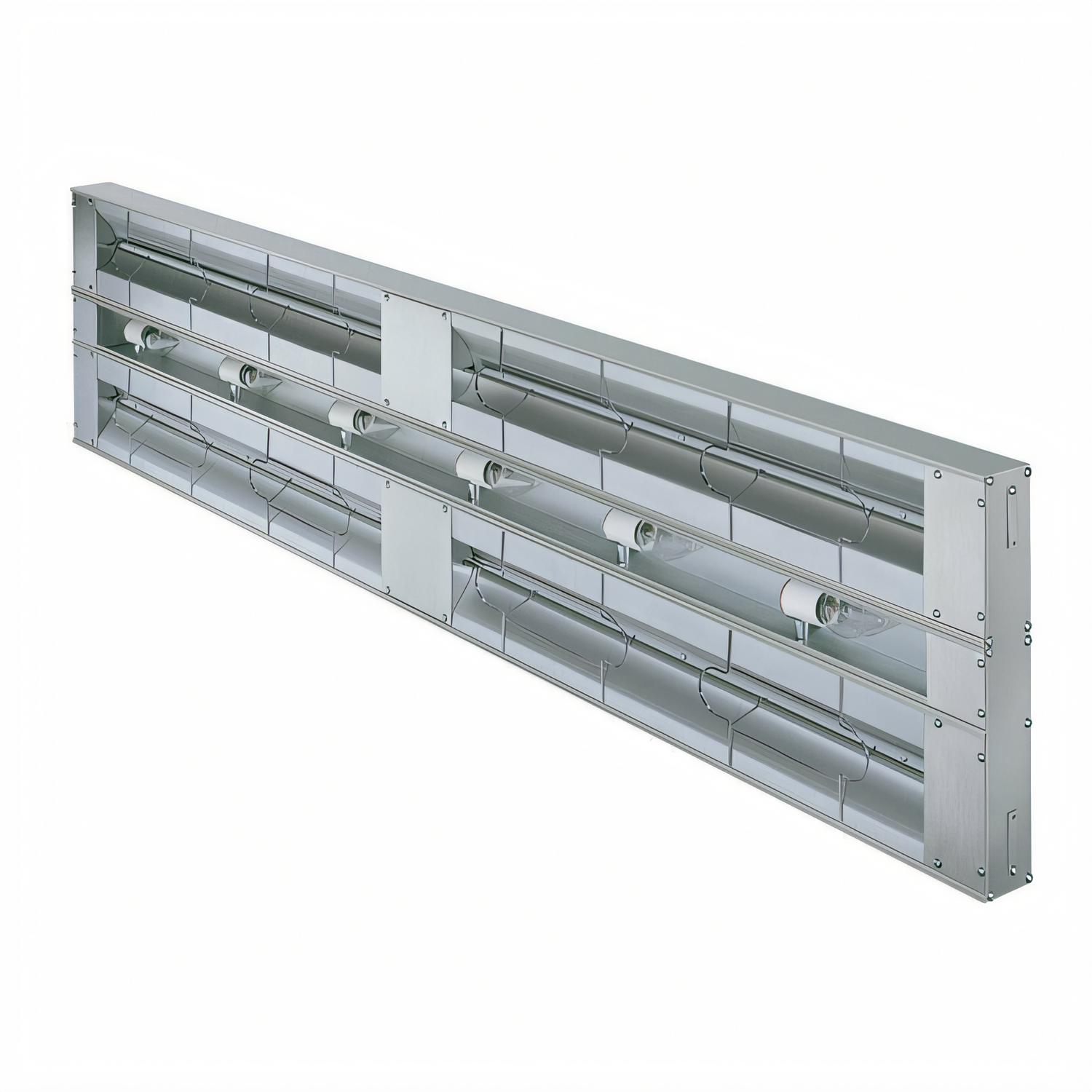

Hatco Glo-Ray® Dual Infrared Strip Heater with Lights – GRAL-132D

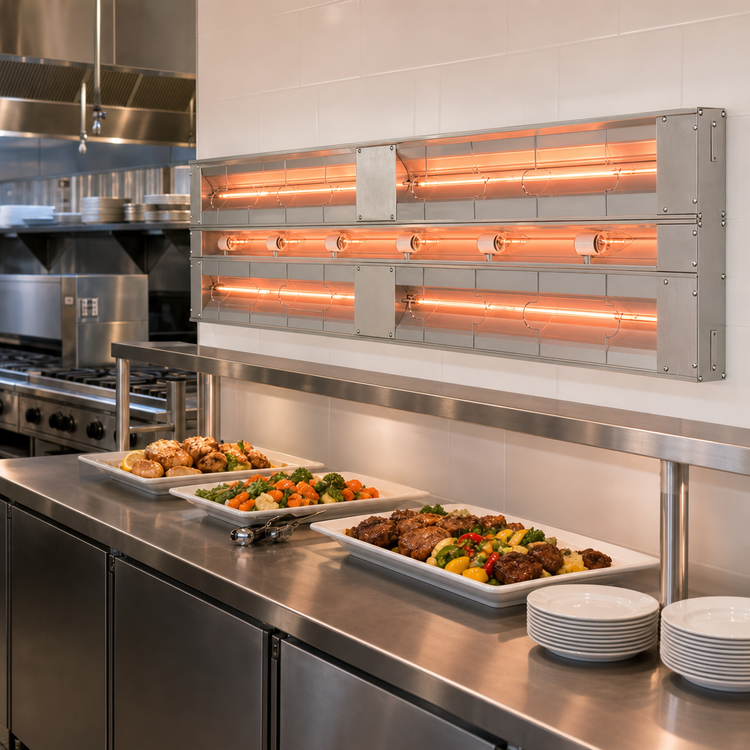

132 in (3353 mm) • Standard-watt • Tandem elements • 5,300 WKeep even the longest pass-thru window or buffet line at safe, appetizing temperatures with the GRAL-132D. Hatco’s pre-focused infrared heat blankets every inch of your 11-foot serving area, while shatter-resistant display lights showcase food with mouth-watering appeal.
Operator benefits

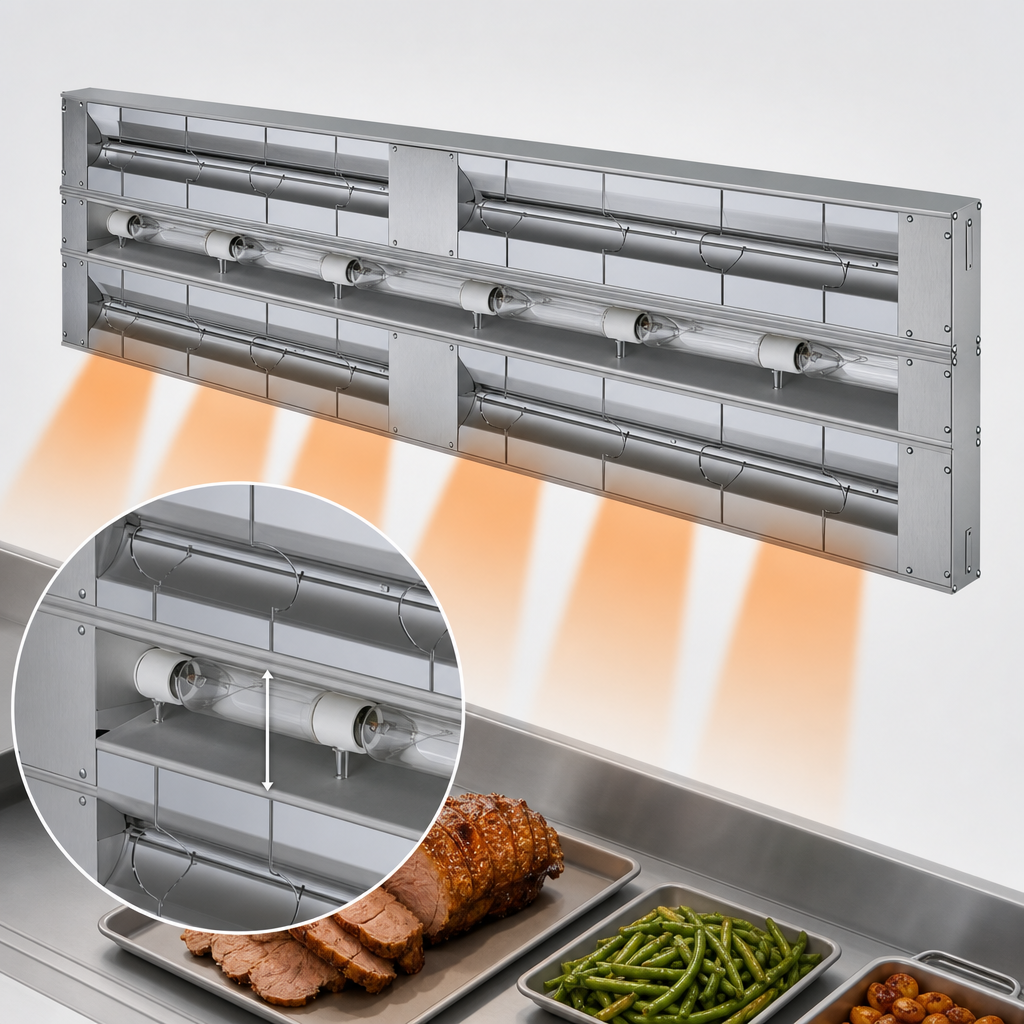

- Dual tubular metal heater rods spaced 6 in (152 mm) apart create a deeper holding zone with no cold spots.
- Bright-annealed reflectors and heavy-duty aluminum housing resist sagging, corrosion and discoloration.

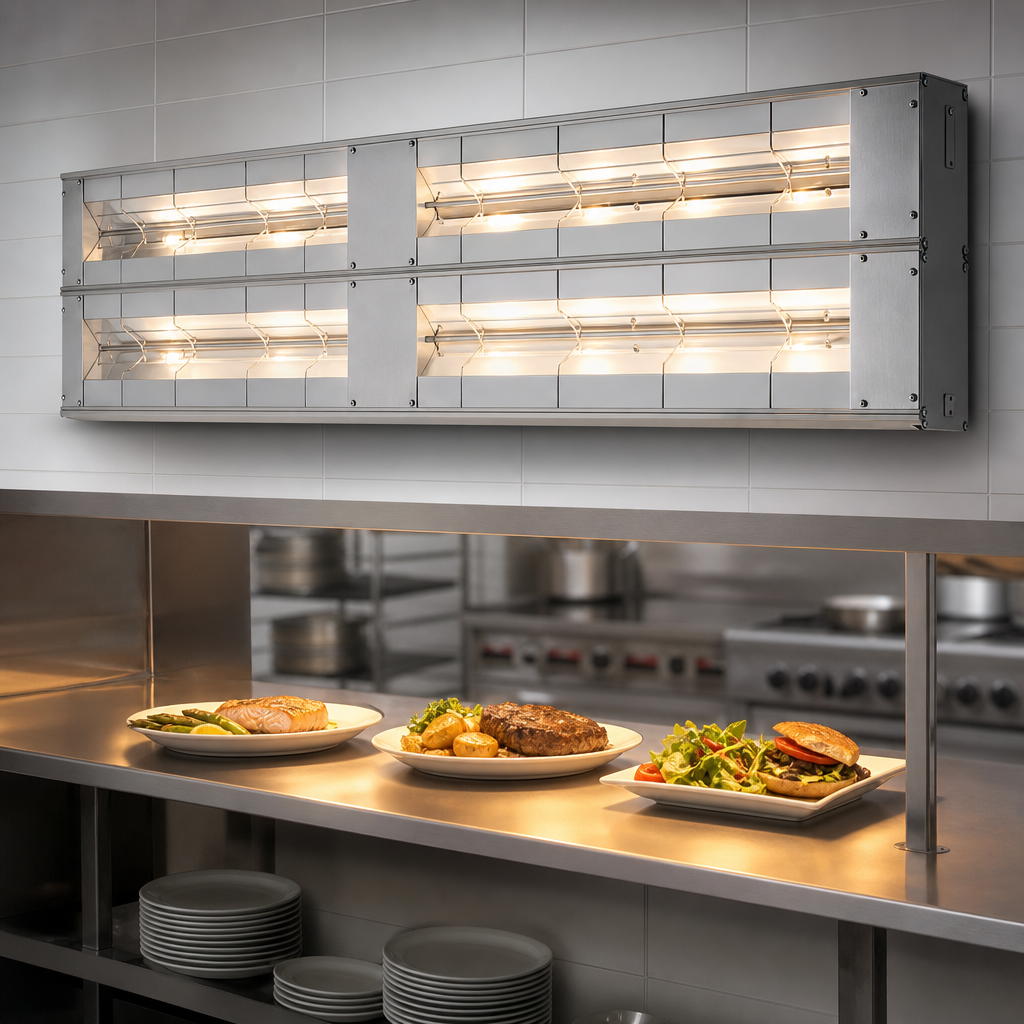

- Coated, shatter-resistant incandescent lamps (11 included) illuminate product while guarding against bulb breakage.
- Metal-sheathed elements carry a 2-year factory warranty against burnout or breakage.
- Reinforced wire guard and high-density insulation maximize operator safety and energy efficiency.
- NSF & cULus listed and proudly Made in the USA.
Perfect for
- Expo & pass-thru shelves
- Extra-long cafeteria or buffet runs
- Banquet, catering & concession lines
- Stadiums, airports and high-volume QSRs
Specifications
| Model | GRAL-132D |
|---|---|
| Overall width | 132 in (3353 mm) |
| Depth × Height | 18 in × 2.5 in (457 × 64 mm) |
| Housing material | Extruded aluminum with bright-annealed reflector & wire guard |
| Heat output | 5,300 W (standard-watt) |
| Electrical | Single-phase, multiple voltage configurations (120/208/240 V and international voltages available) – consult factory |
| Display lights | 11 coated 40 W incandescent lamps (included) |
| Minimum clearance to surface | 15 in (381 mm) |
| Shipping weight | Approx. 73 lb (34 kg) |
| Certifications | NSF, cULus |
| Country of origin | USA |
Factory-installed options (order time only)
- Designer or gloss color housings (Warm Red, Black, Gray Granite, and more)
- Sneeze guards – single or dual-side acrylic
- Remote toggle or infinite control boxes (wall or counter mount)
- Tubular stands (10 – 16 in clearance), chain suspension or angle brackets
- Chef LED or halogen lamp upgrades, extra lamps, bright-annealed light reflector
- Extended power leads up to 20 ft (6096 mm)
Performance data is based on Hatco specifications. Always verify electrical requirements with your licensed installer prior to purchase.
