Hatco  |  Glo-Ray®  |  SKU: GRAL-132D3

Hatco GRAL-132D3 Glo-Ray® Heat Lamps

$2,318.48
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog brochure Hotel & lodging solutions Restaurant solutions Super market & in-store solutions Owner's manual Stadium & concession solutions Color chart Cafeteria & buffet solutions Parts list Electrical rating
Related Searches
Heat Lamps Serving & Display Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

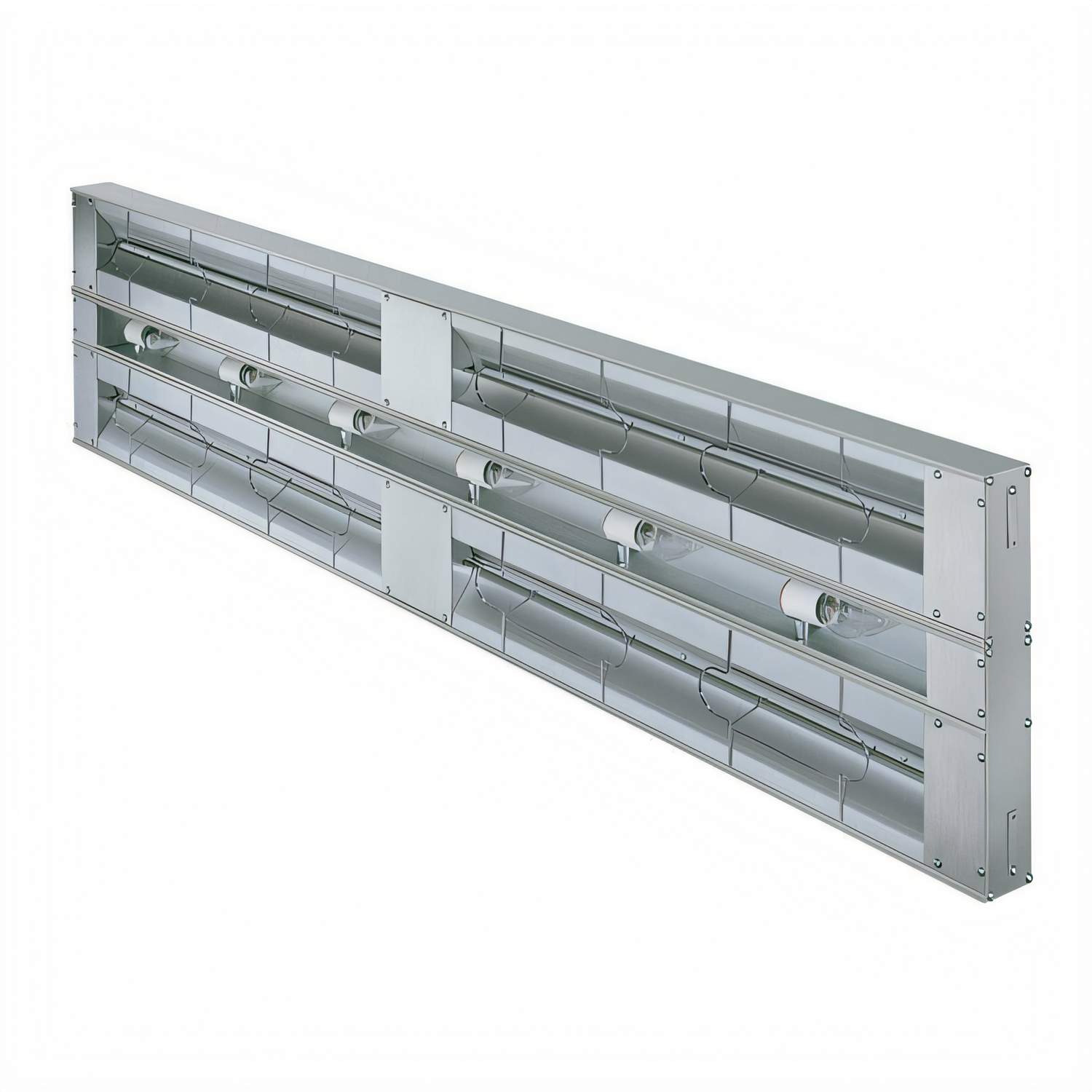

Hatco Glo-Ray® GRAL-132D Dual Infrared Strip Heater with Lights – 132"

Standard watt • 5300 W • Tandem elements • NSF & cULus listed

Stretch your heat zone to more than 11 feet with Hatco’s longest dual Glo-Ray® strip heater. The GRAL-132D floods wide buffet lines, pass-over shelves and plating areas with even, pre-focused infrared heat while integrated display lights keep every dish looking its delicious best.

Key benefits

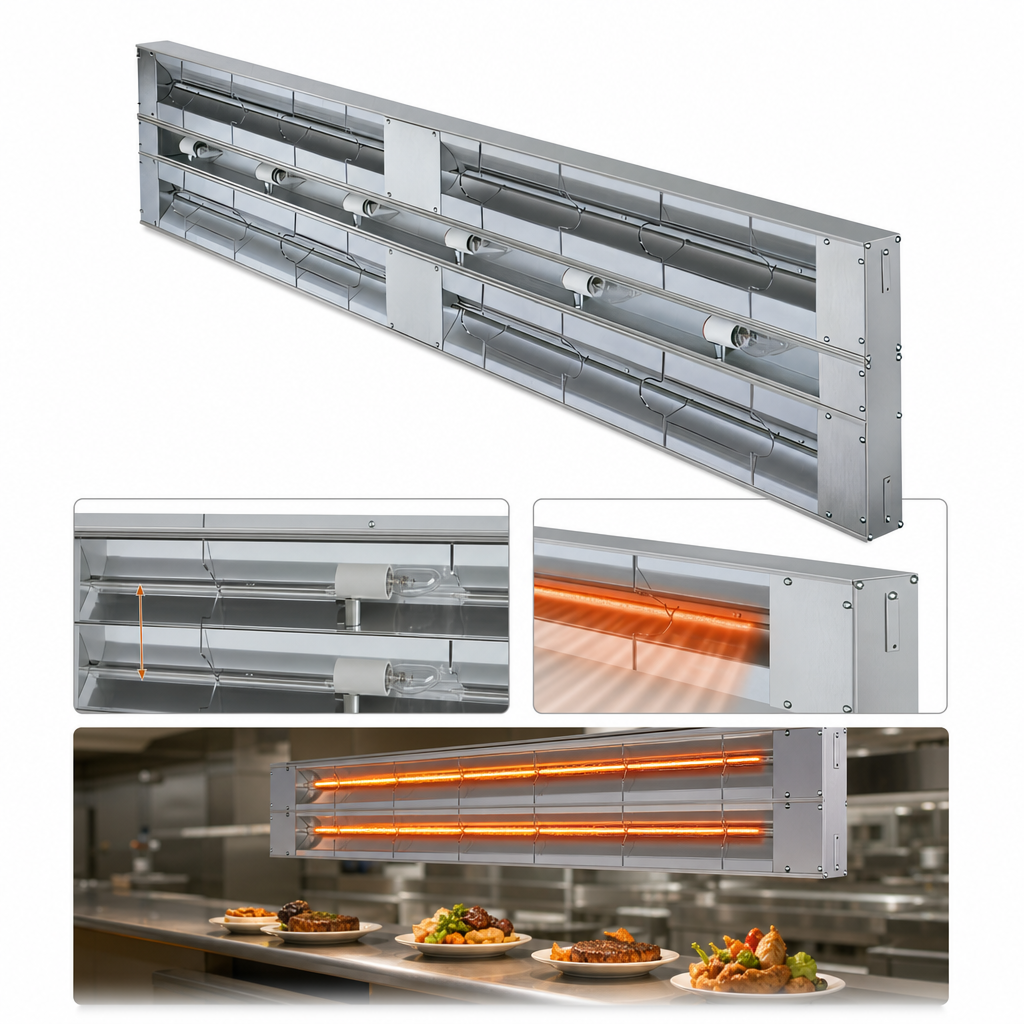

  • Extra-long 132" dual housing delivers a deep 15" (381 mm) heat pattern thanks to the built-in 3" spacer.
  • 5300 W of infrared power from durable tubular metal elements guaranteed against burnout for two years.
  • Tandem heating rods eliminate cold spots, maintaining safe serving temperatures for extended holding times.

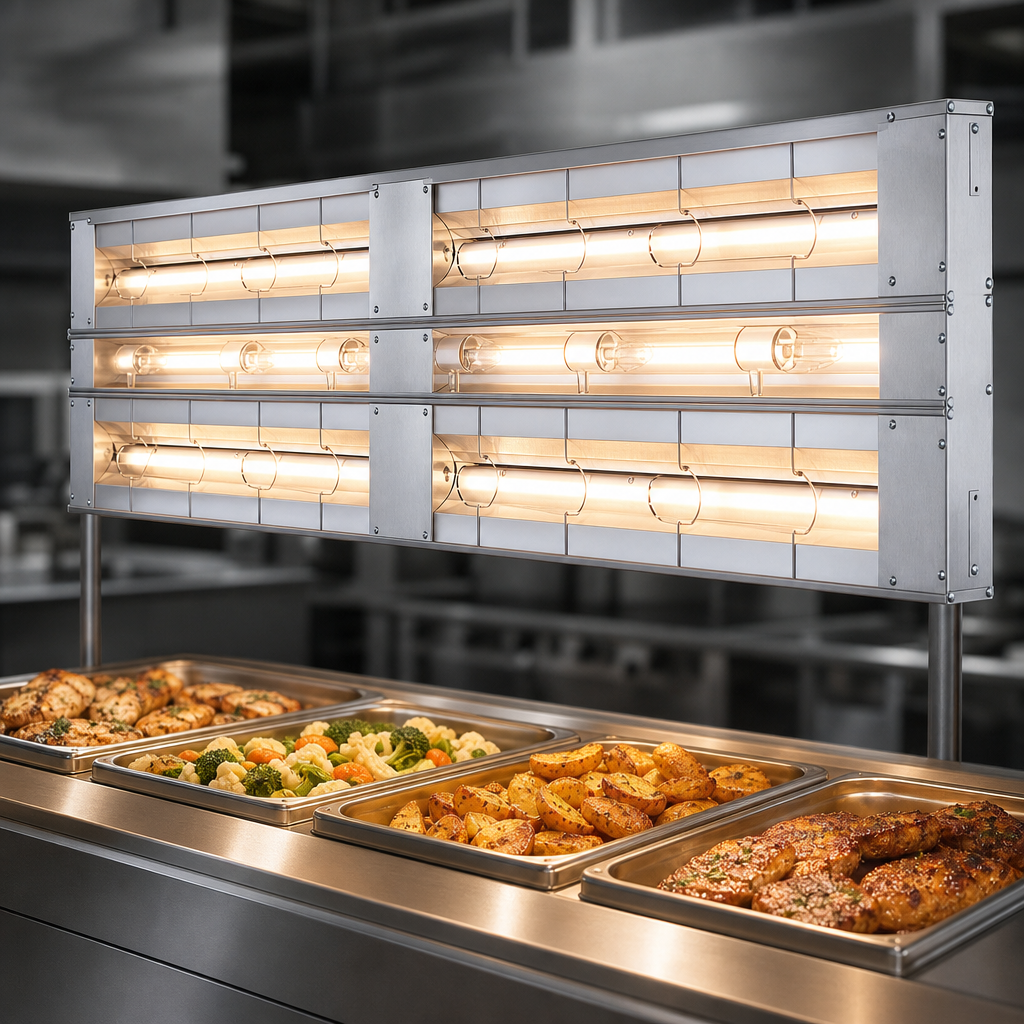

  • 11 shatter-resistant incandescent bulbs (included) illuminate product and boost impulse sales.
  • Rigid extruded-aluminum construction resists sagging—even at 11 ft—while heavy insulation curbs heat loss.
  • Reinforced wire guard protects staff without interfering with heat distribution.
  • Certified NSF & cULus for sanitation and electrical safety; proudly made in the USA.

Specifications

Model GRAL-132D (dual strip, standard watt, with lights)
Overall width 132" / 3353 mm
Heat-zone depth 15" / 381 mm (3" spacer)
Total wattage 5300 W
Typical amperage 27.2 A @ 120/208 V • 24.6 A @ 120/240 V
Voltage options 120/208 V or 120/240 V, single phase
Number of bulbs 11 × 40 W shatter-resistant incandescent
Construction Extruded aluminum housing with bright-annealed reflector
Shipping weight ≈ 73 lb / 34 kg
Certifications NSF, cULus
Country of origin USA

Installation clearances

  • Units with built-in switches: mount 14–18" (356–457 mm) above the holding surface.
  • Units with remote switches: minimum 3" (76 mm) below overshelf, or flush when mounted 6" (152 mm) or higher.

Refer to the Hatco installation manual and local codes for complete instructions.

Perfect for

  • Buffet lines & cafeteria serving counters
  • High-volume pass-through shelves
  • Banquet plating & catering staging areas
  • Convenience-store hot food displays
Electrical notice: Heat and light circuits are independent. If the heat circuit requires more than a 20 A breaker, the light circuit must be protected by a separate breaker rated 20 A or less.

Need a different length, high-watt model or designer powder-coat finish? Explore the full Hatco Glo-Ray® range in our store.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

NSF, cULus, Made in USA

Height

2.5in

Width

132.0in

Depth

15.0in

Shipping Weight

79.0lbs

Size

double

Length

121 - 144"

Type

lighted

Finish

aluminum

Type of element

metal heating rod

Specifications

Glo-Ray® Infrared Strip Heater, 132" W, standard wattage with lights, tubular metal heater rod, double heater rod housing 3" spacing, aluminum construction, 5300 watts, contain tandem elements, NSF, cULus, Made in USA
