Hatco GRAL-120D3 Glo-Ray® Heat Lamps
Hatco GRAL-120D3 Glo-Ray® Heat Lamps is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hatco GRAL-120D3 Glo-Ray® Heat Lamps
Description

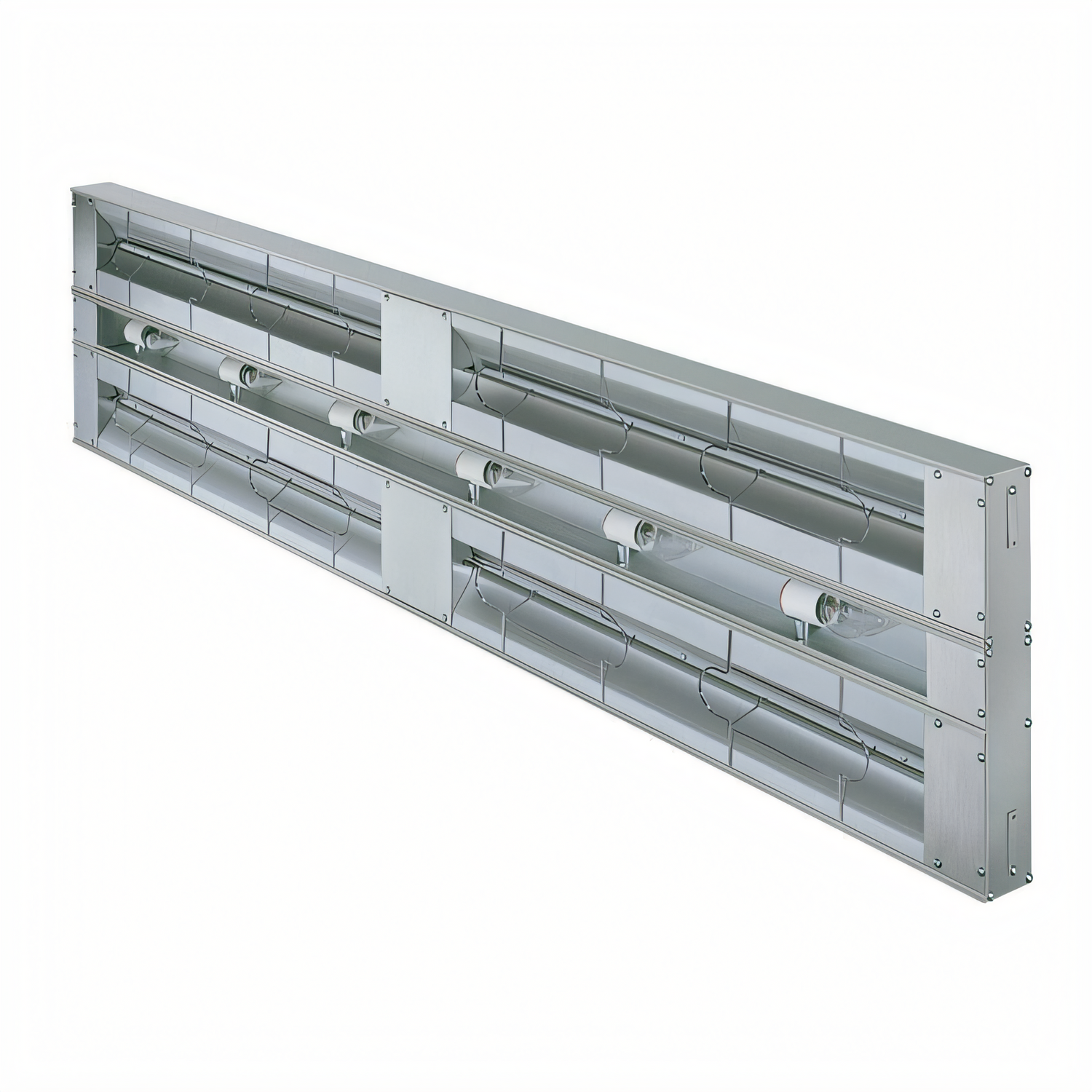

Hatco Glo-Ray® GRAL-120D Dual Infrared Strip Heater with Lights – 120″
Standard-watt • 3″ spacer • 4 800 W • NSF & cULusKeep every pan picture-perfect and food-safe across a full ten feet of serving space. Hatco’s GRAL-120D combines two tubular metal-sheathed heat rods, shatter-resistant display lighting and a rugged, sag-free aluminum housing to deliver the industry’s most dependable blanket of holding heat.
Performance you can count on

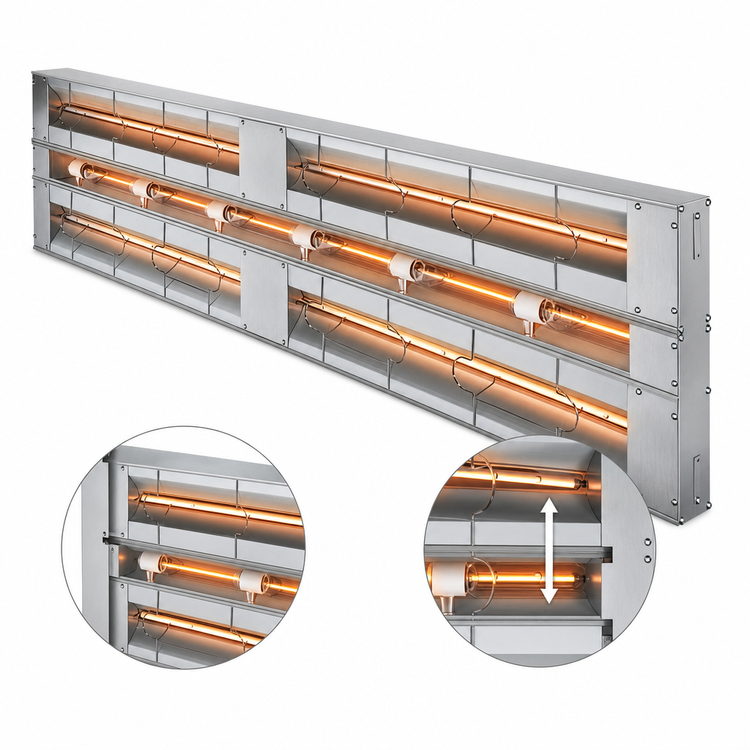

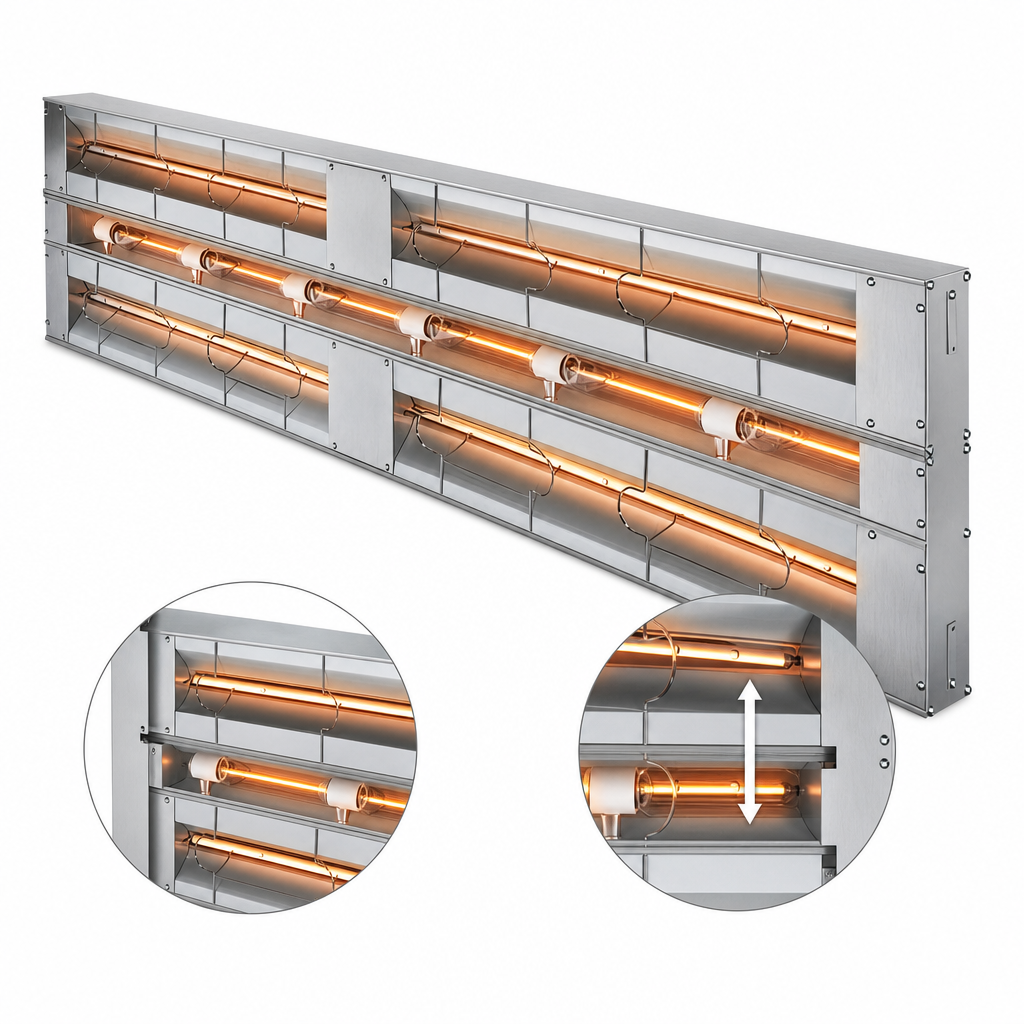

- Dual strip design with 3″ (76 mm) spacer creates a deeper, 15″ (381 mm) heat zone – no cold spots.
- Standard-watt system draws 4 800 W total, ideal for holding without over-cooking.
- Tandem (end-to-end) elements ensure uniform coverage along the entire 120″ length.

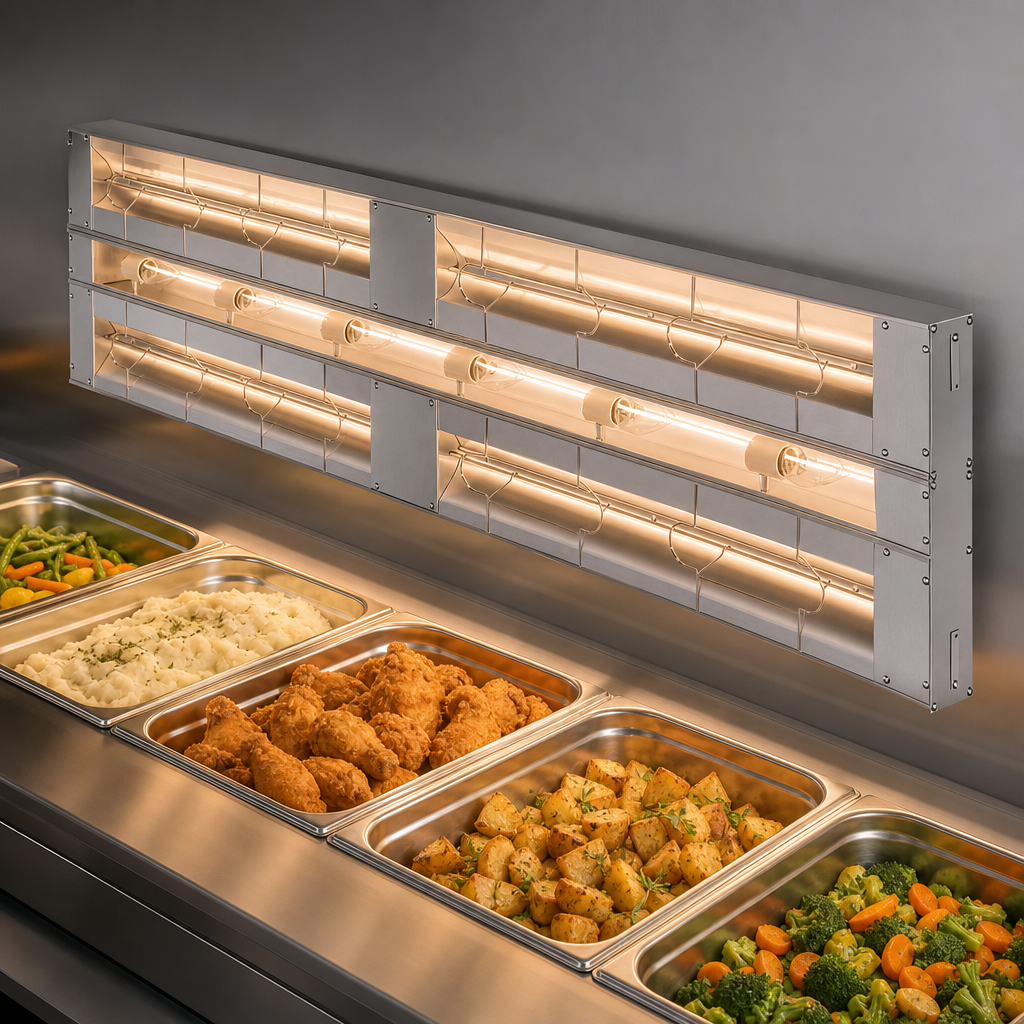

- 10 coated, shatter-resistant 40 W bulbs illuminate product while guarding against broken glass.
- Extruded, clear-anodised aluminum housing will not sag or warp, even in high-temperature kitchens.
- Bright-annealed reflector resists blackening, maintaining a consistent heat pattern for years.
- Reinforced wire guard protects staff without restricting heat flow.
- Heavy-duty internal insulation minimises heat loss for greater energy efficiency.
- Elements carry a 2-year burnout warranty; full unit backed by Hatco’s 24/7 service network.
- NSF listed, cULus certified and proudly Made in the USA.
Technical data
| Model | GRAL-120D (dual / standard watt / with lights) |
|---|---|
| Overall width | 120″ / 3 048 mm |
| Depth (with 3″ spacer) | 15″ / 381 mm |
| Height | 2.5″ / 64 mm |
| Housing material | Extruded aluminum, clear anodised |
| Heating elements | (2) tubular metal-sheathed, tandem |
| Total wattage | 4 800 W |
| Typical power | 120 V / 40 A single-phase 120/208 V or 120/240 V multi-circuit available – consult factory |
| Display lamps | 10 × 40 W coated incandescent (included) |
| Recommended mounting height | 14″–18″ (356–457 mm) above holding surface |
| Shipping weight | ≈ 66 lb / 30 kg |
| Certifications | NSF, cULus (CE models optional) |
| Country of origin | Milwaukee, Wisconsin, USA |
Perfect for
- Buffet & carving stations
- Pass-through windows
- Catering lines & banquets
- School, hospital & corporate cafeterias
- Back-of-house plating counters
Looking for a different length, designer colour housing or remote control box? Contact us – we can factory-configure any Glo-Ray® strip heater to match your line.
