Hatco GRAL-108D3 Glo-Ray® Heat Lamps
Description

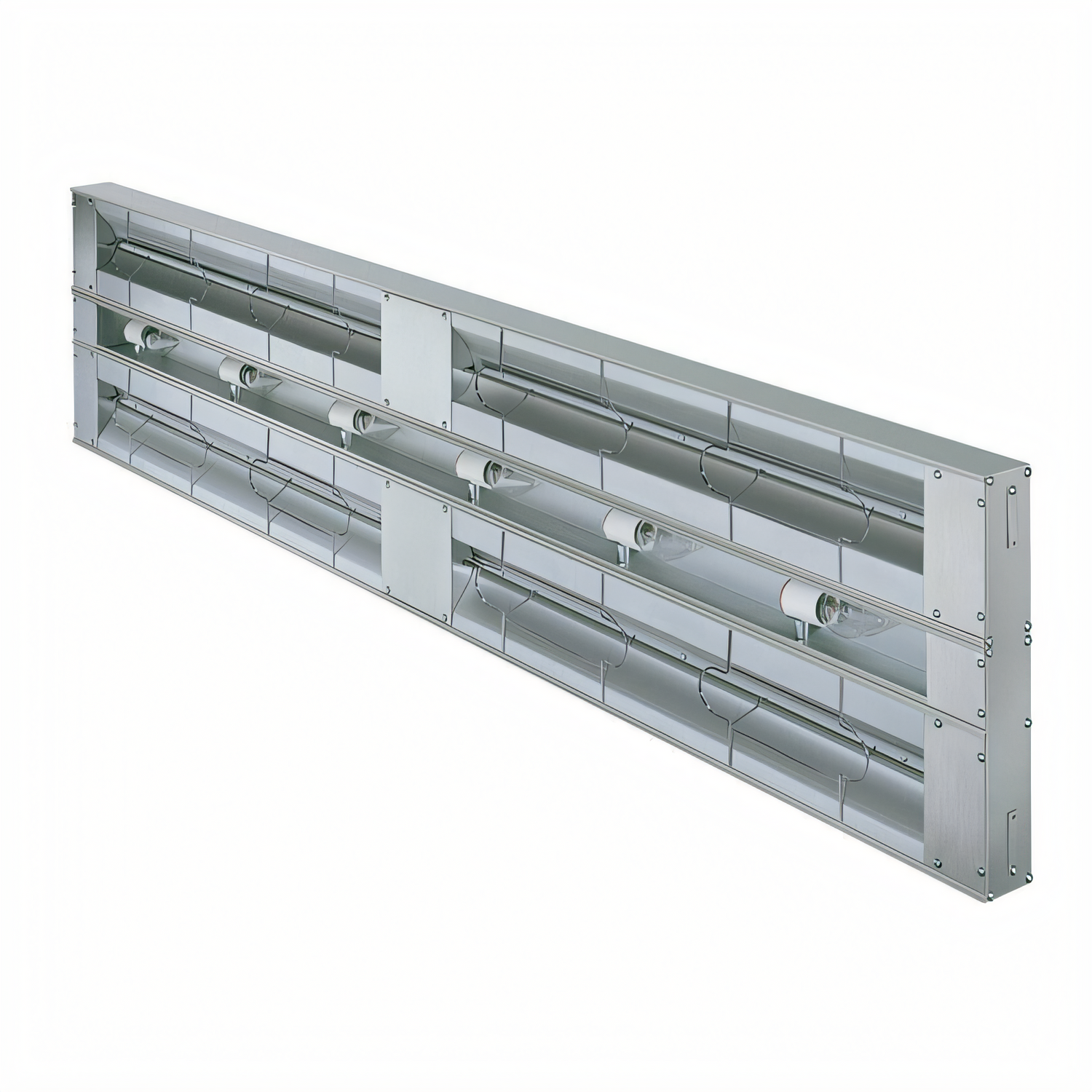

Hatco Glo-Ray® GRAL-108D Dual Infrared Strip Heater with Lights
108 in | Standard Watt | 4 240 W | Made in USAStretch your holding line a full nine feet without a single cold-spot. The GRAL-108D combines Hatco’s legendary Glo-Ray® infrared technology, a rugged extruded-aluminum body and shatter-resistant display lighting to keep every pan of food hot, appetizing and safely within HACCP guidelines.
Why you’ll love it

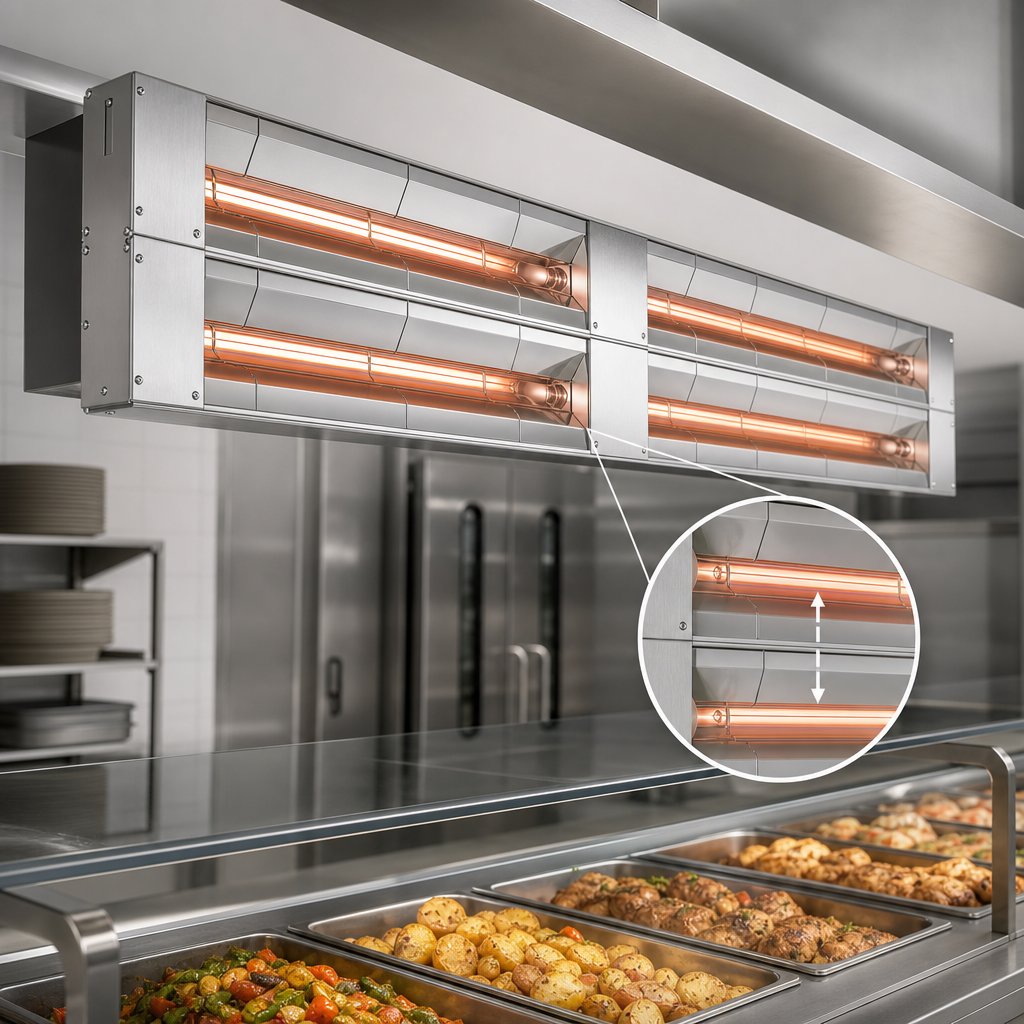

- Dual metal-sheathed tubular heater rods with 3 in (76 mm) spacing create a deeper heat blanket for bulky platters and multi-pan setups.
- Pre-focused infrared pattern delivers even heat end-to-end—ideal for long pass-thru shelves, buffets and concessions.

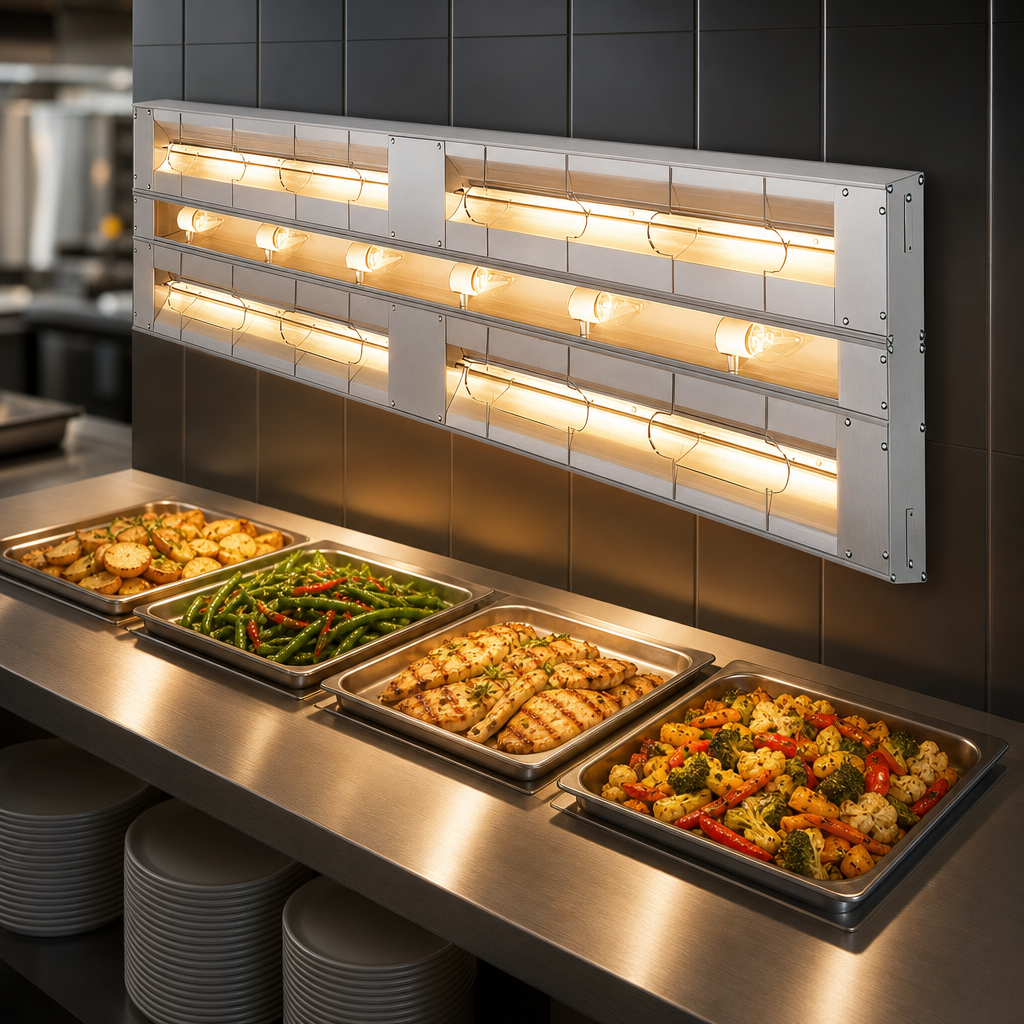

- Standard shatter-resistant incandescent bulbs (9 included) highlight product while protecting food from glass fragments.
- Heavy-duty extruded aluminum housing resists sagging over the full 108 in span and is easy to wipe clean.
- High-density insulation minimizes heat loss, cutting energy costs and keeping work areas cooler.
- Metal-sheathed elements carry a 2-year burnout/breakage warranty for worry-free operation.
- NSF & cULus listed; engineered and built in Milwaukee, WI.
Technical Specifications
| Model | GRAL-108D |
|---|---|
| Overall width | 108 in | 2 743 mm |
| Heat output | 4 240 watts (standard watt) |
| Voltage options | 208 V or 240 V, single-phase (other voltages available—ask your rep) |
| Amps (208 V / 240 V) | 20.4 A / 17.7 A |
| Heat elements | Dual tubular, tandem (end-to-end) elements |
| Lights supplied | 9 × 40 W coated incandescent (shatter-resistant) |
| Construction | Clear-anodized extruded aluminum with bright-annealed reflectors and reinforced wire guard |
| Certifications | NSF, cULus |
| Shipping weight | ≈ 59 lb | 27 kg (crated) |
Perfect for
- Busy pass-thru shelves on the cook line
- Full-length buffet or carving stations
- High-volume concessions and stadium kiosks
- Supermarket hot bars & deli service counters
Recommended mounting height: 15 in (381 mm) above the holding surface for standard-watt models. Minimum 2 in (51 mm) clearance from combustible materials is required.
Factory Options (order with unit)
- Designer powder-coat colors or high-gloss finishes
- 3 in or 6 in spacers for multi-tier installations
- Remote toggle or infinite control boxes
- Acrylic sneeze guards and tubular stands
- LED Chef bulbs (3 000 K warm or 4 000 K neutral)
Give every dish the “just-made” appeal diners crave—upgrade your hot holding line with the Hatco Glo-Ray® GRAL-108D today.
