Hatco GRAIHL-72D6 Glo-Ray® Heat Lamps
$1,684.68
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Hatco GRAIHL-72D6 Glo-Ray® Heat Lamps is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hatco GRAIHL-72D6 Glo-Ray® Heat Lamps
$1,684.68
Unit price
/
Unavailable
Description

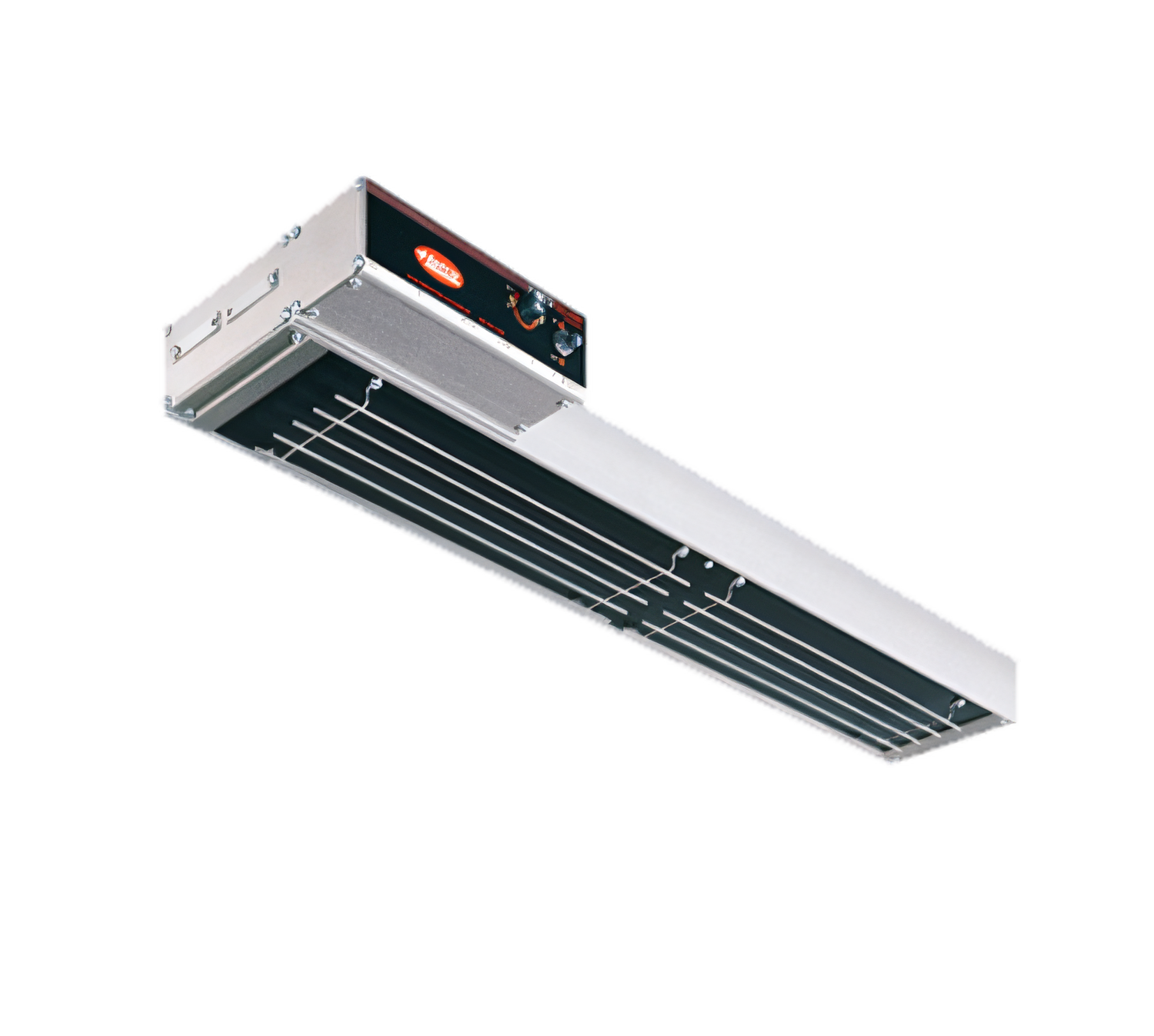

Hatco Glo-Ray® High Watt Dual Infra-Black Strip Heater – 72" with Lights
Model GRAIHL-72D • 3810 W • Dual Housing • 6" SpacerBring consistent, high-performance holding power to wide pass-throughs, buffets and service lines. The 72-inch Glo-Ray® Dual Infra-Black Strip Heater delivers a curtain of gentle, even heat while six bright display lights keep every dish looking fresh and appetising.
Key Features

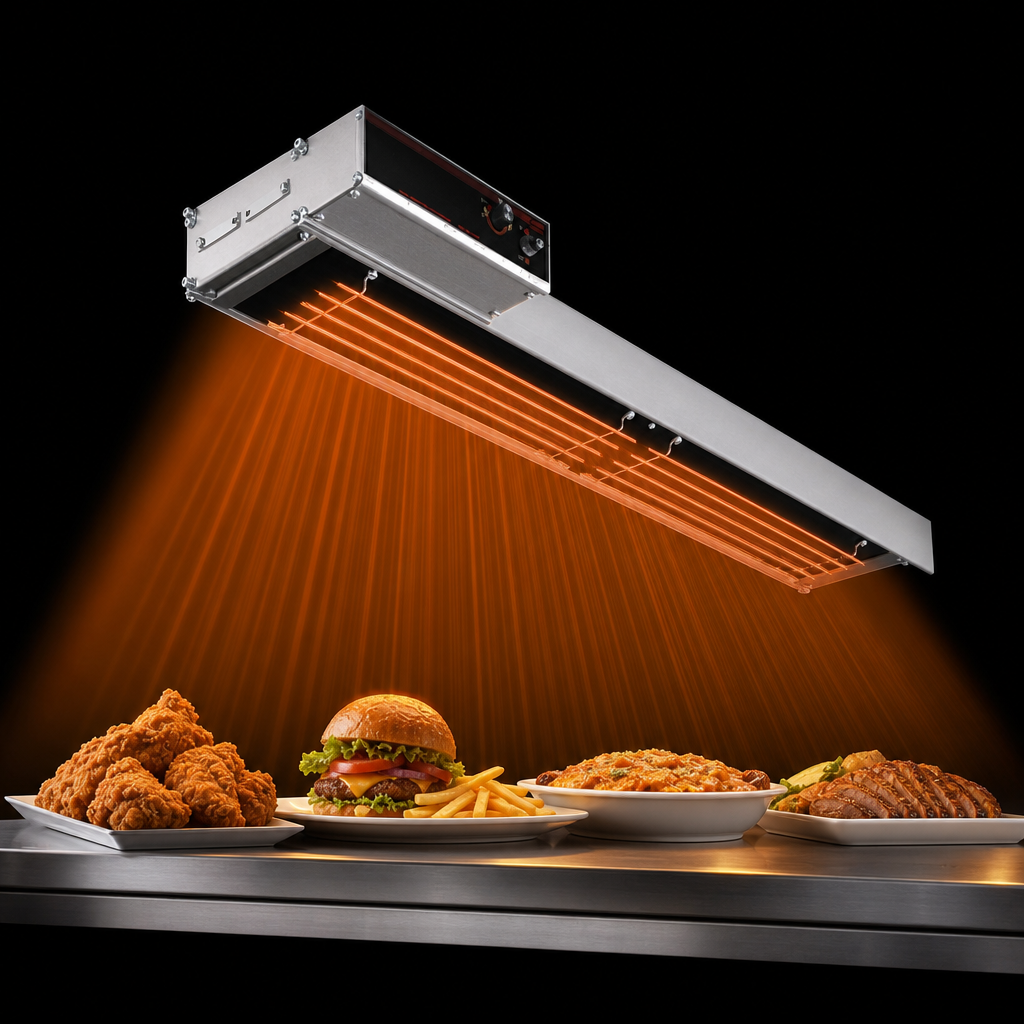

- Infra-Black emitters provide a solid, uniform heat pattern—no hot or cold spots.
- High-output 3,810-watt design maintains safe temperatures for food positioned just 8–14" (203–356 mm) below.
- Dual 6" (152 mm) housings create two independent heat zones in one slim assembly.

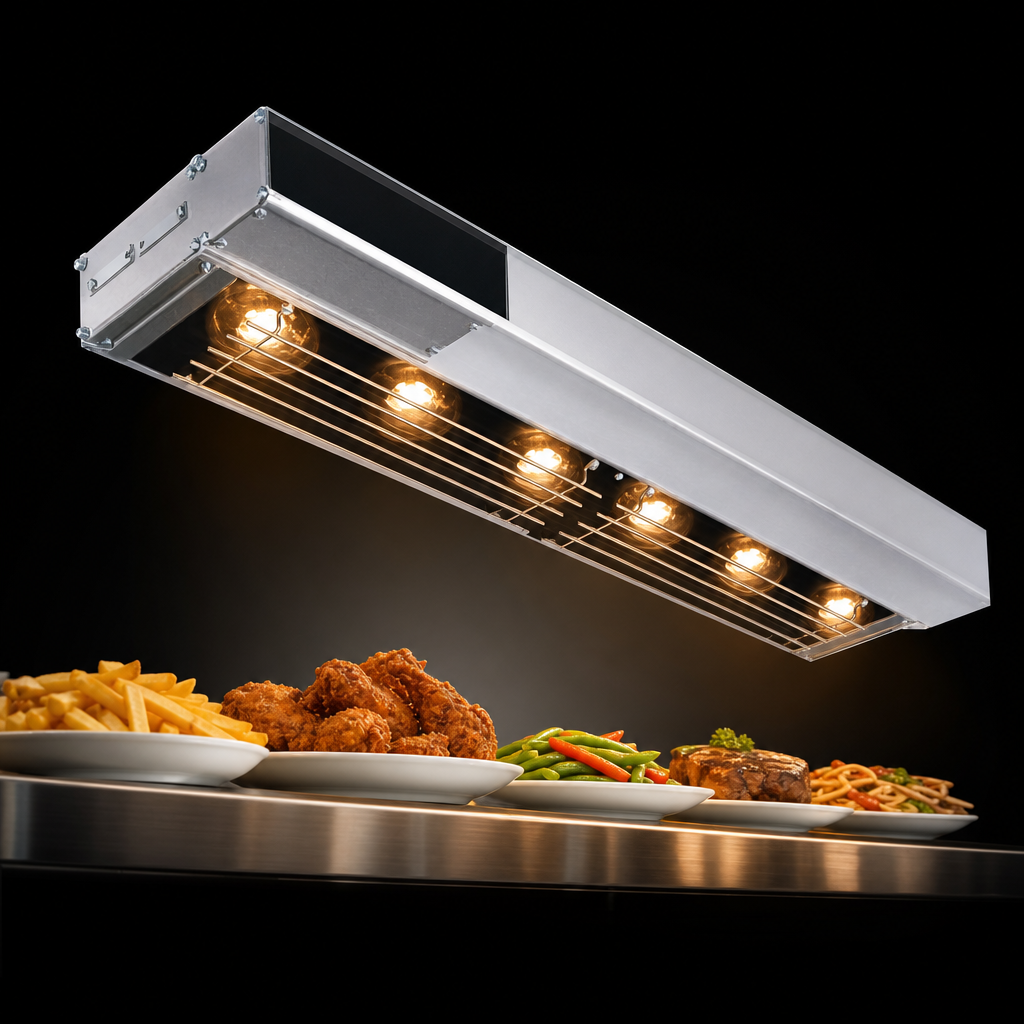

- Six integrated 60 W shatter-resistant display bulbs (halogen/LED upgrades available) enhance food presentation.
- Rigid extruded-aluminum construction will not sag; heavy insulation keeps the exterior cool to the touch.
- Metal-sheathed heating elements are guaranteed against burnout or breakage for two full years.
- Available in a wide palette of designer colors and gloss finishes to match any décor.
- NSF listed, CE marked, cULus certified and proudly Made in the USA.
Technical Specifications
| Overall Width | 72" (1829 mm) |
|---|---|
| Depth × Height | 18" D × 2.6" H (with 6" spacer) |
| Heat Output | 3810 W @ 240 V, single phase |
| Amperage | 15.9 A @ 240 V |
| Heat Zones | 2 (dual housing) |
| Display Lighting | 6 × 60 W incandescent bulbs |
| Recommended Mounting Height | 8–14" (203–356 mm) above a metallic target surface |
| Housing Material | Anodized extruded aluminum |
| Element Spacing | 6" (152 mm) |
| Certifications | NSF, CE, cULus |
| Warranty | 2-year parts & labor (elements 2-year no-burnout) |
| Country of Origin | USA |
Installation Note: This unit requires a Hatco RMB Series remote control enclosure (sold separately) mounted outside the heat zone. Controls, mounting hardware and suspension accessories are not included.
Looking for another length, color or control package? Contact our team—we carry the full Hatco GRAIHL series and can quote any custom configuration.
Features & Specs
Features & Specs
Manufacturer
Hatco
Brand_name
Glo-Ray®
Certifications
NSF, cULus, Made in USA
Height
2.5in
Width
72.0in
Depth
18.0in
Shipping Weight
45.0lbs
Length
67 - 72"
Finish
aluminum
Size
double
Type
lighted
Type of element
black panel heating system
Specifications
Glo-Ray® Infrablack Strip Heater, 72" W, high wattage with lights, metal sheathed heating element, double heater housing 6" spacing, aluminum construction, 3810 watts, NSF, CE, cULus, Made in USA
