Hatco GRAIHL-72D3 Glo-Ray® Heat Lamps
Description

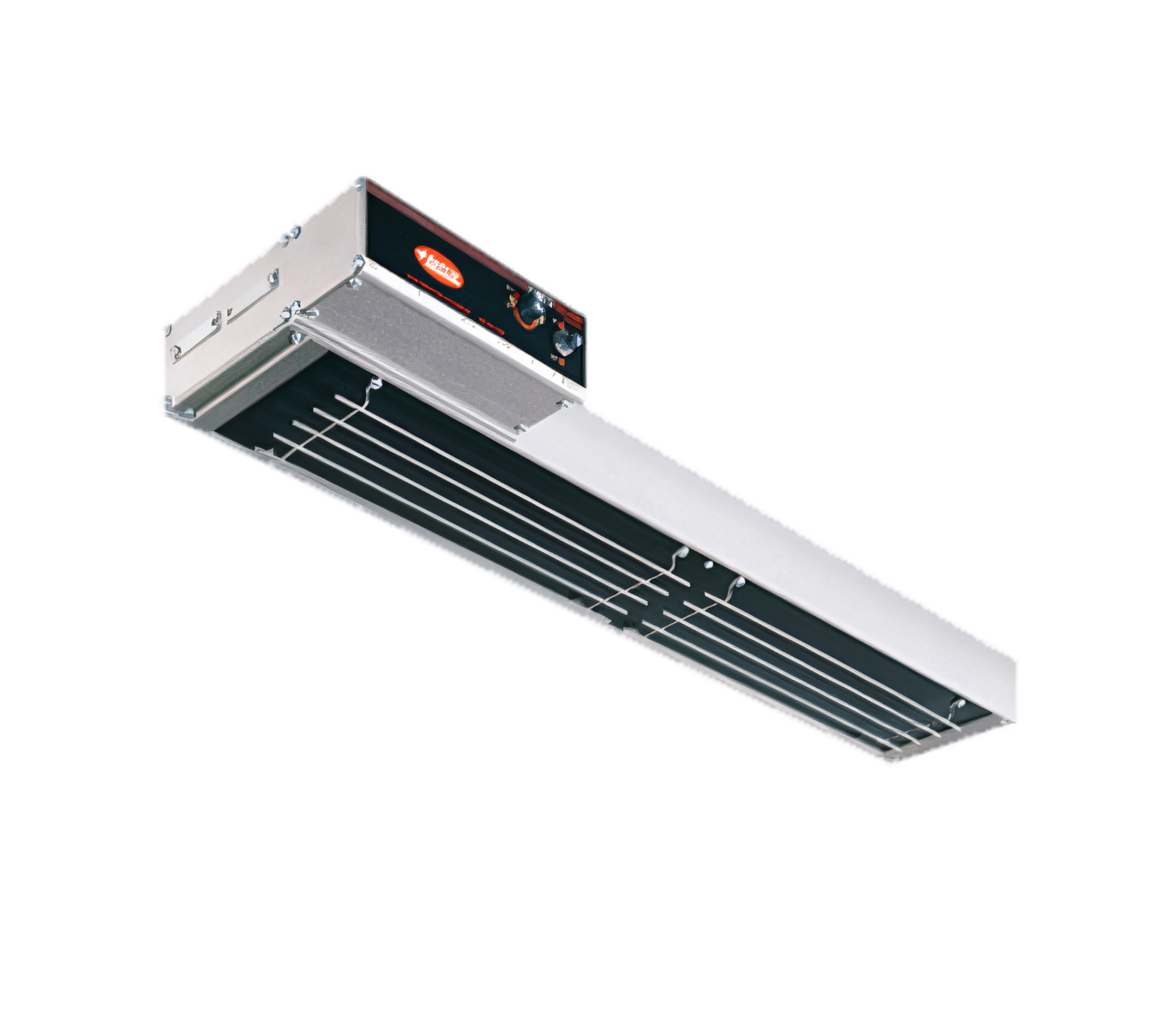

Hatco Glo-Ray® 72" Dual Infra-Black Strip Heater with Lights – 3,810 W
Model GRAIHL-72D | NSF, CE & cULus Listed | Made in USAGive every pan on your buffet line the perfect holding temperature and show-stopping presentation. Hatco’s flagship 72 inch Glo-Ray® dual Infra-Black heater delivers a smooth curtain of infrared heat that locks in serving-ready warmth while six built-in display lights draw guests’ eyes to the food.
Why You’ll Love It

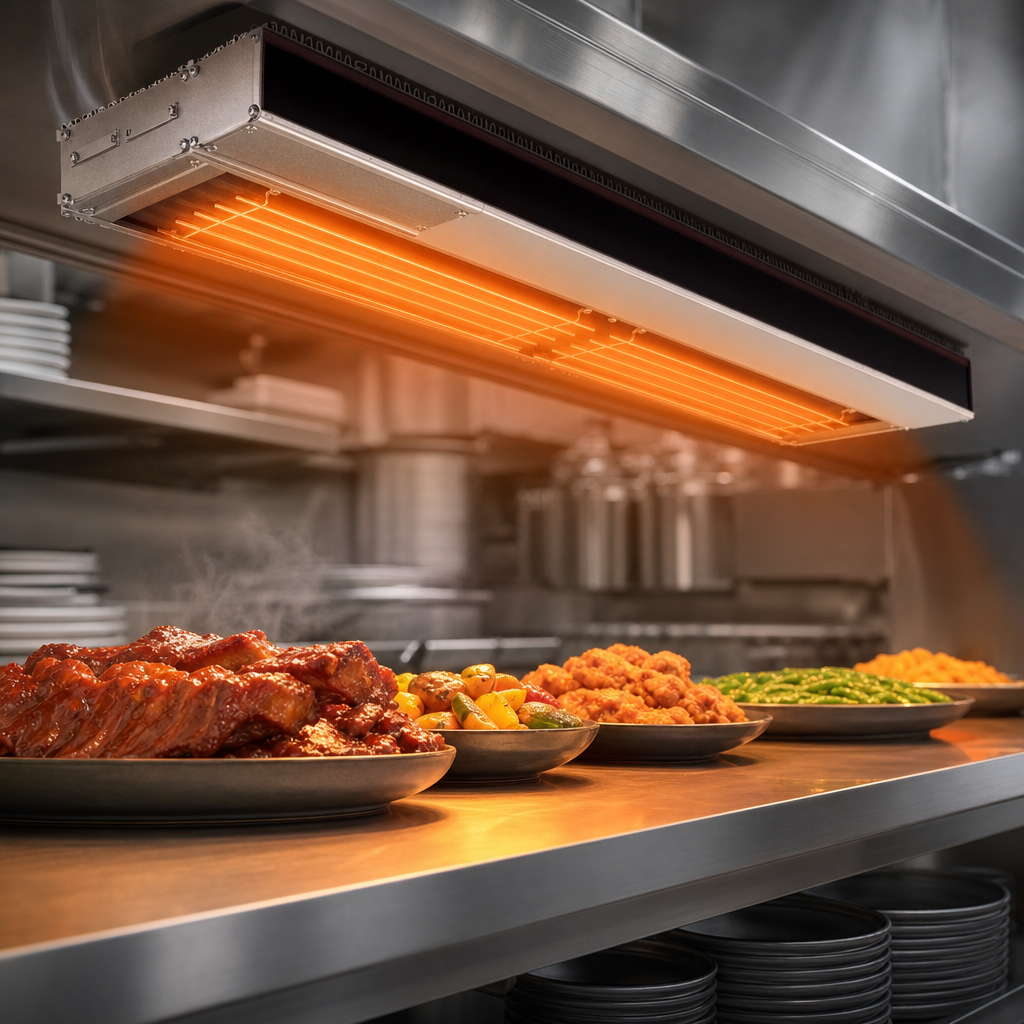

- Dual Infra-Black emitters blanket food with uniform, shadow-free heat—no hot or cold spots.
- High-watt design (up to 3,810 W) keeps even the fullest pans at safe serving temps in high-volume operations.

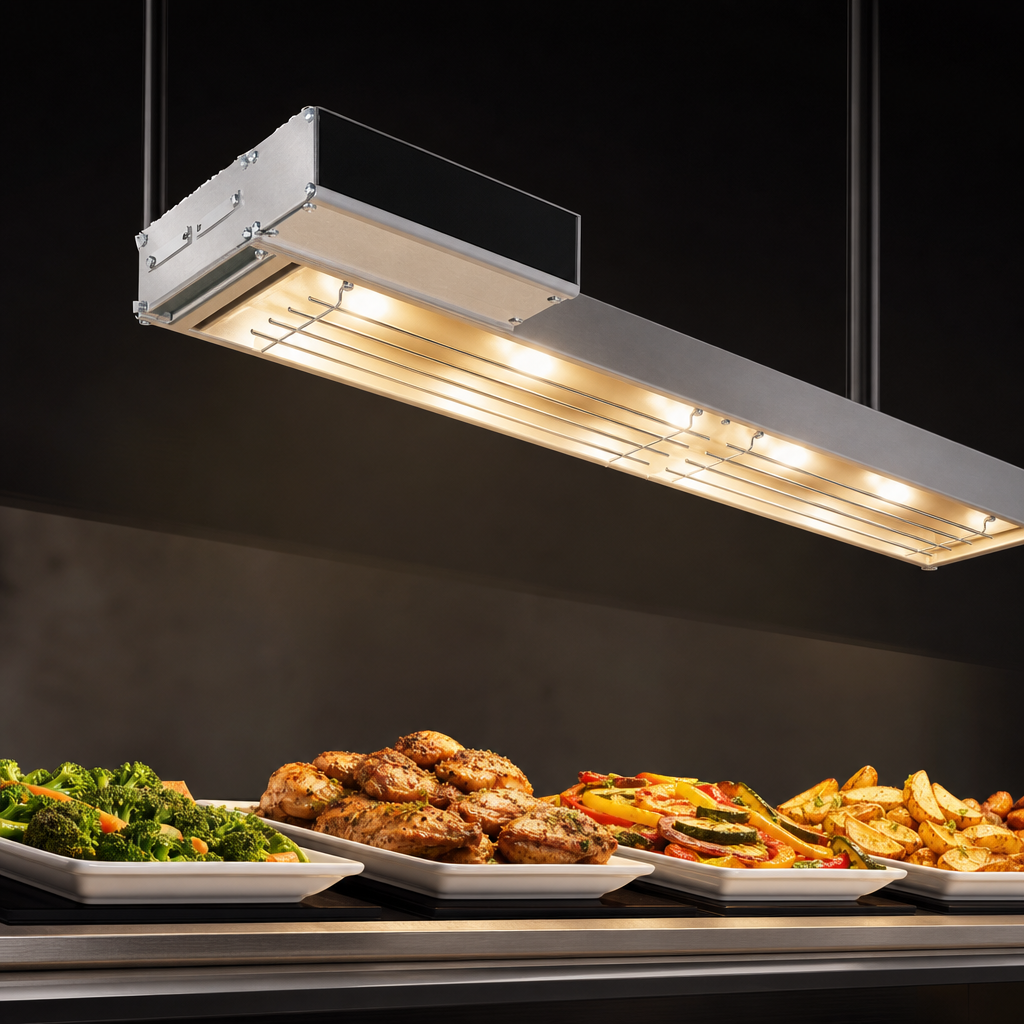

- Six shielded 60 W display bulbs (included) highlight colors and textures to boost impulse sales.
- Durable extruded aluminum housing will not sag, even at 72" spans, and stays cool to the touch thanks to heavy insulation.
- Metal-sheathed heating elements carry a 2-year burnout/breakage warranty for worry-free service.
- Standard 3" (76 mm) element spacing balances heat intensity with countertop clearance; optional 6" spacer available.
- Remote control enclosure (sold separately) lets you mount toggle, infinite or thermostatic controls where operators can reach them—safely outside the heat zone.
- Factory-installed mounting channel; compatible with Hatco angle brackets, tubular stands or chain suspension kits for quick installation.
- Offered in 18+ designer powder-coat and gloss finishes to match your décor (clear anodized aluminum standard).
- Meets NSF/ANSI 4 sanitation standards and bears CE & cULus safety markings.
At-a-Glance Specs
| Overall Width | 72" / 1,829 mm |
|---|---|
| Depth × Height | 15" × 2.6" (381 mm × 66 mm) with 3" spacer |
| Heat Output | 3,810 W @ 240 V | 3,750 W @ 220 V | 3,420 W @ 208 V |
| Current Draw | 15.9 A @ 240 V | 17.0 A @ 220 V | 17.5 A @ 208 V (single-phase) |
| Display Lighting | 6 × 60 W clear incandescent flood bulbs (standard) Halogen & LED upgrades available |
| Construction | Continuous extruded aluminum housing, metal-sheathed elements, heavy insulation |
| Controls | Remote toggle, infinite or thermostatic box (required, ordered separately) |
| Certifications | NSF, CE, cULus |
| Origin | Manufactured in Milwaukee, Wisconsin USA |
Ideal Applications
- Full-service and quick-serve pass-through windows
- Catering lines & banquet halls
- Supermarket hot cases
- Convenience-store grab-and-go programs
Light-equipped units on circuits ≥20 A must be fused at ≤20 A for the light circuit.
Need a custom color, spacer height or mounting kit? Contact our support team before ordering—many options are factory-only and must be specified at time of purchase.
