Hatco  |  Glo-Ray®  |  SKU: GRAIHL-72

Hatco GRAIHL-72 Glo-Ray® Heat Lamps

$960.50
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Hatco Glo-Ray® 72" Infra-Black High-Watt Strip Heater with Lights

Model GRAIHL-72 | 2085 W | NSF, cULus, CE

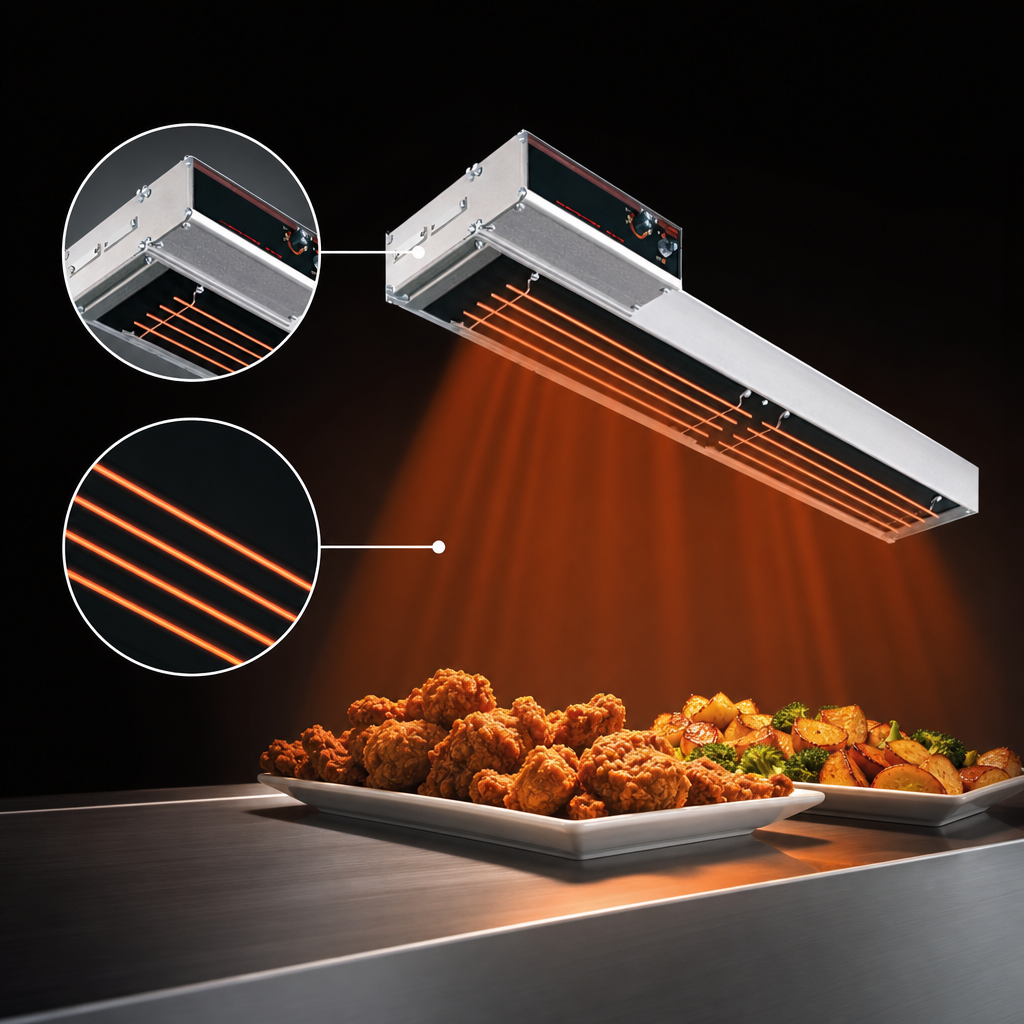

Deliver a flawless, food-safe holding temperature across your entire 6-foot pass-through. Hatco’s flagship Glo-Ray® Infra-Black technology creates a continuous heat curtain while built-in display lights keep entrées looking fresh and irresistible.

Key Benefits
  • Uniform Infra-Black heat eliminates hot & cold spots—ideal for dense pans or delicate plated items.
  • High-watt, metal-sheathed element (2085 W) recovers fast during peak traffic.

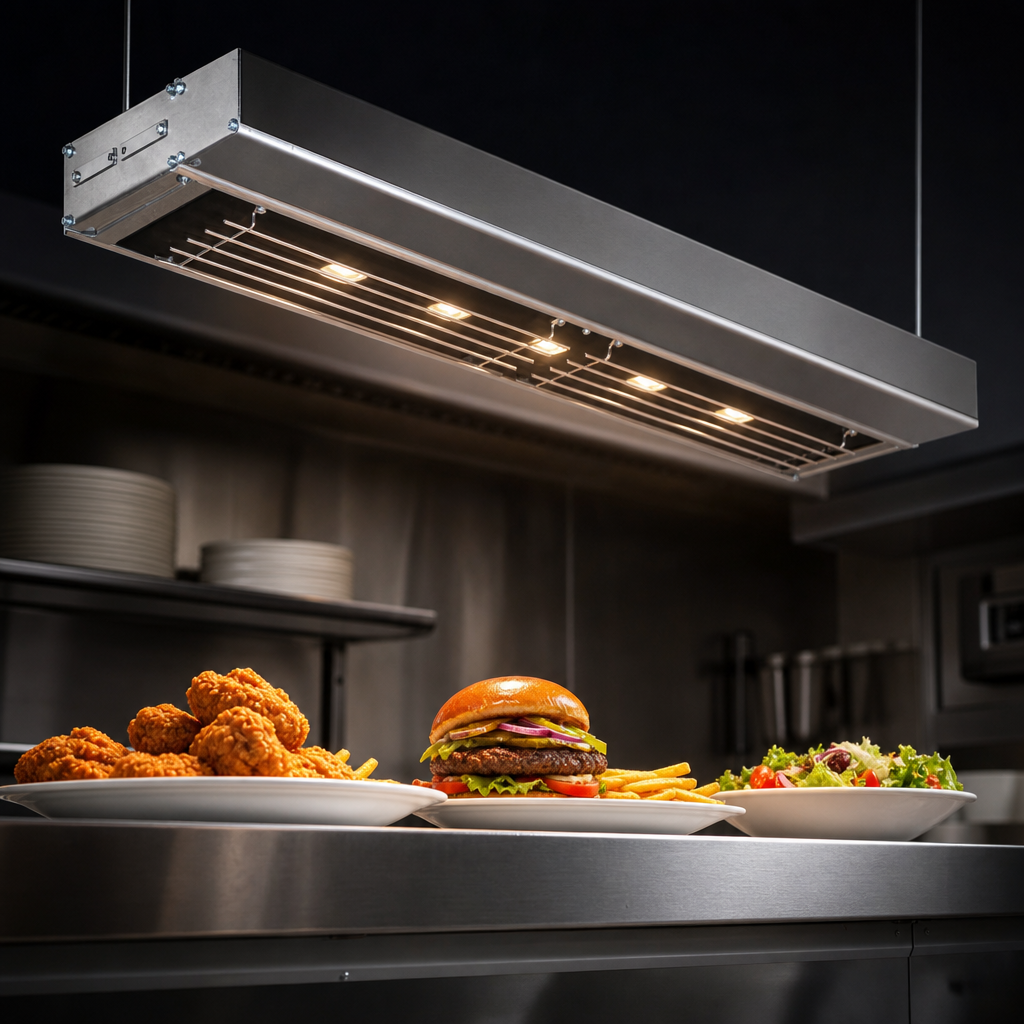

  • Integrated shatter-resistant lamps highlight food quality and improve line visibility.
  • One-piece extruded aluminum housing will not sag, even at 72".
  • Heavy internal insulation keeps exterior surfaces cool for safer operation.
  • Engineered & manufactured in the USA; fully certified for commercial kitchens.
Ideal Applications
  • Pass-through shelves up to 6 ft (1.8 m)
  • Tray make-up and plating lines
  • Buffet, carving & expo stations
  • Drive-thru or carry-out holding racks
Technical Specifications
Overall length 72"  (1829 mm)
Housing width × height 9" × 2.6"  (229 × 66 mm)
Construction Single, extruded aluminum housing
Heating element Infra-Black, metal-sheathed
Total wattage 2085 W max
Voltage options 120/208 V • 120/240 V • 208 V • 220–240 V
Typical amps 11.3 A @ 120/208 V | 10.2 A @ 120/240 V | 8.7 A @ 240 V
Certifications NSF, CE, cULus
Country of origin Made in USA
Customization available: choose from 12 Designer colors, gloss finishes, chain suspension, angle brackets, and remote or thermostatic control boxes. Contact us for a tailored quote.
Installation Note: A remote control enclosure (RMB, TCBI, etc.) is required and sold separately. Mount the heater 4"–10" (102–254 mm) above the product and maintain 3" (76 mm) clearance from back walls. Do not install above or around combustible surfaces.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

NSF, cULus, Made in USA

Height

2.5in

Width

72.0in

Depth

9.0in

Shipping Weight

30.0lbs

Size

single

Type

lighted

Finish

aluminum

Length

67 - 72"

Type of element

black panel heating system

Specifications

Glo-Ray® Infrablack Strip Heater, 72" W, high wattage with lights, metal sheathed heating element, single heater housing, aluminum construction, 2085 watts, NSF, CE, cULus, Made in USA
