Hatco GRAIHL-66D3 Glo-Ray® Heat Lamps
Description

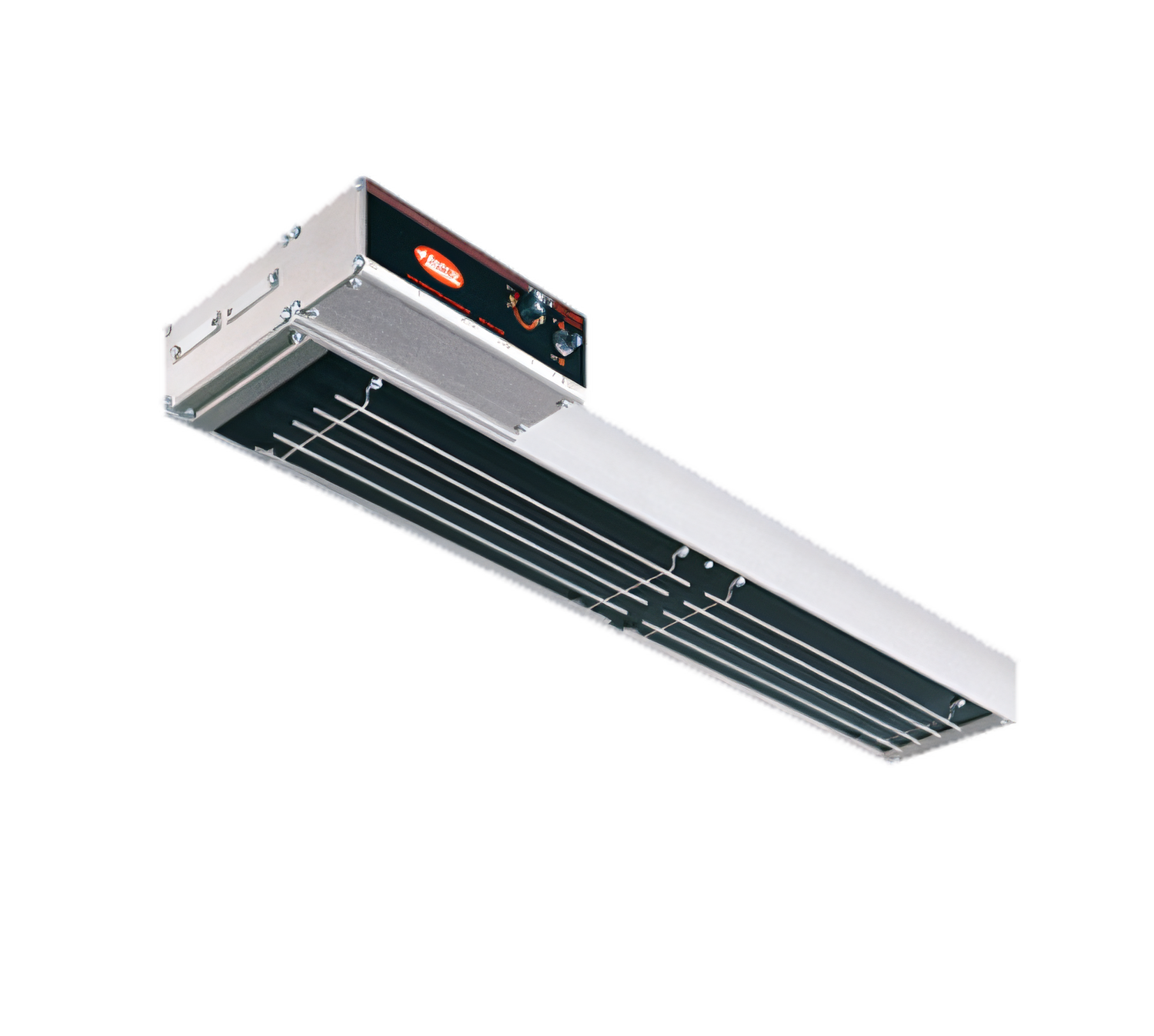

Hatco Glo-Ray® High-Watt Dual Infra-Black Strip Heater – 66" with Lights
Model GRAIHL-66D | 3,420 W | NSF & CE ListedKeep entrées, sides and baked goods at perfect serving temperature while letting their colors shine. Hatco’s 66-inch Glo-Ray® Dual Infra-Black Strip Heater delivers an even “curtain” of infrared heat that eliminates hot spots, reduces product waste and boosts guest satisfaction.
Key Advantages
- High-watt dual Infra-Black emitters provide uniform, penetrating heat across the entire 66" holding zone.
- Five 60 W shatter-resistant display lamps brighten food for irresistible presentation (halogen or LED optional).
- Metal-sheathed elements are backed by a 2-year no-burnout/no-breakage guarantee.
- Rigid, one-piece extruded aluminum housing will not sag—even in high-volume kitchens.
- 3" (76 mm) factory spacer gives a working depth of 15" (381 mm); 6" (152 mm) spacer available for overshelf installs.
- Heavy insulation keeps the exterior cool for safer, more comfortable operation.
- Thermostatic or infinite remote control enclosures (RMB series) maintain consistent holding temps (sold separately).
- NSF, CE and cULus certifications plus “Made in USA” quality for worry-free compliance.
Perfect For
- Pass-through windows & expo stations
- Buffet & carving lines
- Drive-thru assembly counters
- Cafeteria tray slides & pizza make-up tables
Specifications at a Glance
| Overall width | 66" (1,676 mm) |
|---|---|
| Depth × height | 15" × 2.6" (381 × 66 mm) with 3" spacer |
| Total wattage | 3,420 W (heat + lights) |
| Voltage options | 120/208 V, 120/240 V, 208 V, 220 V, 240 V – single phase |
| Amps @ 240 V | 14.3 A |
| Heat technology | Dual Infra-Black metal-sheathed elements |
| Display lighting | 5 × 60 W incandescent (standard) |
| Construction | Clear-anodized extruded aluminum (designer colors available) |
| Mounting height | 8"–14" (203–356 mm) above a metallic surface |
| Certifications | NSF, CE, cULus |
| Origin | Milwaukee, Wisconsin, USA |
Popular Factory Options
- Designer color or gloss finish powder-coated housings
- 6" (152 mm) spacer for deeper overshelf applications
- Protective element wire guards
- Remote toggle, infinite or thermostatic control enclosures (RMB series)
- Non-adjustable tubular stands or chain suspension kit
- Chef-friendly LED bulbs (3000 K warm or 4000 K cool)
Unsure which controls or mounting hardware you need? Our equipment specialists are available 24/7 to help you build the perfect system.
